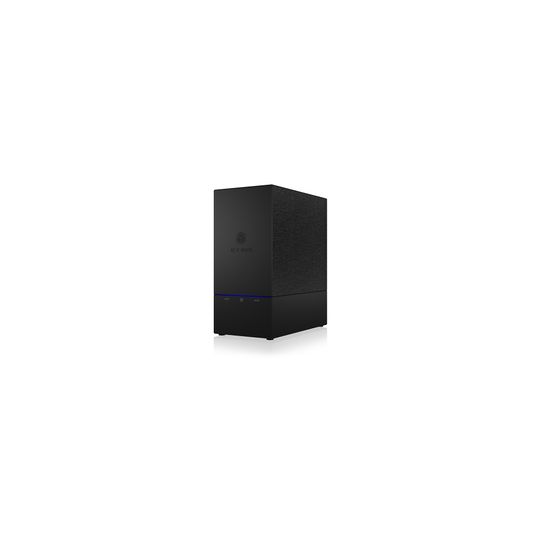

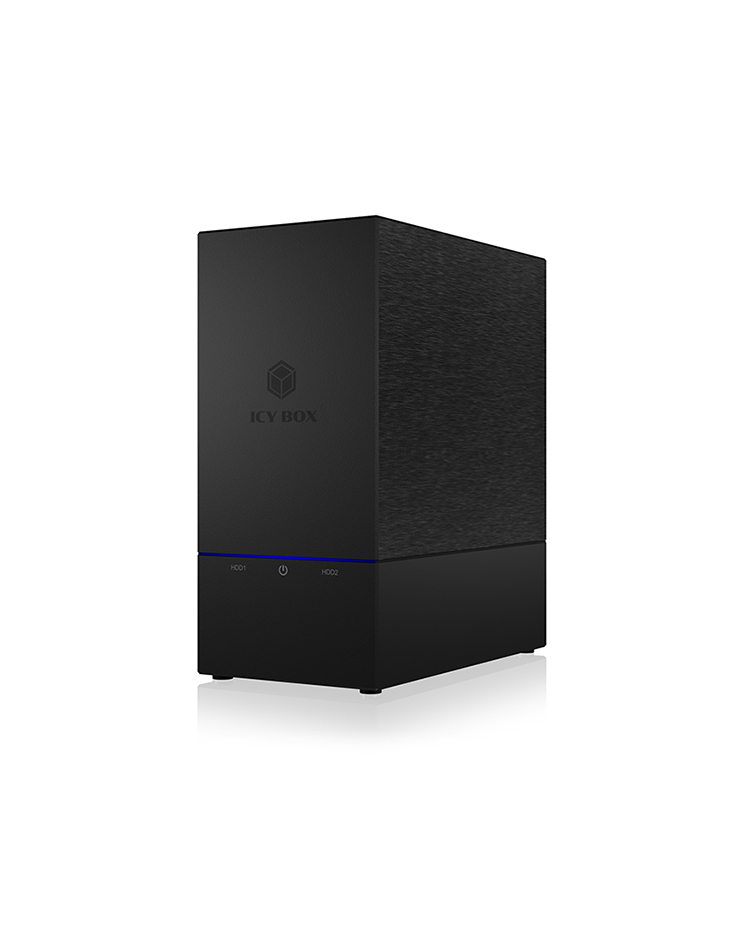

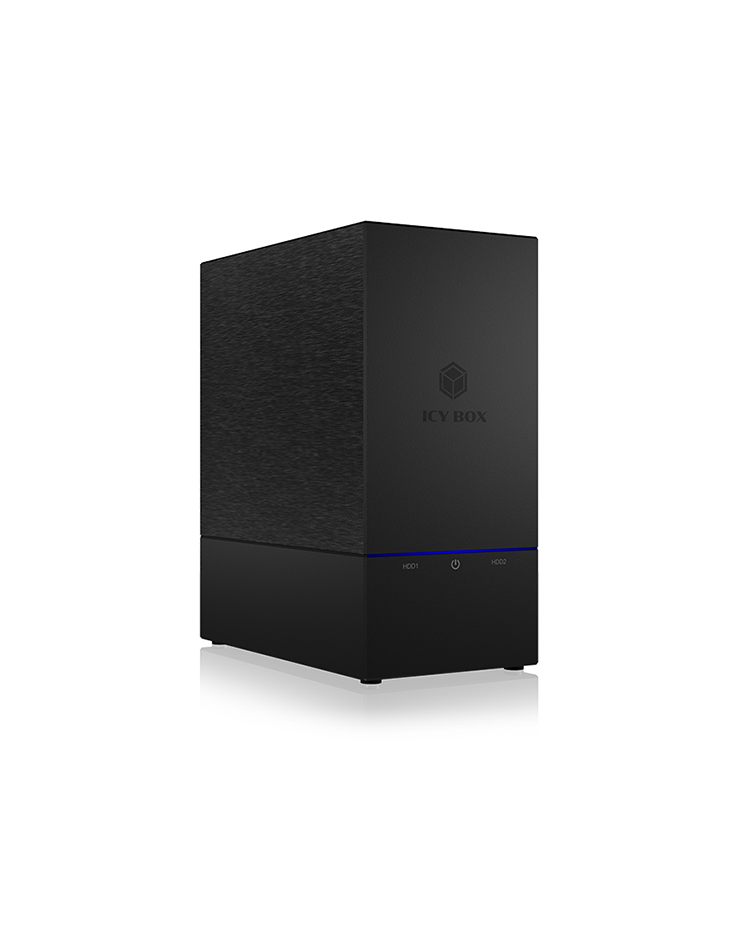

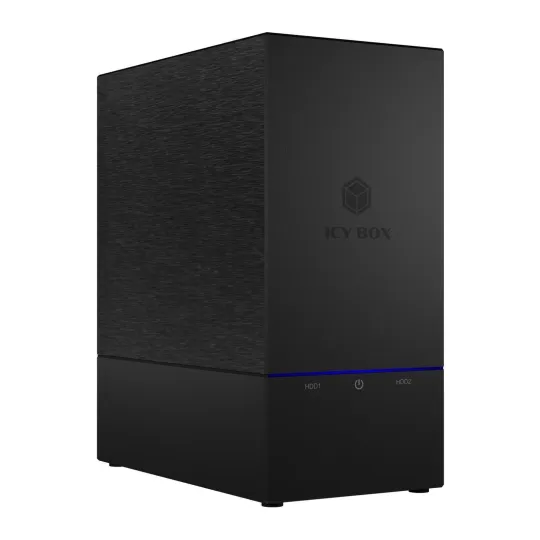

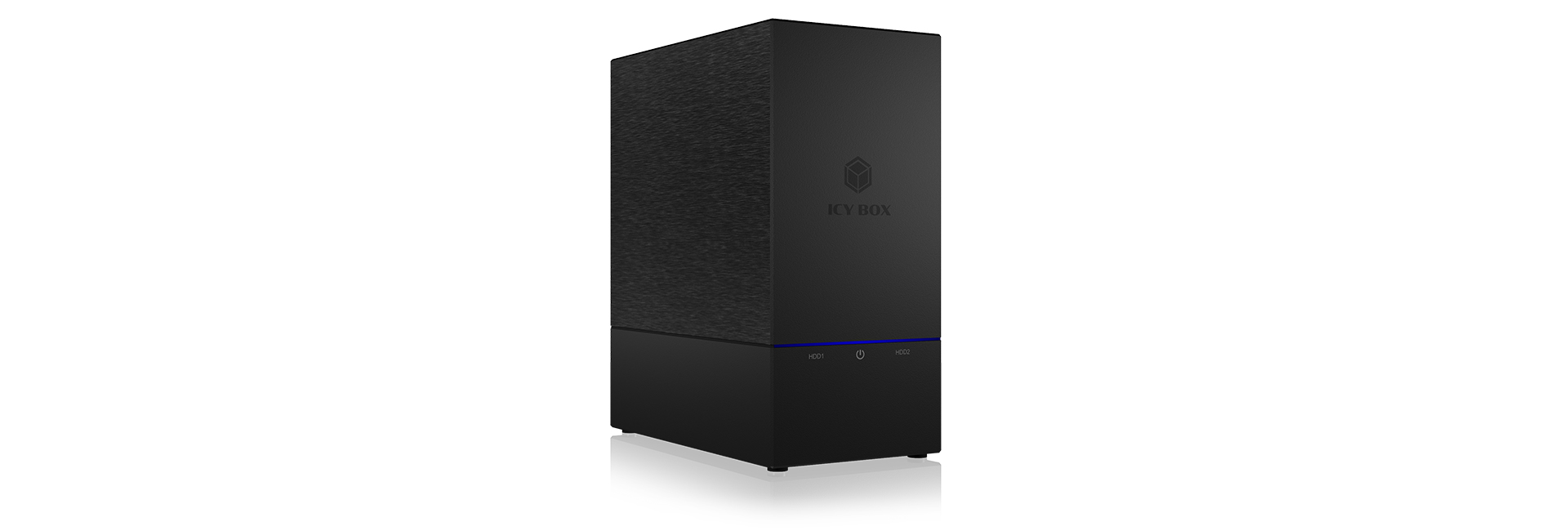

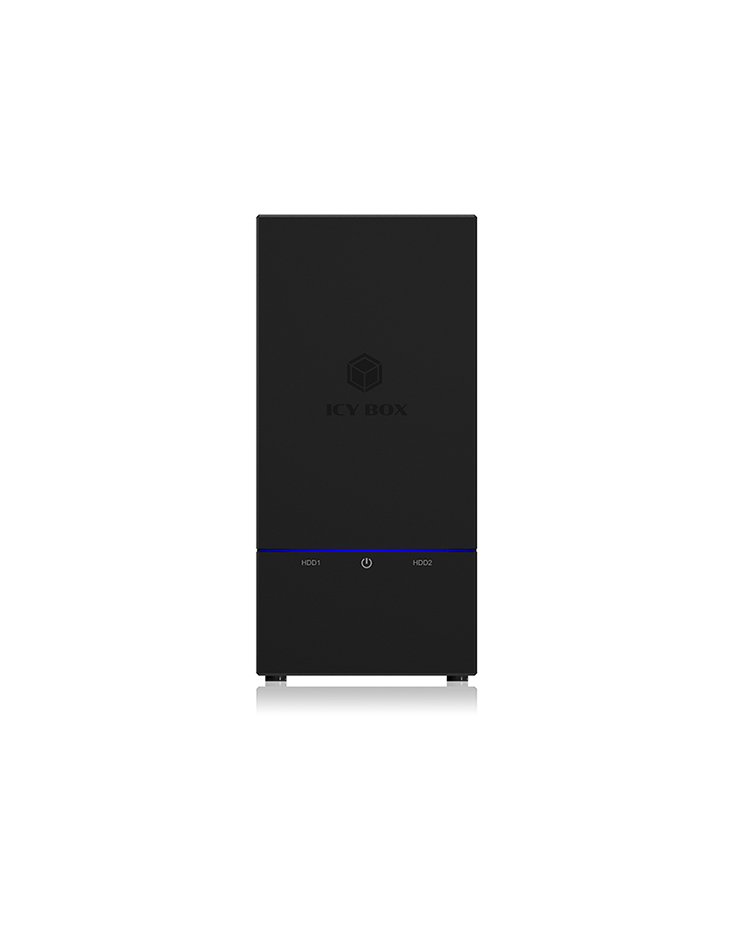

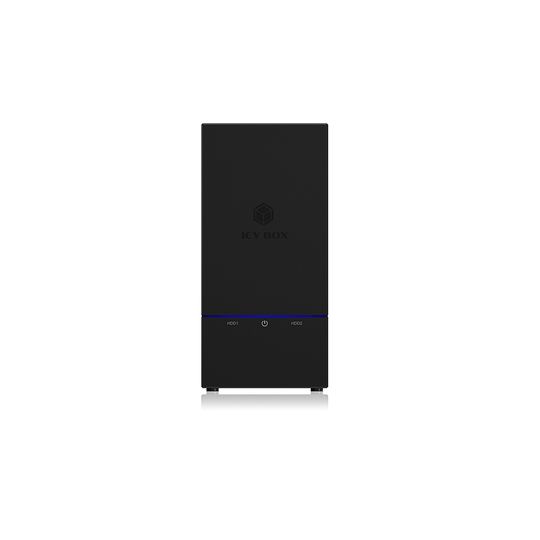

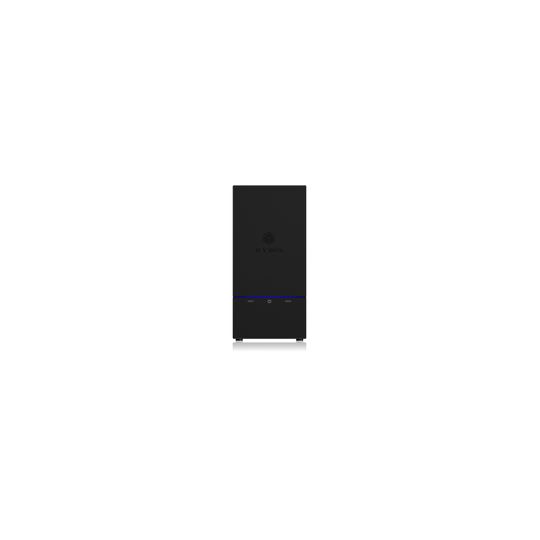

Hýsing 3,5 Icybox USB3 Type-C 2X SATA RD3621-C31
Þessi tveggja diska hýsing styður fjögur RAID snið – RAID 0, RAID 1, SINGLE og LARGE – sem gerir það einstaklega fjölhæft. Hvort sem þú vilt hámarkshraða, speglun gagna til öryggis eða einfaldlega sameina tvo diska í eitt drif, þá ræður IB-RD3621-C31 við verkefnið.
Innbyggð 60 mm kælivifta tryggir stöðugan og kaldan rekstur, jafnvel við mikla notkun, og LED-ljós sýna greinilega stöðu kerfis, diska og mögulegar villur. Diskaskipti eru einföld þökk sé HotSwap og Plug & Play, án þess að slökkva þurfi á tækinu.
Tilvalin lausn fyrir:
- Gagnageymslu og afritun
- Mynd- og myndbandsvinnslu
- Heimaskrifstofur og fagnotendur
- Windows® og macOS® notendur
Tæknilýsing
- Vörunúmer: IB-RD3621-C31
- Framleiðandi: ICY BOX (RaidSonic Technology GmbH)
- Almennar upplýsingar
- Gerð: Ytra RAID hýsli
- Fjöldi diska: 2
- Diskastærðir: 2,5" og 3,5"
- Diskaviðmót: SATA I / II / III (allt að 6 Gbit/s)
- Hámarks diskastærð: Ótakmörkuð (háð stýrikerfi)
- RAID stuðningur
- RAID 0
- RAID 1
- SINGLE
- LARGE
- Sjálfvirk endurbygging (Auto Rebuild)
- Tenging og afköst
- Tenging við tölvu: USB 3.1 Gen 2 Type-C
- Hámarks gagnaflutningur: Allt að 10 Gbit/s
- UASP stuðningur: Já
- Notkun og stjórnun
- HotSwap: Já
- Plug & Play: Já
- Rafrofi: Já
- LED-ljós: Rafmagn, diskavirkni, aðgangur, villa
- Kæling
- Virk kæling með viftu
- Viftustærð: 60 × 60 × 10 mm
- Samhæfni
- Stýrikerfi: Windows® og macOS®
- Rafmagn
- Ytri straumbreytir
- Inntak: AC 100–240 V, 1.2 A
- Úttak: 12 V / 3 A (36 W)
- Hönnun
- Litur: Svartur
- Efni: Plast
- Mál (tæki): 146 × 82 × 174 mm
- Þyngd: 0,498 kg
Í kassanum
- ICY BOX IB-RD3621-C31
- Ytri straumbreytir
- USB-C í USB-C kapall
- 2× millistykki fyrir 2,5" diska
- Skrúfusett
- Notendahandbók
Name is program

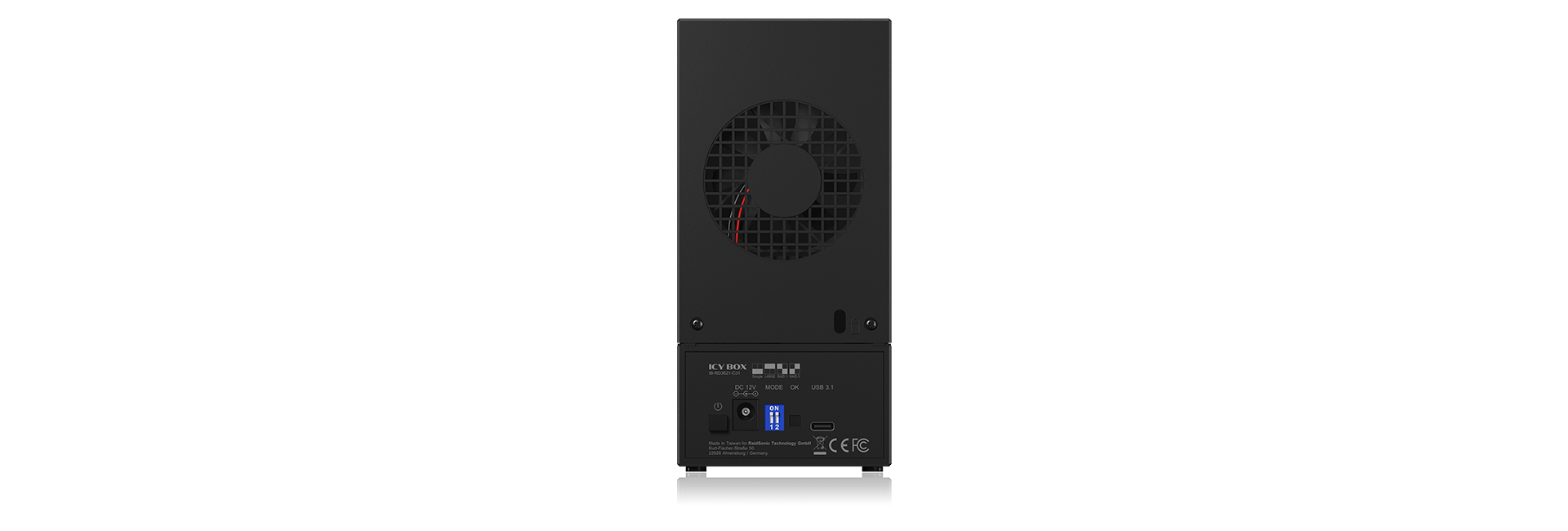

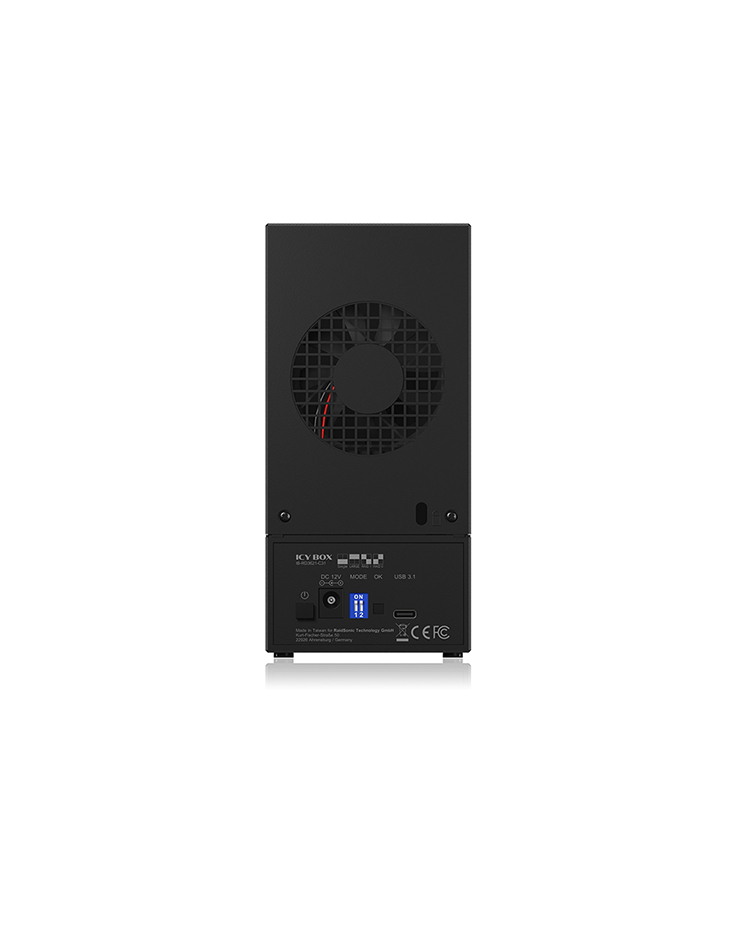

The IB-RD3621-C31 is made of lightweight plastic. Since raiding is very heavy on the drives a lot of heat is produced, the fan on the back of the enclosure is perfectly capable of cooling the HDDs.
Energy efficient
Thanks to the ON/OFF switch, the IB-RD3621-C31 is a true energy saver. What is likewise well-controlled are high data transfer rates via USB 3.1 (Gen 2) connection. If desired, the drives are very easy to replace thanks to HotSwap and Plug & Play functions.
Have the pleasure - twice!

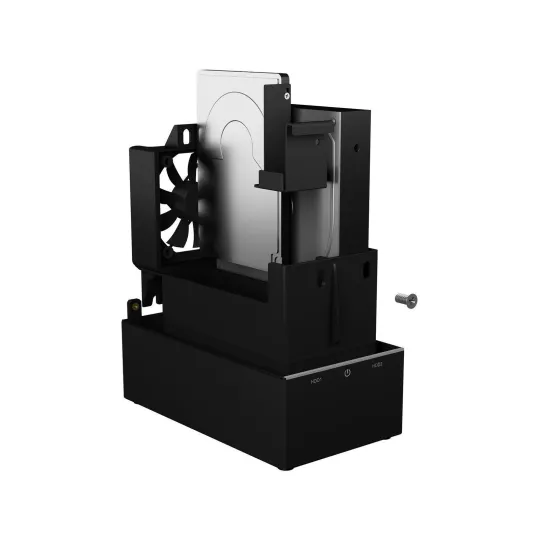

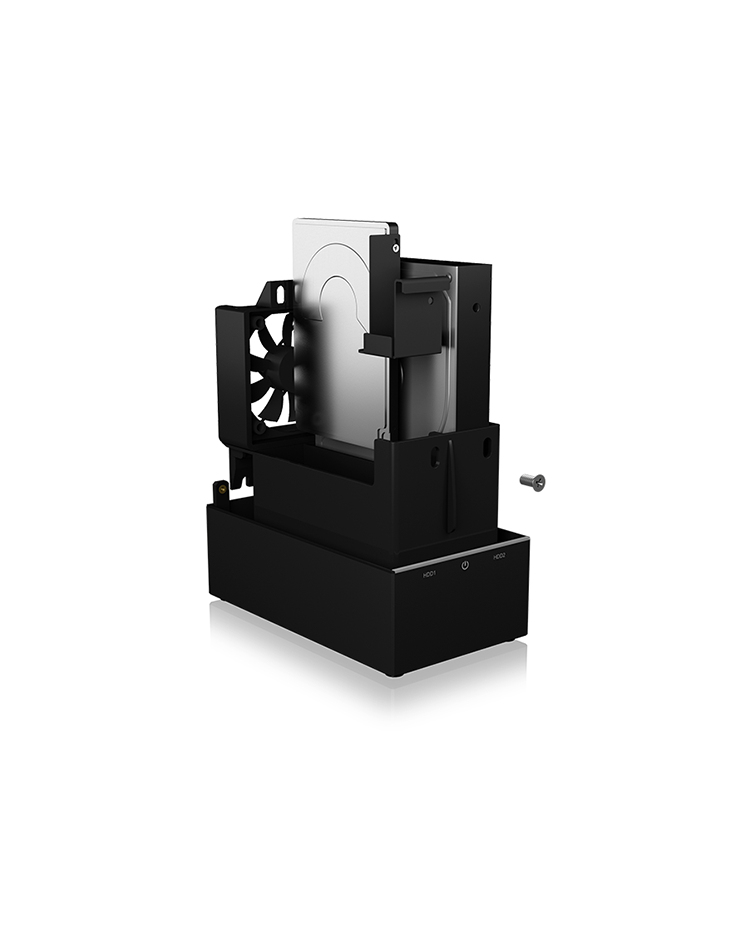

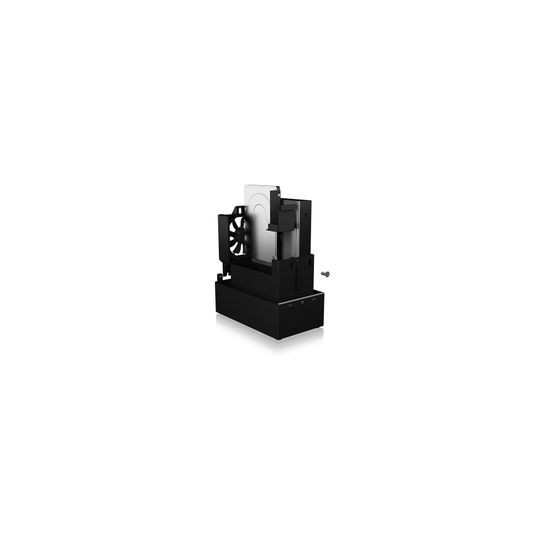

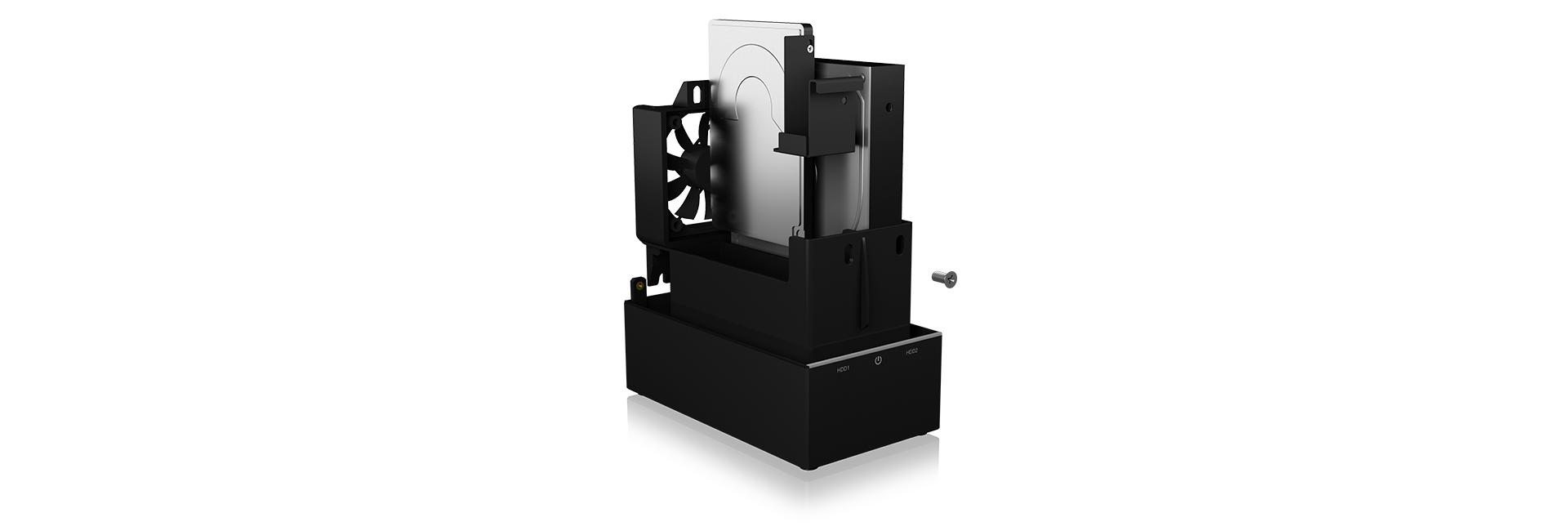

Two drives in the form factor 2.5" or 3.5" fit into this RAID enclosure. Available RAID modes are SINGLE, LARGE, RAID 0, and RAID 1. That makes this candidate beautifully versatile and prepared for any situation.
ICY BOX IB-RD3621-C31, 0 TB, 498 g, Desktop, Black
- Home & Home Office
- Desktop Black
- USB connectivity
| RAID enclosure for 2x HDD/SSD with USB 3.1 (Gen 2) Type-C® interface and fan ICY BOX IB-RD3621-C31, 0 TB, 498 g, Desktop, Black |
|
| Storage | |
|---|---|
| Storage drives installed: | No |
| Installed storage drive type: | No |
| Total installed storage capacity: | 0 TB |
| Supported storage drive types: | HDD |
| Number of storage drives supported: | 2 |
| Supported storage drive interfaces: | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported: | 2.5,3.5" |
| RAID levels: | 0, 1 |
| Data transfer rate: | 6 Gbit/s |
| Ports & interfaces | |
|---|---|
| USB connectivity: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Design | |
|---|---|
| Device class: | Home & Home Office |
| Chassis type: | Desktop |
| Housing material: | Plastic |
| Internal: | No |
| Product colour: | Black |
| LED indicators: | Access, Error, HDD |
| Number of fans: | 1 fan(s) |
| Fan diameter: | 6 cm |
| Power | |
|---|---|
| AC input voltage: | 100 - 240 V |
| DC output voltage: | 12 V |
| System requirements | |
|---|---|
| Mac compatibility: | Yes |
| Mac operating systems supported: | Yes |
| Windows operating systems supported: | Yes |
| Weight & dimensions | |
|---|---|
| Width: | 82 mm |
| Depth: | 146 mm |
| Height: | 174 mm |
| Weight: | 498 g |
| Packaging data | |
|---|---|
| Package weight: | 1.22 kg |
| Packaging content | |
|---|---|
| Cables included: | USB Type-C |
| Screws included: | Yes |
| Logistics data | |
|---|---|
| Country of origin: | Taiwan |
| Products per master (outer) case: | 10 pc(s) |
| Harmonized System (HS) code: | 84718000 |
