Net yfir rafmagn TP-Link 1300M TL-WPA8631P KIT WiF
Tæknilegir eiginleikar
- AV1300 Powerline (HomePlug AV2)

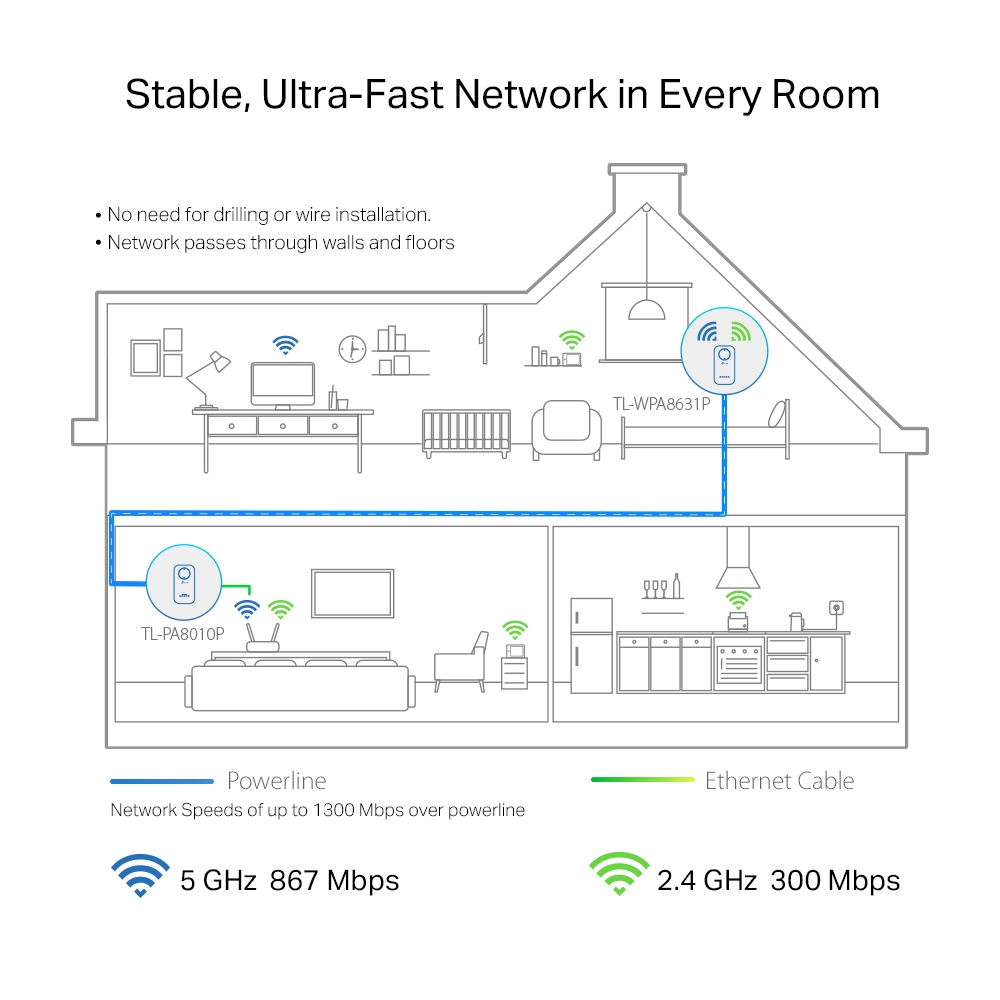

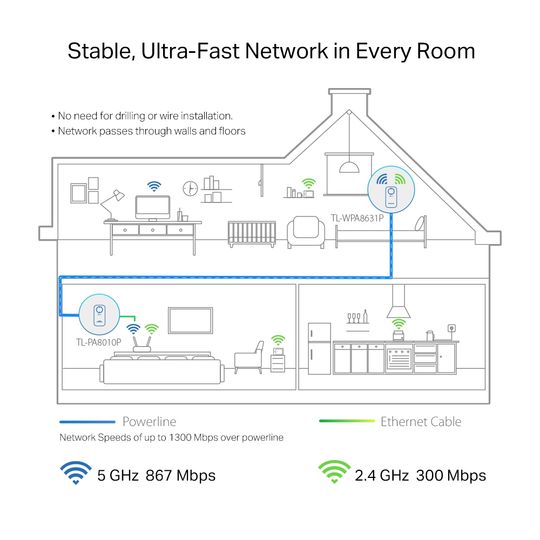

- Nýtir rafmagnslagnir hússins sem netsamband
- Fræðilegur Powerline hraði allt að 1300 Mbps
- Tvíbanda Wi-Fi (AC1200)
- 300 Mbps á 2,4 GHz
- 867 Mbps á 5 GHz
- 3 × Gigabit LAN (10/100/1000 Mbps)

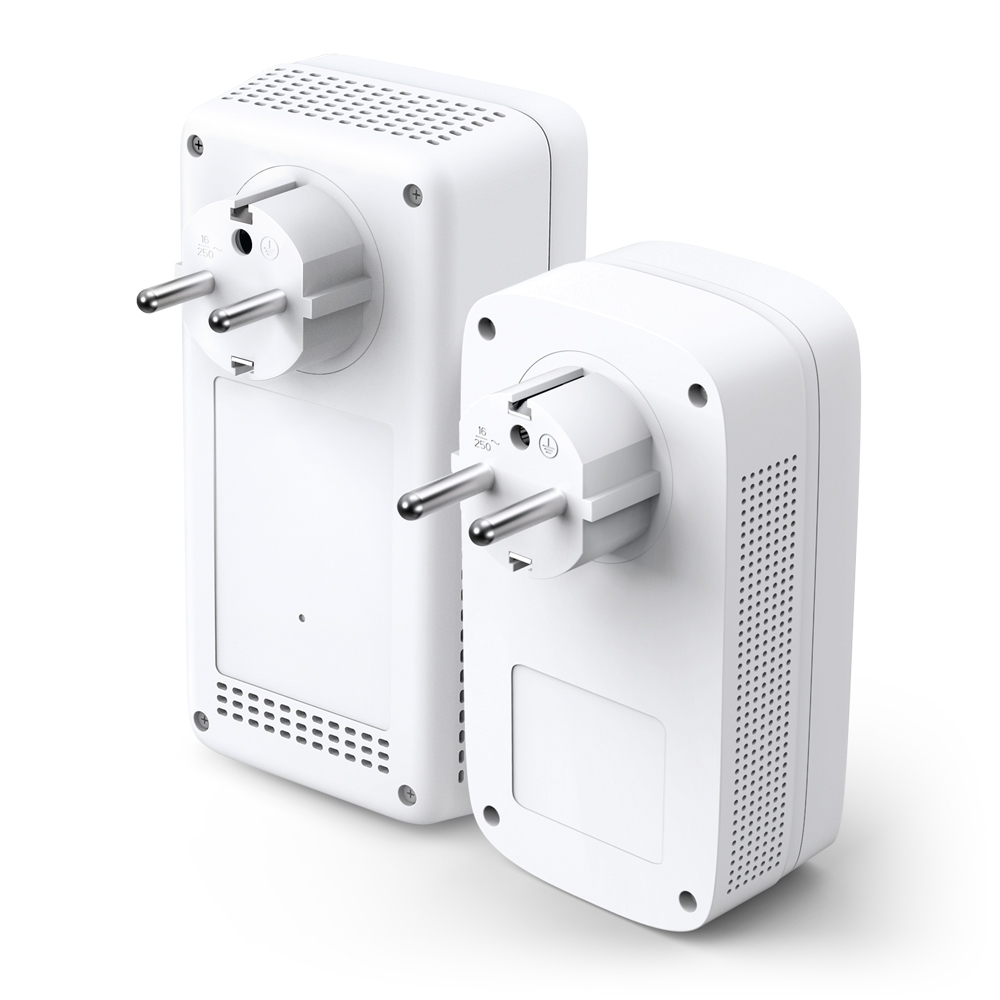

- Innbyggð rafmagnsinnstunga (Passthrough) – rafmagnsinnstungan tapast ekki
- Gigabit Ethernet fyrir hraðvirkar snúrutengingar

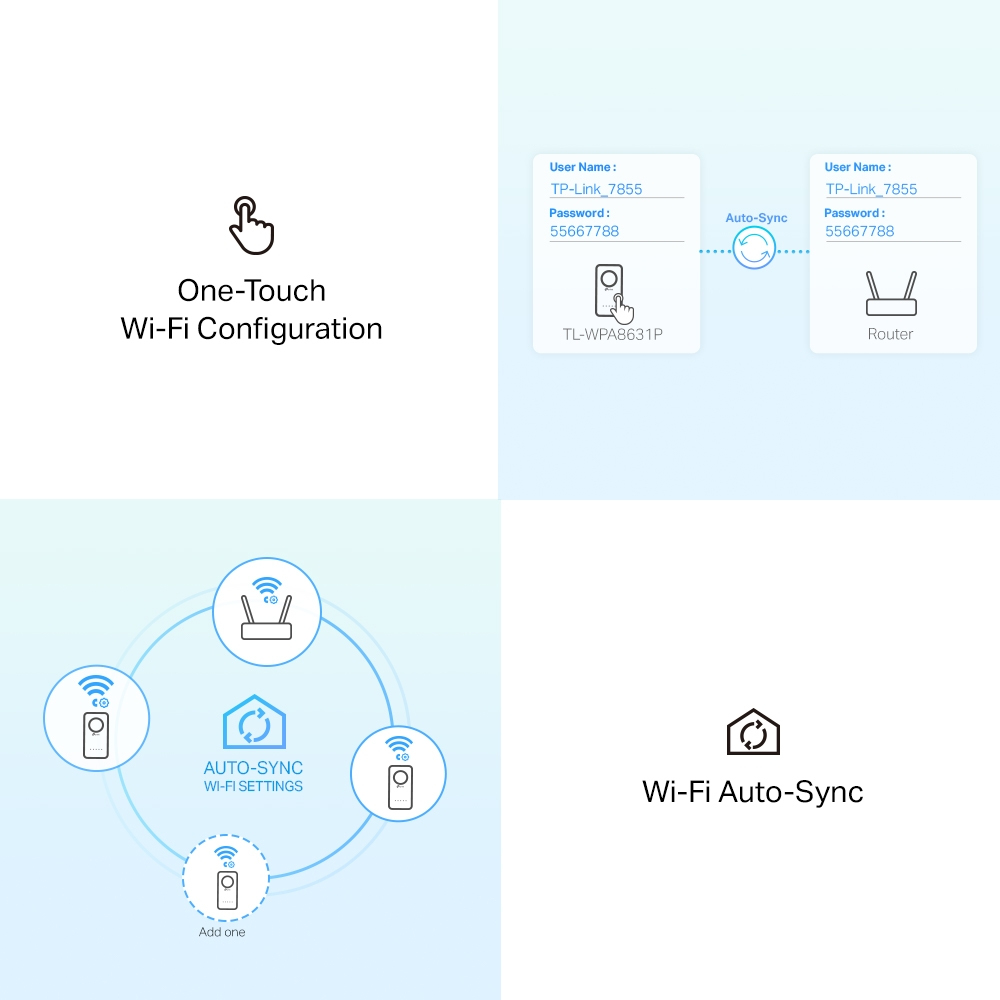

- Wi-Fi Clone samstillir SSID og lykilorð frá núverandi beini
- MU-MIMO stuðningur fyrir fleiri samtímis notendur
- Beamforming bætir drægni og stöðugleika þráðlauss nets

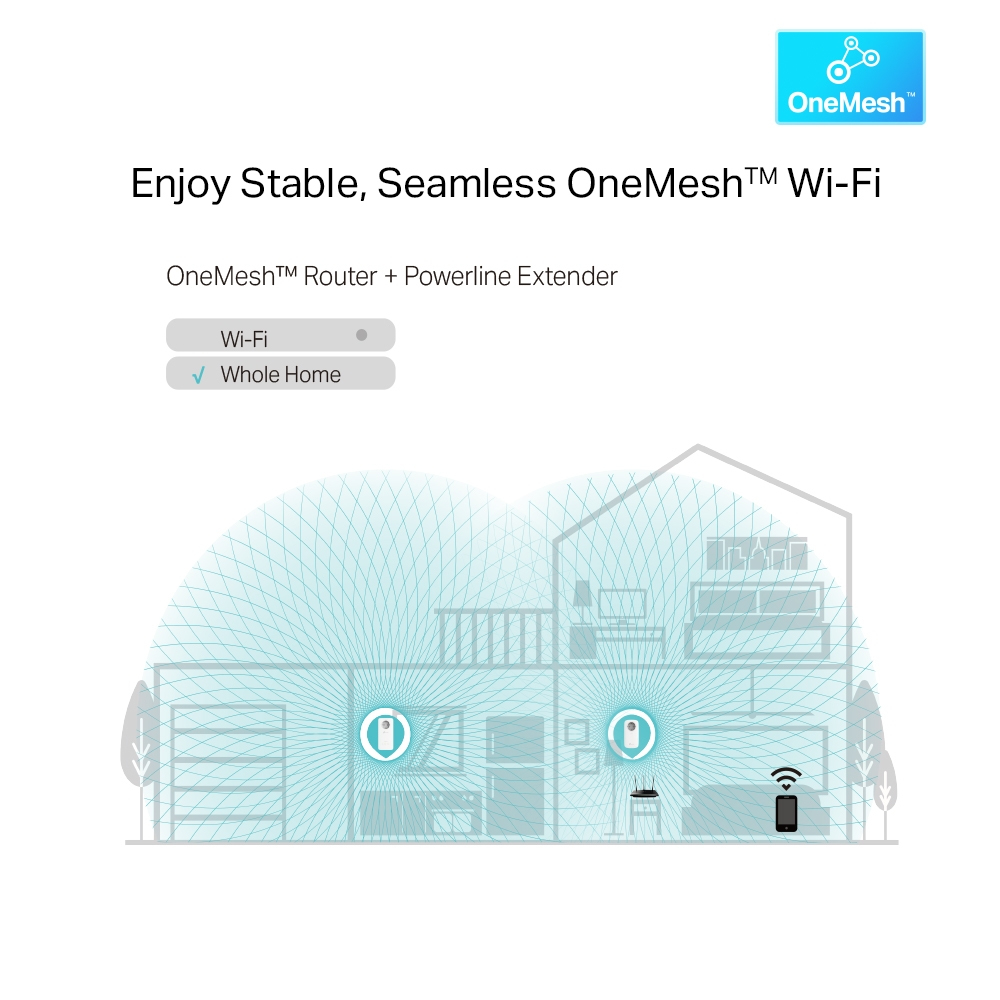

- OneMesh stuðningur (á samhæfum TP-Link beinum)

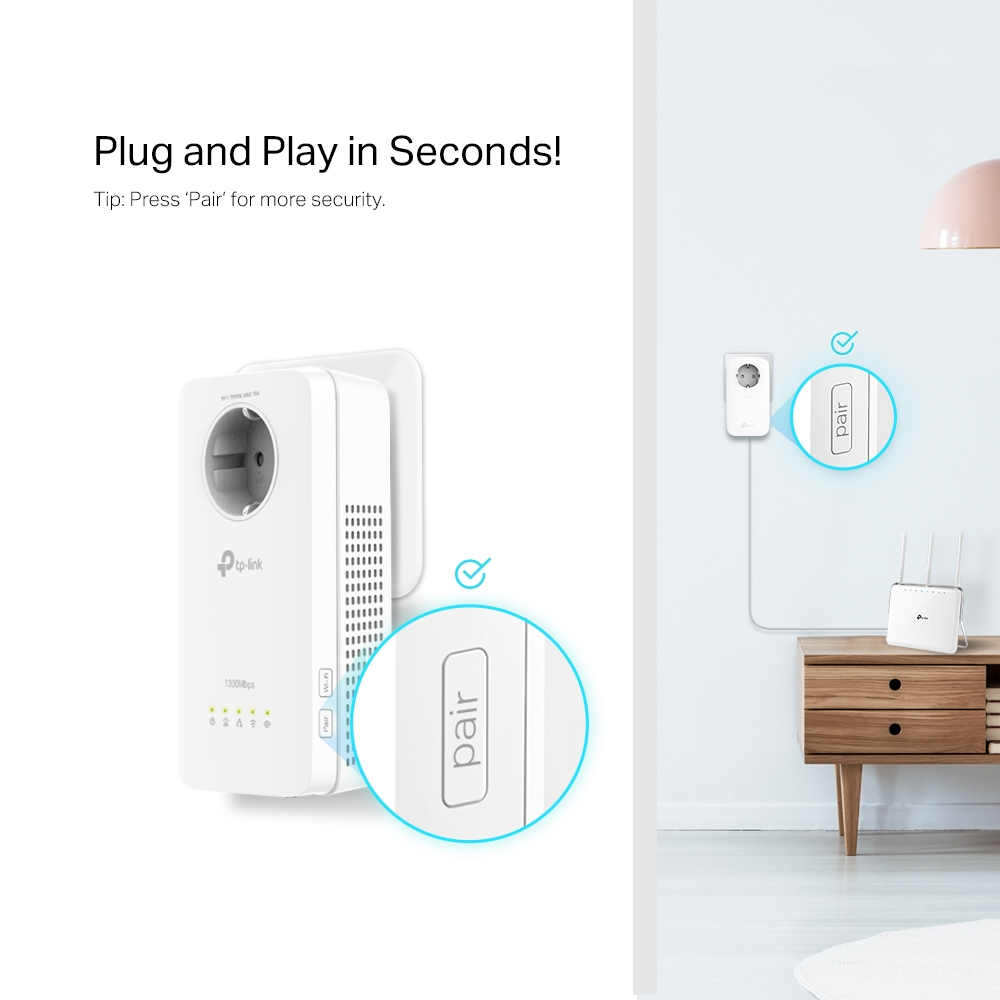

- Pair-hnappur fyrir örugga pörun Powerline tækja
- WPA/WPA2 þráðlaus dulkóðun
- Stjórnun með tpPLC hugbúnaði eða TP-Link tpPLC appi
- Plug & Play uppsetning
- Samhæft við aðra HomePlug AV og AV2 Powerline millistykki
- Styður Windows, macOS og Linux fyrir stjórnun með tpPLC hugbúnaði.
Í pakkanum

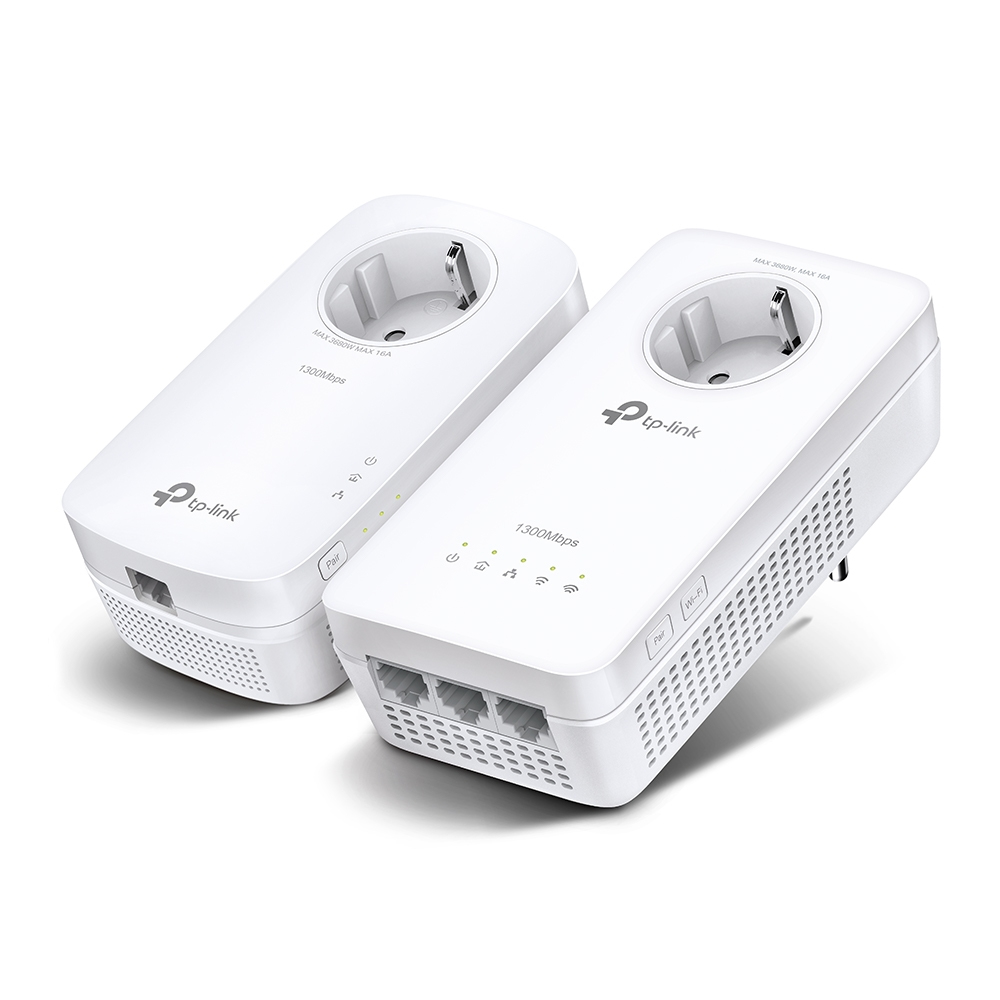

- 1 × TL-WPA8631P Powerline Wi-Fi aðgangsstaður
- 1 × TL-PA8010P Gigabit Powerline millistykki með passthrough
- 2 × RJ45 Ethernet netkaplar
- Flýtileiðbeiningar (Quick Installation Guide)
Athugið
- Powerline-afköst ráðast af gæðum og uppbyggingu raflagna í húsnæðinu.
- Bestur árangur fæst þegar millistykkin eru tengd beint í vegginnstungu, ekki í fjöltengi eða spennuvernd.
TP-Link TL-WPA8631P KIT, 300 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Type E / F, Gigabit Ethernet, 10,100,1000 Mbit/s, Wi-Fi 5 (802.11ac)
- 300 Mbit/s 300 m
- Gigabit Ethernet
- Wi-Fi Wi-Fi 5 (802.11ac)
- Built-in power socket Quality of Service (QoS) support
- White
TP-Link TL-WPA8631P KIT, 300 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Type E / F, Gigabit Ethernet, 10,100,1000 Mbit/s, Wi-Fi 5 (802.11ac) |
|
| Performance | |
|---|---|
| Maximum data transfer rate: | 300 Mbit/s |
| Ethernet LAN: | Yes |
| Ethernet LAN interface type: | Gigabit Ethernet |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports: | 3 |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band: | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band): | 300 Mbit/s |
| WLAN data transfer rate (second band): | 867 Mbit/s |
| Networking standards: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power plug: | Type E / F |
| Built-in power socket: | Yes |
| PowerLine standard: | HomePlug AV2 |
| Modulation: | OFDM |
| Security algorithms: | WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance: | 300 m |
| Quality of Service (QoS) support: | Yes |
| Plug and Play: | Yes |
| Power | |
|---|---|
| Power consumption (typical): | 11 W |
| Design | |
|---|---|
| Antenna type: | Internal |
| LED indicators: | Yes |
| Product colour: | White |
| System requirements | |
|---|---|
| Windows operating systems supported: | Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported: | Yes |
| Mac compatibility: | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Packaging data | |
|---|---|
| Package width: | 230 mm |
| Package depth: | 190 mm |
| Package height: | 100 mm |
| Package weight: | 870 g |
| Package type: | Box |
| Packaging content | |
|---|---|
| Quantity per pack: | 2 pc(s) |
| Quick installation guide: | Yes |
| Cables included: | LAN (RJ-45) |
