Net yfir rafmagn TP-Link 1000M TL-PA717 KIT
Extend Reliable Gigabit Network via Electrical Wiring
AV1000 Gigabit Powerline Starter Kit
1,000 Mbps! Ideal for Flawless Streaming and Smooth Downloads
With advanced HomePlug AV2 technology, TL-PA717 KIT provides high-speed data transfer rates of up to 1,000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streams, cloud gaming, and large file transfers.
TL-PA717 KIT extends the home network to every room regardless of thick walls and floors. No drilling or wire installation required.

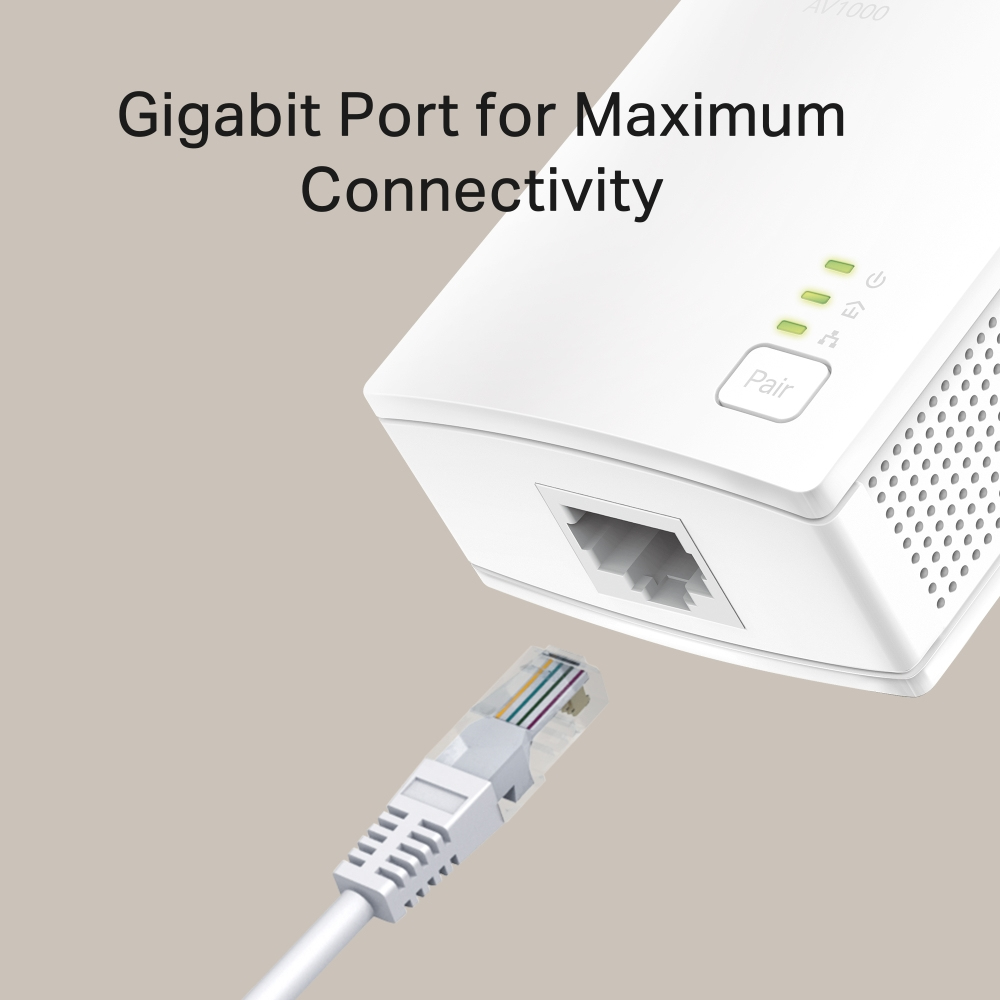

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA717 KIT allows you to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth Ultra 4K video streaming. This makes TL-PA717 KIT the perfect home entertainment companion.
Plug and Play,
No Configuration Required
Connect a powerline adapter to the router, then plug another powerline adapter into a wall socket in another room. Finally, connect it to your internet-enabled device via Ethernet—and you’re done!
Reduce Power Consumption by Up to 85%
Thanks to its practical design and sophisticated Power-Saving Mode, TL-PA717 KIT—a new-generation of powerline adapter—will automatically switch from its regular "Working" mode to "Power-Saving" mode, reducing its energy consumption by up to 85%.
TP-Link TL-PA717KIT, 1000 Mbit/s, IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Type C, Gigabit Ethernet, 10,100 Mbit/s, HomePlug AV2
- 1000 Mbit/s 300 m
- Gigabit Ethernet
- White
AV1000, Gigabit Ethernet RJ45, HomePlug AV/AV2, 300 m max, OFDM (PLC) TP-Link TL-PA717KIT, 1000 Mbit/s, IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Type C, Gigabit Ethernet, 10,100 Mbit/s, HomePlug AV2 |
|
Performance | |
---|---|
Maximum data transfer rate: | 1000 Mbit/s |
Ethernet LAN: | Yes |
Ethernet LAN interface type: | Gigabit Ethernet |
Ethernet LAN data rates: | 10,100 Mbit/s |
Ethernet LAN (RJ-45) ports: | 1 |
Networking standards: | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Power plug: | Type C |
Built-in power socket: | No |
PowerLine standard: | HomePlug AV2 |
Modulation: | OFDM |
Security algorithms: | 128-bit AES |
Maximum operating distance: | 300 m |
Encryption button: | Yes |
Plug and Play: | Yes |
Power | |
---|---|
Power consumption (typical): | 2.3 W |
Power consumption (standby): | 0.5 W |
Design | |
---|---|
LED indicators: | LAN, PLC, Power |
Product colour: | White |
Certification: | CE, RoHS |
System requirements | |
---|---|
Windows operating systems supported: | Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Linux operating systems supported: | Yes |
Mac operating systems supported: | Yes |
Operational conditions | |
---|---|
Operating temperature (T-T): | 0 - 40 °C |
Storage temperature (T-T): | -40 - 70 °C |
Operating relative humidity (H-H): | 10 - 90% |
Storage relative humidity (H-H): | 5 - 90% |
Weight & dimensions | |
---|---|
Width: | 65 mm |
Depth: | 52 mm |
Height: | 28.5 mm |
Certificates | |
---|---|
Compliance certificates: | RoHS |
Packaging data | |
---|---|
Package width: | 190 mm |
Package depth: | 136 mm |
Package height: | 100 mm |
Package weight: | 410 g |
Package type: | Box |
Packaging content | |
---|---|
Quantity per pack: | 2 pc(s) |
Quick installation guide: | Yes |
Cables included: | LAN (RJ-45) |
