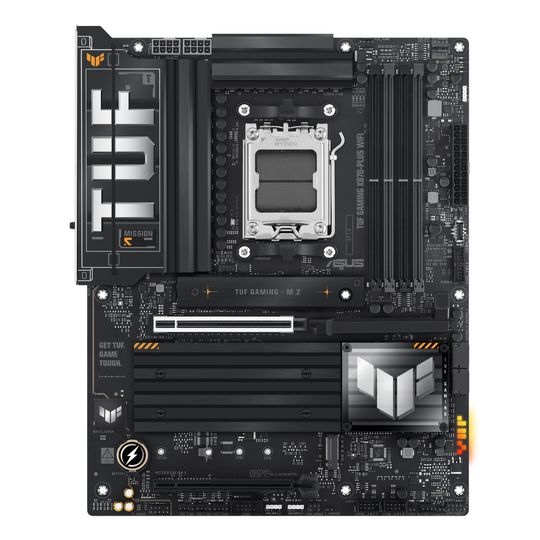

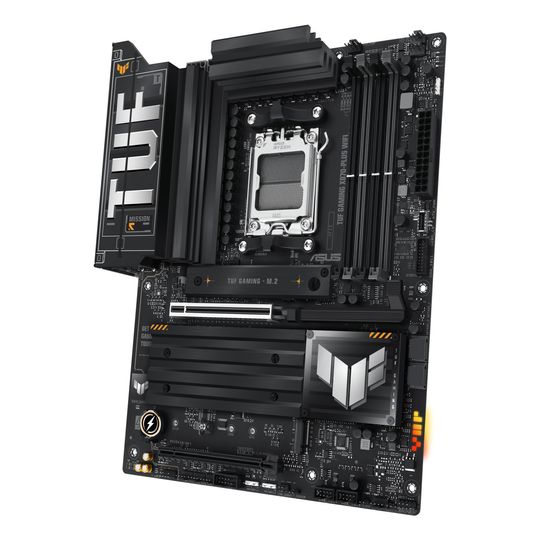

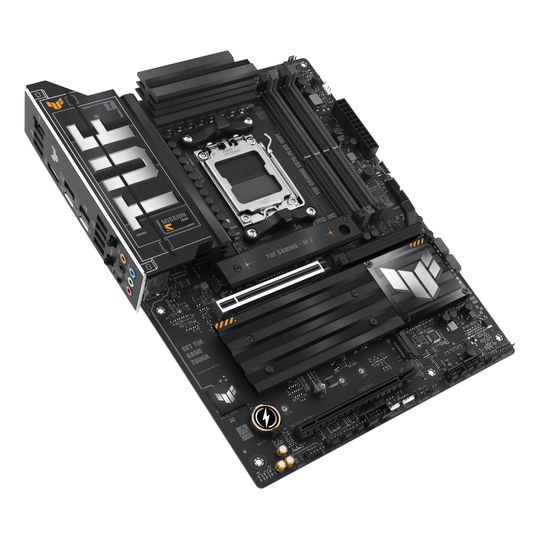

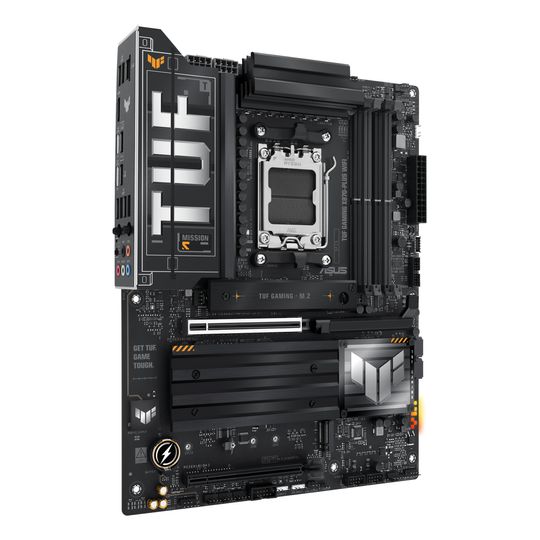

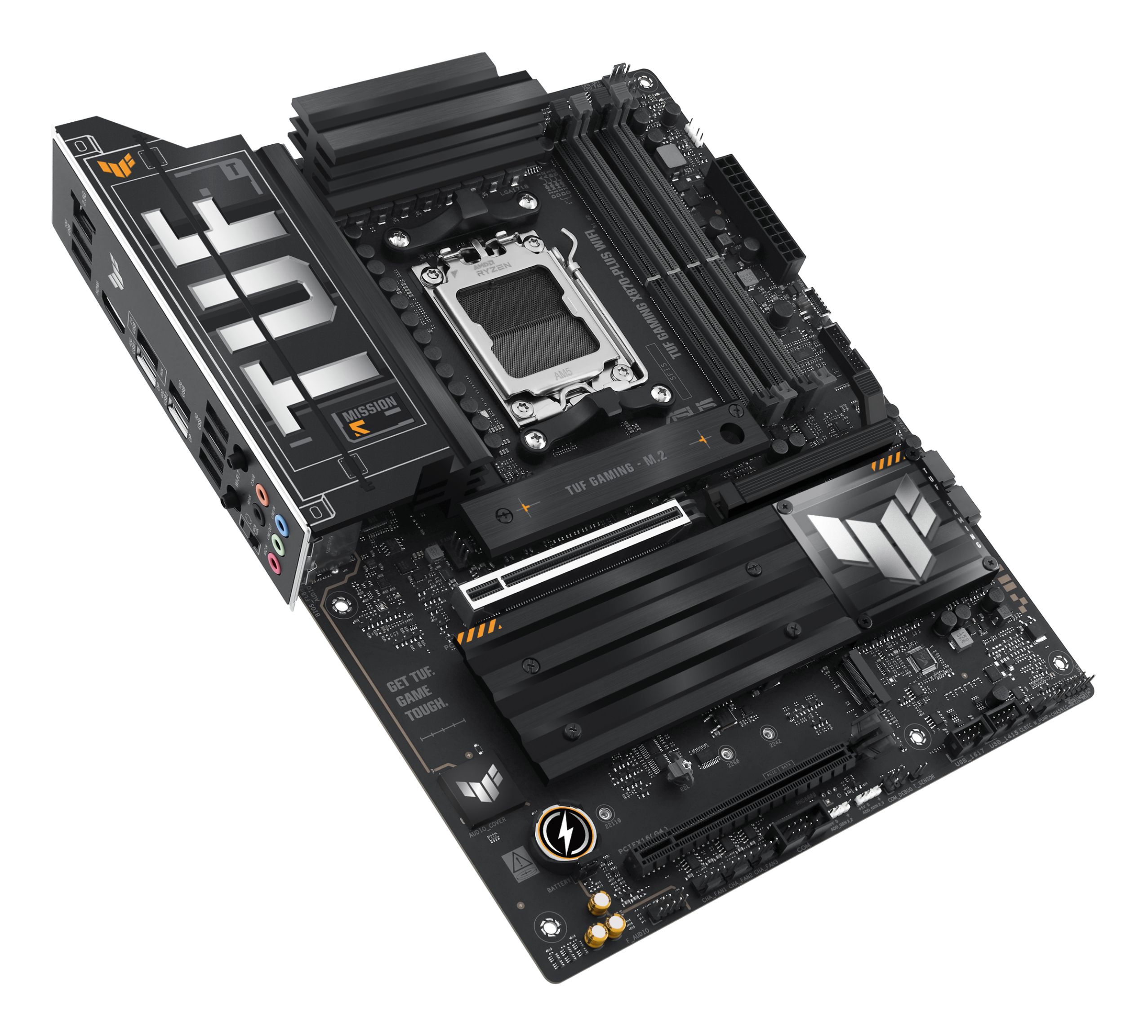

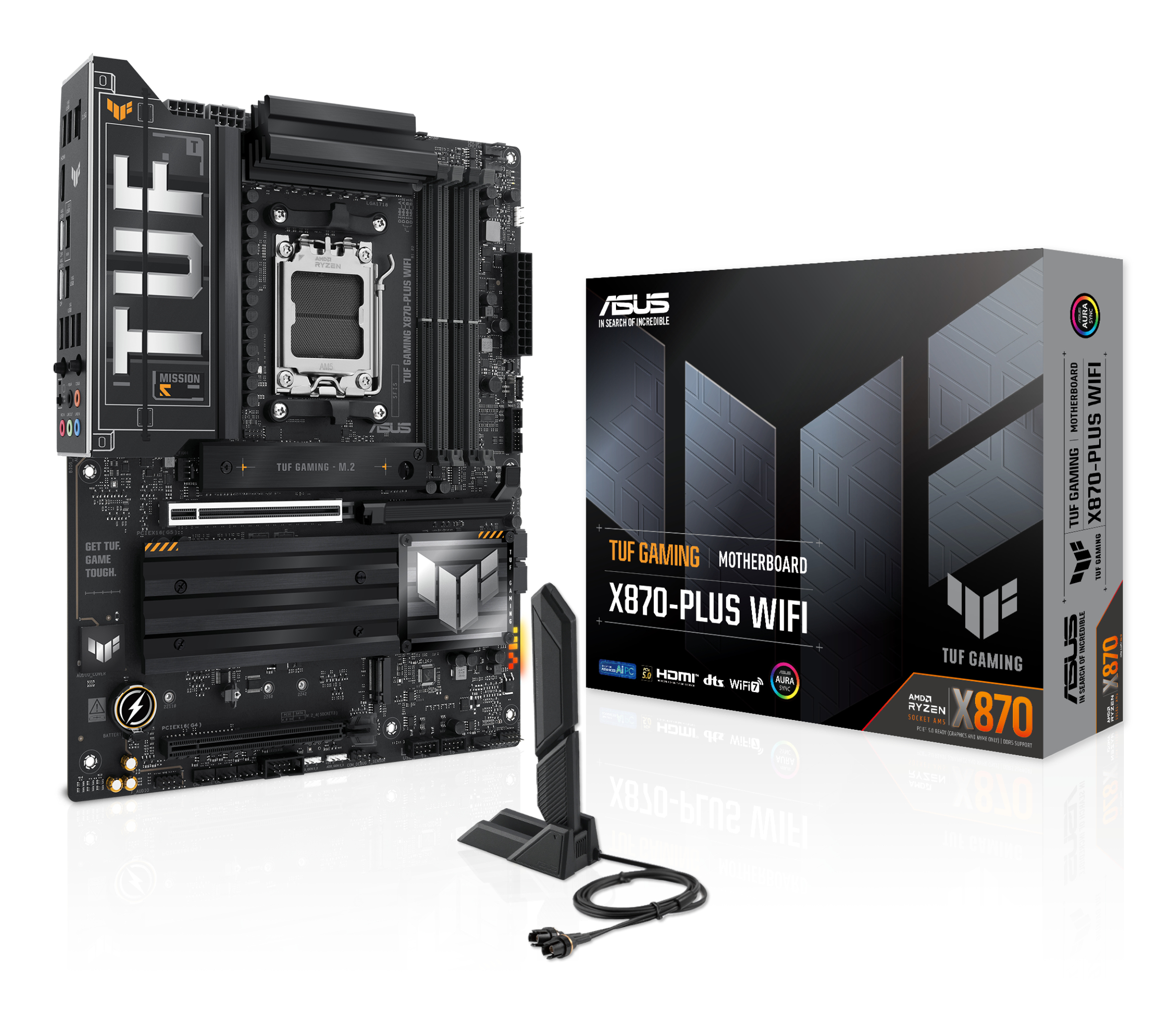

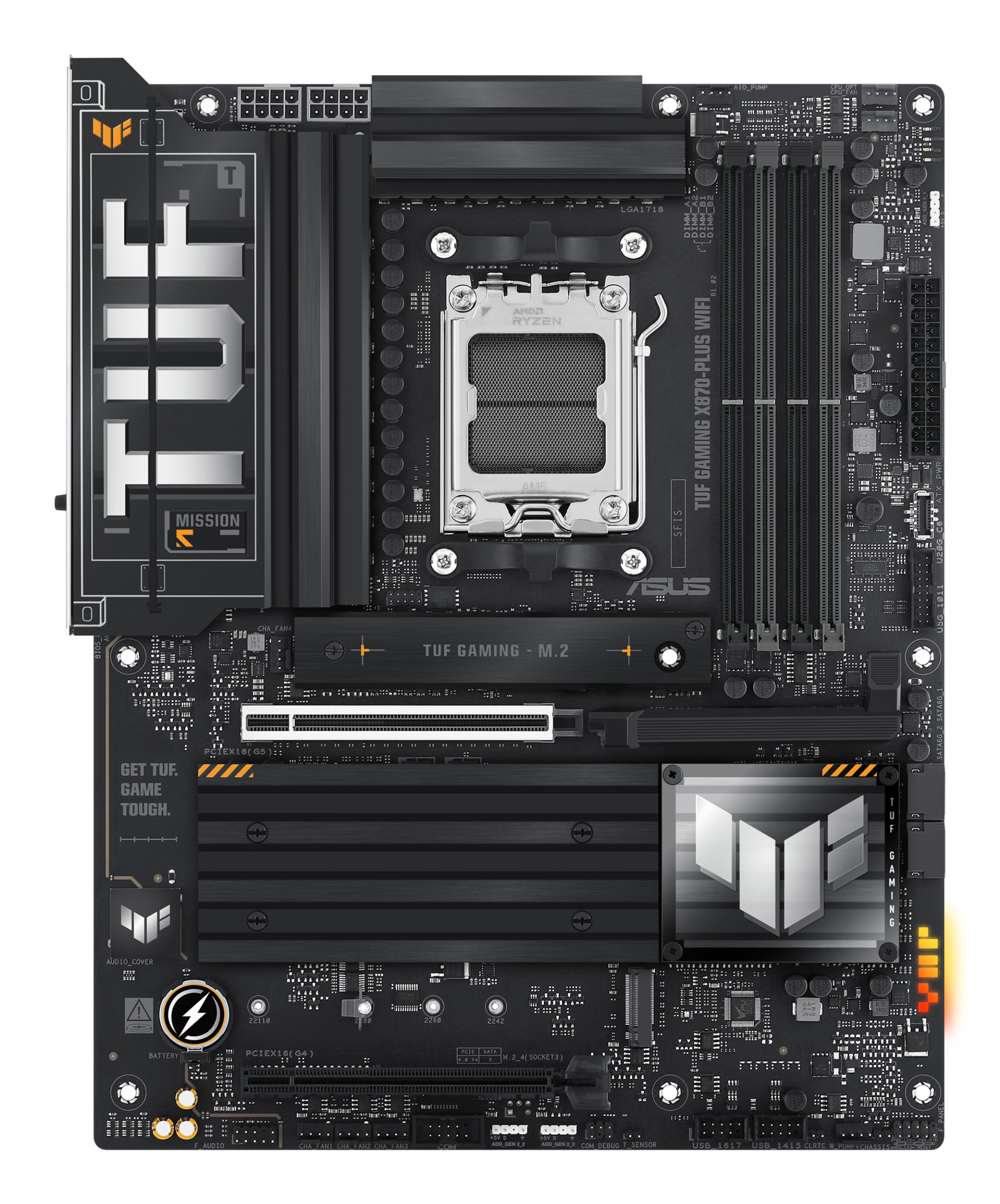

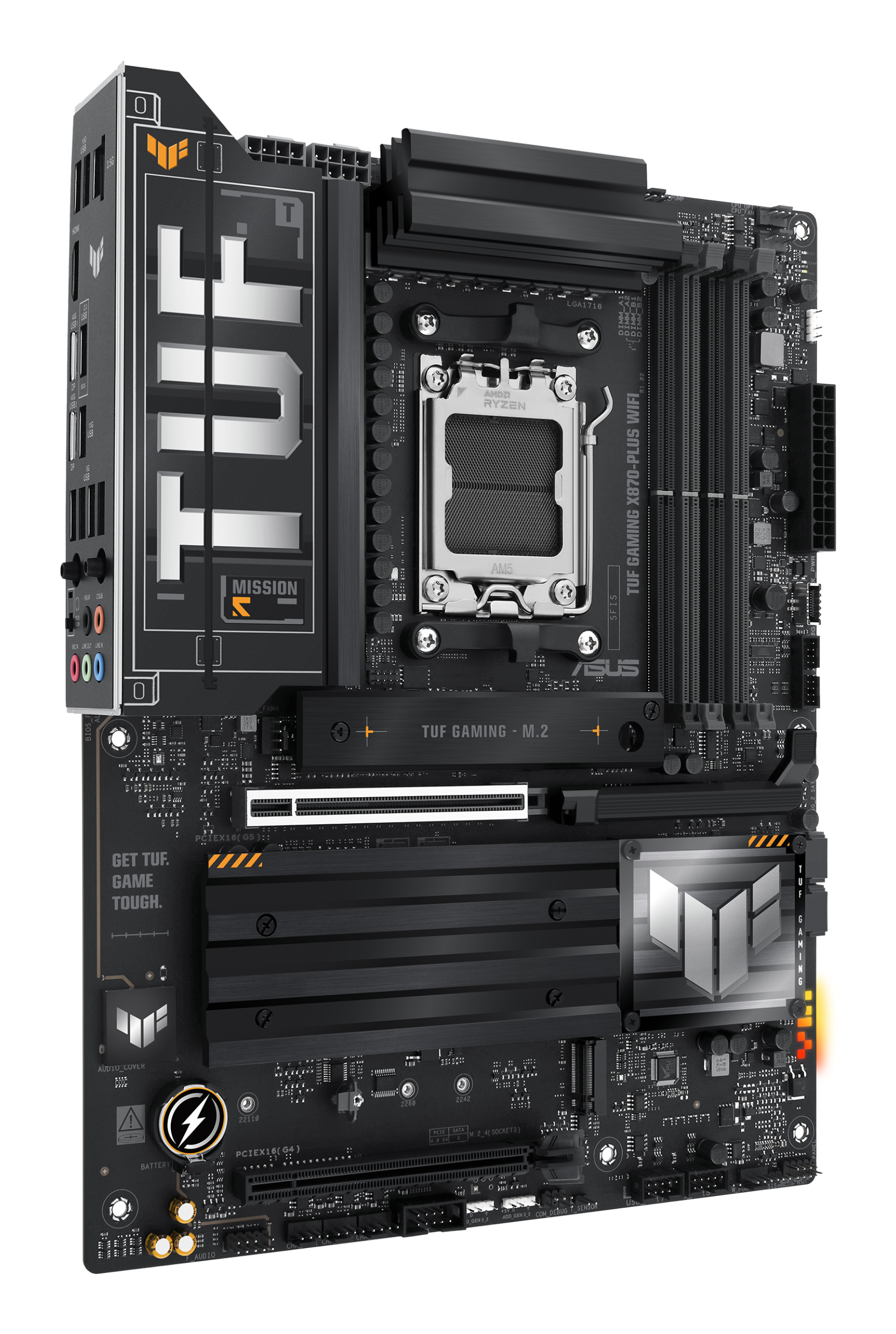

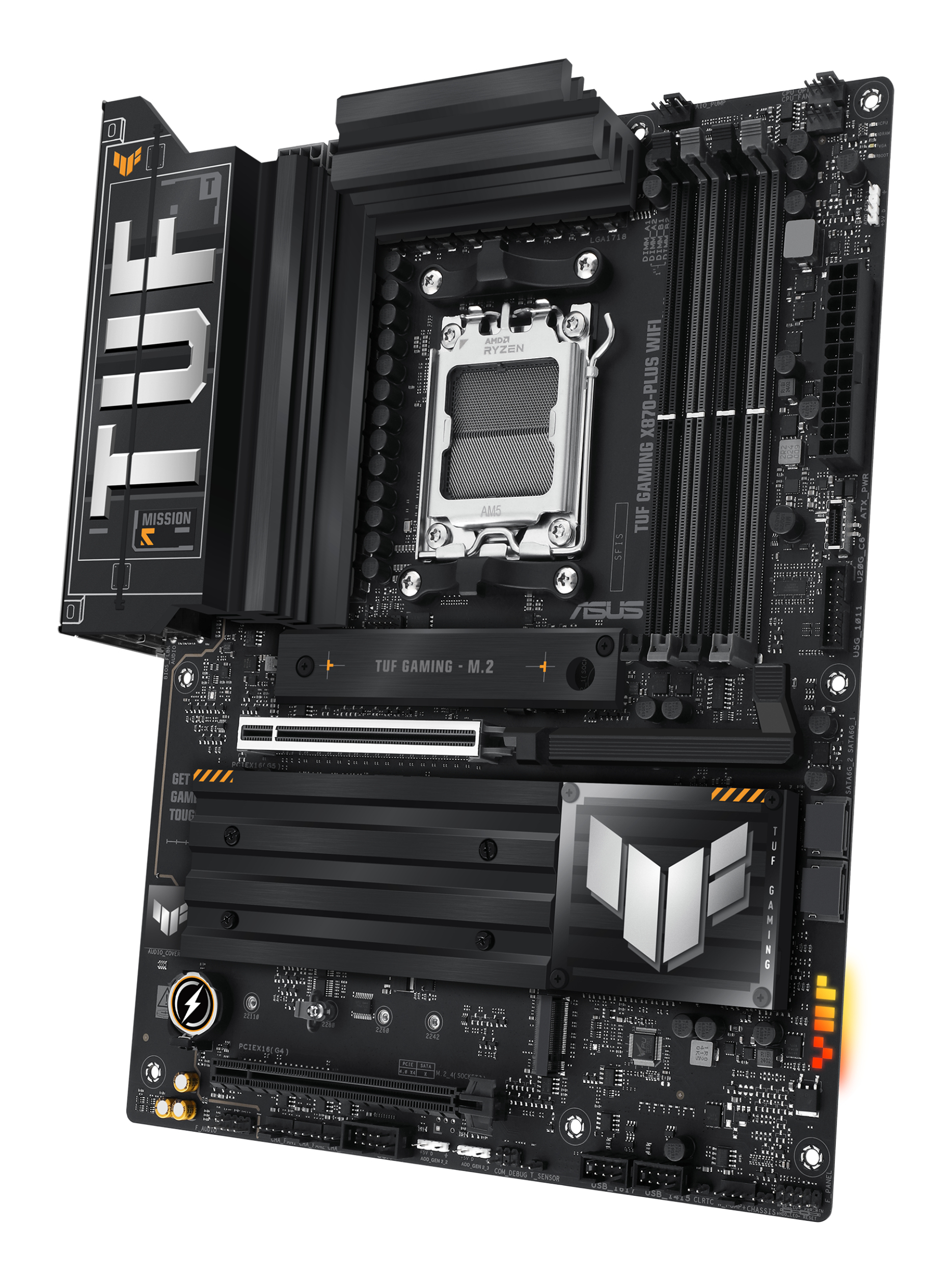

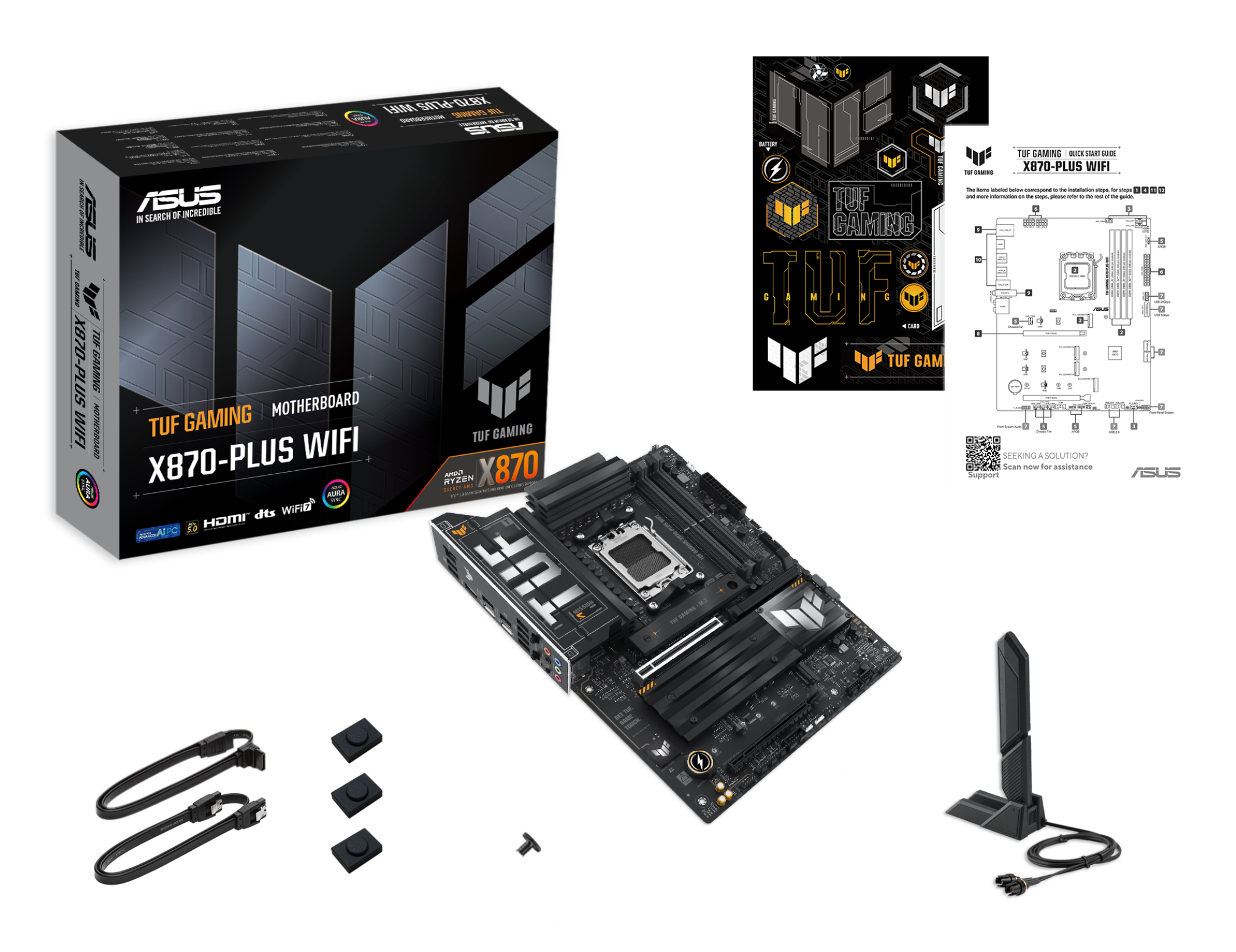

Móðurborð AM5 ASUS TUF GAMING X870-PLUS WIFI
TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
| AMD AM5, AMD X870, 4 x DIMM slots, max. 192GB, DDR5, 1 x Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256 Mb Flash ROM, UEFI AMI BIOS, ATX ASUS TUF GAMING X870-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5-SDRAM, 192 GB, DIMM |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Maximum internal memory: | 192 GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 2 |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Number of SATA III connectors: | 2 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| Number of COM connectors: | 1 |
| 12V power connector: | Yes |

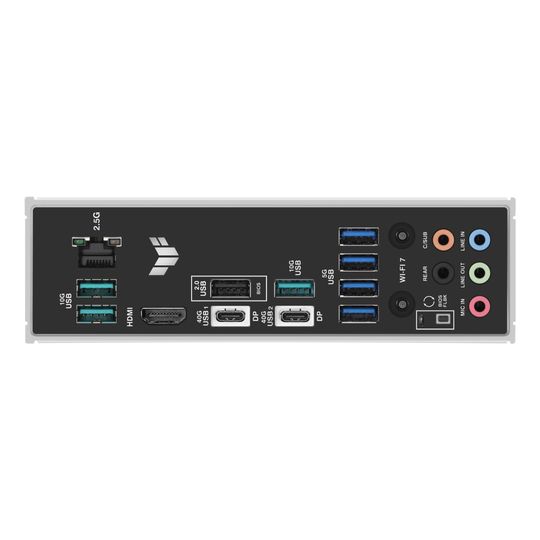

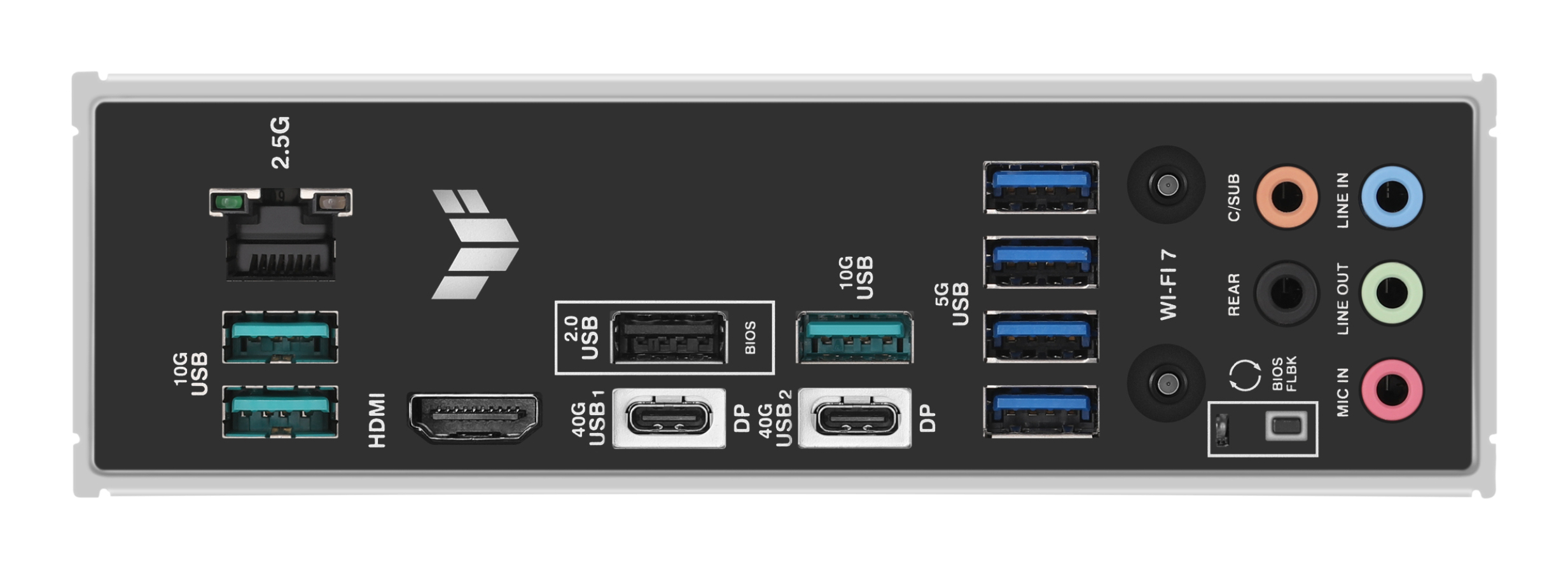

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| USB4 Gen 3x2 ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| USB connector type: | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |

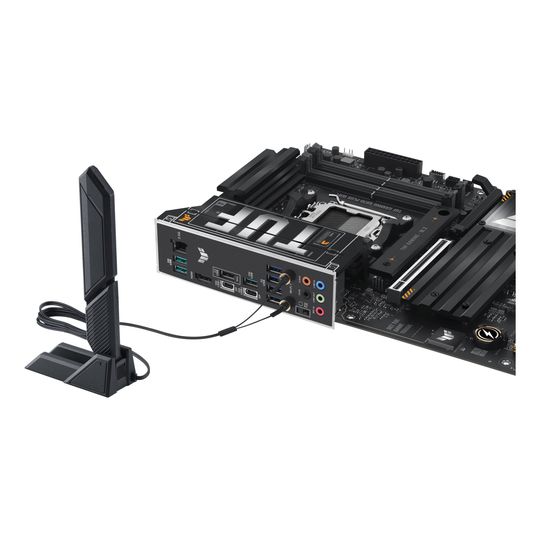

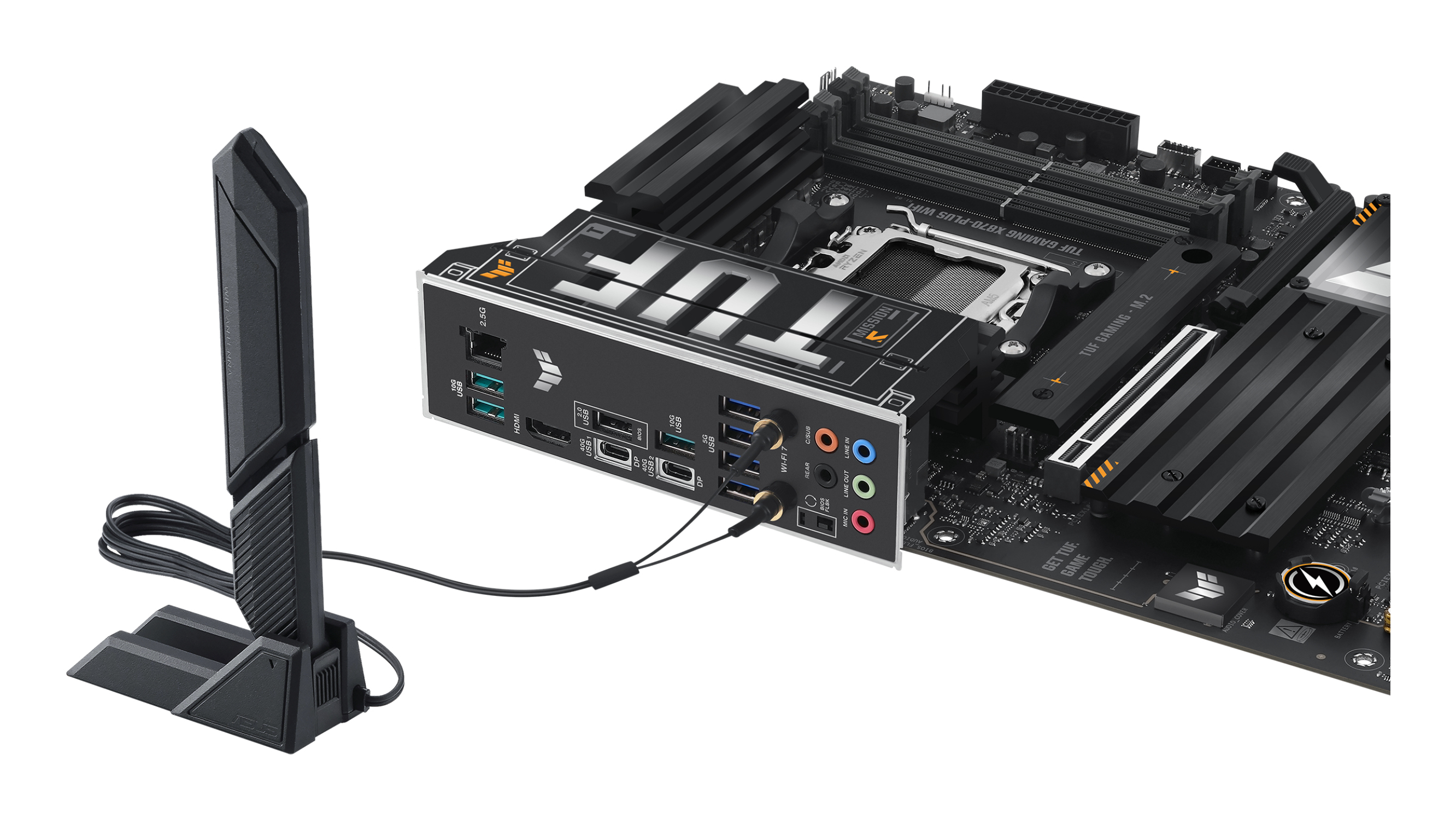

| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Features | |
|---|---|
| Motherboard chipset: | AMD X870 |
| Audio chip: | Realtek ALC1220P |
| Audio output channels: | 7.1 channels |
| Product colour: | Black |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width: | 305 mm |
| Depth: | 244 mm |
