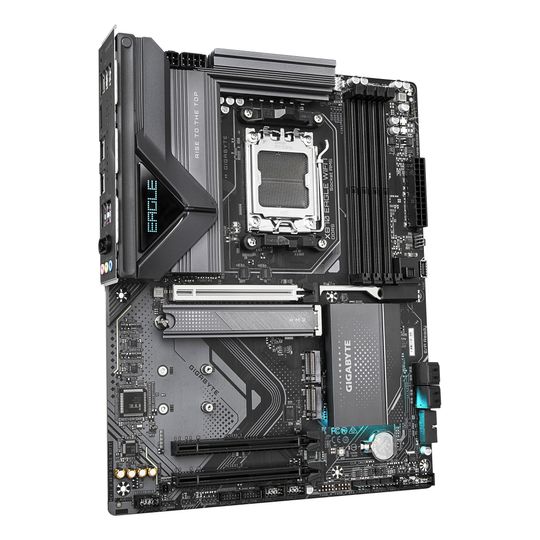

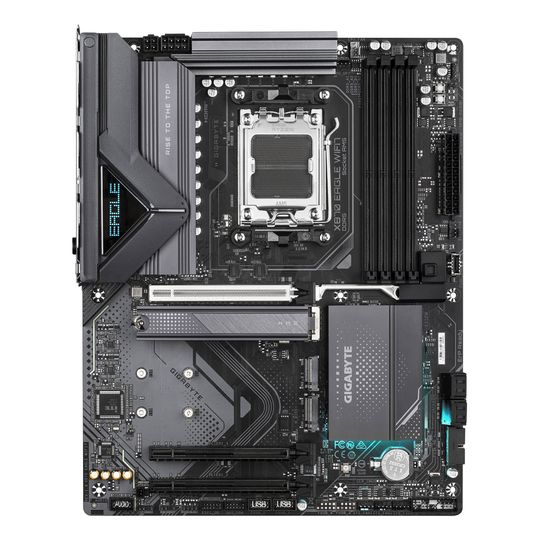

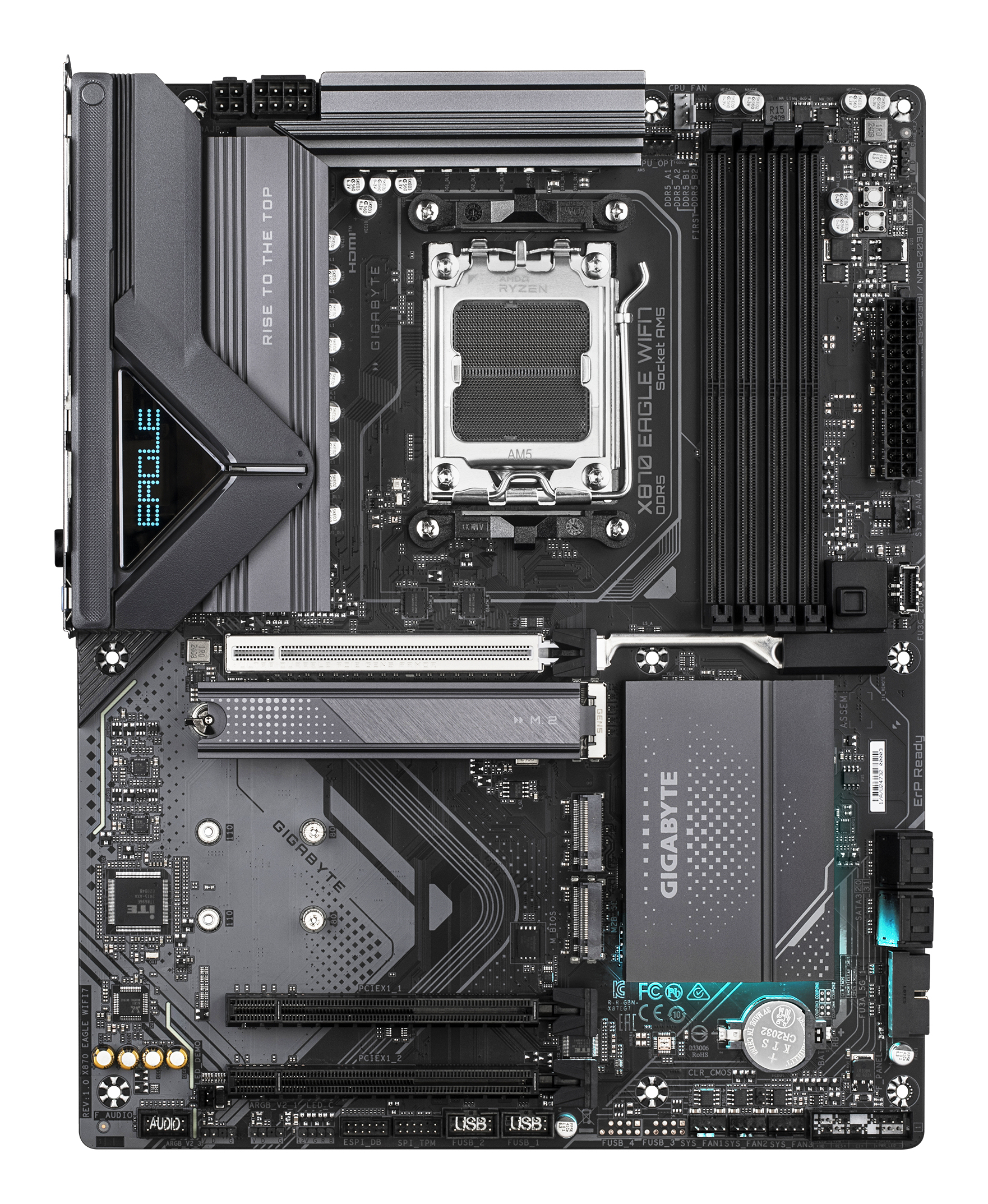

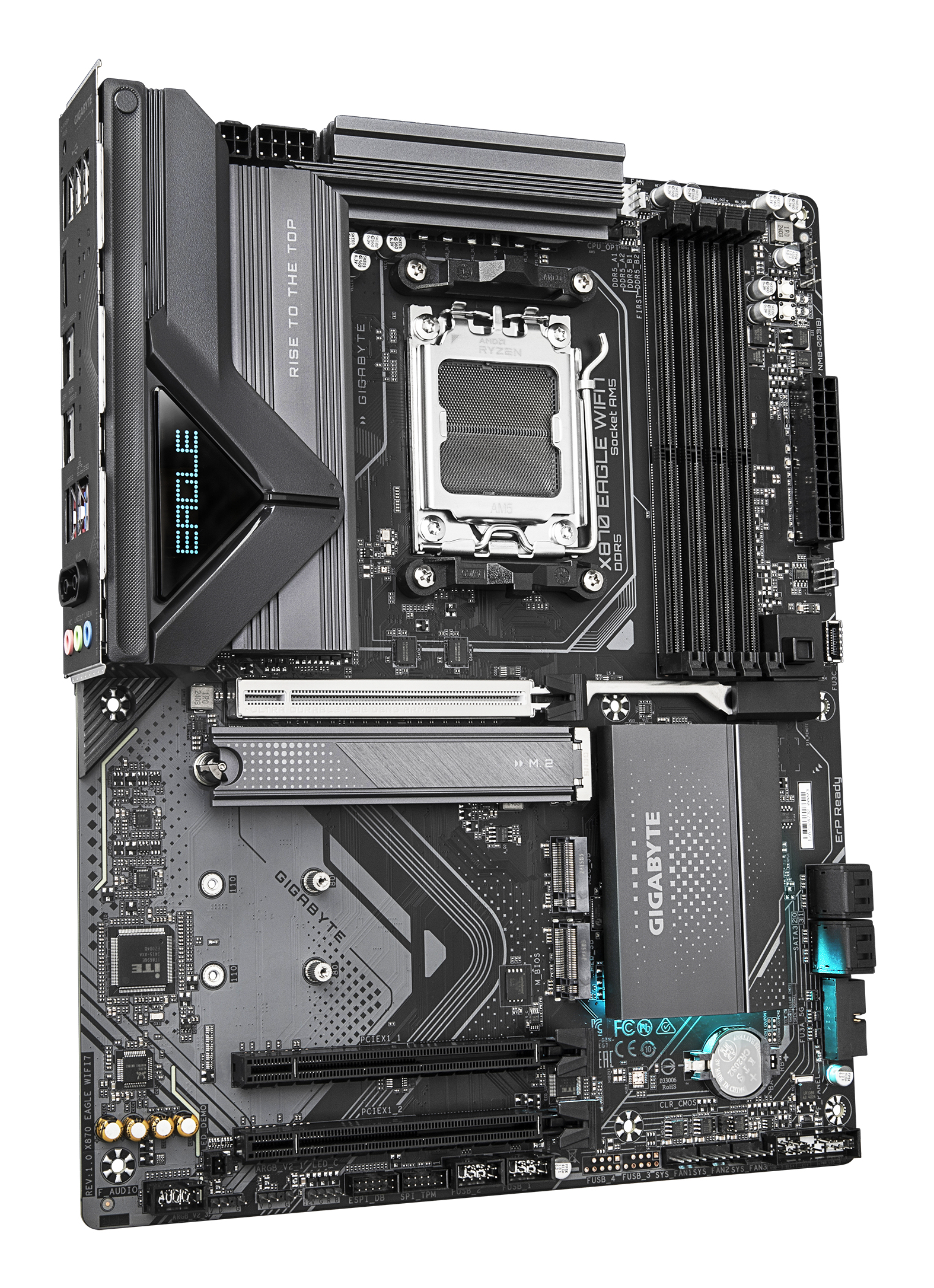

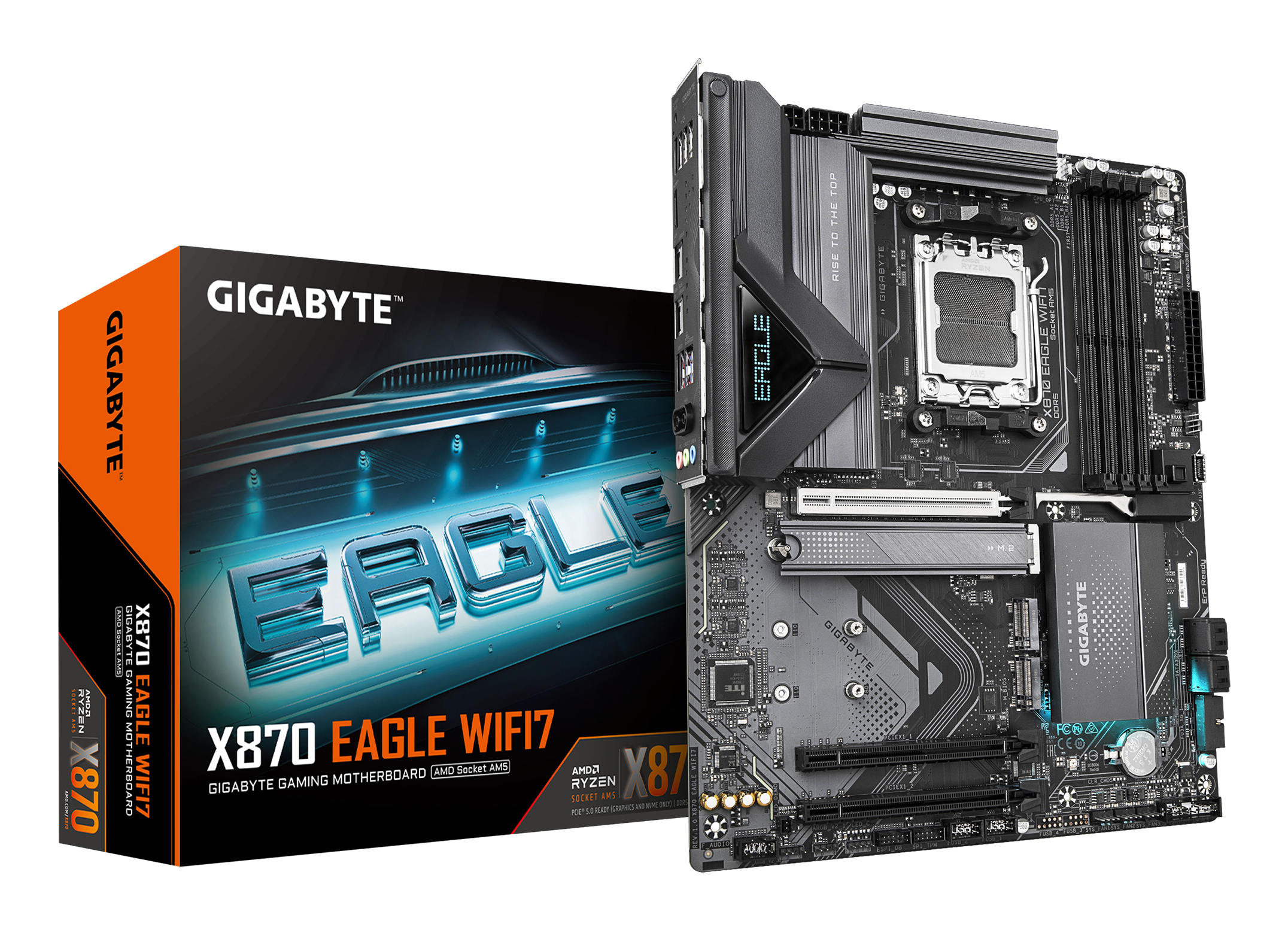

Móðurborð AM5 Gigabyte X870 EAGLE WiFi7 ATX
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870 Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
FEATURES
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
| X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory clock speed (max): | 8200 MHz |
| Maximum internal memory: | 256 GB |
| Supported memory module capacities: | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Unbuffered memory: | Yes |
| Maximum internal memory per slot: | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| DirectX version: | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of chassis fan connectors: | 4 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| Number of water pump connectors: | 1 |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 4 |

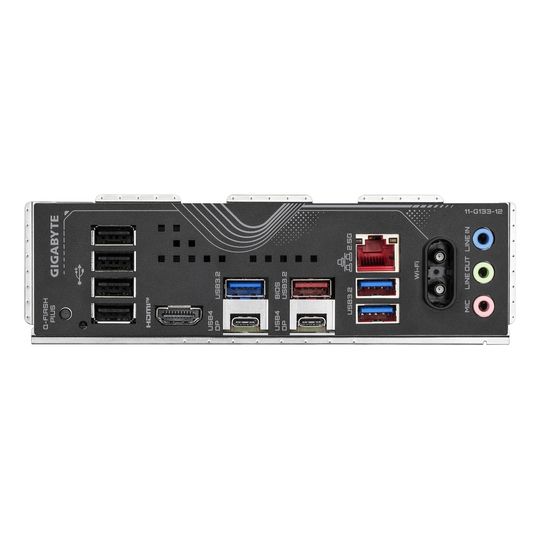

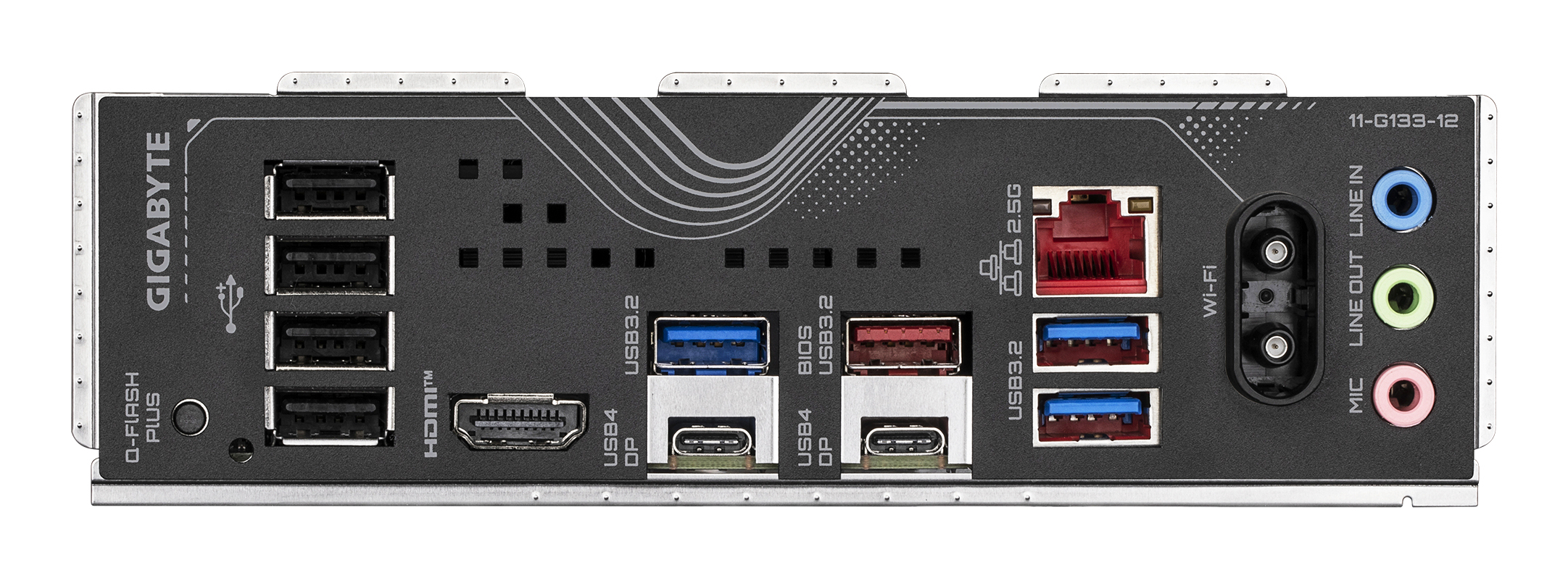

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB4 Gen 2x2 ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 1 |
| WiFi-AP antenna jack: | 2 |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| LAN controller: | Realtek RTL8125 |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| WLAN controller model: | MediaTek MT7925 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Features | |
|---|---|
| Motherboard chipset: | AMD X870 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Product colour: | Black |
| PC health monitoring: | Fan, Temperature, Voltage |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| 1st M.2 largest key size: | 25110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 25110 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
|---|---|
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
|---|---|
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
|---|---|
| Package width: | 335 mm |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 1.94 kg |
| Weight & dimensions | |
|---|---|
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| Packaging content | |
|---|---|
| Batteries included: | Yes |
| Antenna included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Other features | |
|---|---|
| Weight: | 1.74 kg |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
