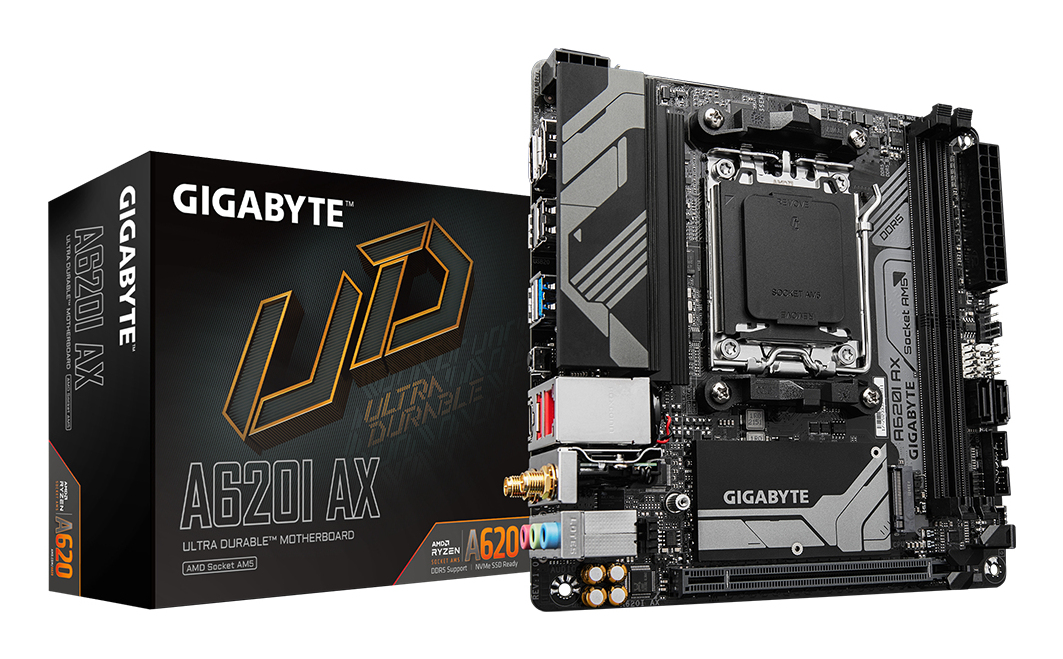

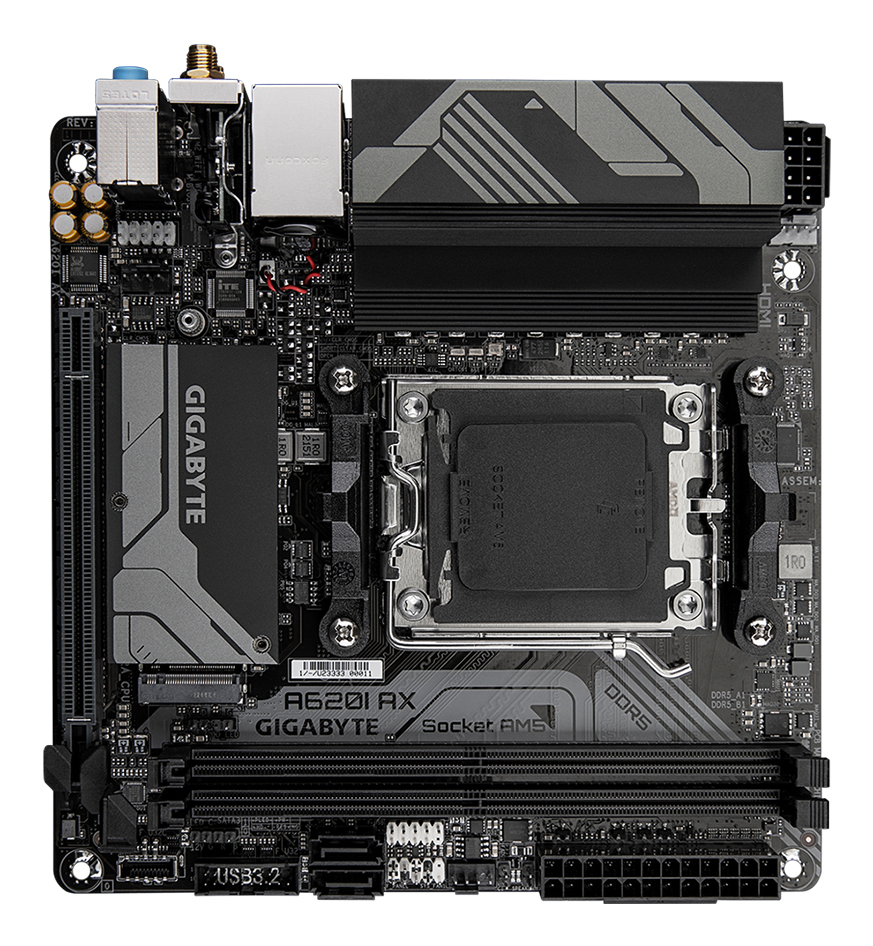

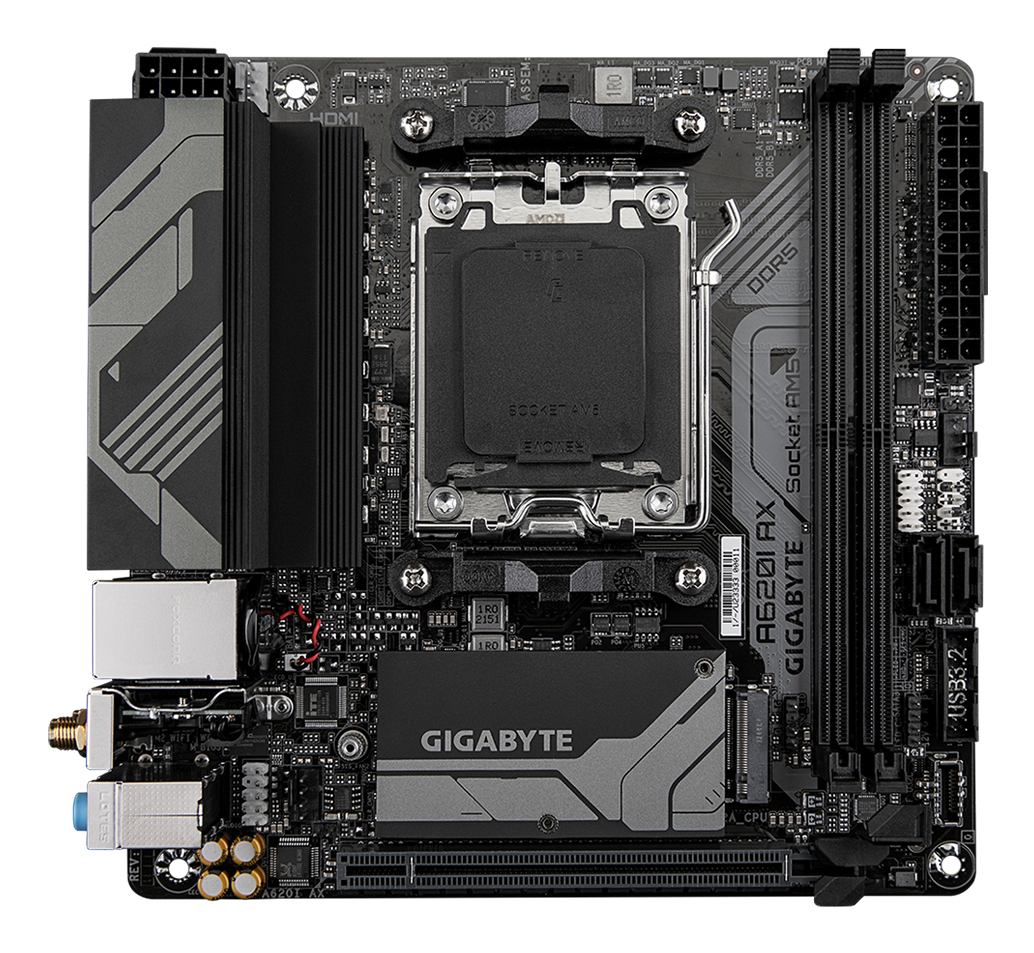

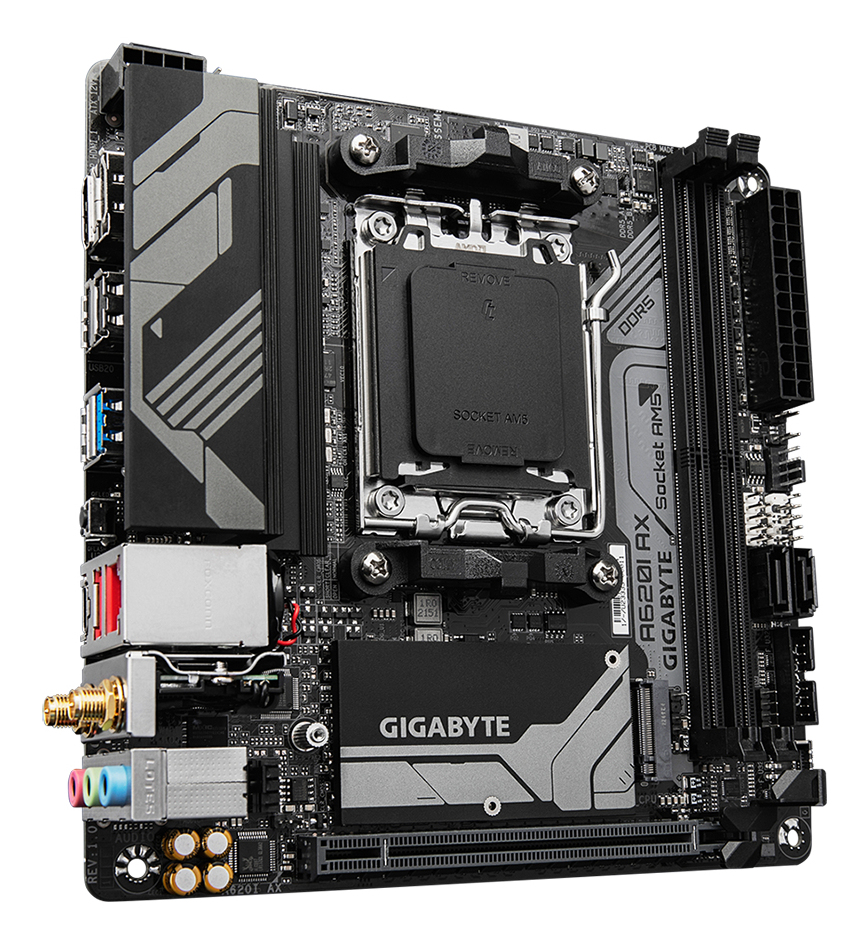

Móðurborð AM5 Gigabyte A620I AX DDR5 ITX
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 96 GB, DDR5-SDRAM |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Supported processor sockets: | Socket AM5 |
| Maximum internal memory supported by processor: | 96 GB |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 4400,4800,5200,5600,6000,6200,6400 MHz |
| Supported memory clock speed (max): | 6400 MHz |
| Maximum internal memory: | 96 GB |
| Supported memory module capacities: | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 2 |
| Number of storage drives supported: | 3 |
| RAID support: | Yes |
| RAID levels: | 0, 1 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 2 |
| Total number of SATA connectors: | 2 |
| Audio connector: | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |

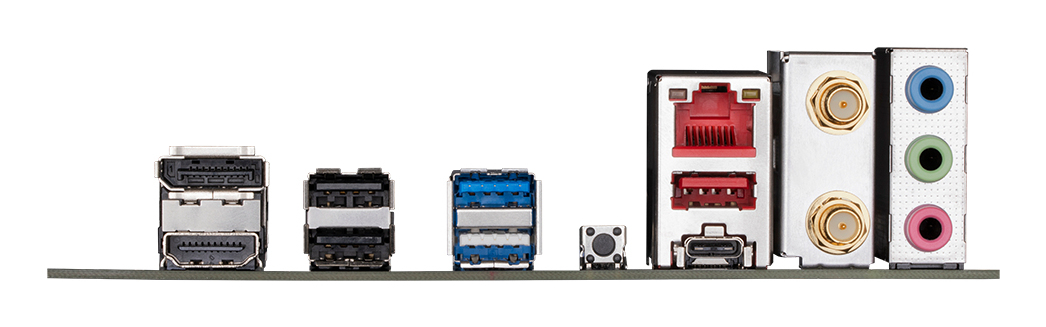

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 3 |
| Microphone in: | Yes |
| WiFi-AP antenna jack: | 2 |
| USB connector type: | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model: | Realtek RTL8852CE |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Features | |
|---|---|
| Motherboard chipset: | AMD A620 |
| Audio output channels: | 7.1 channels |
| Product colour: | Brown |
| PC health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Component for: | PC |
| Motherboard form factor: | mini ITX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
|---|---|
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
|---|---|
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
|---|---|
| Package width: | 222 mm |
| Package depth: | 180 mm |
| Package height: | 65 mm |
| Package weight: | 860 g |
| Weight & dimensions | |
|---|---|
| Width: | 170 mm |
| Depth: | 170 mm |
| Height: | 35 mm |
| Packaging content | |
|---|---|
| Cables included: | SATA |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
