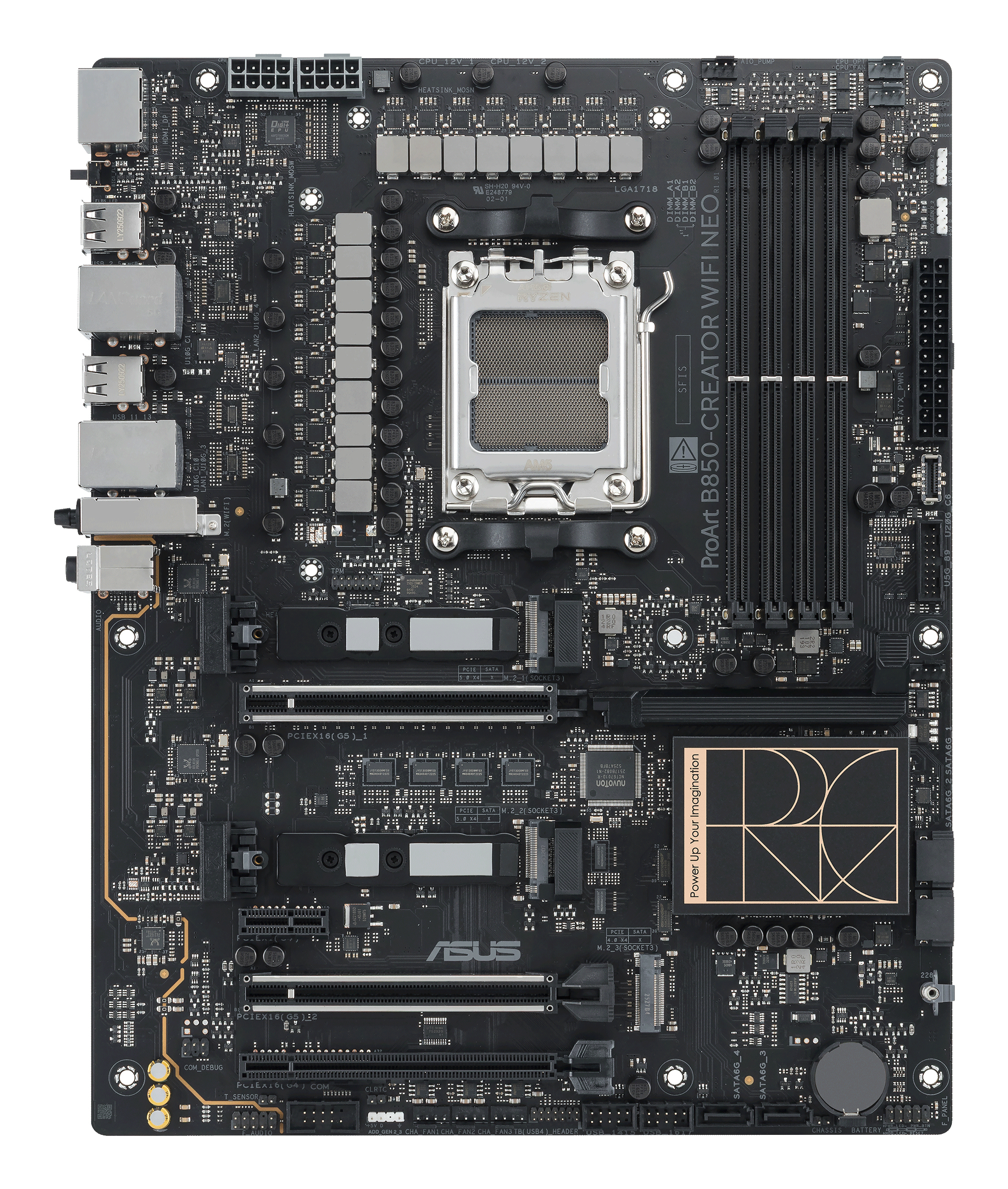

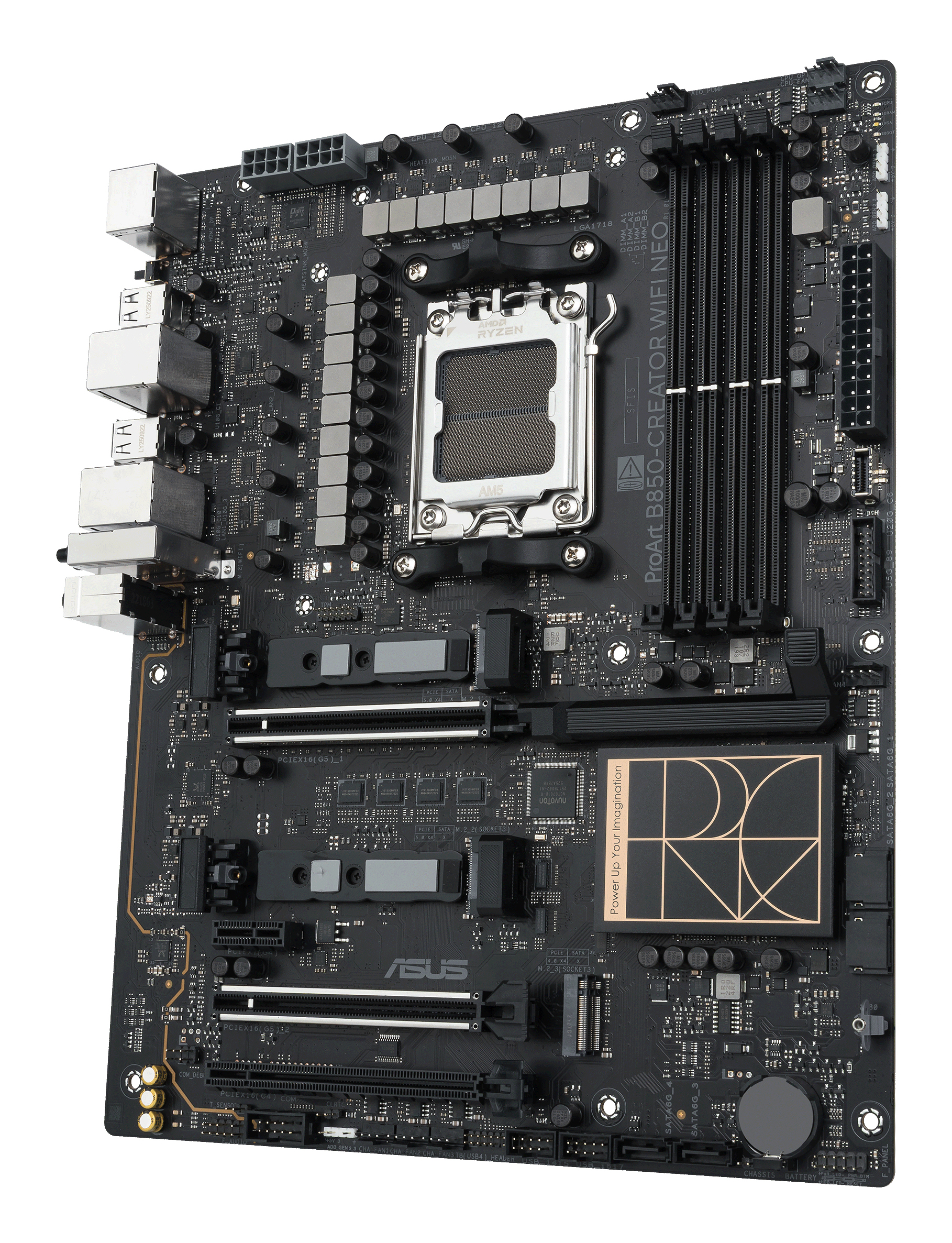

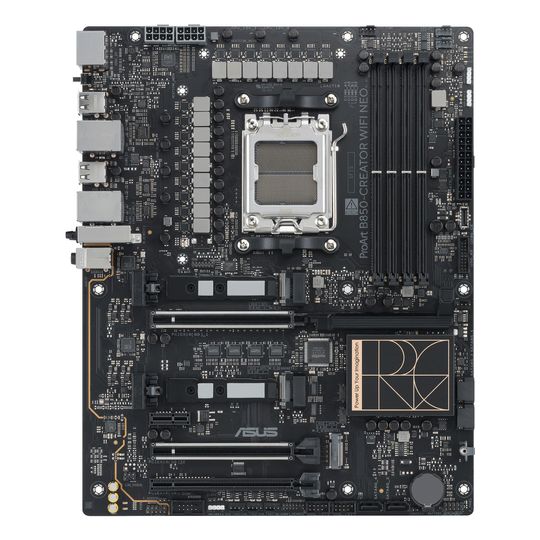

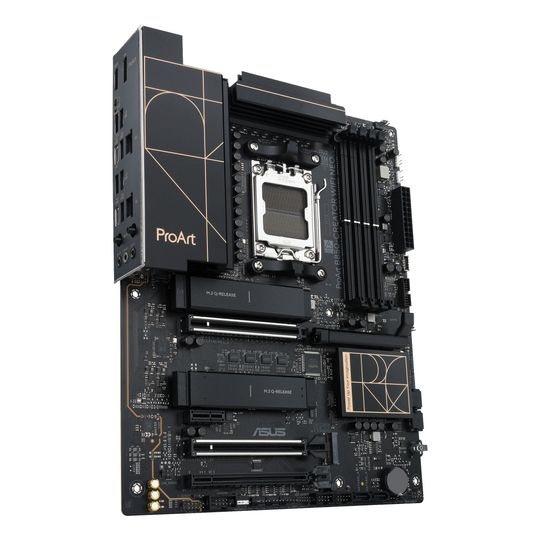

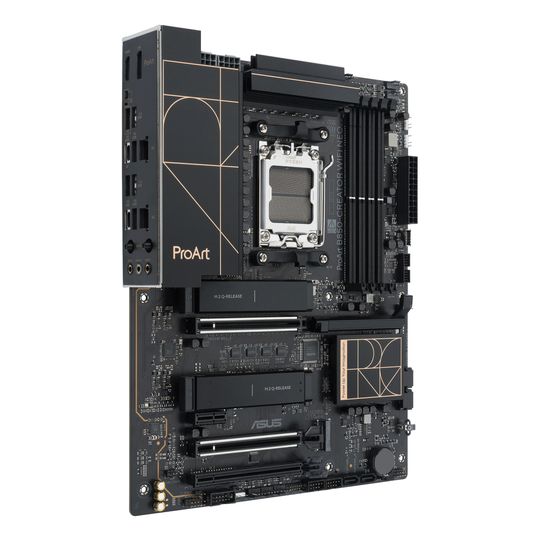

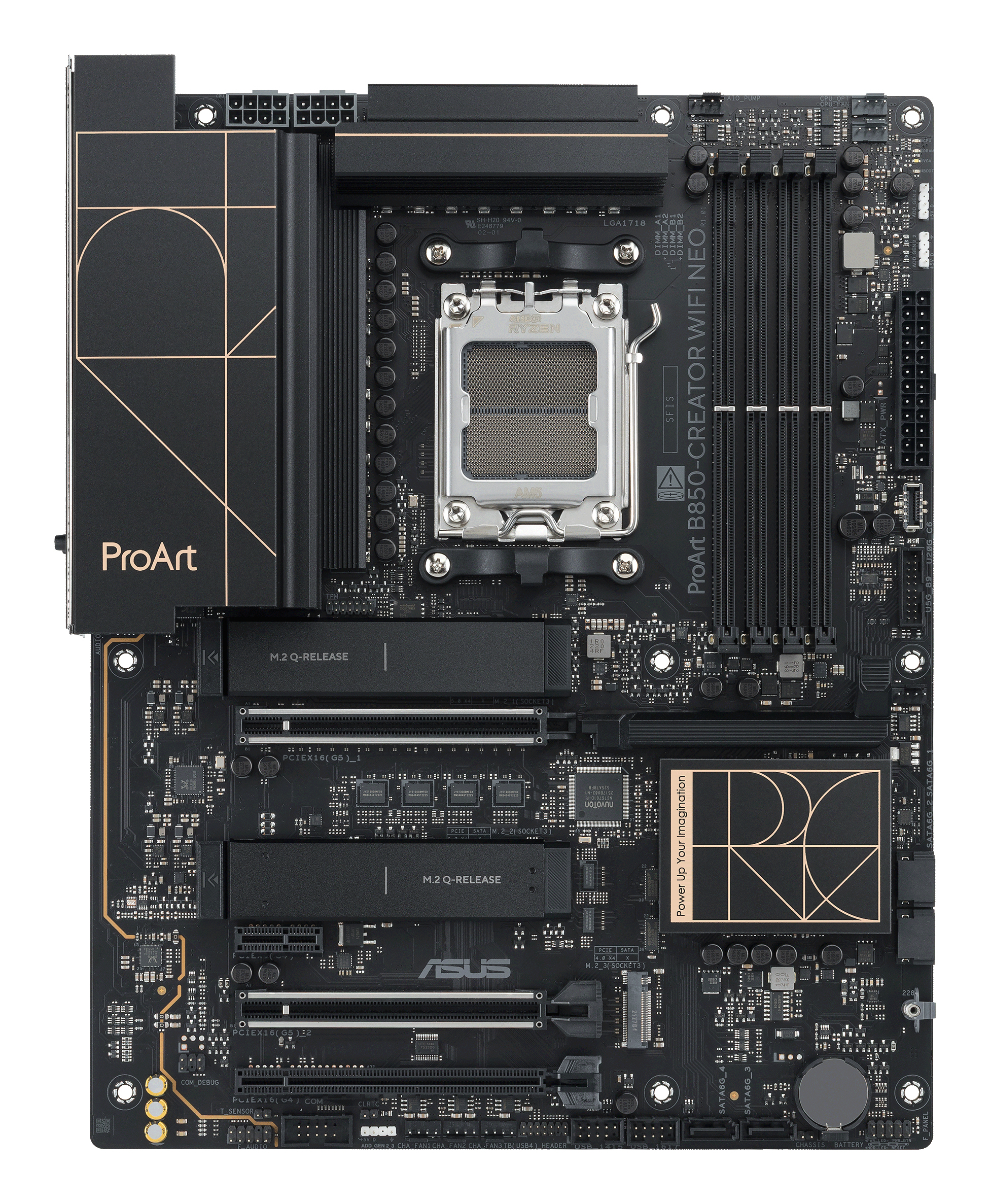

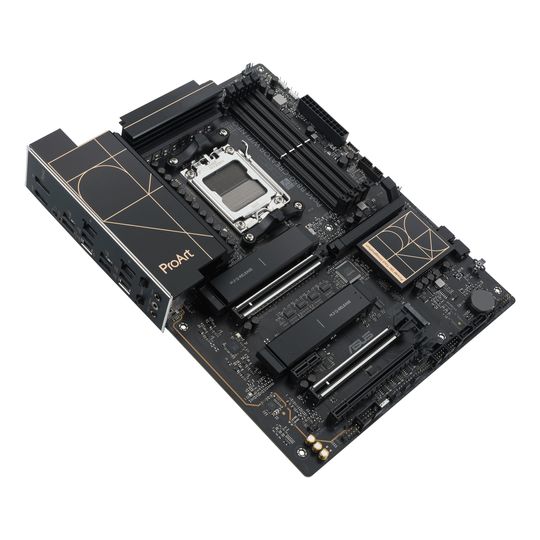

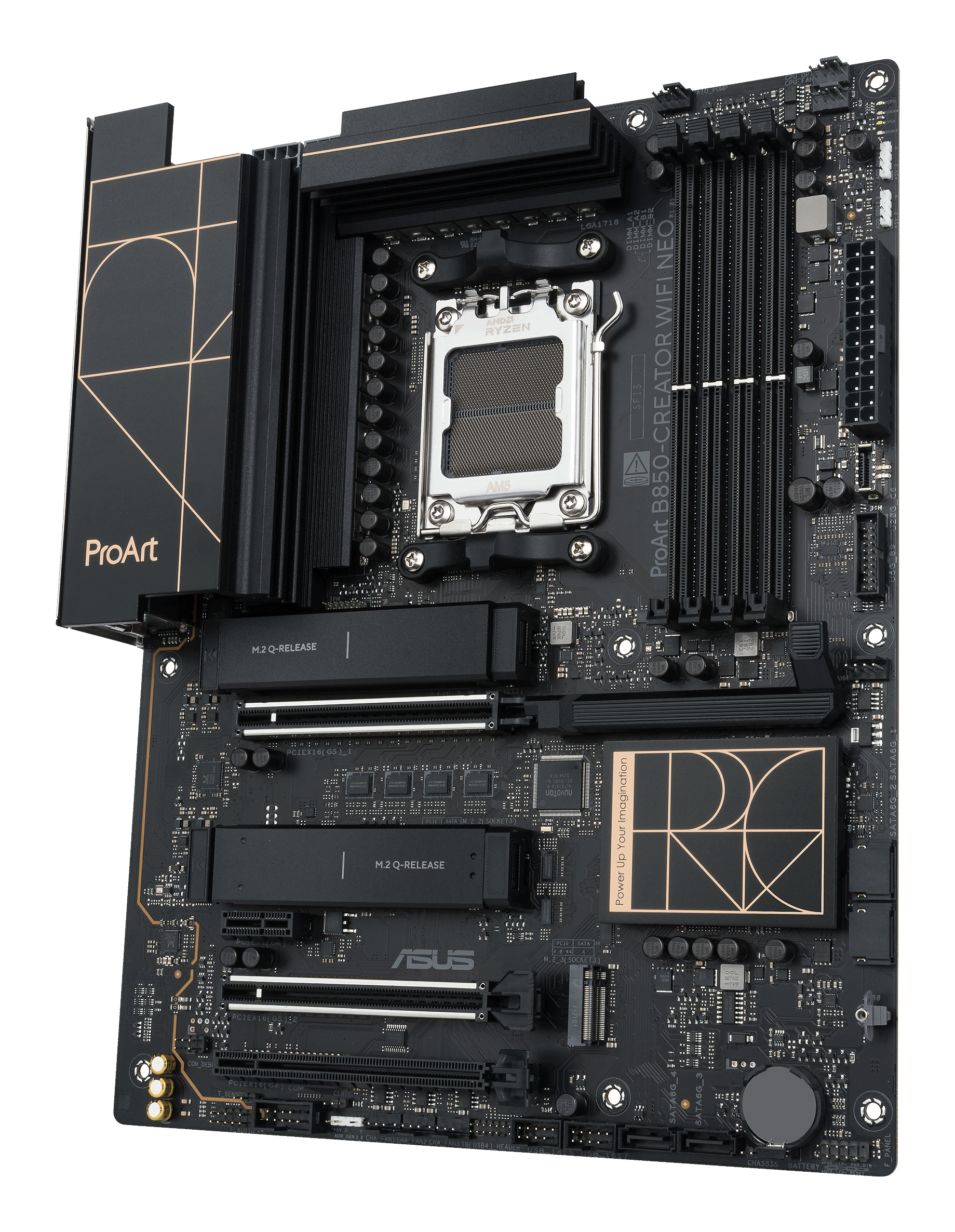

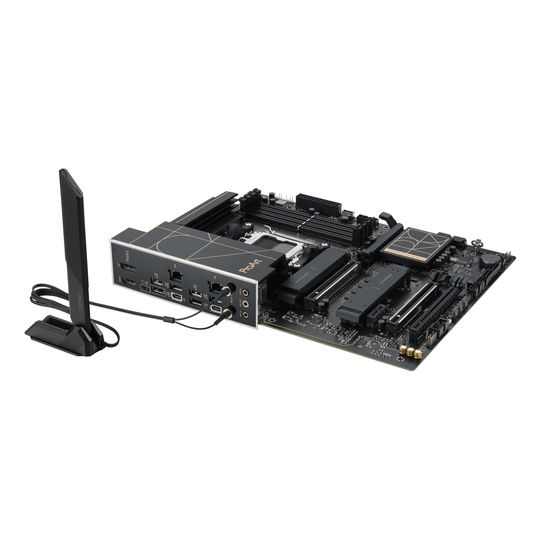

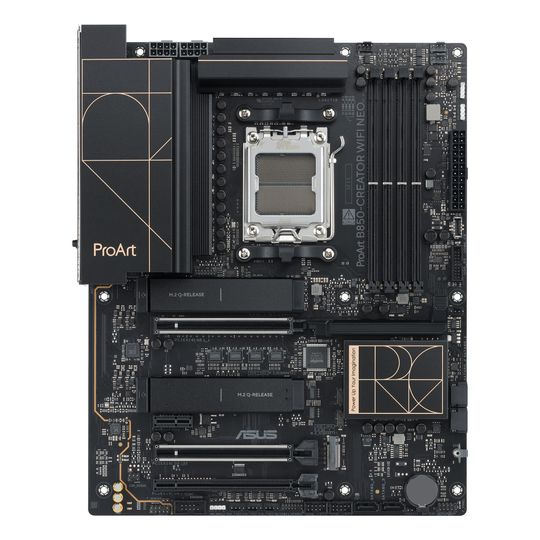

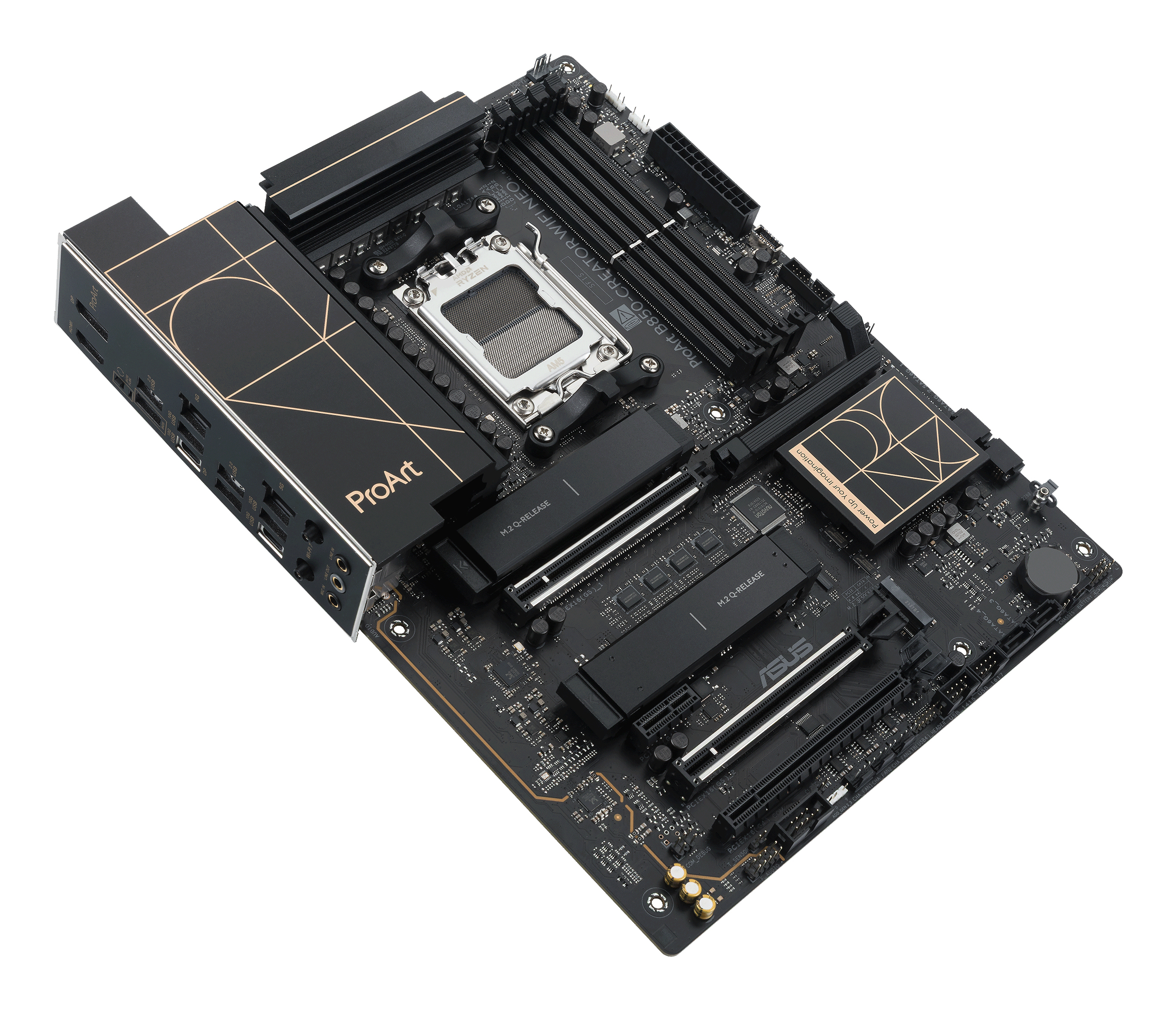

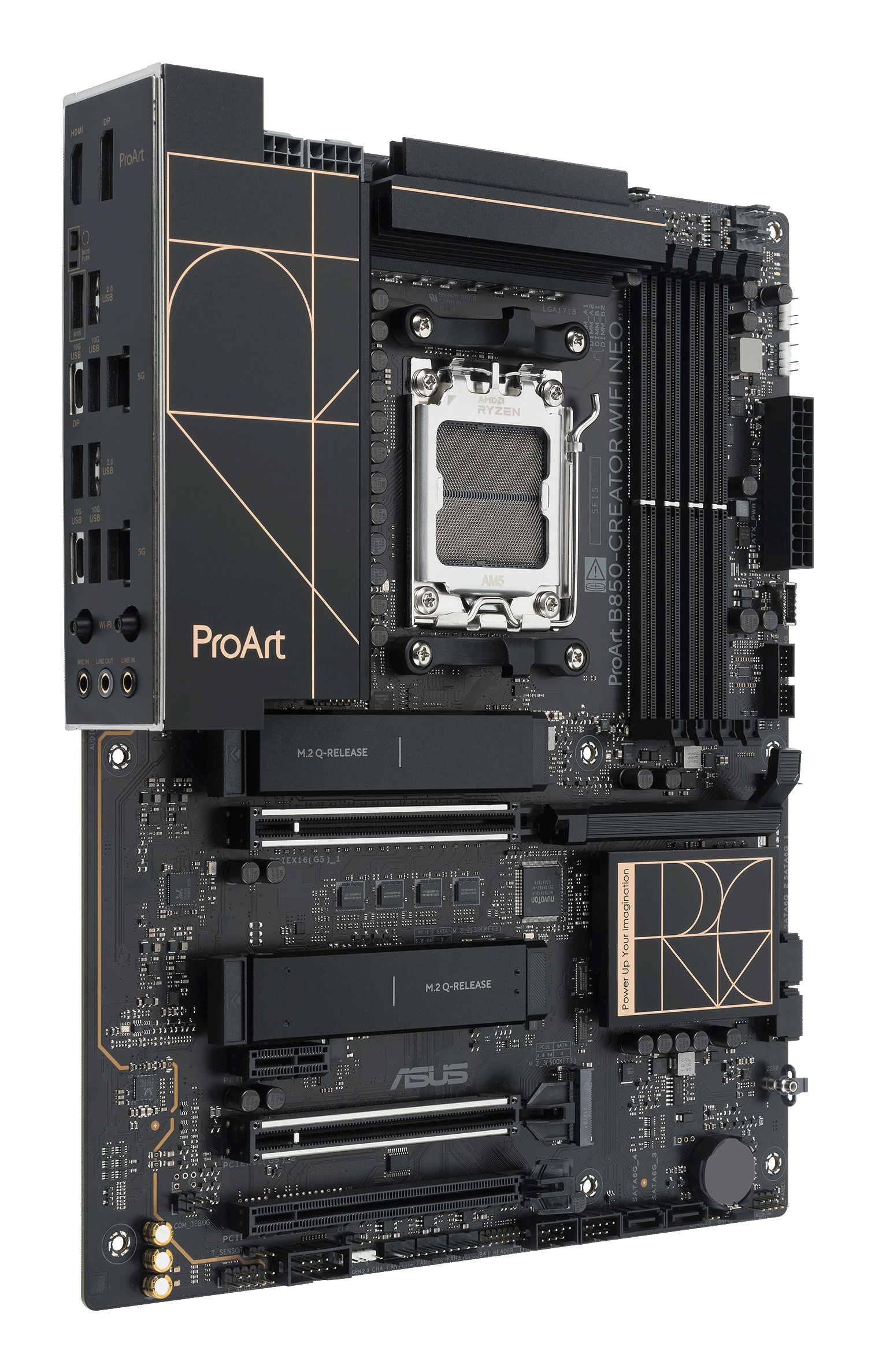

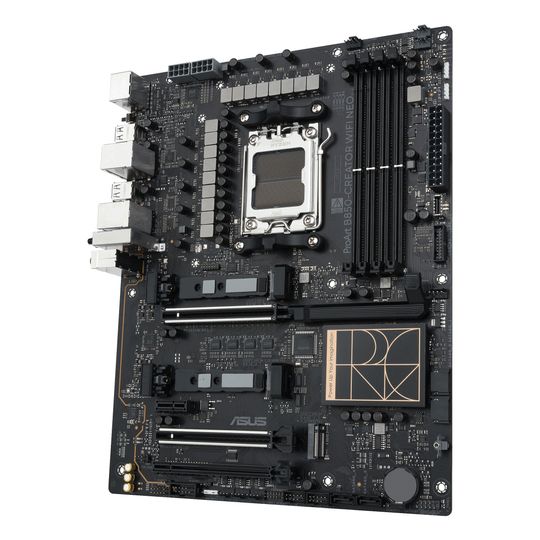

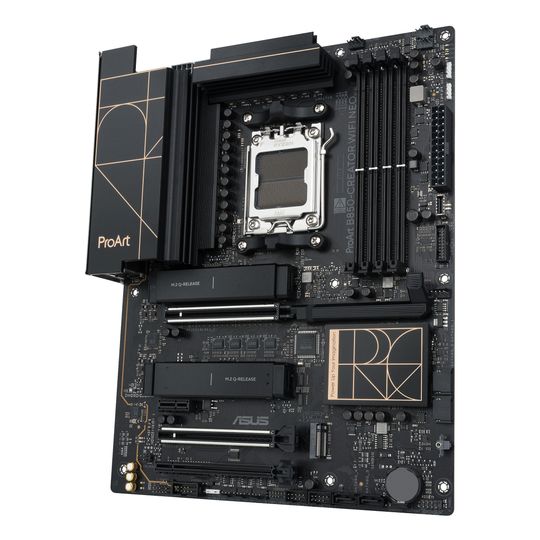

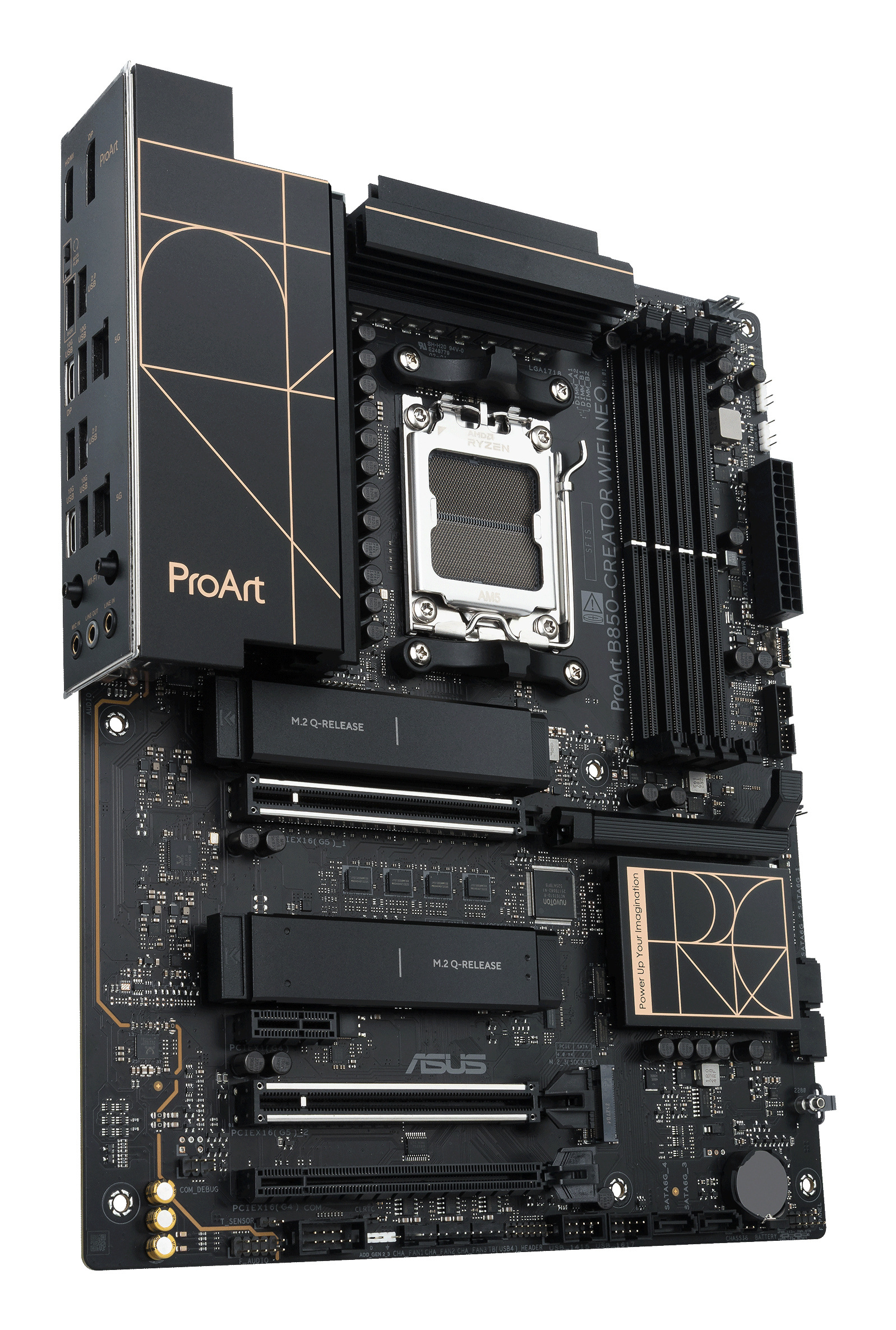

Móðurborð AM5 ASUS ProArt B850 CREATOR WiFi Neo
Tæknilegir eiginleikar
- Sökkull: AMD AM5, styður Ryzen 9000, 8000 og 7000 og AMD EPYC 4005, allt að 170 W
- Kubbasett: AMD B850
- Straumrás: 14+2+1 (80 A)
- Vinnsluminni: 4x DDR5 DIMM, mest 256 GB, tvírása, allt að 8400+ MT/s (OC) með Ryzen 9000, styður ECC og AMD EXPO
- Stækkunarraufar: 2x PCIe 5.0 x16 frá örgjörva (x16 eða x8/x8), 1x PCIe 4.0 x16 frá kubbasetti (keyrir x4), 1x PCIe 4.0 x1
- Ef keyra skal PCIe 5.0 raufarnar í x8/x8 er krafist Ryzen 7000, Ryzen 9000 eða EPYC 4005 (Ryzen 8000 series styður það ekki)
- M.2: 2x PCIe 5.0 x4 (2242/2260/2280), 1x PCIe 4.0 x4 (2280)
- SATA: 4x SATA 6Gb/s, RAID 0/1/5/10
- Netkort: 2x Realtek 5 Gbit Ethernet
- Þráðlaust: WiFi 7 (2x2, 2,4/5/6 GHz, 160 MHz), Bluetooth
- USB að aftan: 2x USB-C 10 Gbps (annað með DisplayPort Alt mode), 2x USB-A 10 Gbps, 4x USB 2.0
- USB að framan: 1x USB-C 20 Gbps tengi (allt að 30 W PD/QC4+), 1x USB 5 Gbps haus, 2x USB 2.0 hausar
- Skjátengi: 1x HDMI 2.1, 1x DisplayPort 1.4 (krefst örgjörva með innbyggðri skjástýringu)
- Hljóð: Realtek ALC1220P, 7.1 rásir
- Annað: Thunderbolt (USB4) haus, BIOS FlashBack hnappur, Q-LED, COM haus, 3x ARGB Gen2 hausar
- Viftutengi: CPU, CPU OPT, AIO dæla og 4x kassavifta
- BIOS: 512 Mbit UEFI AMI
- Stærð: ATX, 30,5 x 24,4 cm
Athugasemdir: x8/x8 skiptingin virkar aðeins með Ryzen 7000/9000 og EPYC 4005. Með Ryzen 8000 er bara ein PCIe 4.0 x16 rauf virk (x8). Neðsta x16 raufin og þriðja M.2 raufin deila bandvídd, þannig að raufin dettur út ef M.2_3 er í notkun.

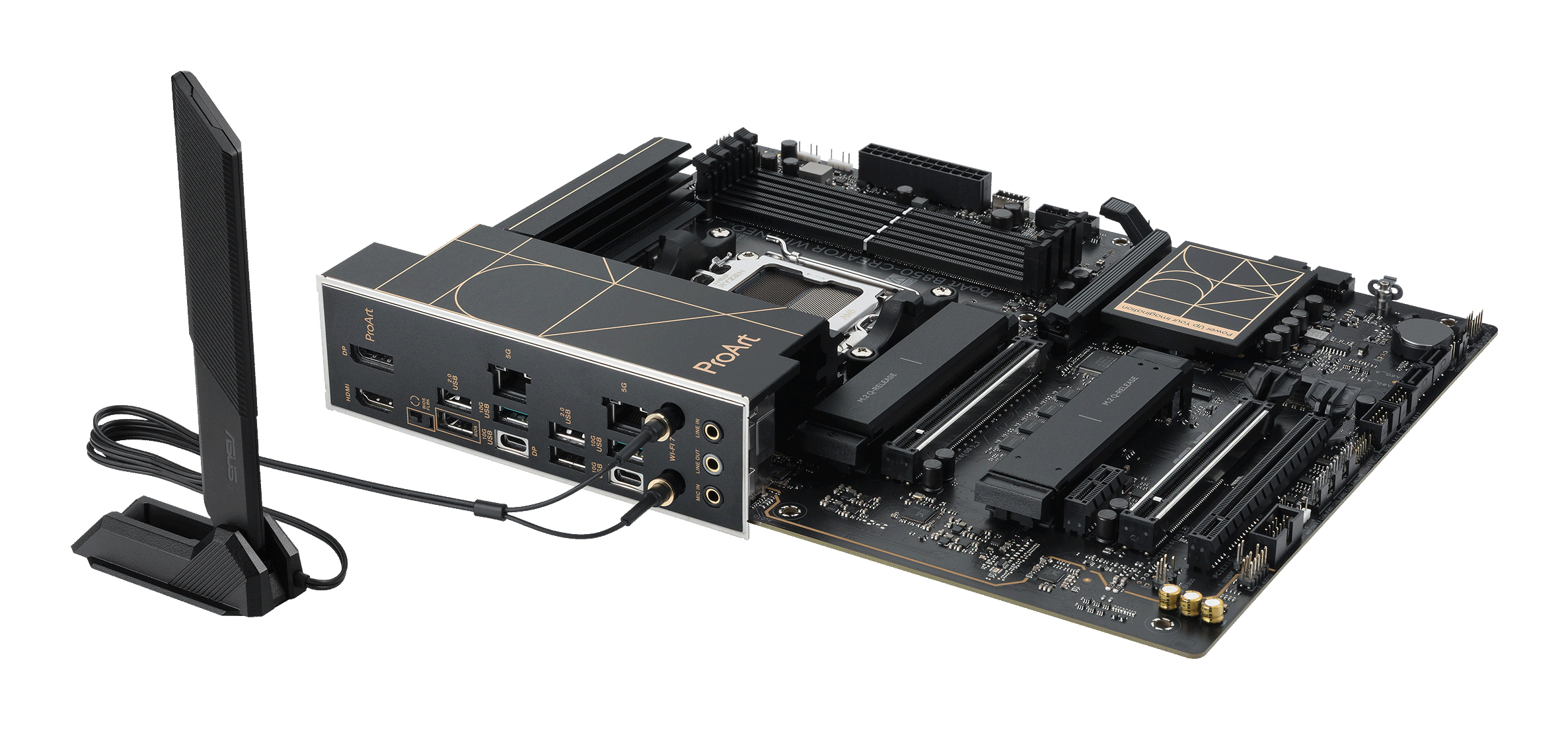

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.
With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.
ASUS PROART B850-CREATOR WIFI NEO, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B850 Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 512 Mbit
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth
| ProArt B850-CREATOR WIFI NEO AMD B850 ATX motherboard (14+2+1 Power Stages, DDR5 with AEMP, WiFi 7, Dual Realtek 5Gb Ethernet, 3x M.2 slots, PCIe 5.0 x16 SafeSlots, PCIe Slot Q-Release) ASUS PROART B850-CREATOR WIFI NEO, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets: | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 9000 MHz |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Maximum internal memory per slot: | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Maximum resolution: | 7680 x 4320 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of chassis fan connectors: | 4 |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 2 |
| Number of COM connectors: | 1 |
| TPM connector: | Yes |
| Thunderbolt headers: | 1 |
| Number of water pump connectors: | 1 |
| Number of temperature sensor headers: | 1 |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 3 |

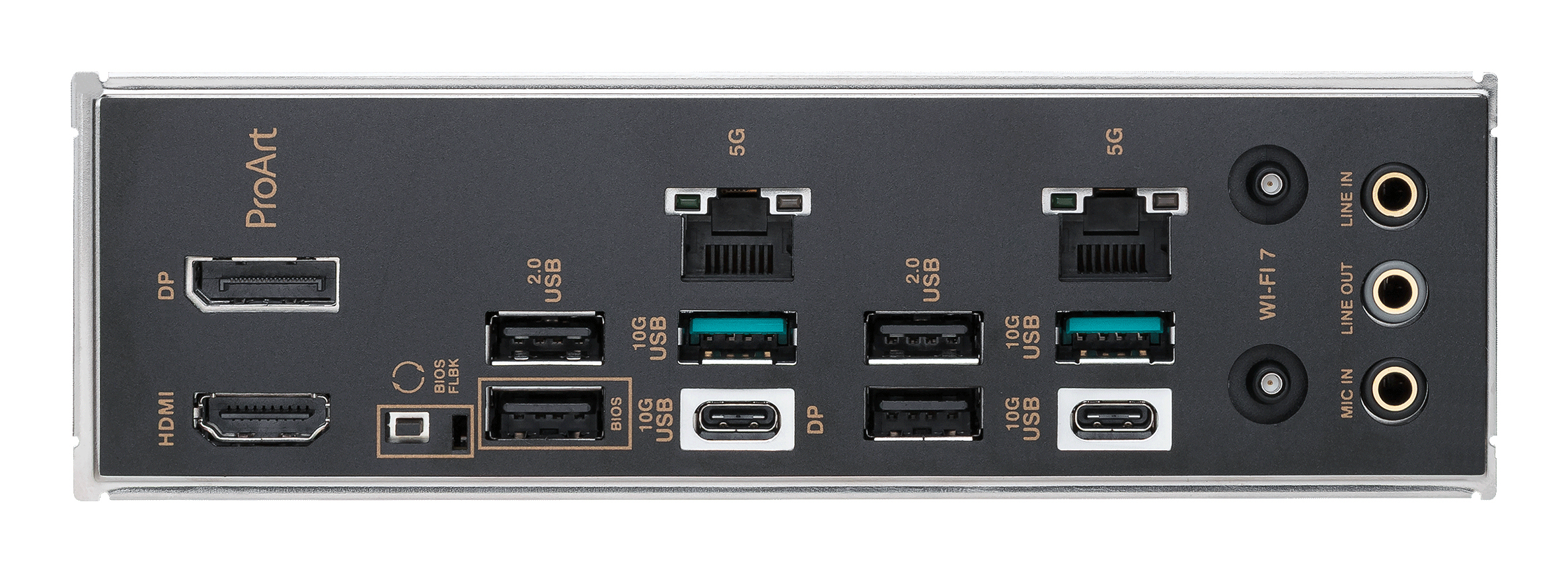

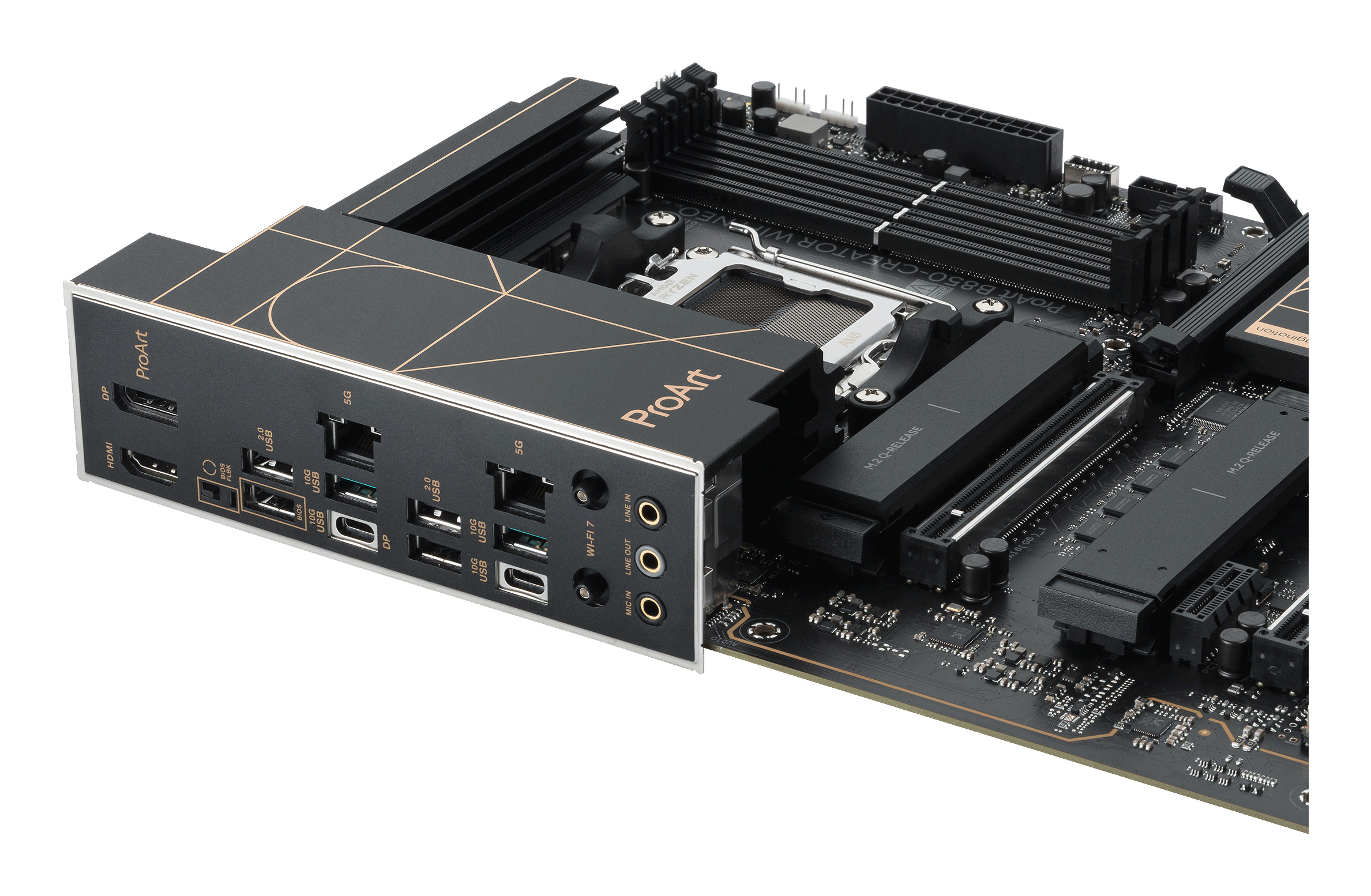

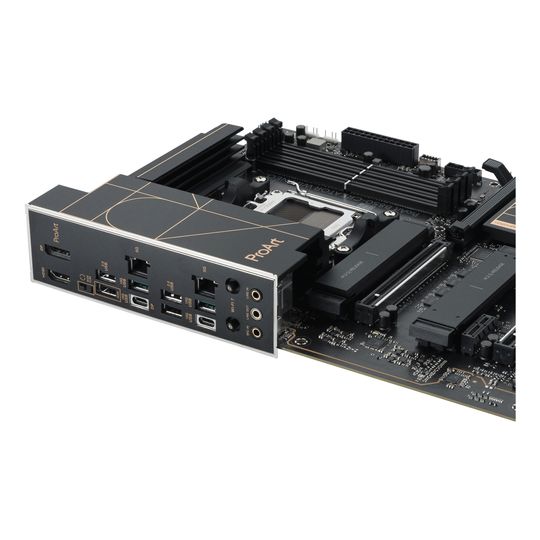

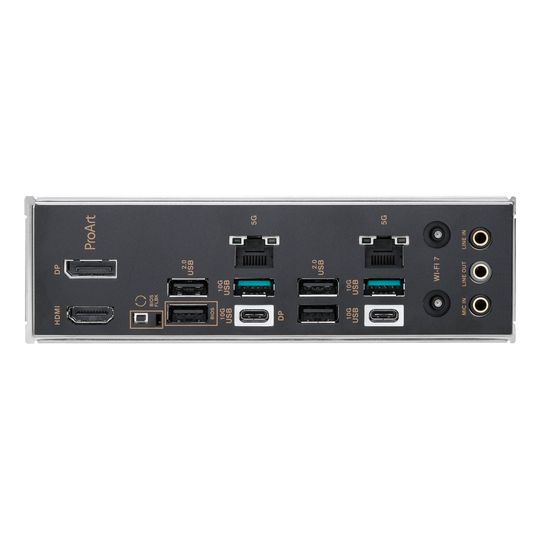

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 2 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| WiFi-AP antenna jack: | 2 |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| WLAN controller model: | Realtek RTL8922AE |
| Bluetooth: | Yes |
| Features | |
|---|---|
| Motherboard chipset: | AMD B850 |
| Audio chip: | Realtek ALC1220P |
| Audio output channels: | 7.1 channels |
| Product colour: | Black |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Cooling type: | Passive |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x4 (Gen 1.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 2 |
| Number of M.2 (M) slots: | 3 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 512 Mbit |
| BIOS flashback button: | Yes |
| Packaging data | |
|---|---|
| Package width: | 353 mm |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package weight: | 2.14 kg |
| Weight & dimensions | |
|---|---|
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 48 mm |

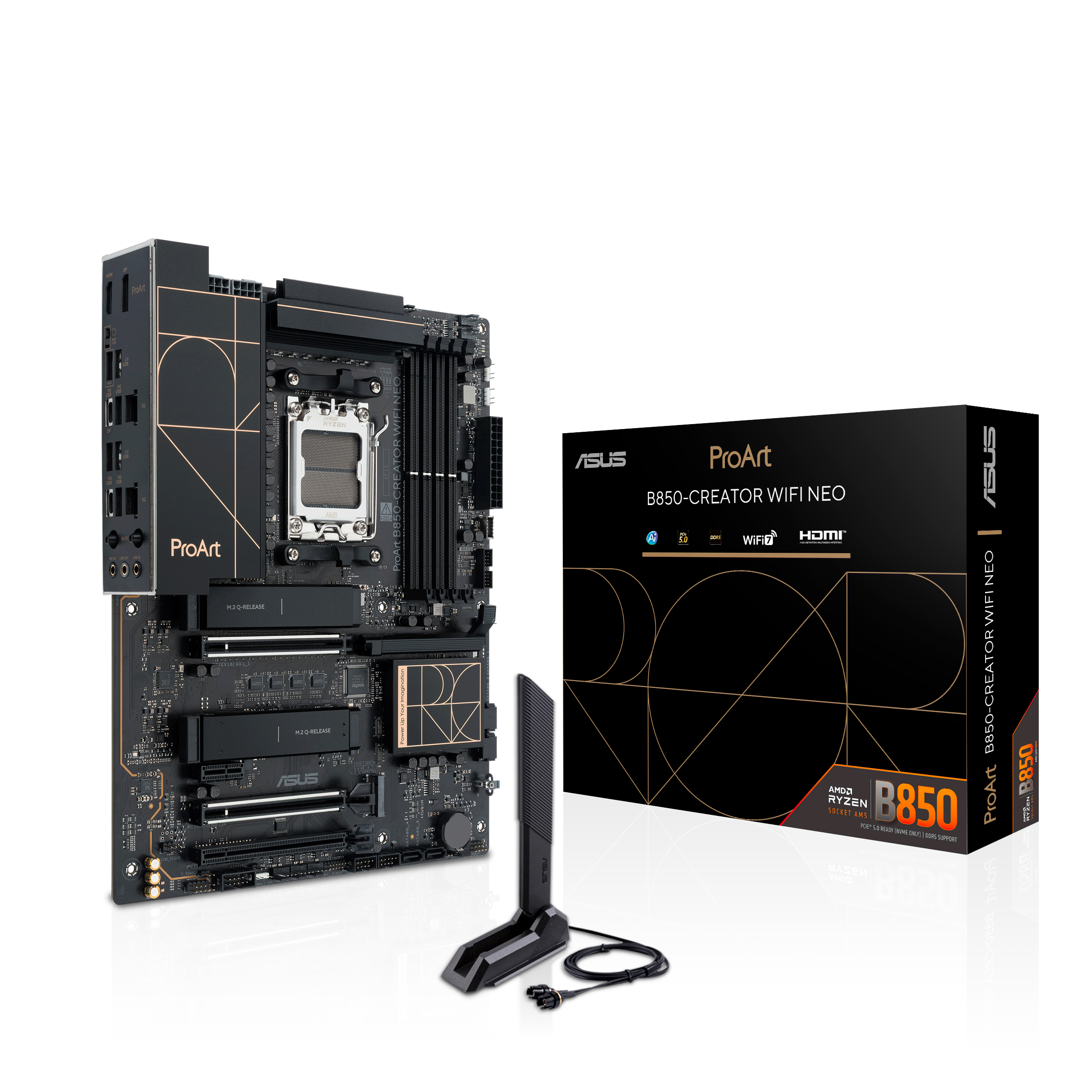

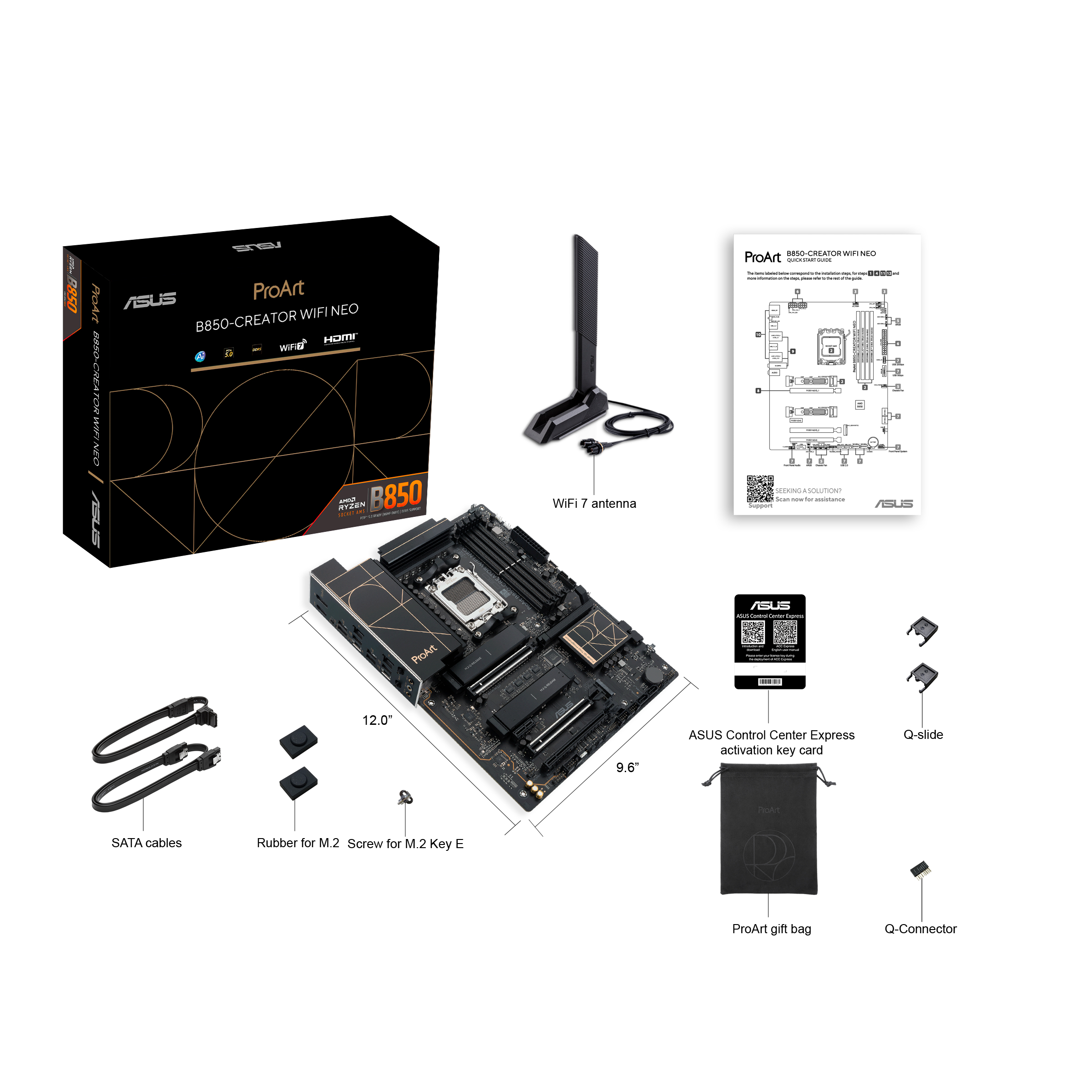

| Packaging content | |
|---|---|
| Cables included: | SATA |
| Antenna included: | Yes |
| Screws included: | Yes |
| Other features | |
|---|---|
| Weight: | 1.33 kg |
| Quick installation guide: | Yes |
