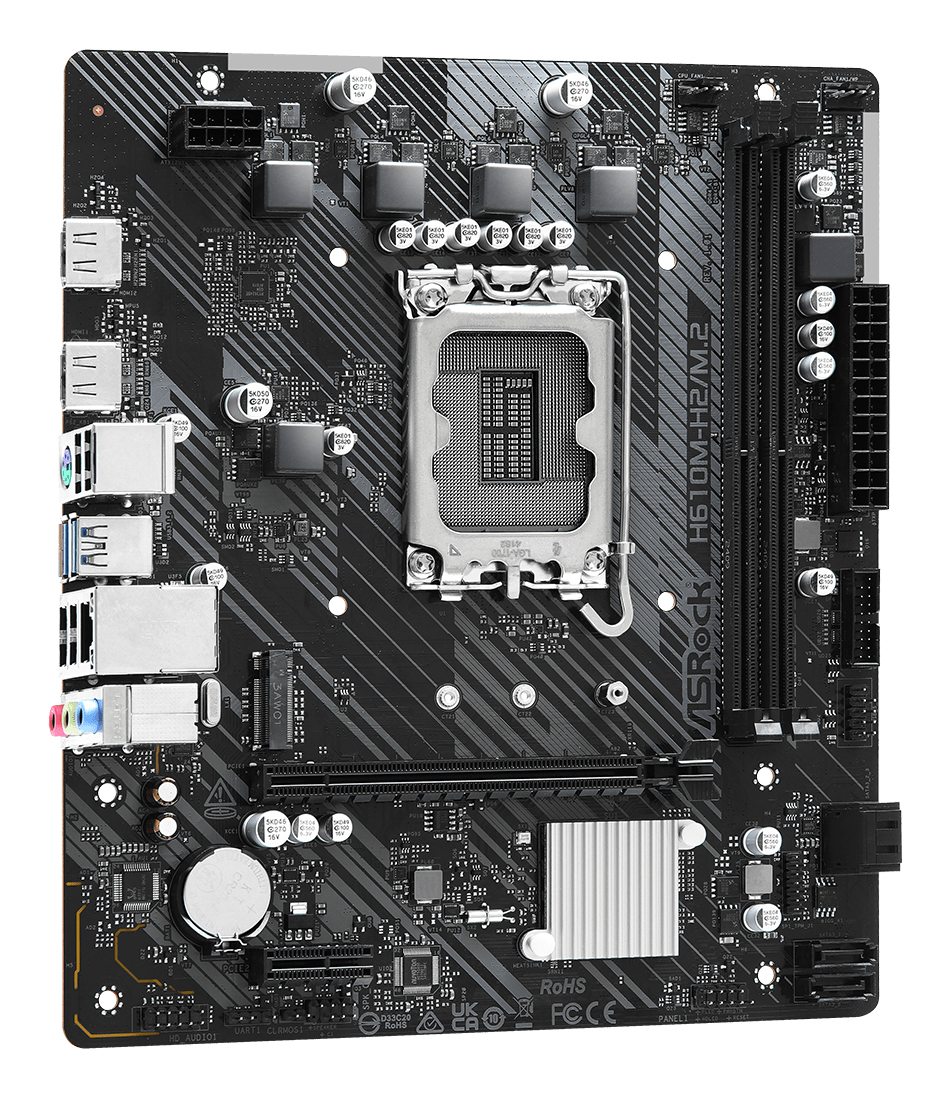

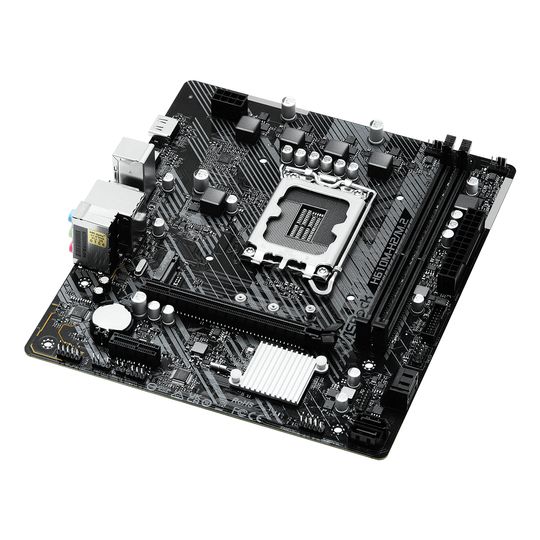

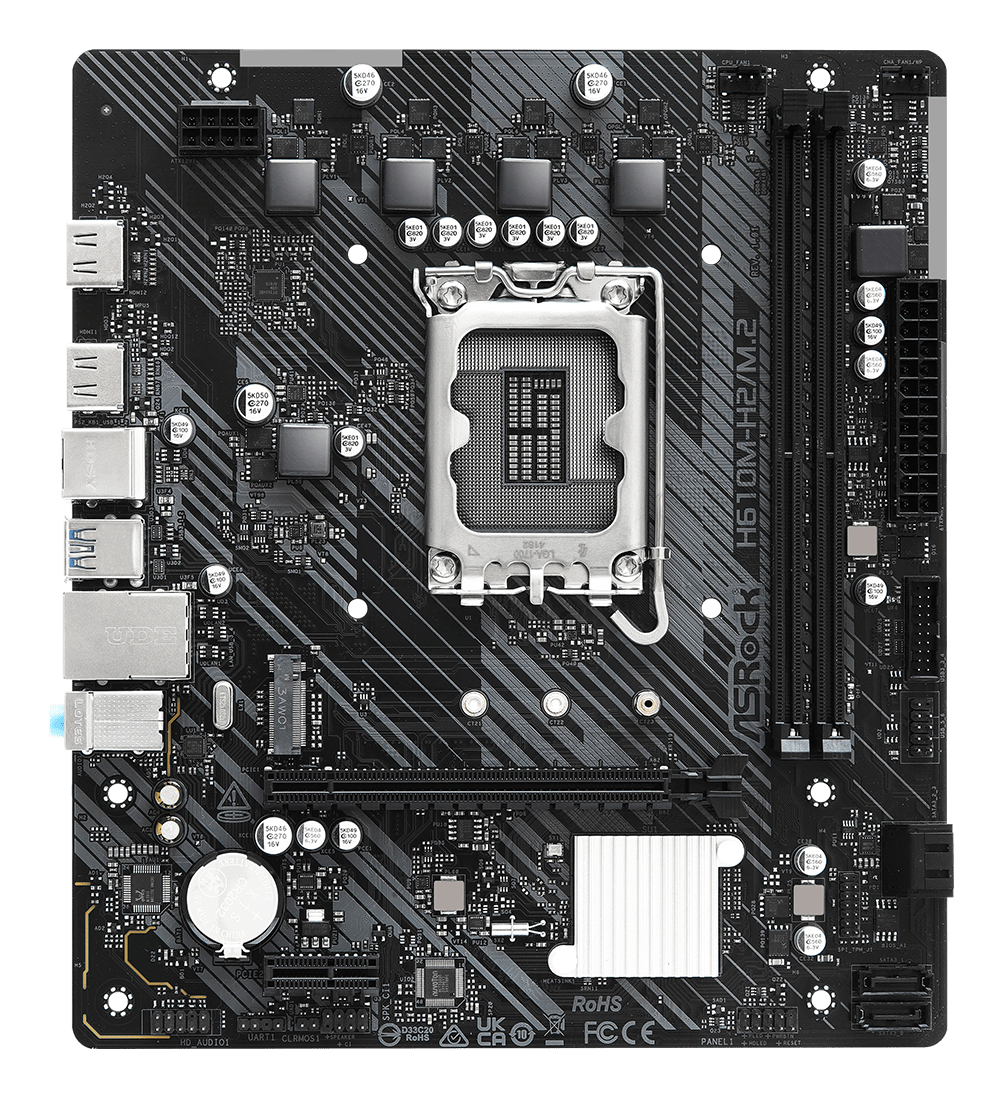

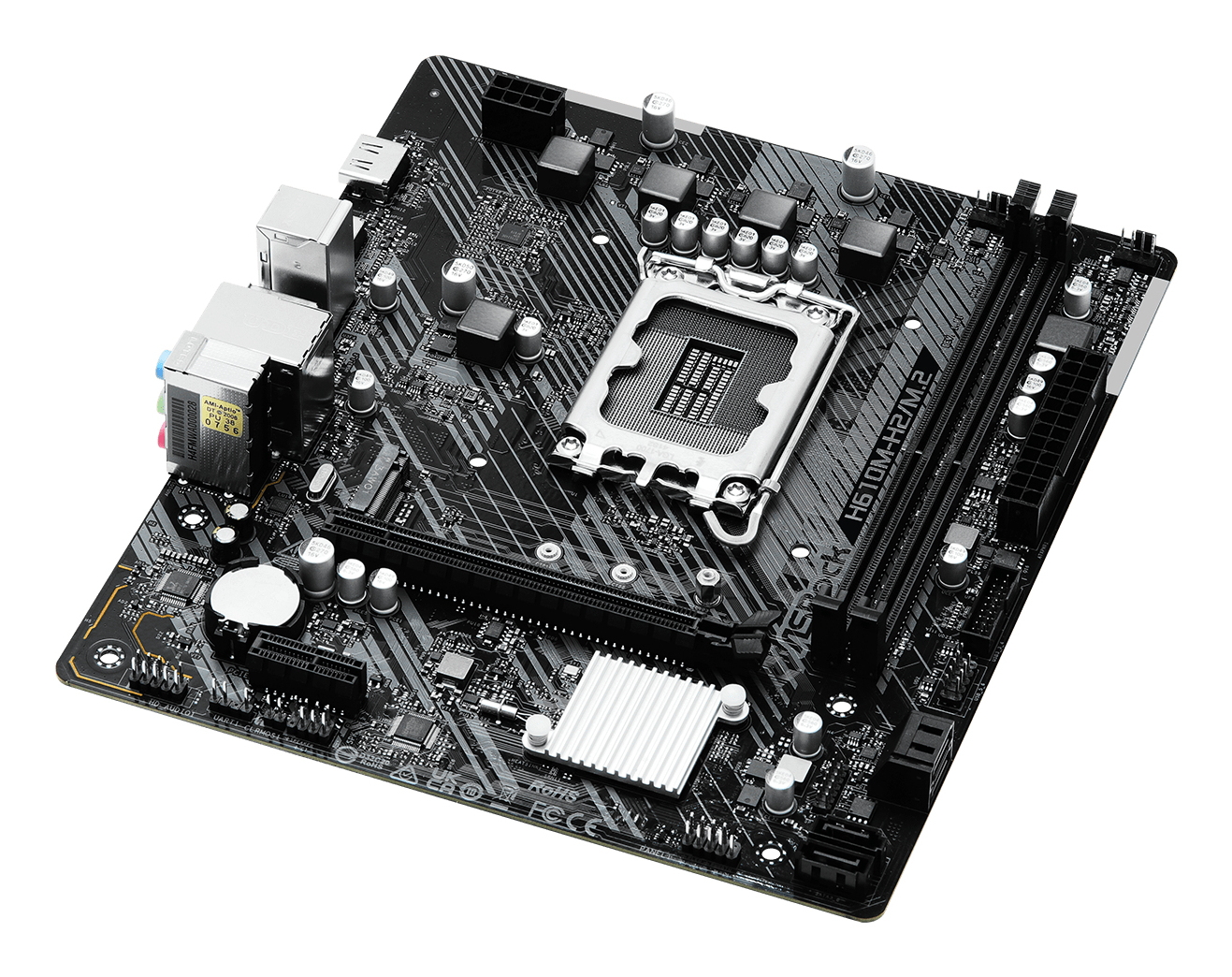

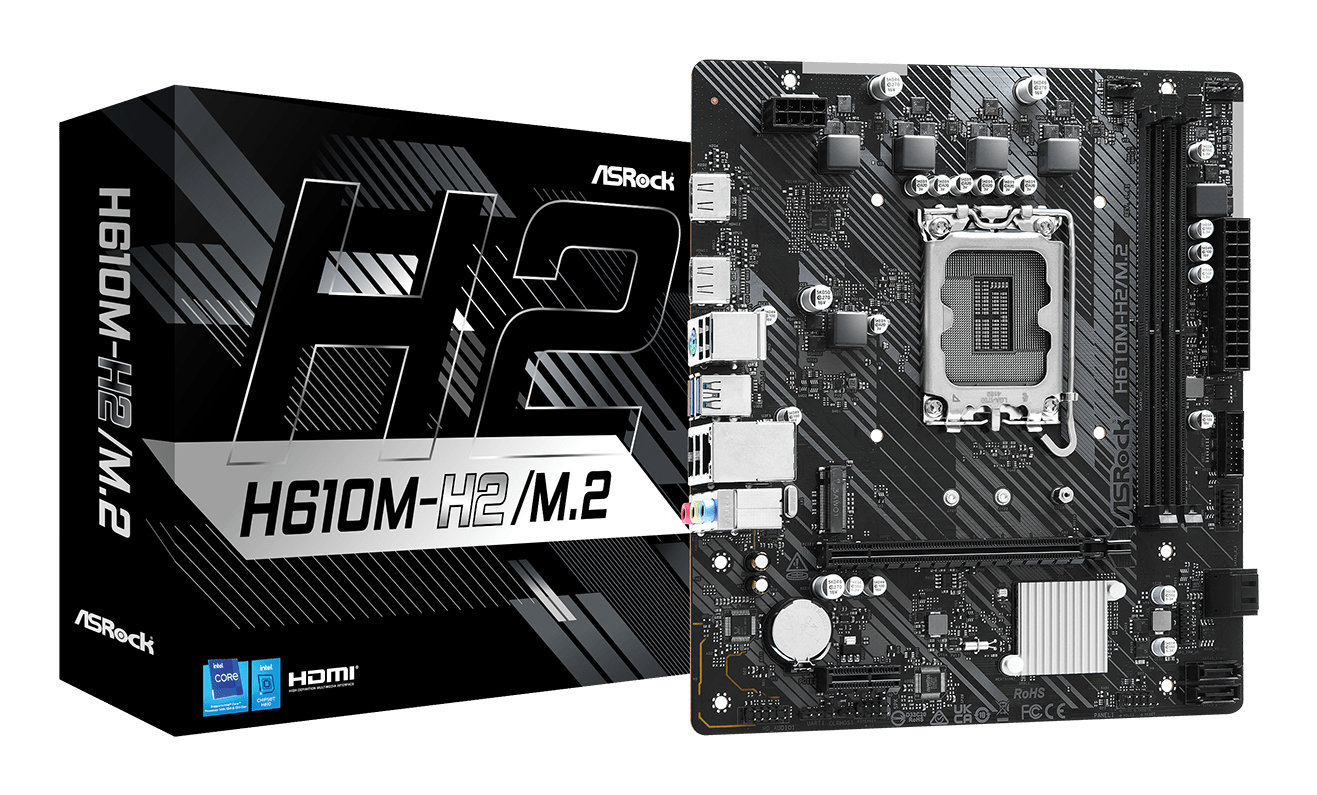

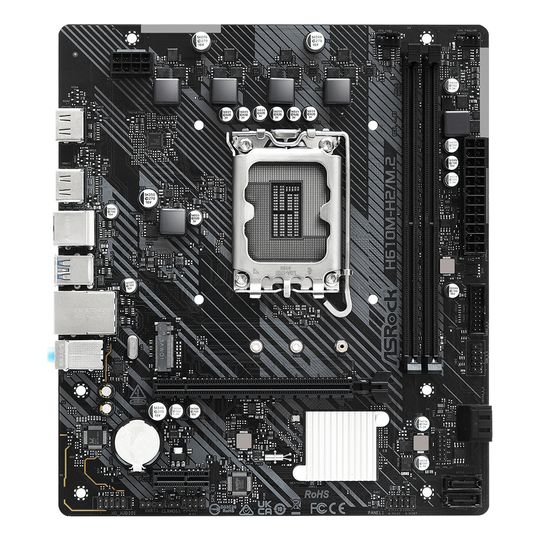

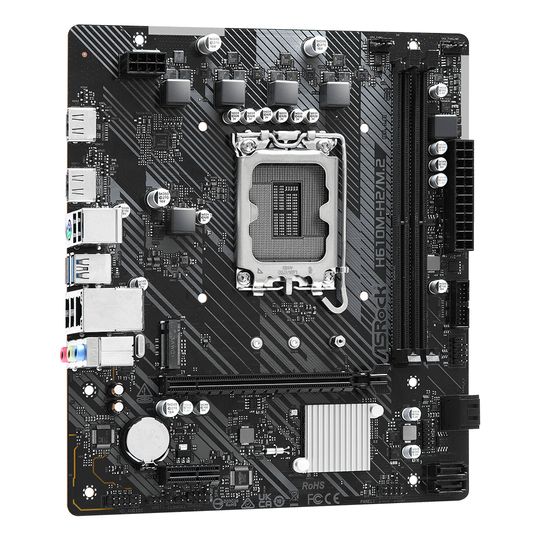

Móðurborð 1700 ASRock H610M-H2/M2 DDR4 mATX
Tæknilýsing
- Sökkull: LGA1700
- Örgjörvastuðningur: Intel Core 12., 13. og 14. kynslóð
- Kubbasett: Intel H610
- Stærð: Micro ATX, 22,0 x 19,3 cm
- Vinnsluminni: 2 x DDR4 DIMM, tvírása (dual channel)
- Hámarksminni: 64GB
- Minnishraði: allt að 3200 MHz, XMP 2.0 stuðningur
- Raufar: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- M.2: 1 x Ultra M.2 (Key M, 2242/2260/2280, PCIe Gen3 x4, NVMe)
- SATA: 4 x SATA3 6 Gb/s
- Skjátengi: 2 x HDMI 2.1, allt að 4K 60Hz (krefst örgjörva með innbyggðri skjástýringu)
- Netkort: Realtek RTL8111H, 1 Gb/s
- Hljóð: Realtek ALC897, 7.1 rása HD Audio
- USB að aftan: 2 x USB 3.2 Gen1, 4 x USB 2.0
- USB innbyggt (headers): 1 x USB 3.2 Gen1 (2 tengi), 1 x USB 2.0 (2 tengi)

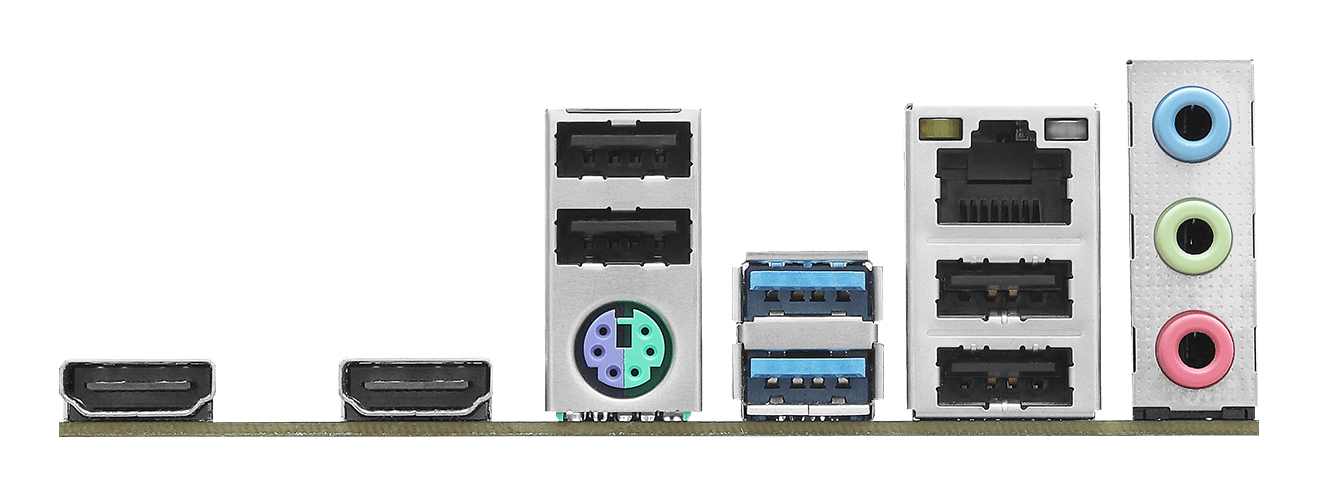

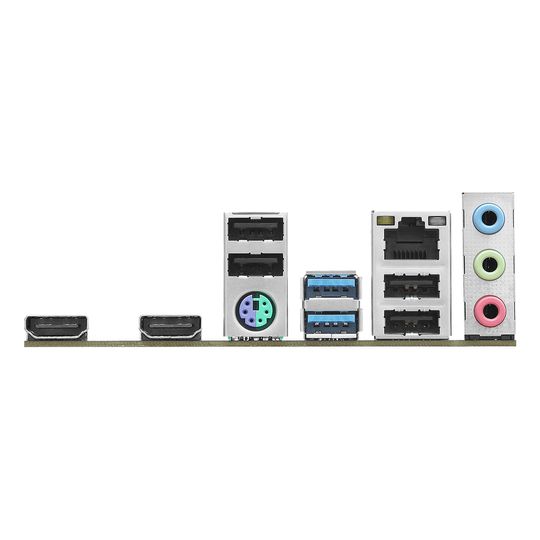

- Önnur tengi að aftan: PS/2, RJ-45, hljóðtengi
- Viftutengi: 1 x CPU vifta (4-pin), 1 x kassavifta/vatnsdæla (4-pin)
- Straumtengi: 24-pin ATX, 8-pin 12V
- Aflstýring: 3+1+1 fasa, Digital PWM
- Annað: SPI TPM tengi, Chassis Intrusion
- BIOS: AMI UEFI með myndrænu viðmóti, Instant Flash
- Stýrikerfi: Windows 10 og 11 (64-bita)
- Fylgihlutir: I/O skjöldur, 2 x SATA kaplar, M.2 skrúfa
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Asrock H610M-H2/M.2, Intel, LGA 1700, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,..., DDR4-SDRAM, 64 GB, DIMM
- Intel LGA 1700 Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen
- PC micro ATX Intel H610 Realtek ALC897 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 5
- BIOS type: UEFI AMI 128 Mbit
- Fast Ethernet, Gigabit Ethernet
| Intel H610, LGA1700, 2 x DDR4 DIMM, 7.1 CH HD Audio, Gigabit LAN, Micro ATX Asrock H610M-H2/M.2, Intel, LGA 1700, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,..., DDR4-SDRAM, 64 GB, DIMM |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
| Memory | |
|---|---|
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 3200 MHz |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 5 |
| RAID support: | Yes |
| Graphics | |
|---|---|
| HDCP: | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of chassis fan connectors: | 1 |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| Features | |
|---|---|
| Motherboard chipset: | Intel H610 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Product colour: | Multicolour |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Certification: | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width: | 220 mm |
| Depth: | 193 mm |
