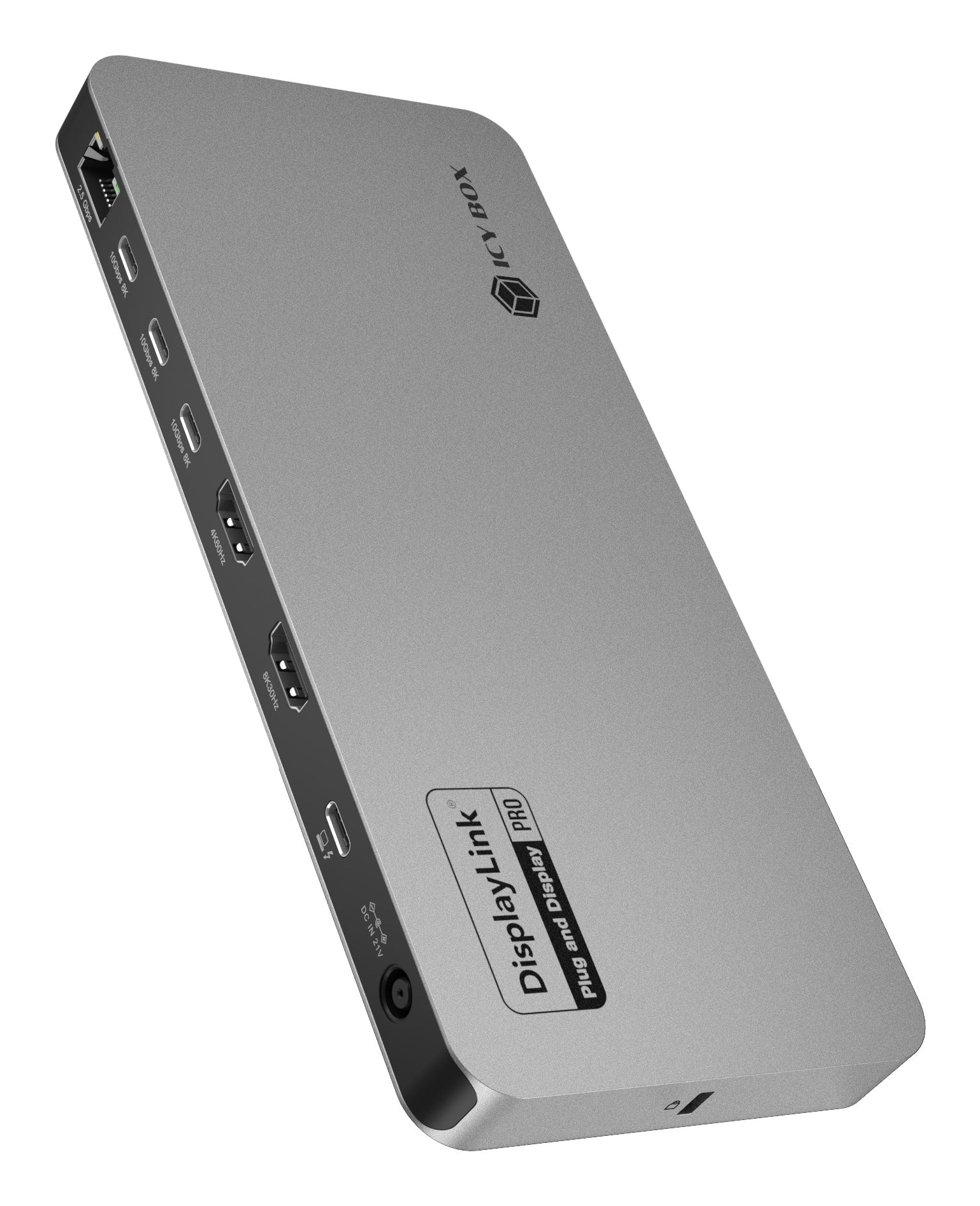

Fartölvudokka Icybox Diamond Dock 7402 IB-DK7402-C
Diamond Dock 7402 is designed to turn a notebook into a complete and powerful workspace. It supports up to 5 displays, giving you a wide and flexible screen setup for multitasking and complex projects. Access fast devices and a stable wired network through a single connection. With a whopping 140 W power delivery, your notebook stays charged while all functioacns run together smoothly. Diamond Dock 7402 brings everything into one central hub for a cleaner and more capable workspace.
Features
- Supports up to 5 displays with HDMI® and USB Type-C® video outputs, including resolutions up to 8K
- Up to 140 W Power Delivery keeps your notebook charged through a single cable connection
- Multiple USB ports with up to 10 Gbps and 2.5 Gigabit Ethernet for fast and reliable connectivity
- Professional workstation design with headphone jack and Kensington Security Slot™ for modern office setups
- Perfect for creators, multitaskers, and professionals who need a powerful multi display workspace from one central DockingStation
Packing Content
- 1x IB-DK7402-C31
- 1x USB Type-C ® to Type-C ® cable, 100 cm
- 1x 180 W power adapter (21 V/8.58 A)
- 1x Manual
Specifications

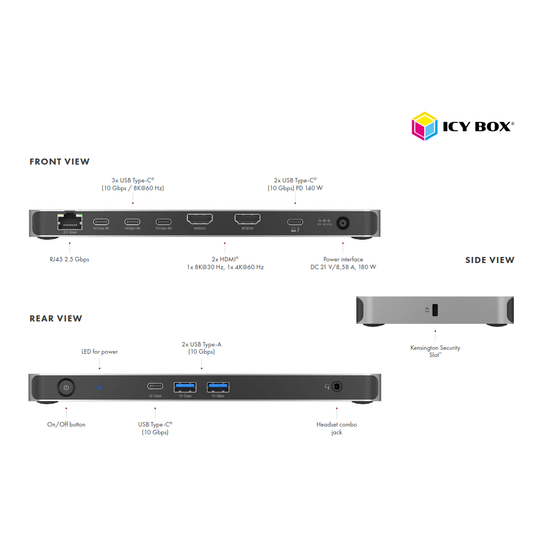

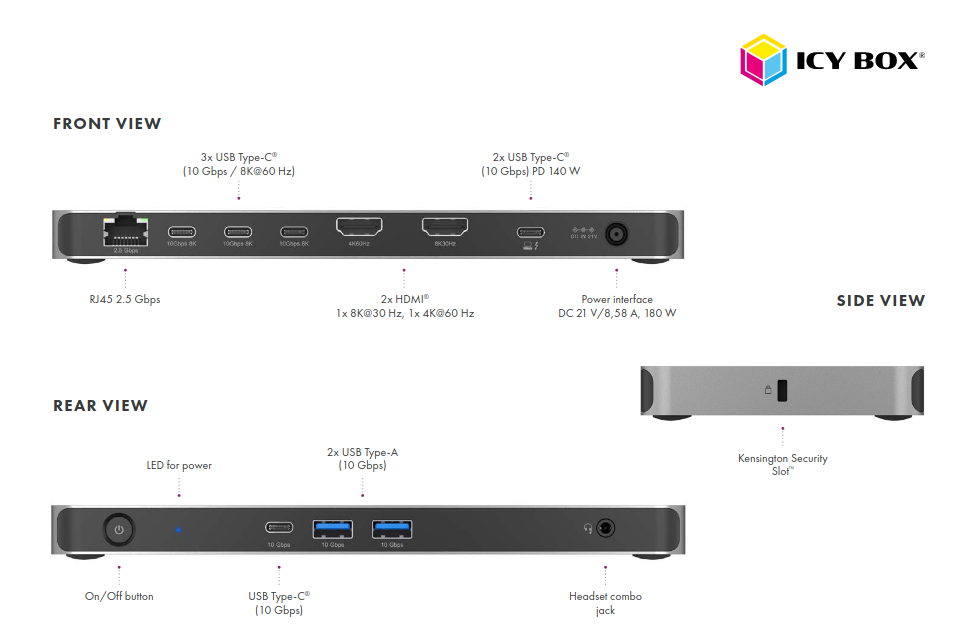

- Inputs
- Input port (host connection): 1x USB 3.2 Gen 2 Type-C, connects to laptop/PC
- Power input: DC 21V/8.58A, 180W (via included power adapter)
- Outputs

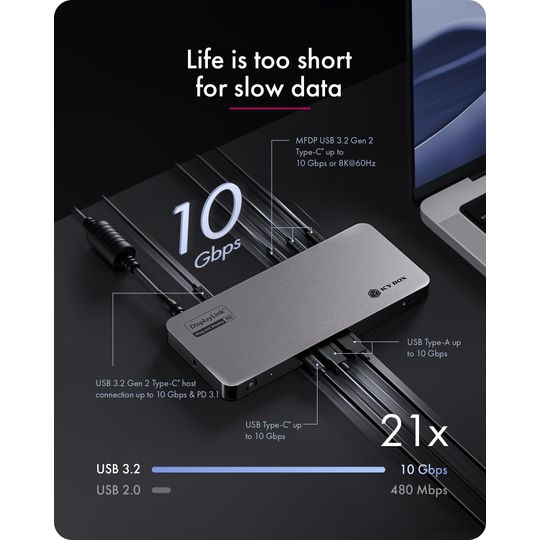

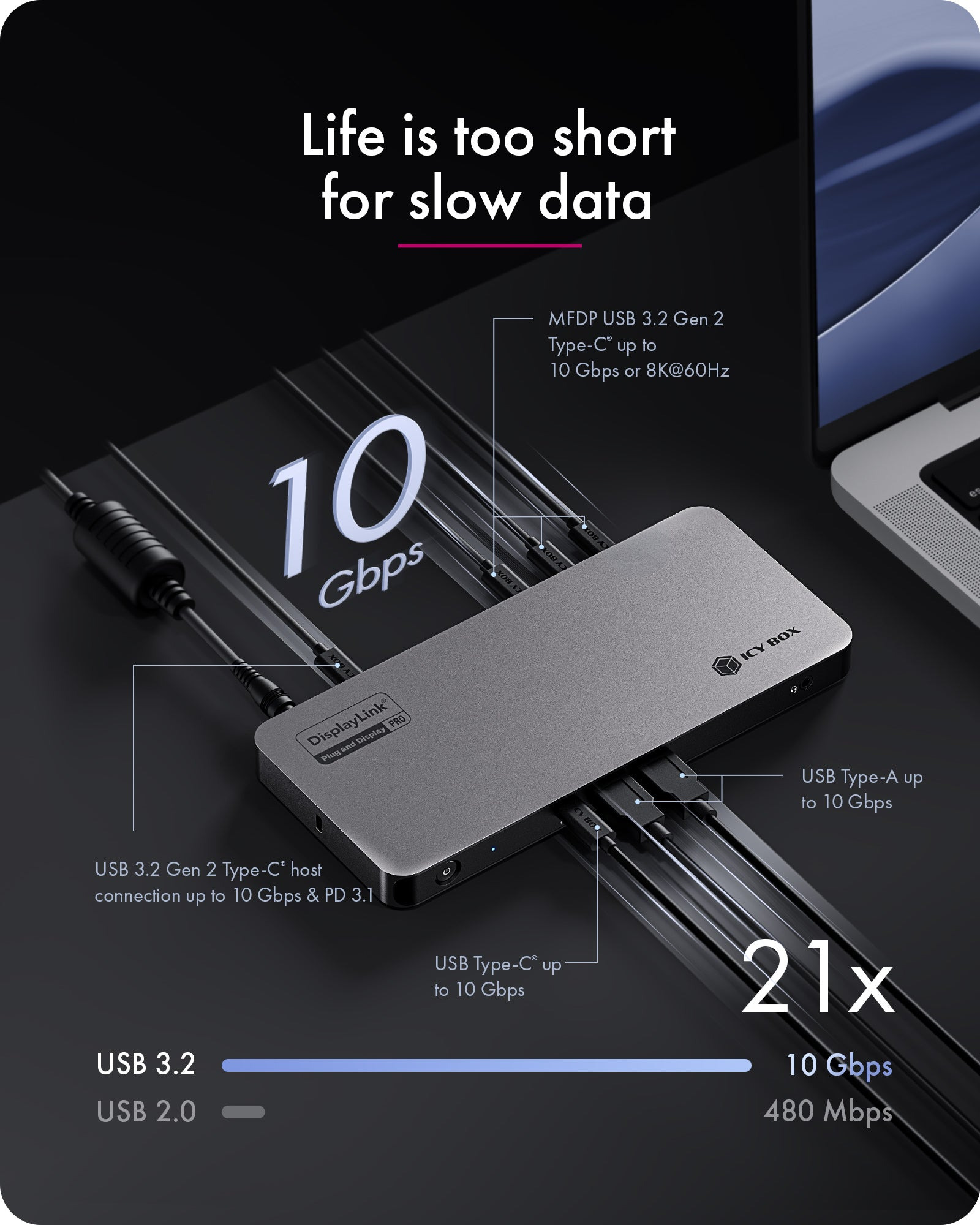

- 2X USB Type-A (front) — USB 3.2 Gen 2, 10 Gbps
- 1X USB Type-C (front) — USB 3.2 Gen 2, 10 Gbps, Power Delivery 30W

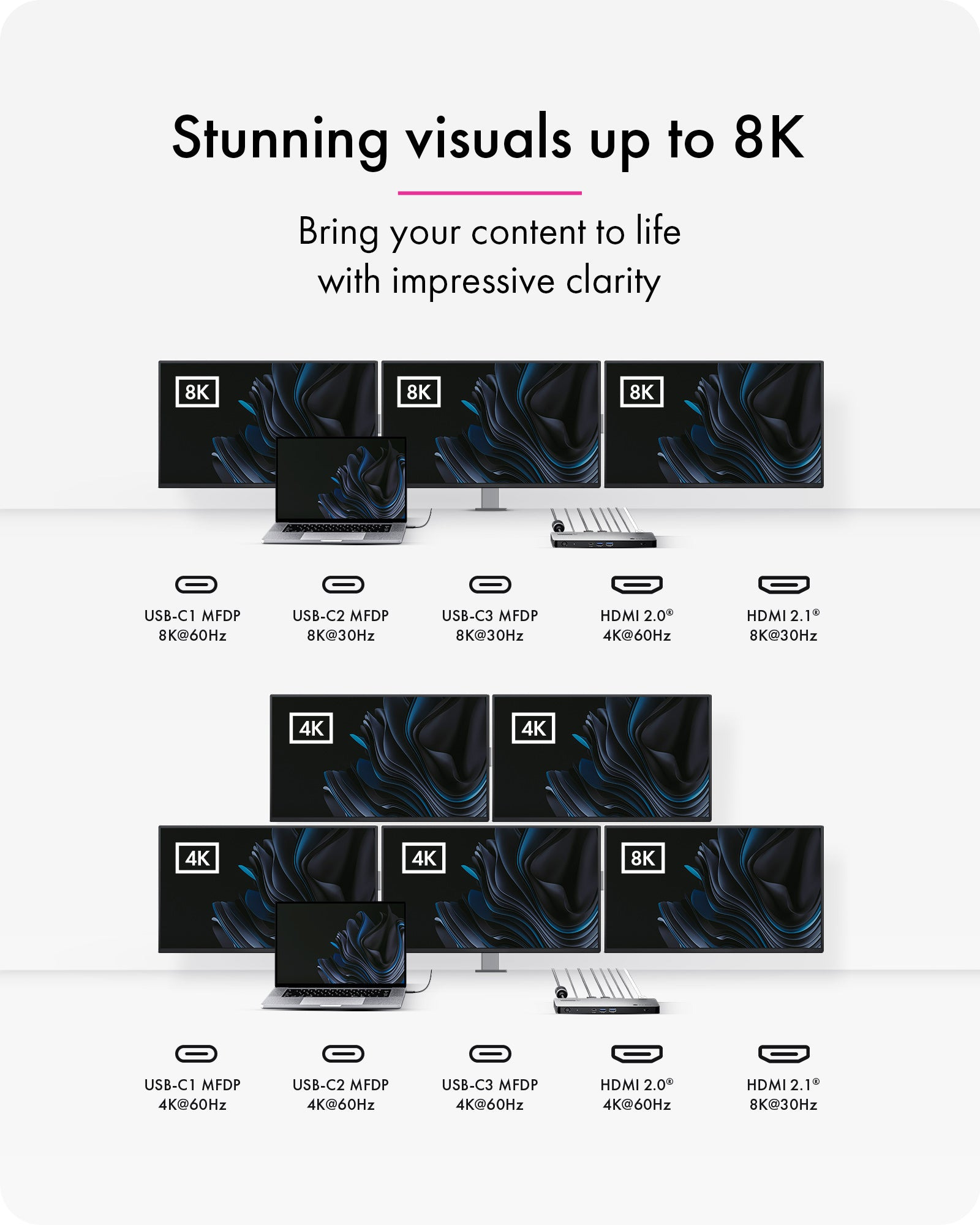

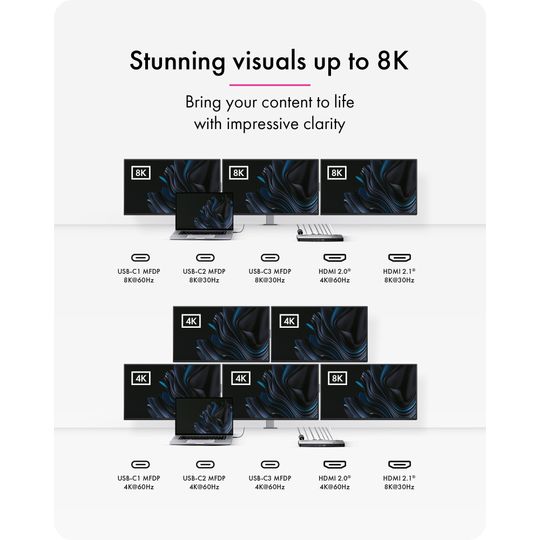

- 3X USB Type-C (rear, MFDP video) — USB 3.2 Gen 2, 10 Gbps; 1 port supports 8K@60Hz, 2 ports support 8K@30Hz
- 2X HDMI (rear) — 1 port 4K@60Hz, 1 port 8K@30Hz

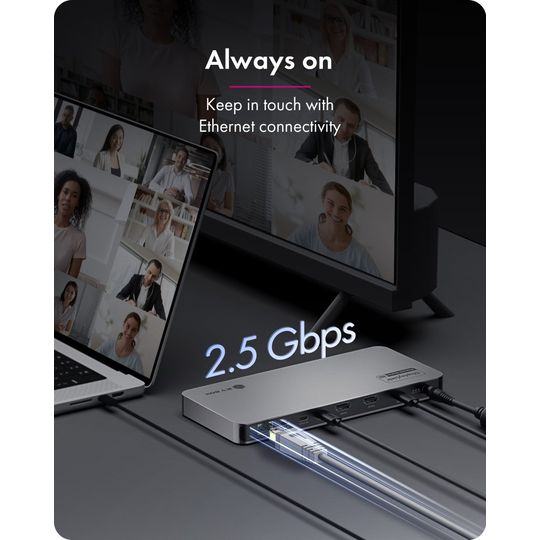

- 1X RJ45 Ethernet (rear) — 10/100/1000/2500 Mbps
- 1X 3.5mm headset jack (front) — combined audio in/out
- Kensington lock slot: included

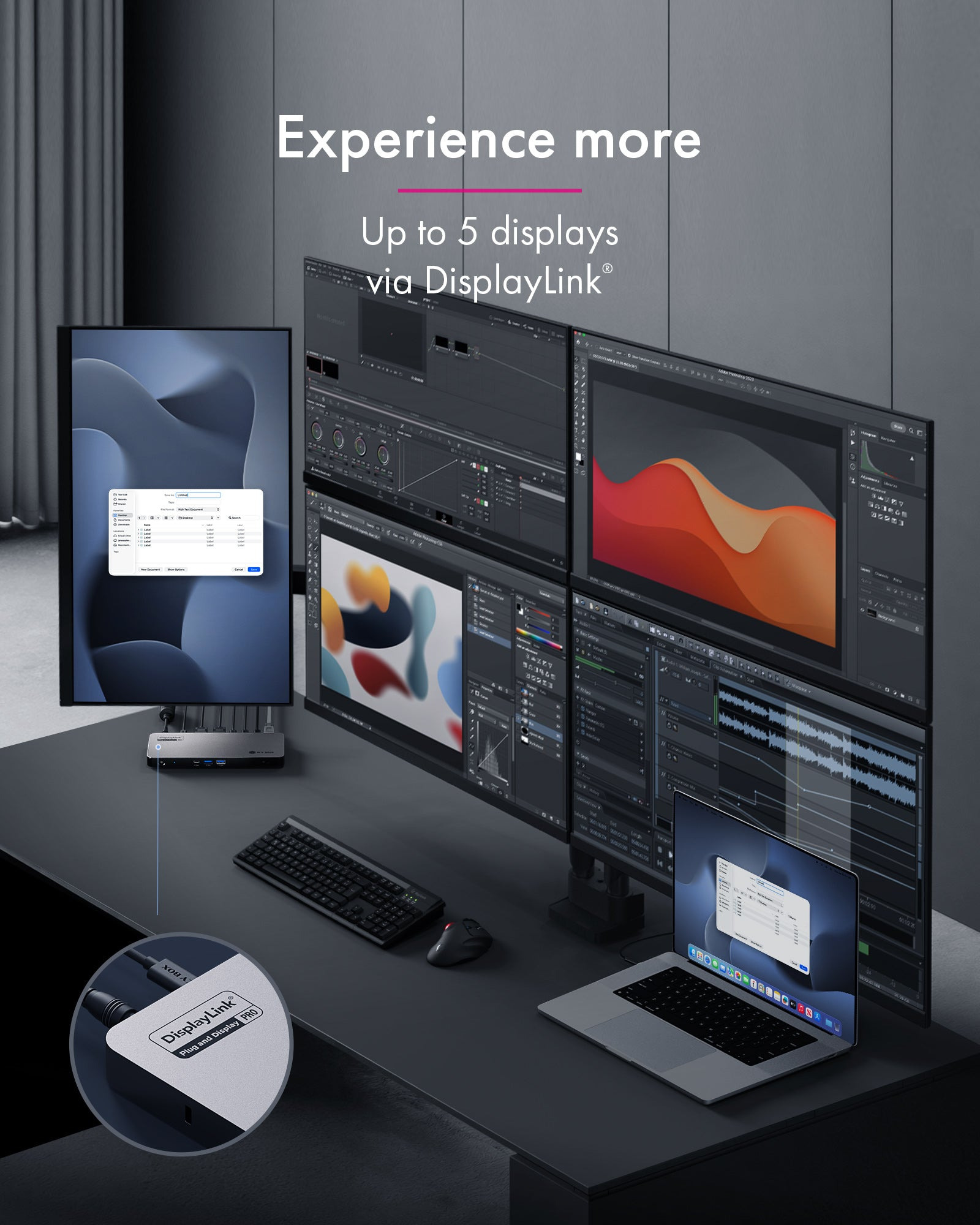

- Max external displays: 5 screens, up to 8K@60Hz combined
- Display technology: DP Alt Mode and DisplayLink
- Supported OS: Windows, macOS, ChromeOS
- Max power delivery to host: up to 140W (via rear USB-C PD port)
- Secondary charging port: up to 30W (front USB-C)
- Included power adapter: 21V/8.58A, 180W
- USB data speed: 10 Gbps (USB 3.2 Gen 2) on all USB ports
- Ethernet speed: up to 2500 Mbps (2.5G)
- Color: Grey
- Materials: Aluminium, PC, ABS
- Product dimensions: 214 x 95 x 18 mm
- Packaged dimensions: 235 x 146 x 87 mm
- Carton dimensions: 448 x 308 x 275 mm
- Net weight: 0.493 kg
- Gross weight: 1.403 kg
- Carton weight (10 units): 15.0 kg
ICY BOX Diamond Dock 7402 (12-in-1, 5 Displays), Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 140 W, 3.5 mm, Black, Anthracite
- Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB Power Delivery (USB PD)
- Ethernet LAN 2500,10,100,1000 Mbit/s
- Cable lock slot
| 12-in-1 Notebook DockingStation, 5x Displays, 140 W PD, DL7400 Chip ICY BOX Diamond Dock 7402 (12-in-1, 5 Displays), Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 140 W, 3.5 mm, 2500,10,100,1000 Mbit/s, Black, Anthracite |
|
| Ports & interfaces | |
|---|---|
| Connectivity technology: | Wired |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 5 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery up to: | 140 W |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.0 |
| Microphone in: | No |
| Combo headphone/mic port: | Yes |
| Headphone outputs: | 1 |
| Headphone connectivity: | 3.5 mm |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Ethernet LAN data rates: | 2500,10,100,1000 Mbit/s |
| Performance | |
|---|---|
| Card reader integrated: | No |
| Data transfer rate: | 10 Gbit/s |
| HD type: | 8K Ultra HD |
| Maximum digital resolution: | 7680 x 4320 pixels |
| Number of displays supported: | 5 |
| Maximum refresh rate: | 60 Hz |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Product colour: | Black, Anthracite |

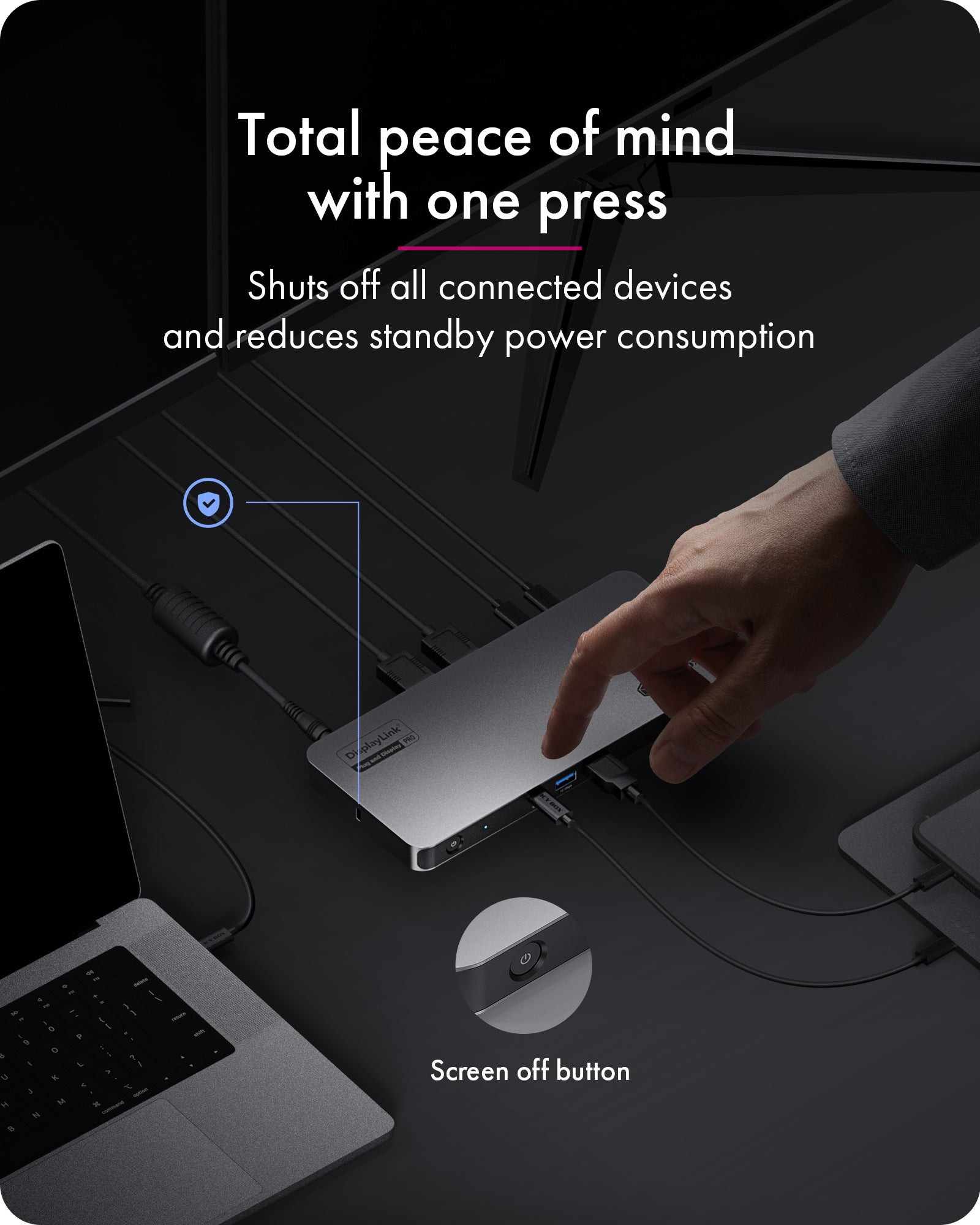

| On/off switch: | Yes |
| Housing material: | Aluminium, Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Country of origin: | Taiwan |
| Power | |
|---|---|
| Power source type: | AC |
| Output voltage: | 21 V |
| Output current: | 8.58 A |
| Power consumption (max): | 180 W |
| USB cable length: | 1 m |
| Software | |
|---|---|
| Windows operating systems supported: | Yes |
| Mac operating systems supported: | Yes |
| Other operating systems supported: | ChromeOS |
| Weight & dimensions | |
|---|---|
| Width: | 214 mm |
| Depth: | 95 mm |
| Height: | 18 mm |
| Weight: | 493 g |
| Packaging data | |
|---|---|
| Package width: | 235 mm |
| Package depth: | 146 mm |
| Package height: | 87 mm |
| Package weight: | 1.4 kg |
| Packaging content | |
|---|---|
| Cables included: | USB Type-C to USB Type-C |
| AC adapter included: | Yes |
| Manual: | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84718000 |
