Barebone ASUS NUC15 PRO Core Ultra 7 255H 2xDDR5
AI-Enabled Mini PC Powered by Intel® Core™ Ultra processors (Series 2). Designed as the best compact choice for the AI-driven future.

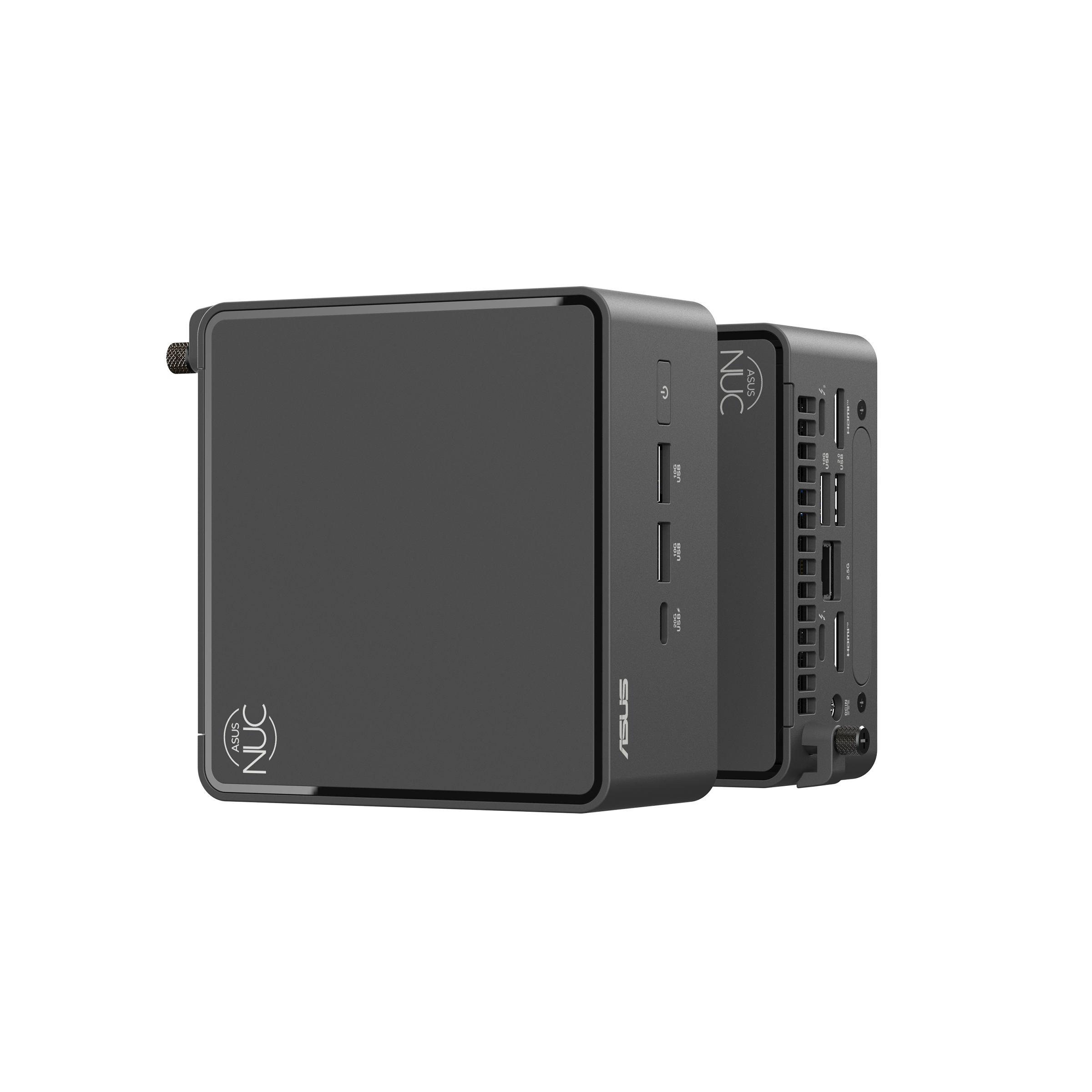

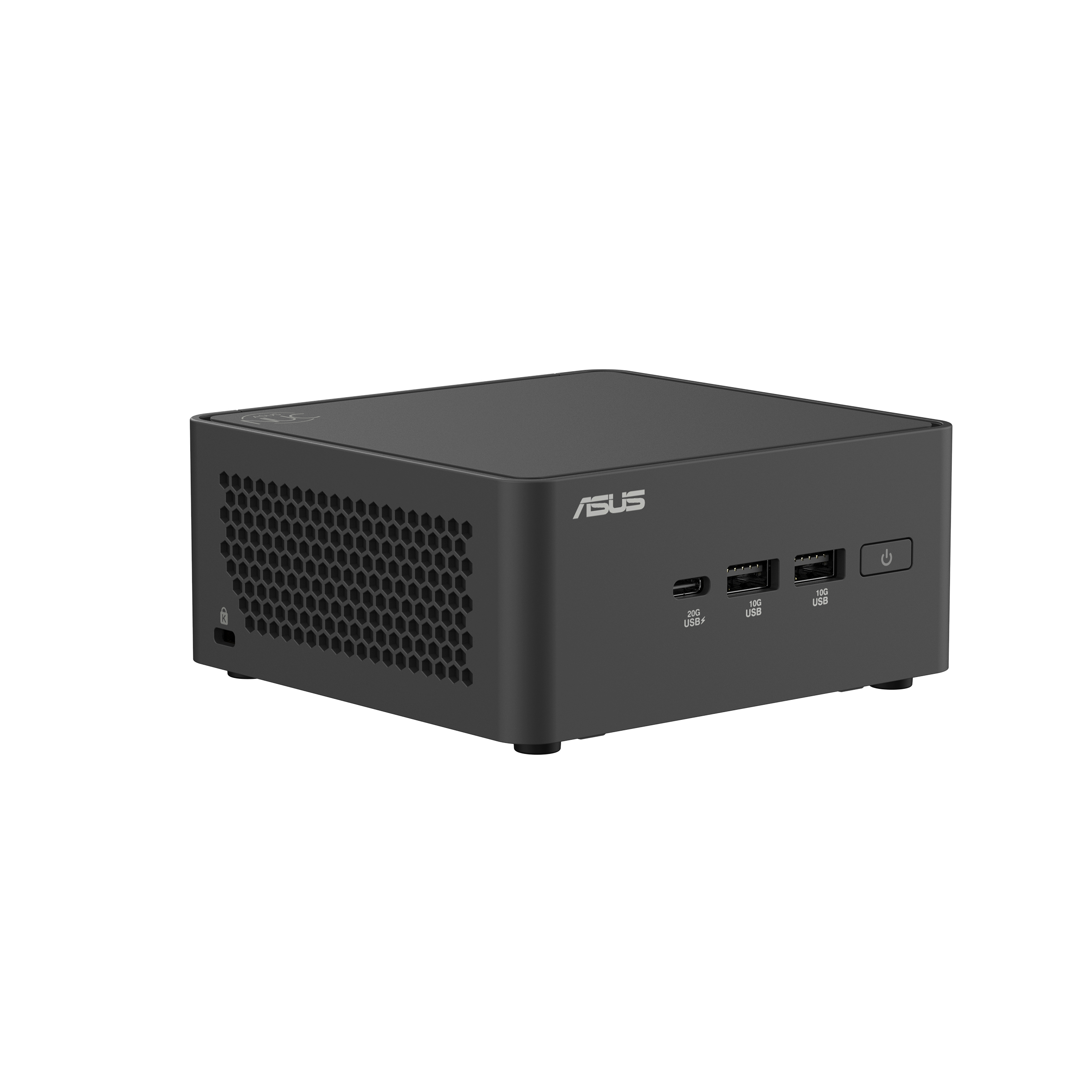

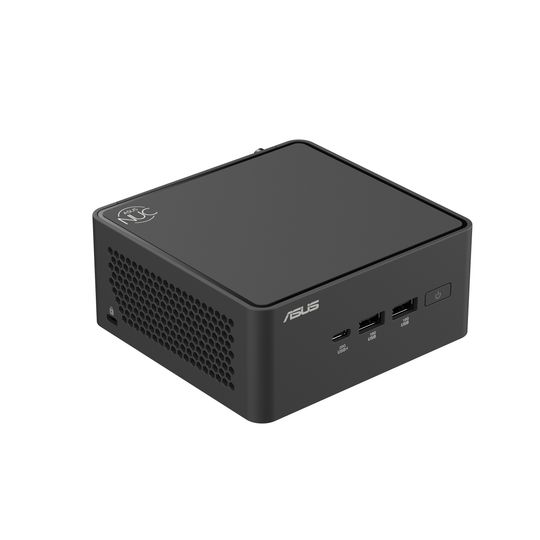

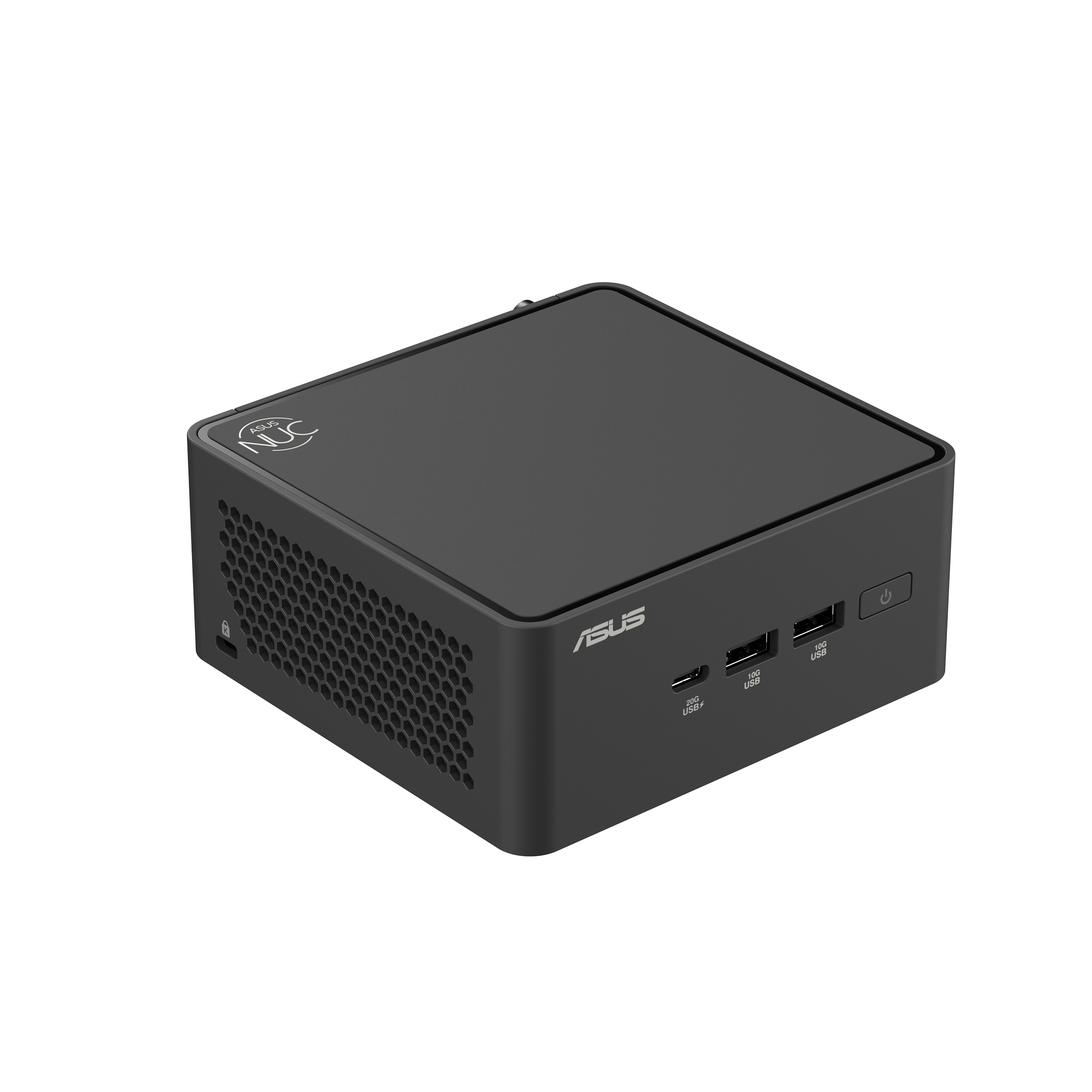

ASUS NUC 15 Pro
Best Compact Choice for the AI-Driven Future.
Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC that’s perfect for office and edge computing. Powered by the latest Intel® Core™ Ultra processor with DDR5 6400MHz memory and Intel Arc™ graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis
| Intel Core Ultra 7, 2 x SO-DIMM DDR5, M.2, Intel Arc 140T, 2.5G Ethernet, Intel WiFi 7, Bluetooth 5.4, no OS ASUS NUC 15 Pro RNUC15CRHU700002, Mini PC barebone, DDR5-SDRAM, M.2, Ethernet LAN, Wi-Fi 7 (802.11be), 120 W |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor family: | Intel Core Ultra 7 |
| Processor generation: | Intel Core Ultra (Series 2) |
| Processor model: | 255H |
| Processor cores: | 16 |
| Processor threads: | 16 |
| Processor boost frequency: | 5.1 GHz |
| Performance cores: | 6 |
| Efficient cores: | 8 |
| Performance-core Max Turbo Frequency: | 5.1 GHz |
| Efficient-core Max Turbo Frequency: | 4.4 GHz |
| Performance-core base frequency: | 2 GHz |
| Efficient-core base frequency: | 1.5 GHz |
| Built-in processor: | Yes |
| Processor cache: | 24 MB |

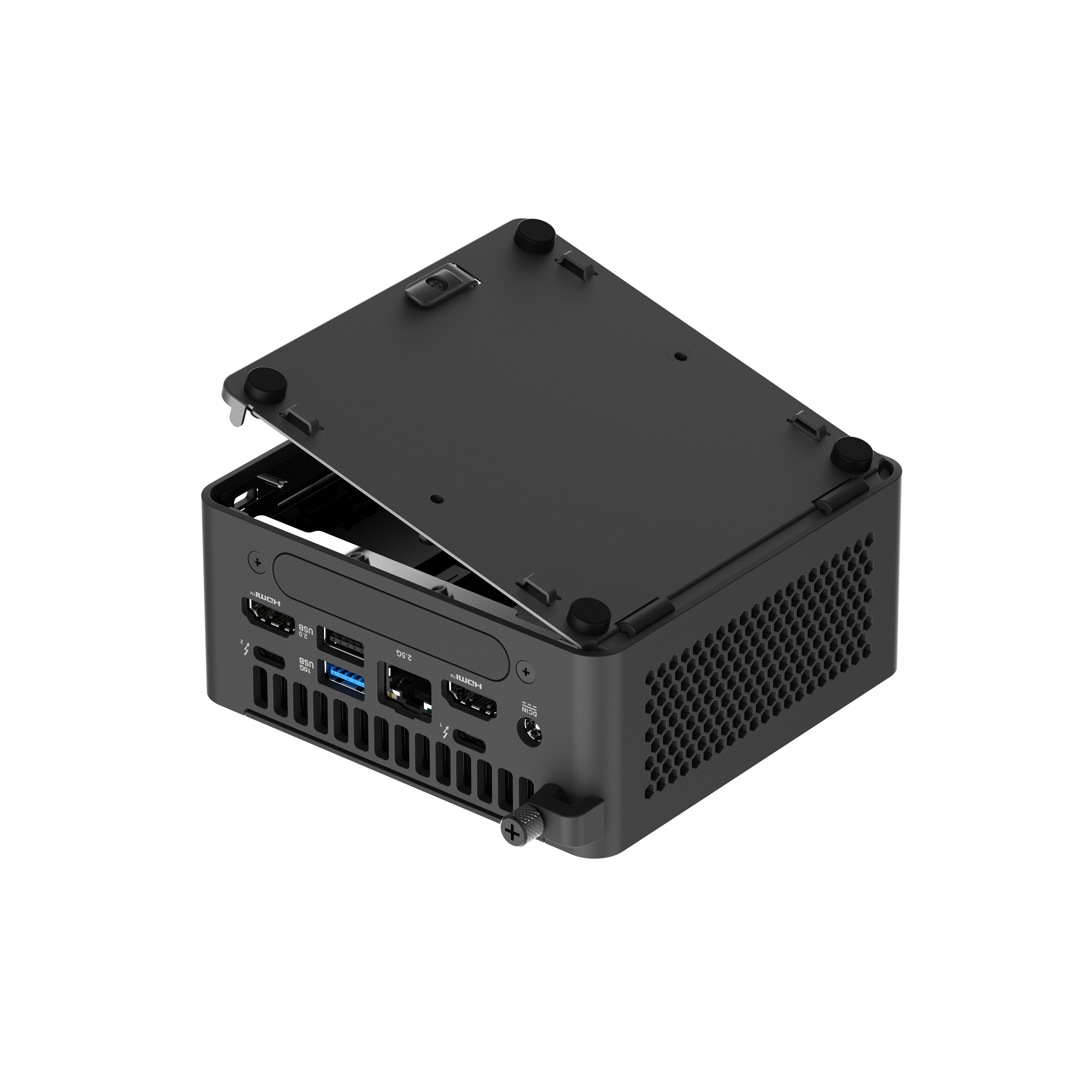

| Memory | |
|---|---|
| Internal memory installed: | No |
| Memory slots type: | SO-DIMM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory clock speeds: | 6400 MHz |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Storage | |
|---|---|
| Storage drives installed: | No |
| Supported storage drive types: | SSD |
| Storage drive sizes supported: | M.2 |
| SSD form factor: | M.2 |
| Storage drive interface: | M.2 |
| NVMe: | Yes |
| Graphics | |
|---|---|
| On-board graphics card: | Yes |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel Arc 140T |
| Audio | |
|---|---|
| Built-in speaker(s): | No |
| Network | |
|---|---|
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |

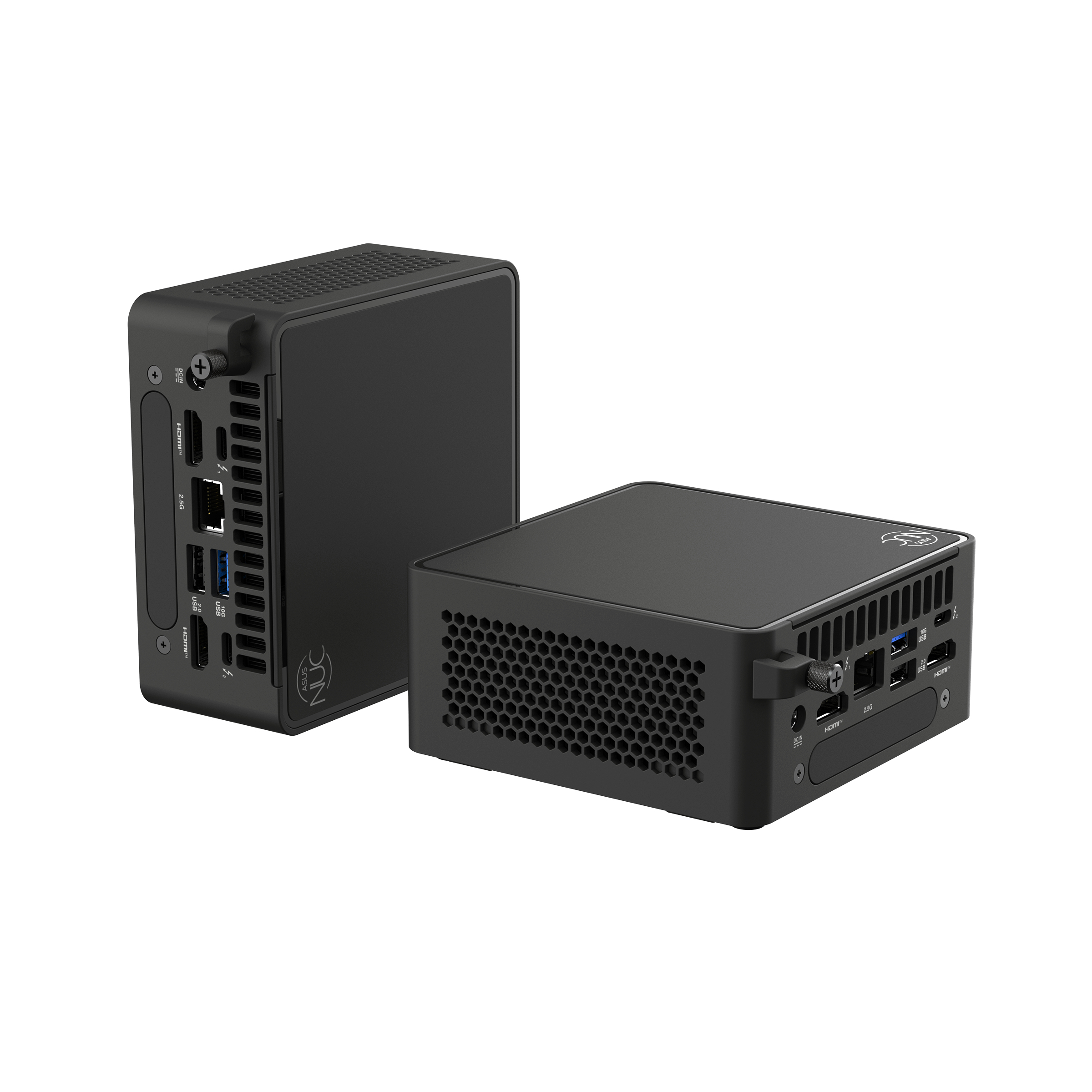

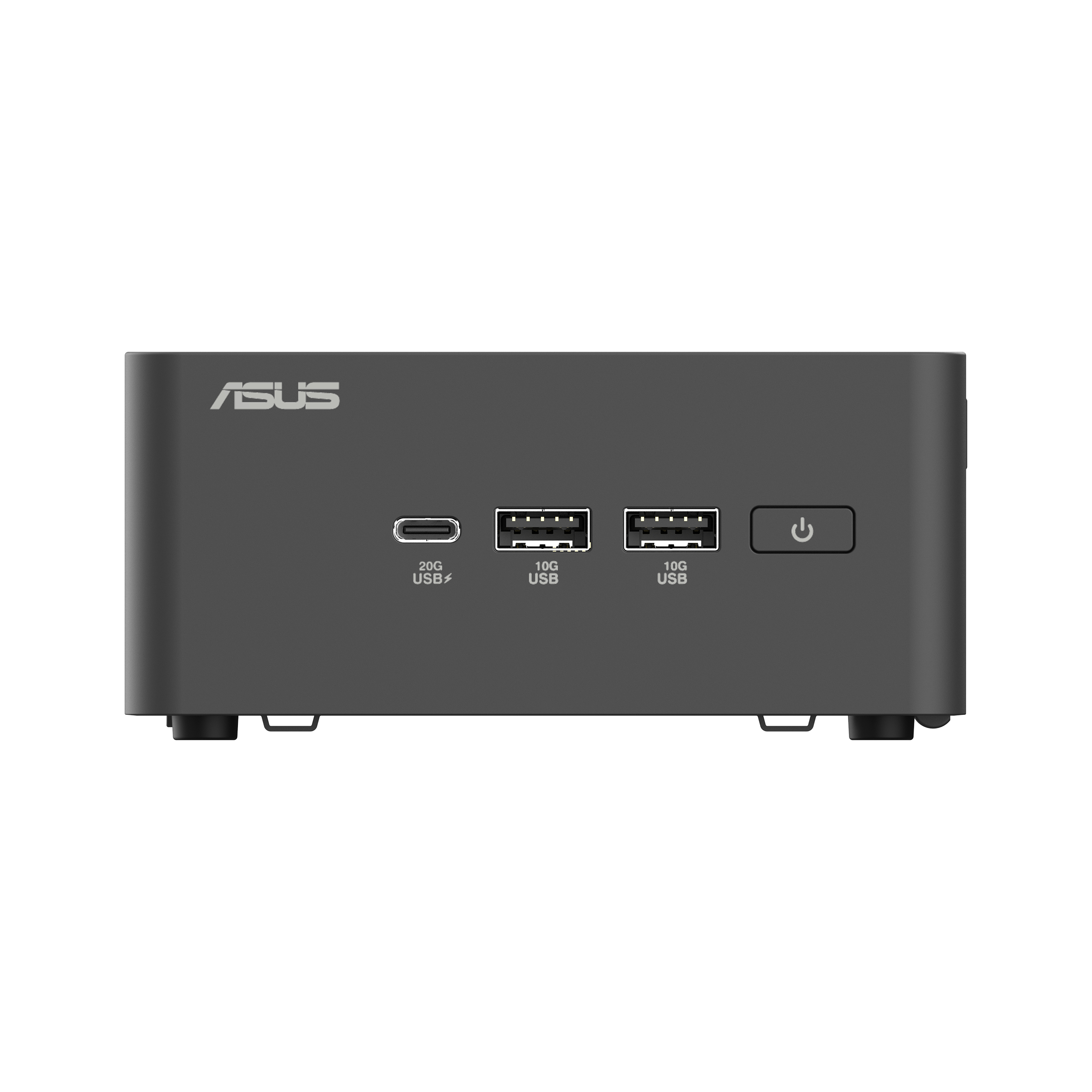

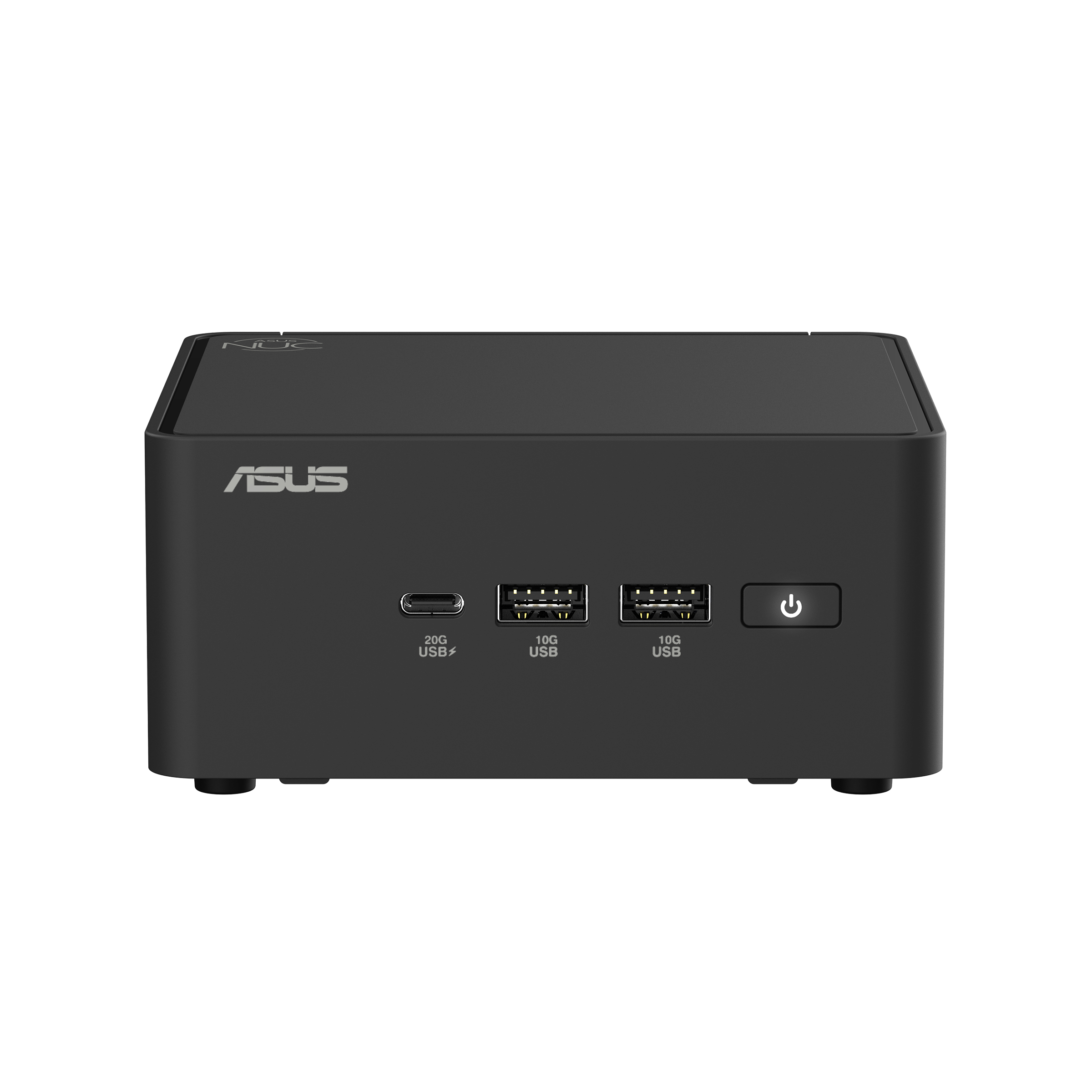

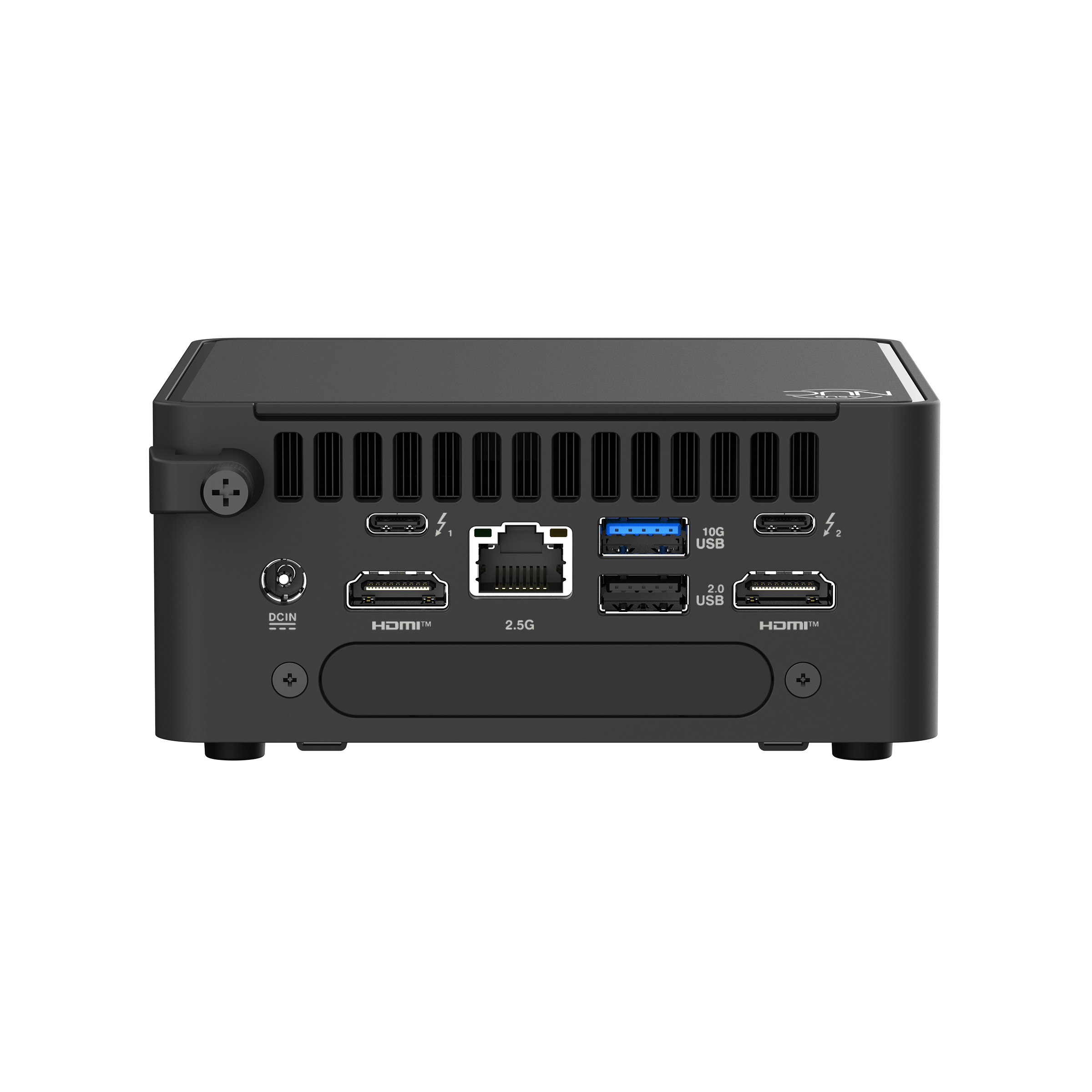

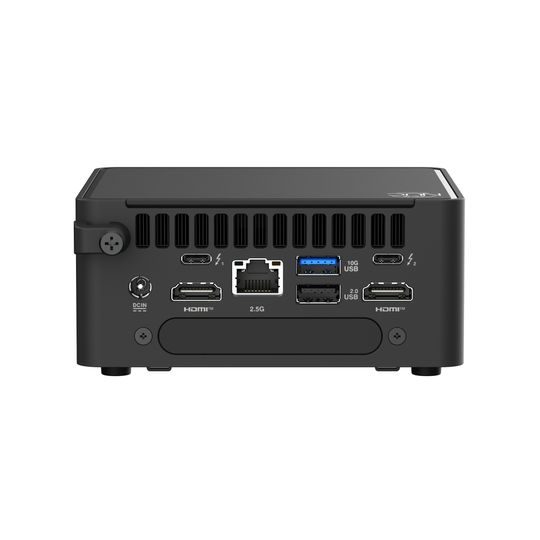

| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| USB4 Gen 2x2 ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Thunderbolt 4 ports quantity: | 2 |
| DC-in jack: | Yes |
| Design | |
|---|---|
| Product colour: | Black |
| On/off switch: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Product type: | Mini PC barebone |
| Software | |
|---|---|
| Operating system installed: | No |
| Power | |
|---|---|
| Power supply: | 120 W |
| AC adapter output voltage: | 19 V |
| AC adapter output current: | 6.32 A |
| Weight & dimensions | |
|---|---|
| Width: | 117 mm |
| Depth: | 112 mm |
| Height: | 54 mm |
| Weight: | 600 g |
