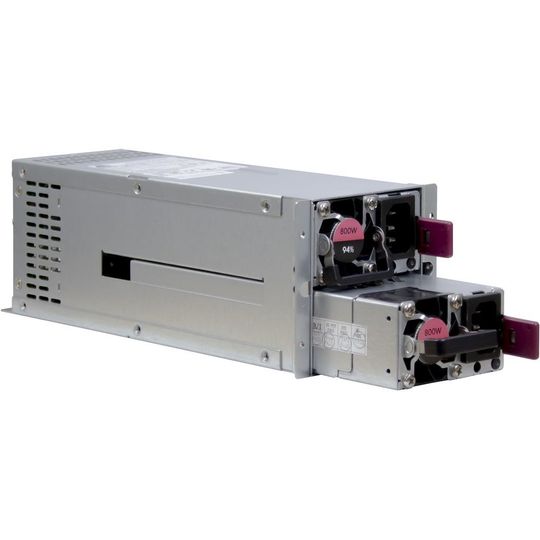

Aflgjafi Inter Tech 2U 2x800W R2A-DV0800-N
High-quality, 800 watt redundant 2HU Server power supply with 80PLUS® Platinum certification.
| 2U, IDE 4Pin, S-ATA, 800 W Inter-Tech ASPOWER R2A-DV0800-N, 800 W, 100 - 240 V, 50 - 60 Hz, 15 A, 150 W, 30 A |
|
| Power | |
|---|---|
| Total power: | 800 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Input current: | 15 A |
| Combined power (+3.3V): | 150 W |
| Max output current (+3.3V): | 30 A |
| Max output current (+12V): | 66.5 A |
| Max output current (+5V): | 25 A |
| Max output current (-12V): | 1 A |
| Max output current (+5Vsb): | 4 A |
| Efficiency: | 87% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit |
| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 40 cm |
| Number of SATA power connectors: | 2 |
| SATA power cable length: | 400,550 mm |
| Peripheral (Molex) power connectors (4-pin): | 6 |
| Peripheral (Molex) power cable length: | 400,550 mm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 40 cm |
| ATX power connector (20+4 pin): | Yes |
| Floppy drive power connector: | 1 |
| Floppy disk drive connector: | Yes |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Platinum |
| Purpose: | Server |
| Power supply unit (PSU) form factor: | 2U |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
|---|---|
| Product colour: | Silver |
| Cooling type: | Active |
| Fan diameter: | 4 cm |
| Number of fans: | 2 fan(s) |
| LED indicators: | Status |
| Weight & dimensions | |
|---|---|
| Width: | 100 mm |
| Depth: | 270 mm |
| Height: | 84 mm |
| Weight: | 3.1 kg |
| Packaging data | |
|---|---|
| Package weight: | 3.42 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84733020 |
