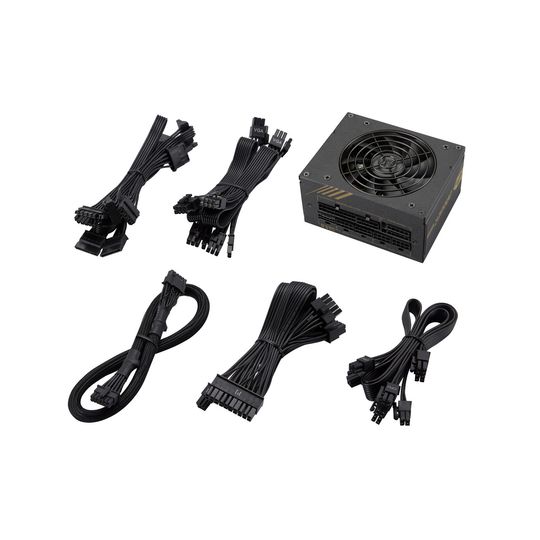

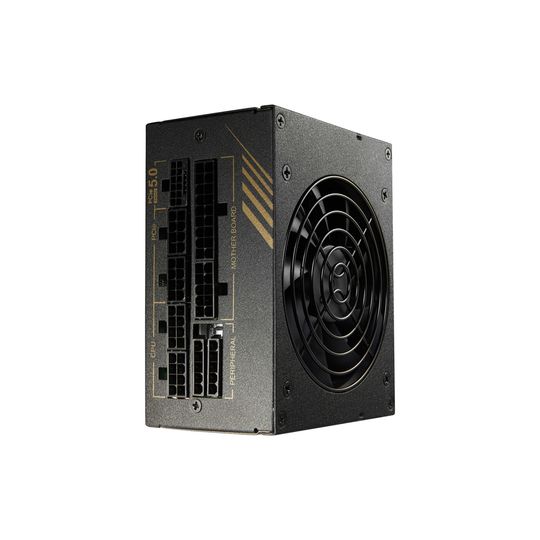

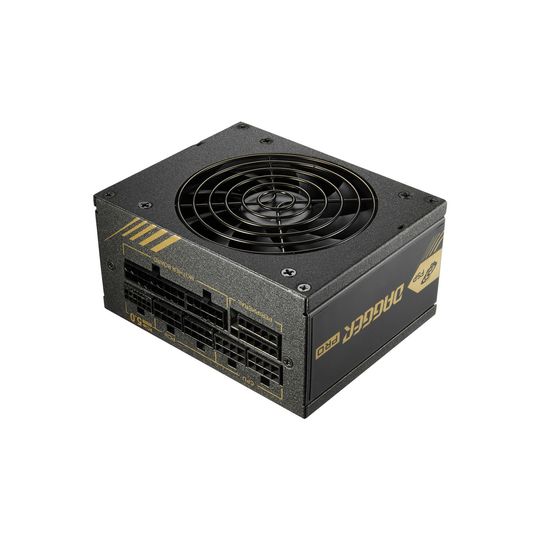

Aflgjafi Fortron FSP 850W Dagger PRO 80+ Gold SFX
FSP DAGGER PRO ATX3.0(PCIe5.0) 850W, 850 W, 100 - 240 V, 50/60 Hz, 12-6 A, Active, 120 W |
|
| Power | |
|---|---|
| Total power: | 850 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Input current: | 12-6 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 850 W |
| Combined power (+5V): | 120 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 70.83 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.5 A |
| Efficiency: | 90% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit |

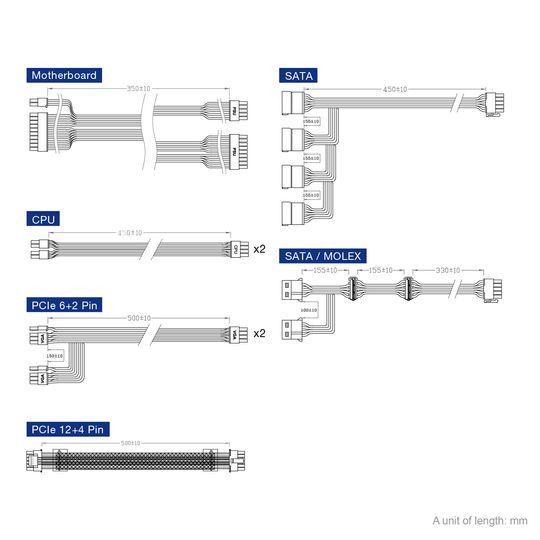

| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 35 cm |
| Number of SATA power connectors: | 6 |
| SATA power cable length: | 450 mm |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| PCI Express power connectors (6+2 pin): | 2 |
| PCI Express power connectors (12+4 pin): | 1 |
| PCI Express power connectors (12+4 pin) cable length: | 500 mm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 45 cm |
| Cabling type: | Fully-Modular |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Gold |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | SFX |
| ATX version: | 3.0 |
| Bearing technology: | Ball bearing |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 9.2 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| On/off switch: | Yes |
| Packaging content | |
|---|---|
| Cables included: | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Width: | 100 mm |
| Depth: | 125 mm |
| Height: | 63.5 mm |
