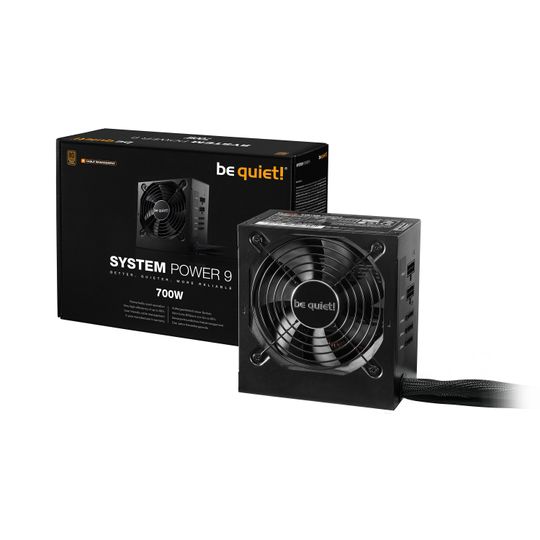

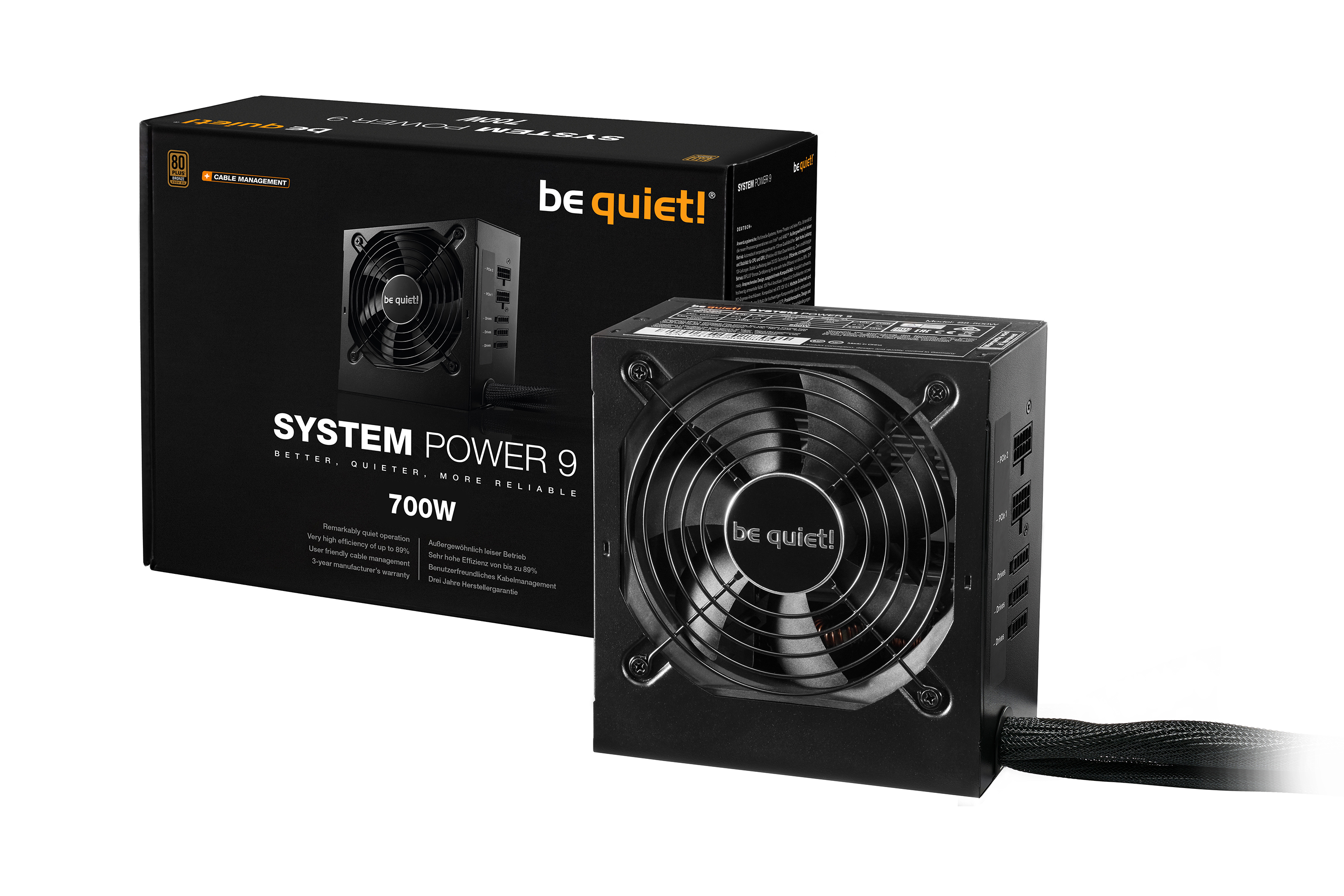

Aflgjafi BeQuiet! System Power 9 Modular 700W 80+
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 700W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
be quiet! System Power 9 | 700W CM, 700 W, 200 - 240 V, 50 Hz, 6 A, Active, 130 W
- 700 W 200 - 240 V 50 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Bronze
- Active 12 cm
- Black
| 700 W, ATX 2.51, 200-240 VAC, 6 A, 120mm fan be quiet! System Power 9 | 700W CM, 700 W, 200 - 240 V, 50 Hz, 6 A, Active, 130 W |
|
| Power | |
|---|---|
| Total power: | 700 W |
| AC input voltage: | 200 - 240 V |
| AC input frequency: | 50 Hz |
| Input current: | 6 A |
| Power factor: | 0.95 |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 130 W |
| Combined power (+12V): | 672 W |
| Combined power (+5V): | 130 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 24 A |
| Max output current (+12V1): | 33 A |
| Max output current (+12V2): | 25 A |
| Max output current (+5V): | 15 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Hold time: | 17 ms |
| Efficiency: | 89% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 55 cm |
| Number of SATA power connectors: | 10 |
| Number of PATA power connectors: | 2 |
| SATA power cable length: | 550,670 mm |
| PCI Express power connectors (6+2 pin): | 4 |
| PCI Express power cable length: | 50 cm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 60 cm |
| Floppy drive power connector: | 1 |
| Cabling type: | Semi-Modular |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Bronze |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 2.51 |
| EPS version: | 2.92 |
| Bearing technology: | Sleeve |
| Compatible products: | Intel C6/C7 |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Packaging content | |
|---|---|
| Cables included: | PCIe, SATA |
| Certificates | |
|---|---|
| Compliance certificates: | RoHS |
| Certification: | CE, CB, TÜV, RCM, CU |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| Weight: | 1.69 kg |
| Packaging data | |
|---|---|
| Manual: | Yes |
| Package width: | 97 mm |
| Package depth: | 268 mm |
| Package height: | 195 mm |
| Package weight: | 2.44 kg |
| Package type: | Box |
| Technical details | |
|---|---|
| Sustainability certificates: | ENERGY STAR |
| Logistics data | |
|---|---|
| Master (outer) case width: | 311 mm |
| Master (outer) case length: | 215 mm |
| Master (outer) case height: | 556 mm |
| Master (outer) case gross weight: | 15.3 kg |
| Harmonized System (HS) code: | 84733020 |
| Products per master (outer) case: | 6 pc(s) |
| Other features | |
|---|---|
| Screws included: | Yes |

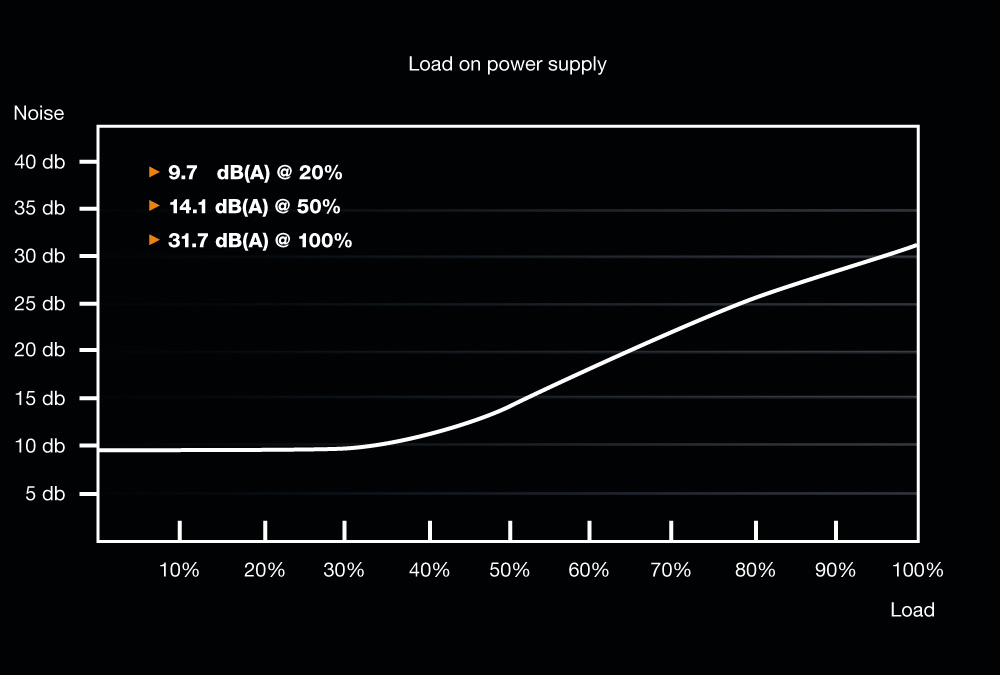

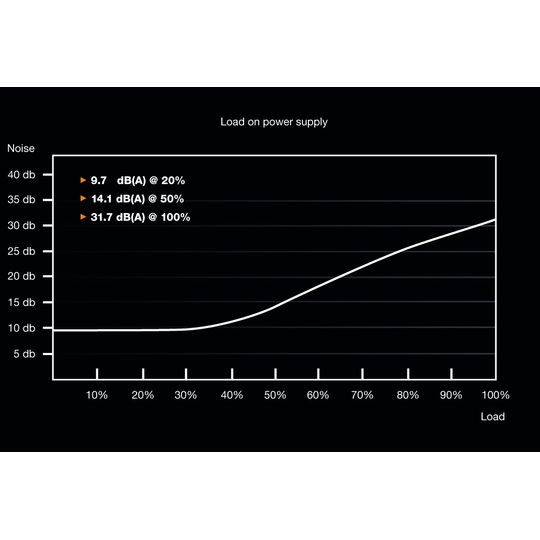

| Noise level (silent mode, <30%): | 9.7 dB |
| Noise level (quiet mode, 50%): | 14.1 dB |
| Noise level (full-load mode, 100%): | 31.7 dB |
