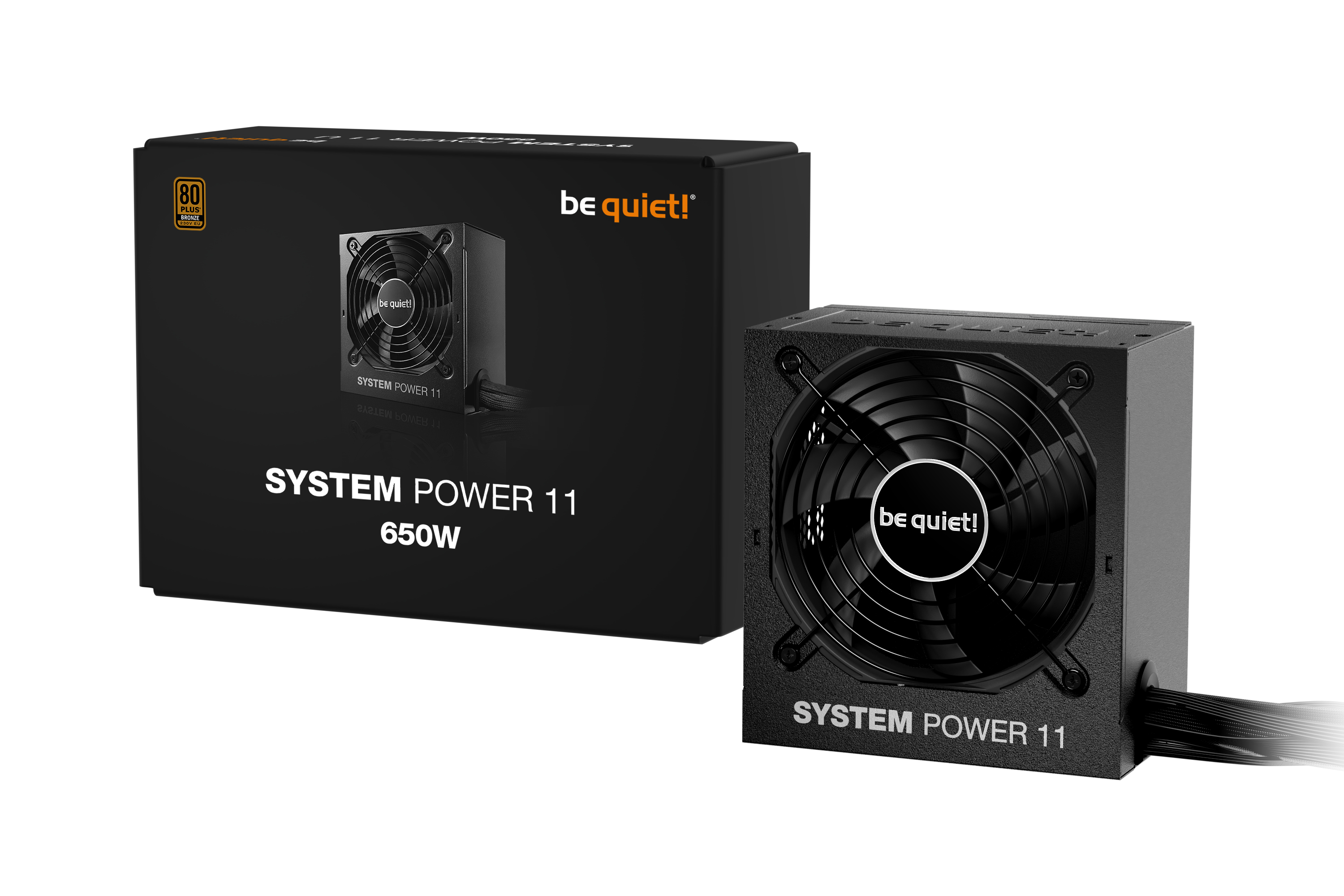

Aflgjafi BeQuiet! System Power 11 650W 80+Bronze
System Power 11 650W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 650W offers even at entry-level.
ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Temperature-controlled 120mm quality fan reduces system noise
Rock-solid stability with a strong 12V-rail
Tight voltage regulation using DC-to-DC technology
One PCIe 5.1 12V-2x6 450W and 2 PCIe 6-2 connectors
Stand-by drain of less than 0.15 watts
80 PLUS® Bronze efficiency (up to 89.7%)
| 650W, 80 PLUS Bronze, ATX 3.1, EPS 12V 2.92, 86 x 150 x 140mm be quiet! System Power 11 650W, 650 W, 200 - 240 V, 50 Hz, 4 A, 120 W, 650 W |
|
| Power | |
|---|---|
| Total power: | 650 W |
| AC input voltage: | 200 - 240 V |
| AC input frequency: | 50 Hz |
| Input current: | 4 A |
| Power factor: | 0.98 |
| Number of +12V rail(s): | 1 |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 650 W |
| Combined power (+5V): | 120 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V1): | 54.17 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Hold time: | 17.04 ms |
| Efficiency: | 89.7% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Number of SATA power connectors: | 5 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| PCI Express power connectors (6+2 pin): | 2 |
| PCI Express power connectors (12-pin): | 1 |
| CPU P4 connector (4-pin): | 1 |
| CPU power connector (4+4 pin): | Yes |
| Cabling type: | Non-Modular |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Bronze |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.1 |
| EPS version: | 2.92 |
| Noise level: | 30.9 dB |
| Bearing technology: | Rifle |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan speed: | 0 - 2100 RPM |
| On/off switch: | Yes |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance: | Yes |
| Compliance certificates: | CB, CE, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 86 mm |
| Height: | 140 mm |
| Weight: | 1.97 kg |
| Packaging data | |
|---|---|
| Package width: | 195 mm |
| Package depth: | 268 mm |
| Package height: | 97 mm |
| Package weight: | 2.4 kg |
| Package type: | Box |
| Technical details | |
|---|---|
| Sustainability certificates: | ENERGY STAR, ErP |
| Logistics data | |
|---|---|
| Shipping (inner) case length: | 55.6 cm |
| Shipping (inner) case width: | 31.1 cm |
| Shipping (inner) case height: | 21.8 cm |
| Products per shipping (inner) case: | 6 pc(s) |
| Shipping (inner) case gross weight: | 15.2 kg |
| Other features | |
|---|---|
| Screws included: | Yes |
| Cable ties included: | Yes |
