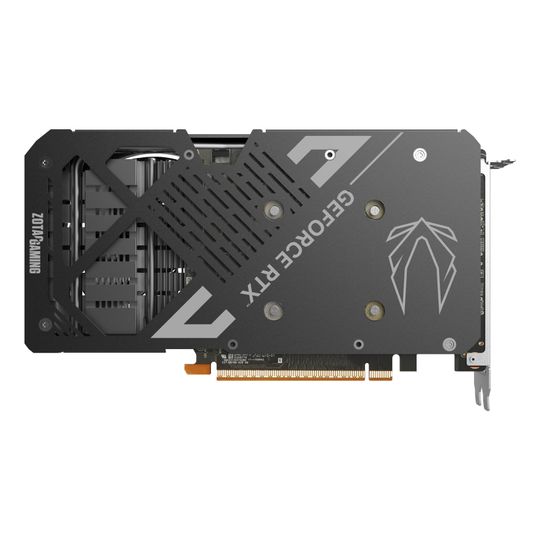

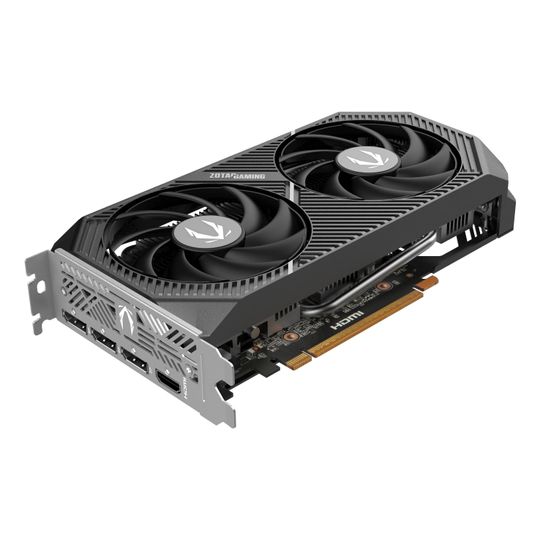

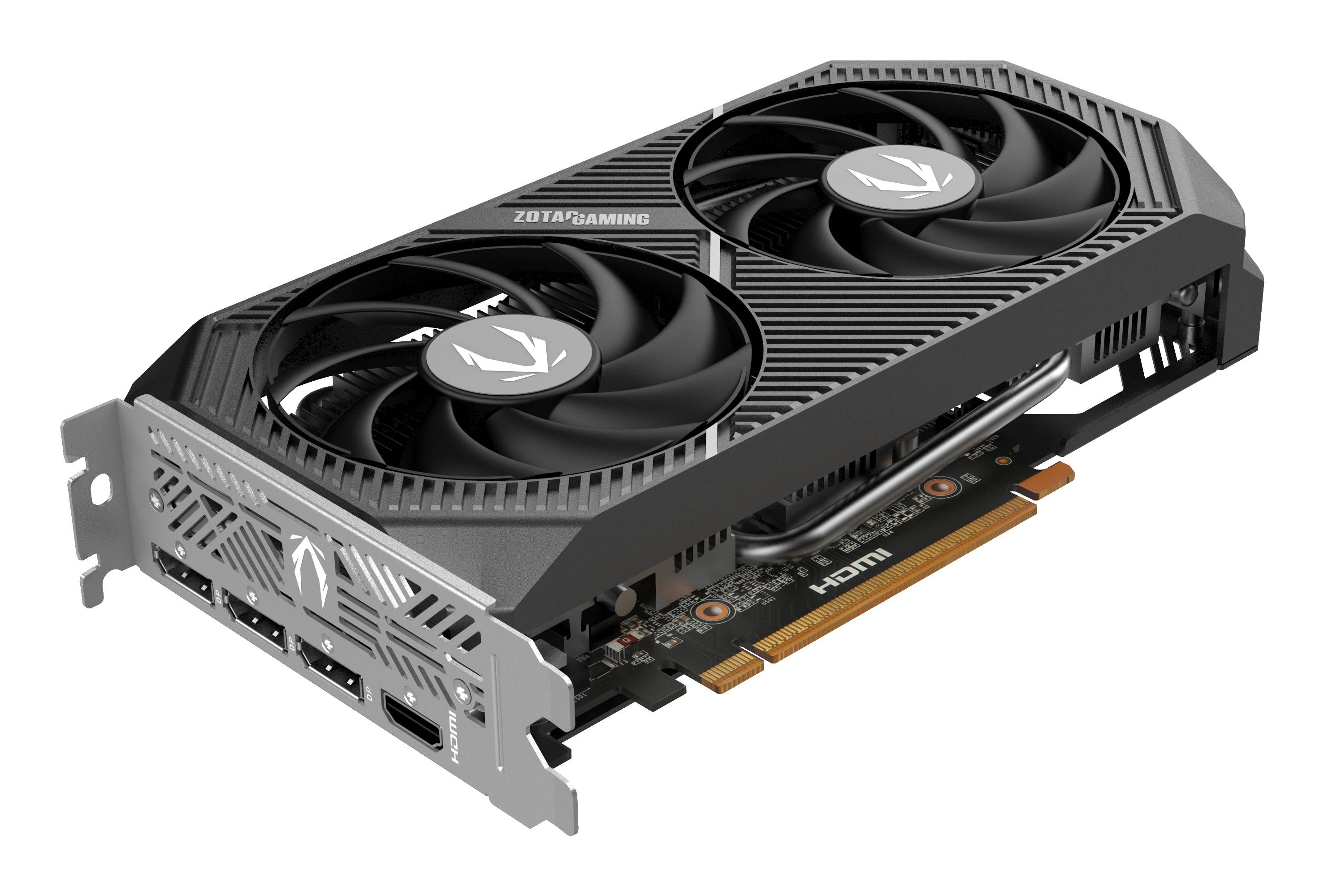

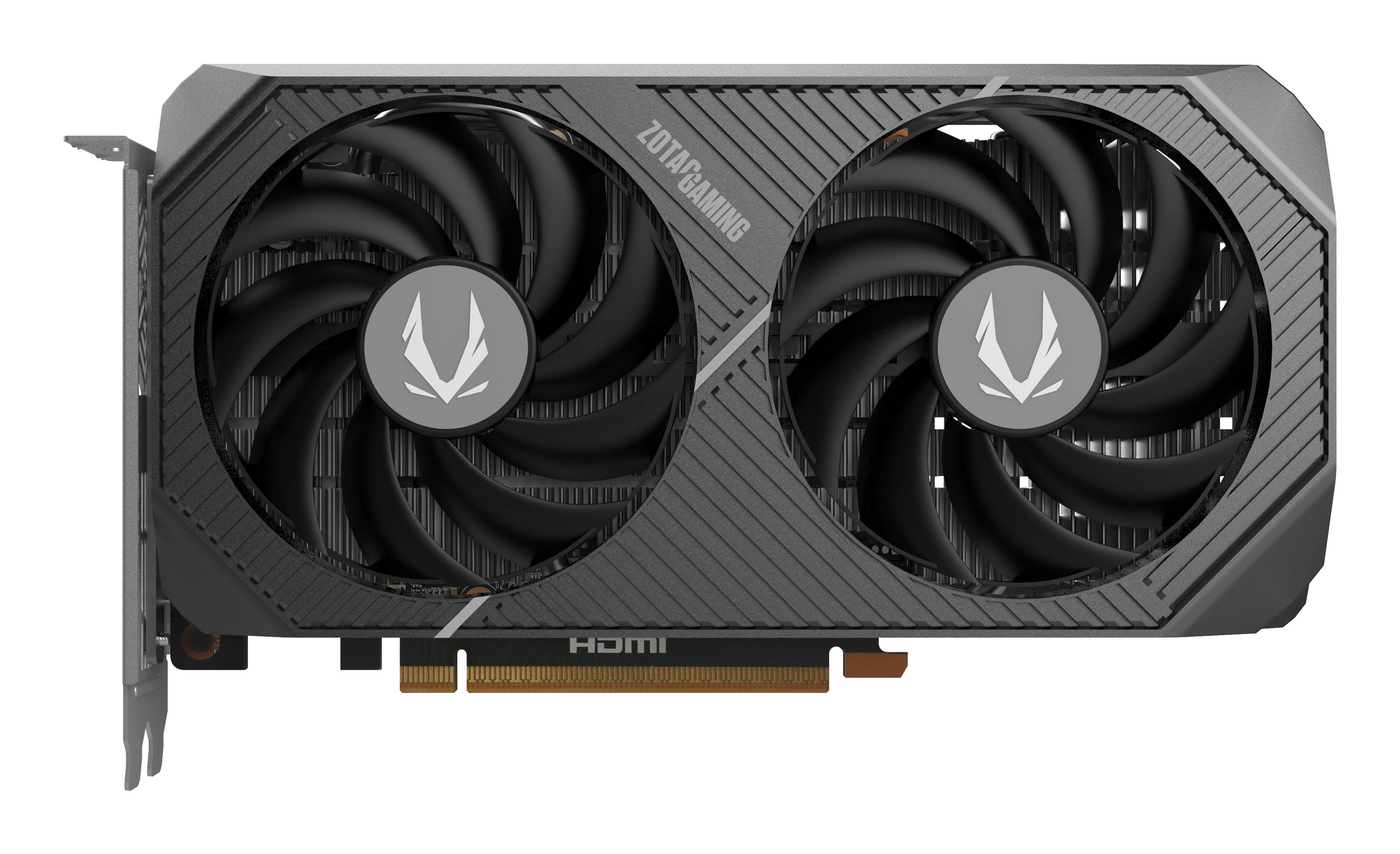

Skjákort Zotac RTX5060 8GB Twin Edge OC

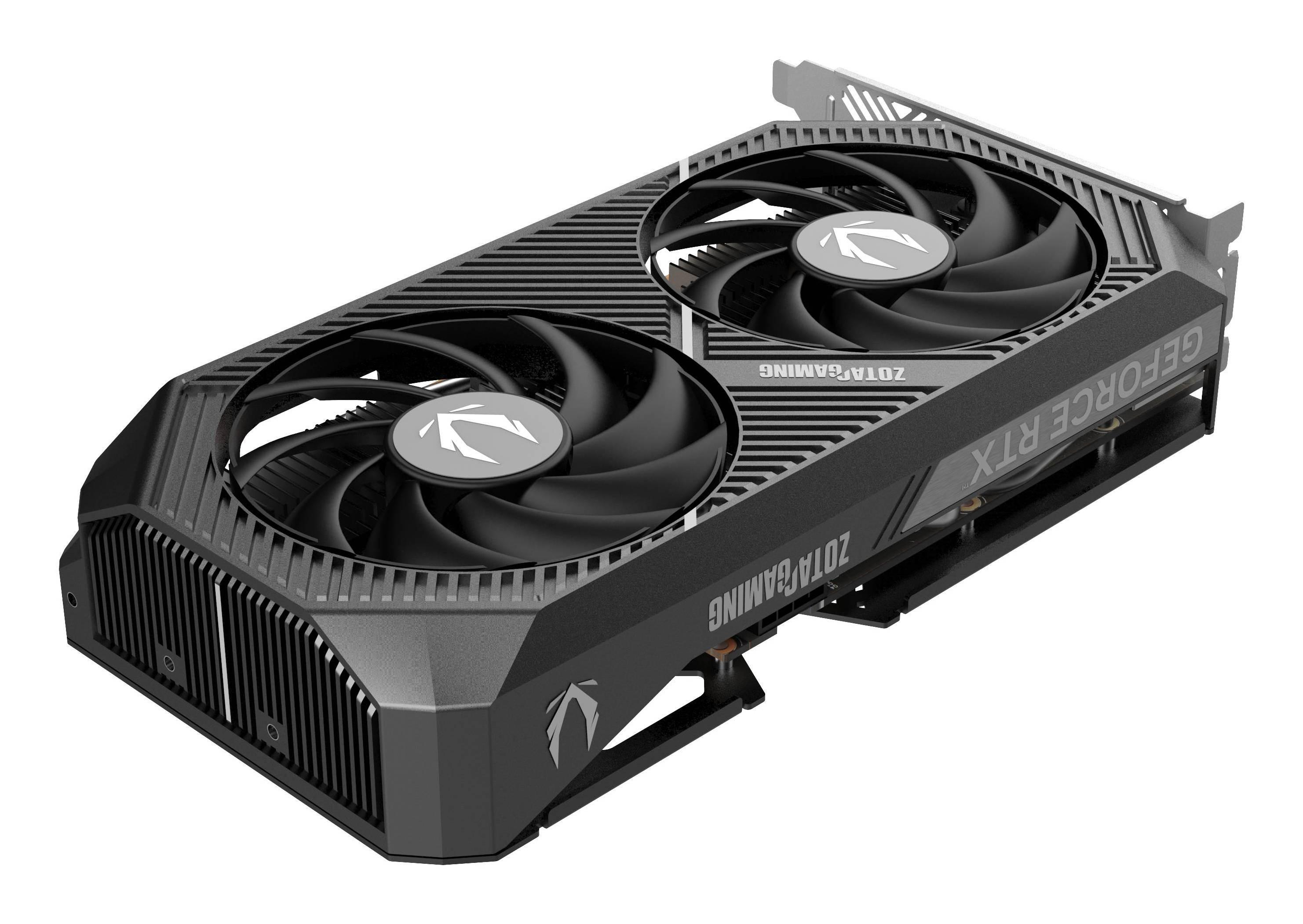

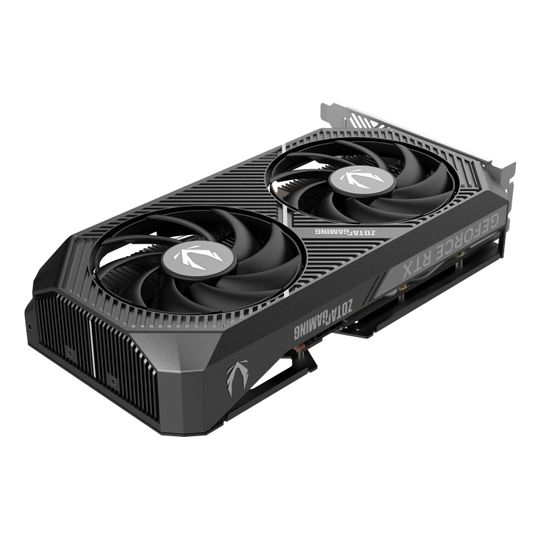

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
Zotac GAMING GeForce RTX 5060 Twin Edge OC, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, max resolution up to 7680 x 4320 pixels, PCI Express x8 5.0
- NVIDIA GeForce RTX 5060 8 GB GDDR7
- 7680 x 4320 pixels 128 bit 28 Gbit/s PCI Express x8 5.0

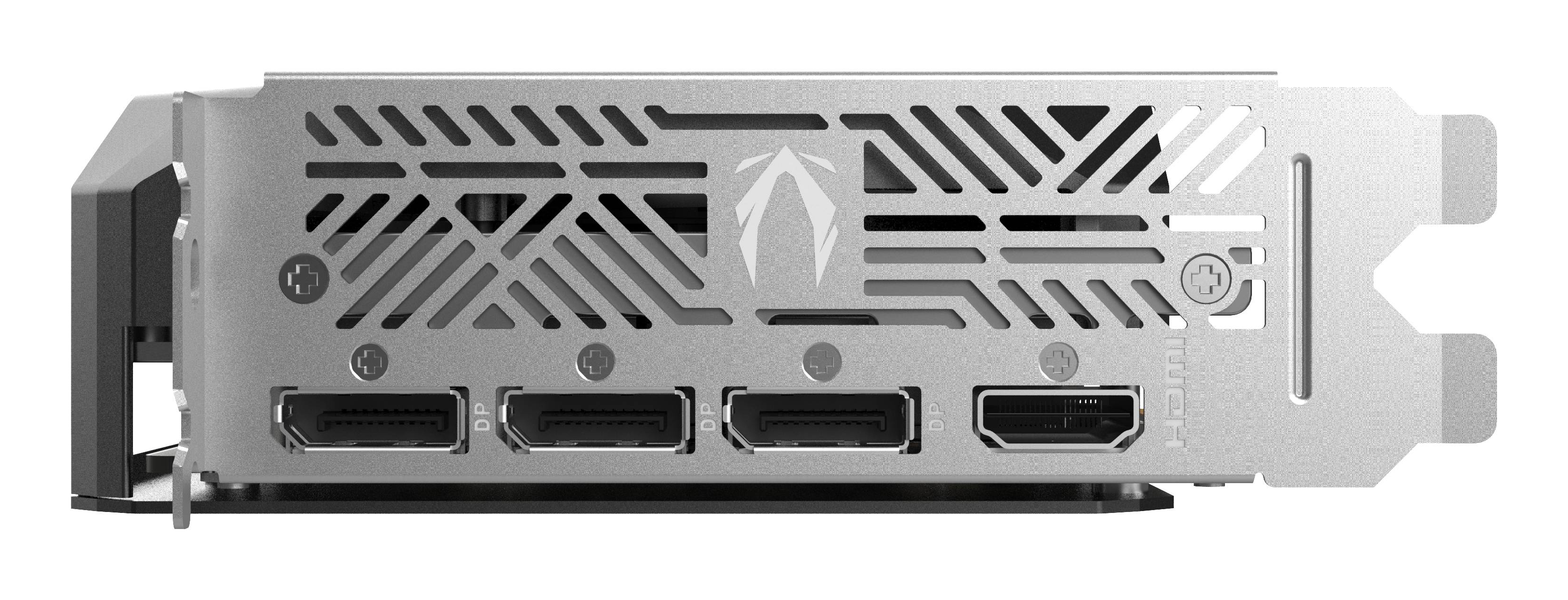

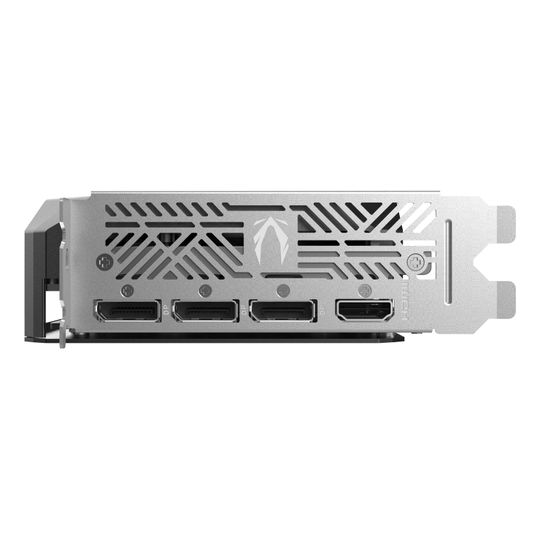

- HDMI ports quantity: 1 DisplayPorts quantity: 3
- DirectX version: 12 Ultimate OpenGL version: 4.6
- 1x 8-pin
| 8 GB, GDDR7, 128-bit, 2527 MHz boost clock, PCI Express 5.0 x8, 3x DisplayPort, 1x HDMI, 1x 8-pin, 2 slot Zotac GAMING GeForce RTX 5060 Twin Edge OC, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express x8 5.0 |
|
| Processor | |
|---|---|
| CUDA: | Yes |
| CUDA cores: | 3840 |
| Graphics processor family: | NVIDIA |
| Graphics processor: | GeForce RTX 5060 |
| Processor boost clock speed: | 2527 MHz |
| Maximum resolution: | 7680 x 4320 pixels |
| Parallel processing technology support: | Not supported |
| Maximum displays per videocard: | 4 |
| Memory | |
|---|---|
| Discrete graphics card memory: | 8 GB |
| Graphics card memory type: | GDDR7 |
| Memory bus: | 128 bit |
| Data transfer rate: | 28 Gbit/s |
| Ports & interfaces | |
|---|---|
| Interface type: | PCI Express x8 5.0 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1b |
| DisplayPorts quantity: | 3 |
| DisplayPort version: | 2.1b |
| Performance | |
|---|---|
| TV tuner integrated: | No |
| DirectX version: | 12 Ultimate |
| OpenGL version: | 4.6 |
| Virtual Reality (VR) ready: | Yes |
| HDCP: | Yes |
| HDCP version: | 2.3 |
| Dual Link DVI: | No |
| NVIDIA G-SYNC: | Yes |
| Overclocked (OC) edition: | Yes |
| Design | |
|---|---|
| Cooling type: | Active |
| Number of fans: | 2 fan(s) |
| Fan diameter: | 9 cm |
| Number of slots: | 2 |
| SFF ready: | Yes |
| Product colour: | Black |
| Power | |
|---|---|
| Minimum system power supply: | 550 W |
| Supplementary power connectors: | 1x 8-pin |
| Power consumption (max): | 145 W |
| System requirements | |
|---|---|
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
|---|---|
| Length: | 220.5 mm |
| Depth: | 41.6 mm |
| Height: | 120.2 mm |
| Packaging data | |
|---|---|
| Package width: | 218 mm |
| Package depth: | 83 mm |
| Package height: | 283 mm |

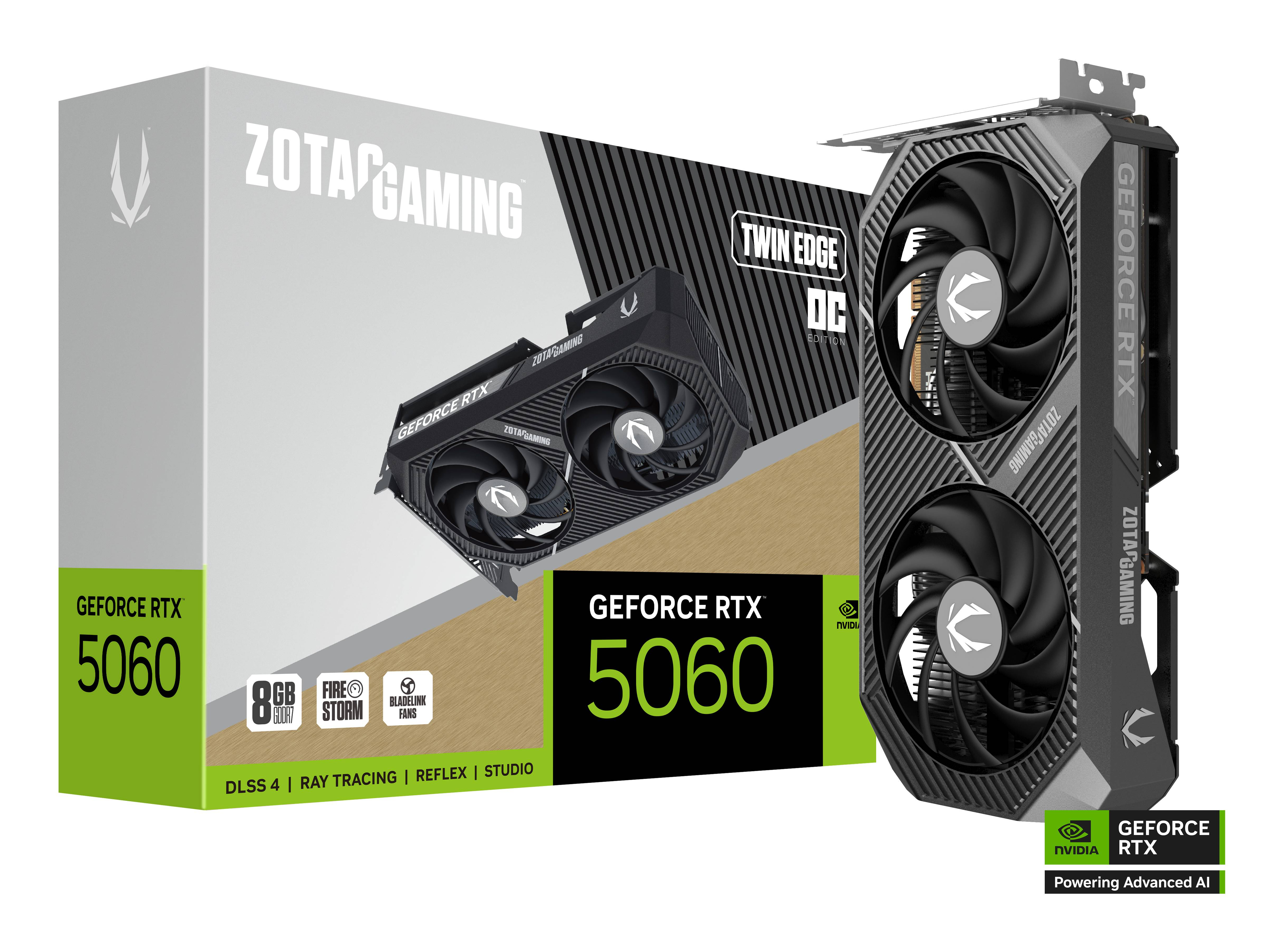

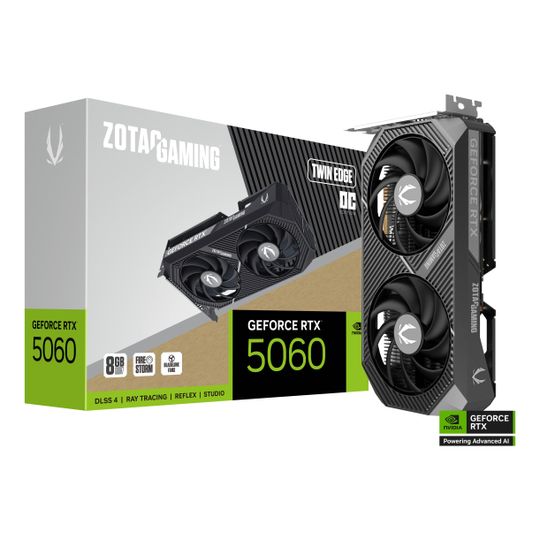

| Package type: | Box |
| Packaging content | |
|---|---|
| Manual: | Yes |
