Fartölvudokka Icybox USB-C IB-DK4040-CPD PD3.0

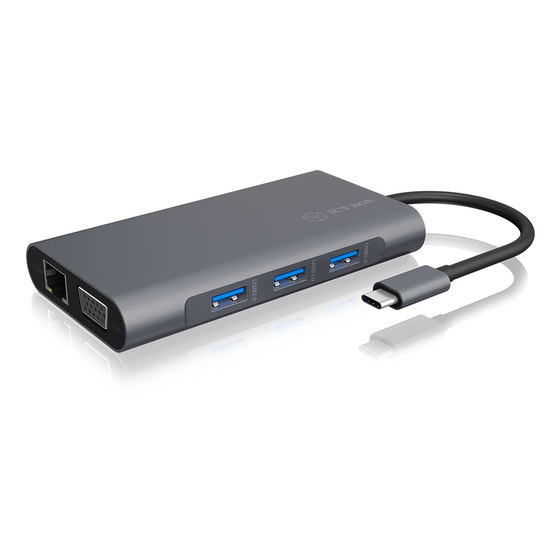

ICY BOX IB-DK4040-CPD USB Type-C™ DockingStation with two video interfaces
Features
• Premium aluminium enclosure
• Data transfer, video/audio and Power Delivery via one Type-C™ cable
• Two video interfaces (HDMI® and VGA) Single or mirror.
• High Speed HDMI® resolution up to 3840X2160@30 Hz
• VGA resolution up to 1920x1080P@60 Hz
• Three USB 3.0 Type-A interfaces, data transfer rate with up to 5 Gbit/s
• One Type-C™ charging port for Power Delivery 3.0 with up to 100 W, no data transfer
• SD 2.0 and microSD 2.0 single LUN card reader for most common card specifications
• 3.5 mm stereo combo jack (microphone / audio out)
• Gigabit LAN RJ45 interface with up to 10/100/1000 Mbit/s

Technical Data

  • Model: IB-DK4040-CPD
  • Article no.: 60514
  • EAN code: 4250078168966
  • Brand: ICY BOX
  • Colour: Anthracite / black
  • Material: Aluminium + plastic
  • Input interface: USB Type-C™ to host computer, integrated cable, 20 cm
  • Output interface:
    • 1x High Speed HDMI® Type-A
    • 1x VGA
    • 3x USB 3.0 Type-A
    • 1+1 SD/microSD 2.0
    • 1x Gigabit LAN RJ45 interface
    • 1x 3.5 mm stereo combo jack (microphone in / audio out)
    • 1x Type-C™ charging port for Power Delivery 3.0 up to 100 W (20 V@5 A), no data transfer
  • Video resolution: High Speed HDMI® up to 1x 3840x2160@30 Hz. VGA up to 1920x1200@60 Hz
  • Data transfer rate: USB 3.0: up to 5 Gbit/s, UASP supported LAN: up to 10/100/1000 Mbit/s. SD 2.0 / microSD 2.0: up to 480 MBit/s
  • Power supply: Bus powered
  • Power Delivery: Supports up to 100 W from original power supply of the computer
  • Operating system: Windows® 10, macOS®
  • System requirements: USB Type-C™ enabled Windows® / macOS® computer, DisplayPort™ Alt Mode and Power Delivery support required! Supports only SST (Single Stream Protocol) Dual video output: HDMI® and VGA synchronous display (only mirrored) Single-LUN - the card reader can only work with one memory card at a time. The device is compatible with Thunderbolt™ 3 equipped computers










USB Type-C™ Notebook DockingStation

DockingStations not only offer users a way to quickly transition from one working environment to another via a single cable, they can also add additional functionality and capabilities to notebook designs that are increasingly favoring design over a wide selection of interfaces.

Easy connection - multiple benefits

Perfectly combines high-quality appearance and efficient technology with a very compact size. The premium aluminium DockingStation does not only look good but also offers high comfort while using. This solution is suited for any location such as private or office areas.

Small but strong

The Type-C™ connection offers incredible versatility. It combines data transmission, video output and power in a single, compact port. The integration of USB Type-C™ makes the connection even more practical, as it has a twist-proof connection as its physical feature - making it a truly universal connection.

Always informed

The IB-DK4040-CPD provides two different video interfaces and enables you to connect a HDMI® and VGA device simultaneously in mirror mode.

Packing content

  • IB-DK4040-CPD, manual
  • No power supply included (only necessary for Power Delivery)
Framleiðandi: Icybox
Framl.númer: IB-DK4040-CPD
Vörunúmer: 9828

Til á lager

Einföld en fullkomin dokka fyrir fartölvur með USB Type-C tengi. Hægt er að tengja skjái, USB tæki, RJ45 netsnúru, SD/MicroSD minniskort, heyrnartól og/eða hátalara við dokkuna. Með þessari dokku getur þú því haft öll þín tæki og tól beinttengd við tölvuna þína með einni og sömu snúrunni .


Frí heimsending
Verð: 13.990 kr
