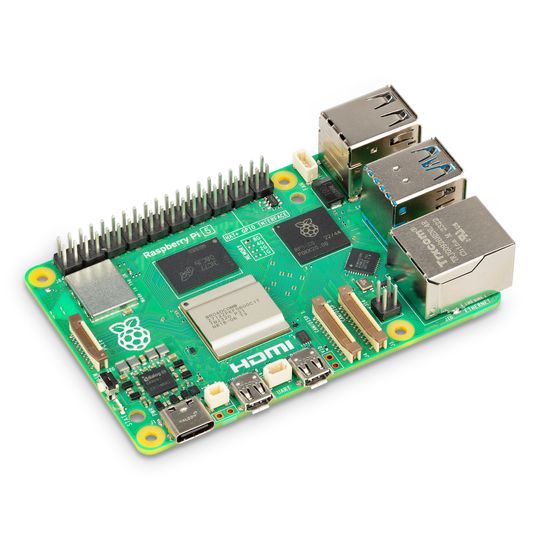

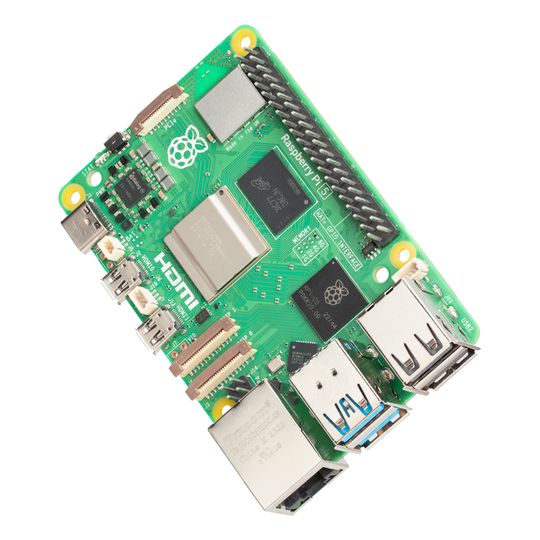

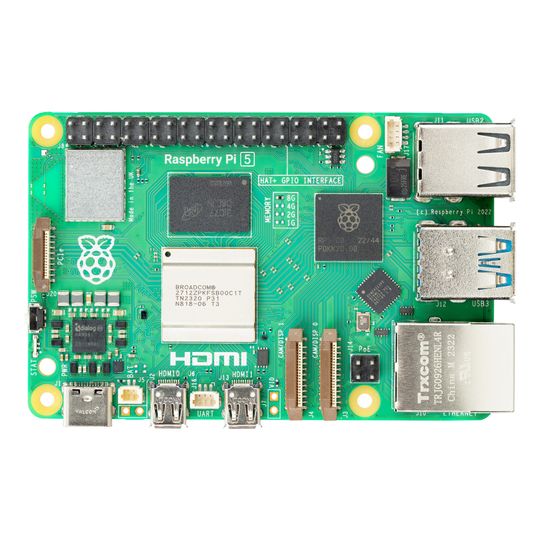

Raspberry Pi 5 16GB
The everything computer. Optimised.
With 2–3× the speed of the previous generation, and featuring silicon designed in‑house for the best possible performance, we’ve redefined the Raspberry Pi experience.
Raspberry Pi 5 16GB
For power users and professional applications.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.

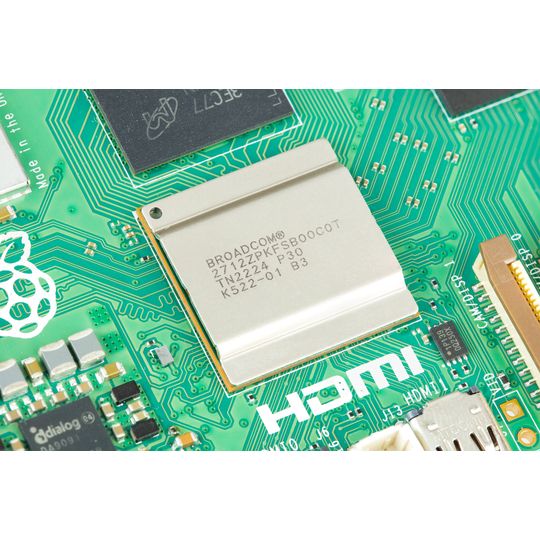

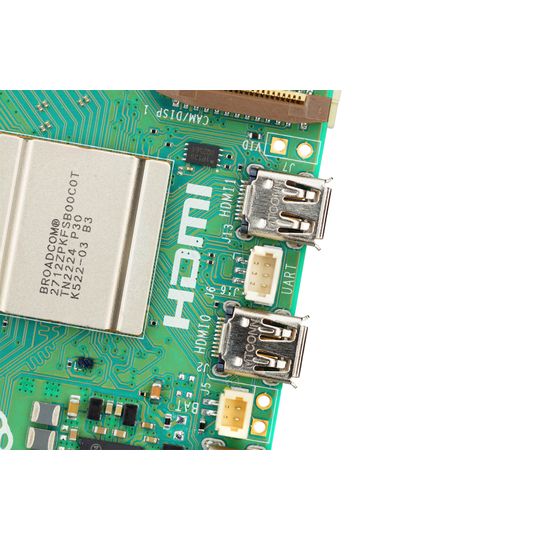

| BCM2712 2.4GHz 64-bit Arm Cortex-A76, SDRAM 16GB, VideoCore VII GPU, 4Kp60 HDMI, Bluetooth 5.0, 802.11ac Wi-Fi Raspberry Pi 5, 2400 MHz, ARM, Arm Cortex-A76, 512 KB, 16 GB, LPDDR4x-SDRAM |
| Processor | |
|---|---|
| Processor frequency: | 2400 MHz |
| Processor manufacturer: | ARM |
| Processor model: | Arm Cortex-A76 |
| Processor cache: | 512 KB |
| Processor cores: | 4 |
| 64-bit computing: | Yes |
| Memory | |
|---|---|
| Maximum internal memory: | 16 GB |
| Internal memory type: | LPDDR4x-SDRAM |

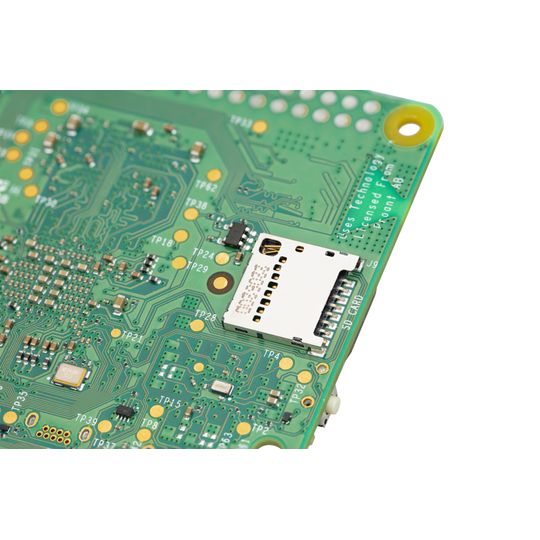

| Compatible memory cards: | MicroSD (TransFlash) |
| Ports & interfaces | |
|---|---|
| Wi-Fi: | Yes |
| Wi-Fi standards: | Wi-Fi 5 (802.11ac) |
| Ethernet LAN: | Yes |
| Power over Ethernet (PoE): | Yes |

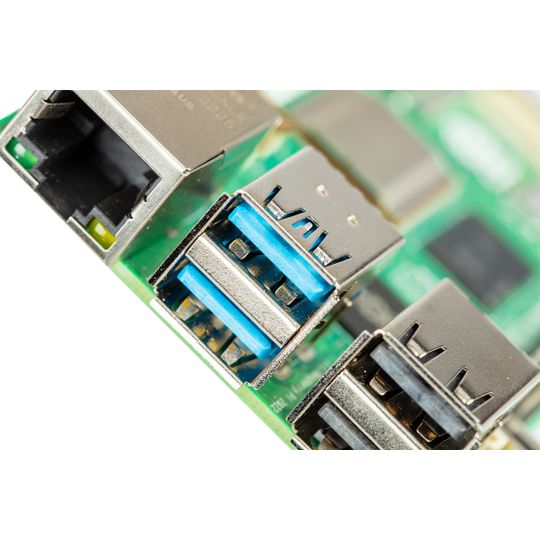

| USB version: | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: | 2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.0 |
| Bluetooth Low Energy (BLE): | Yes |

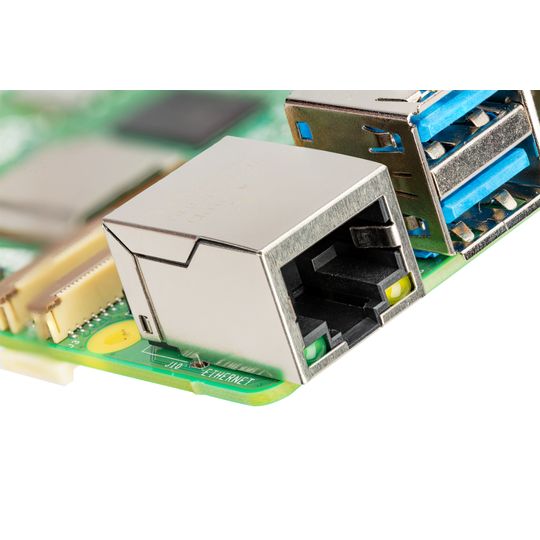

| Ethernet LAN (RJ-45) ports: | 1 |
| MPI DSI interface: | Yes |
| MPI CSI interface: | Yes |
| Integrated LAN: | Yes |
| Expansion slots | |
|---|---|
| PCI version: | 2.0 |
| PCI Express interface data lanes: | x1 |
| Features | |
|---|---|
| Real-time clock (RTC): | Yes |
| On/off button: | Yes |
| Power | |
|---|---|
| DC input voltage: | 5 V |
| Input current: | 5 A |
| USB powered: | Yes |
| Weight & dimensions | |
|---|---|
| Board dimensions: | 85 x 49 mm |
| Width: | 85 mm |
| Depth: | 49 mm |
