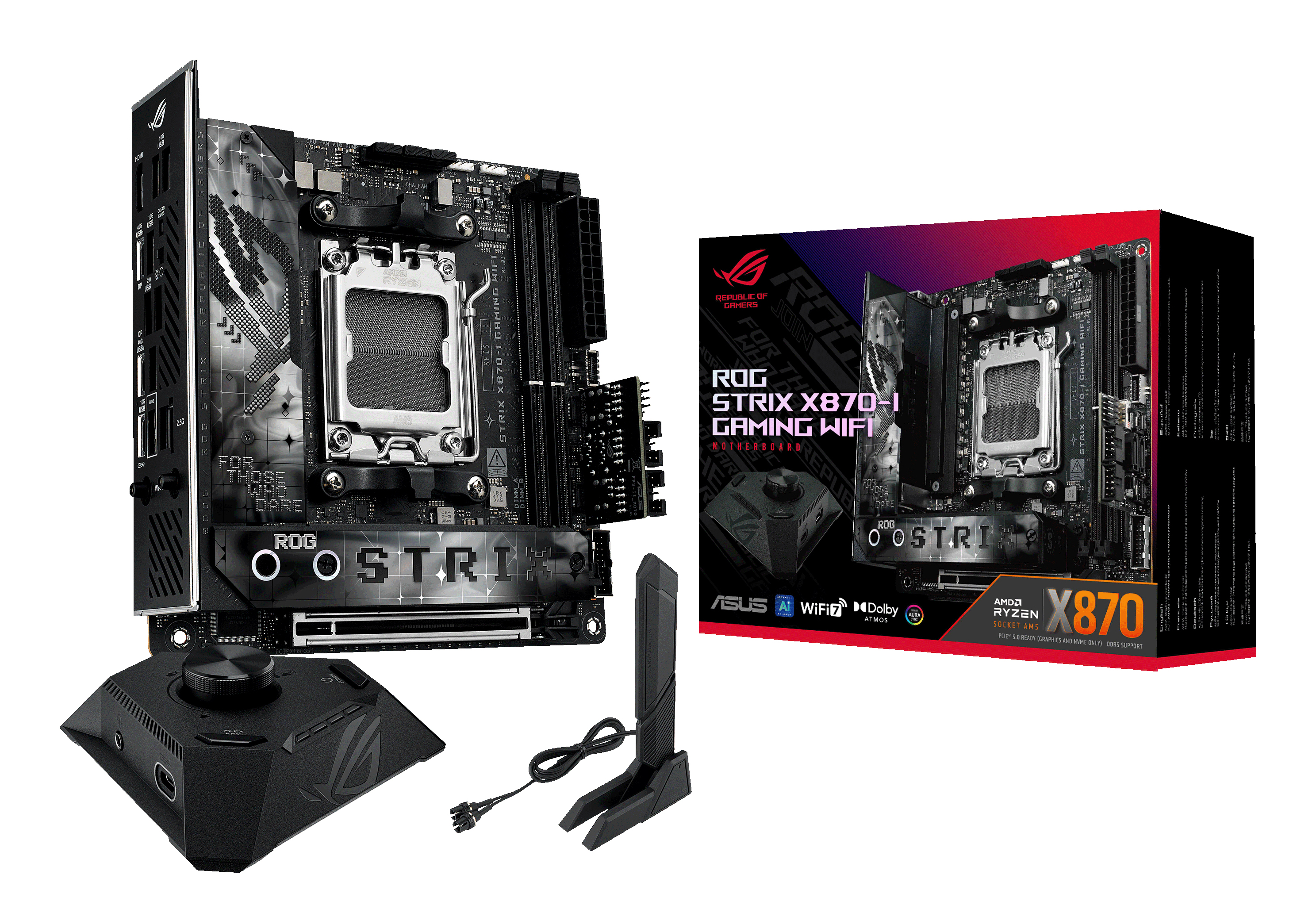

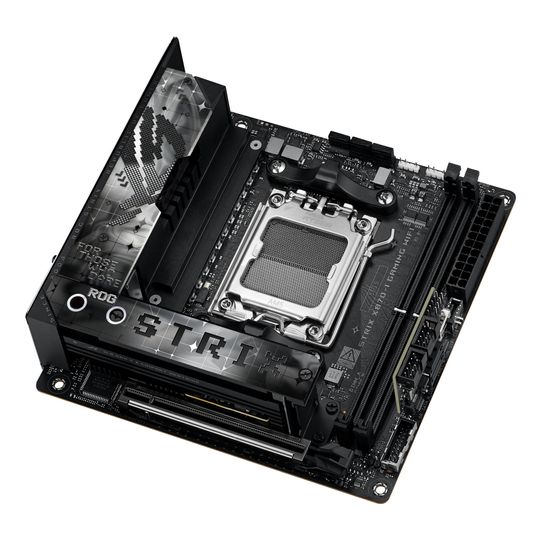

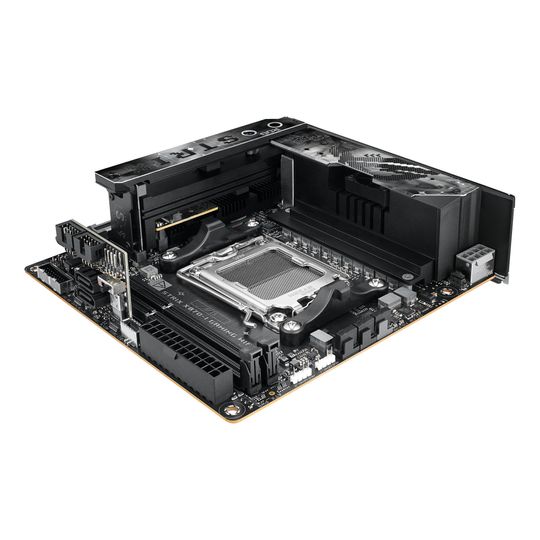

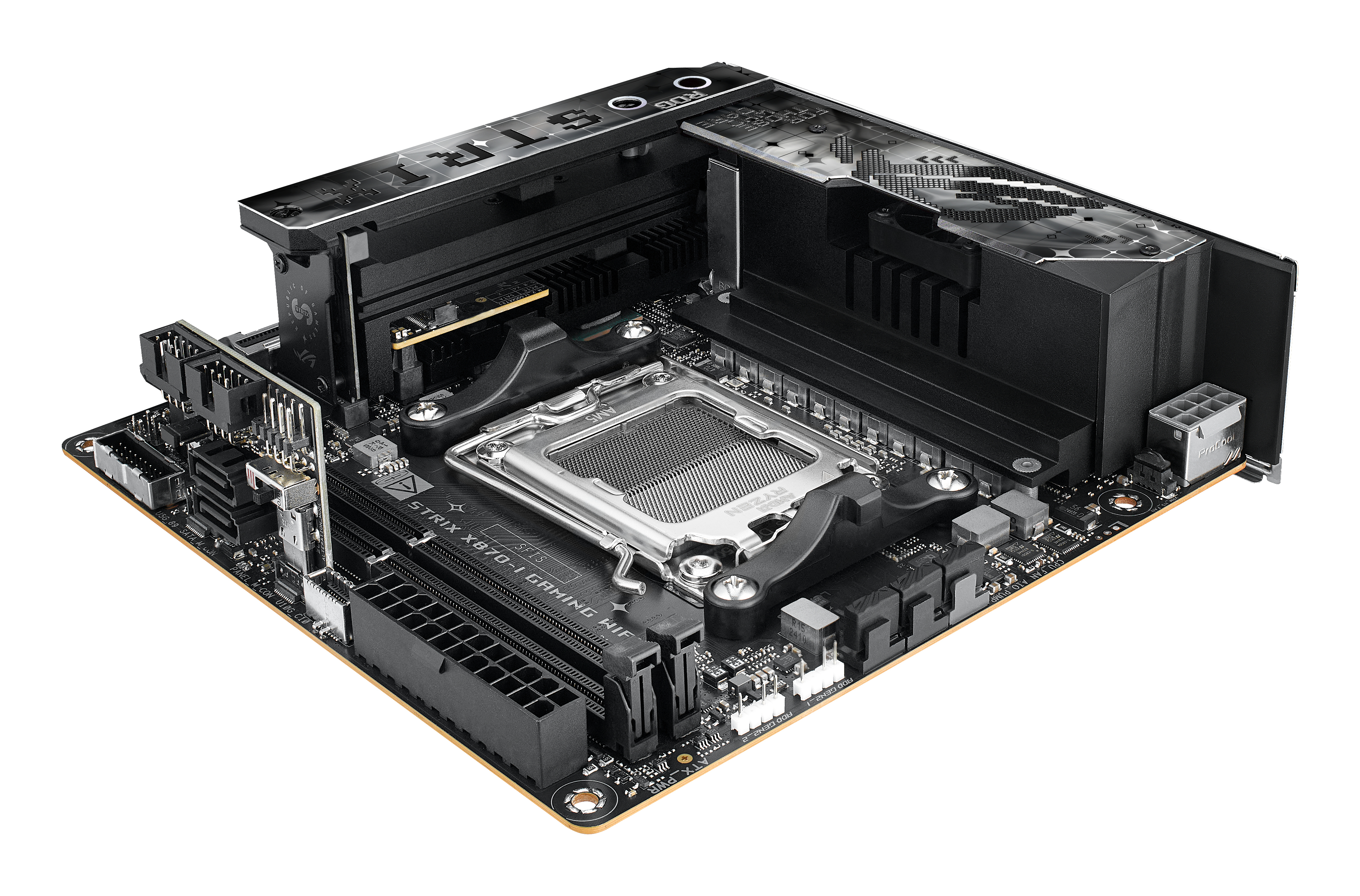

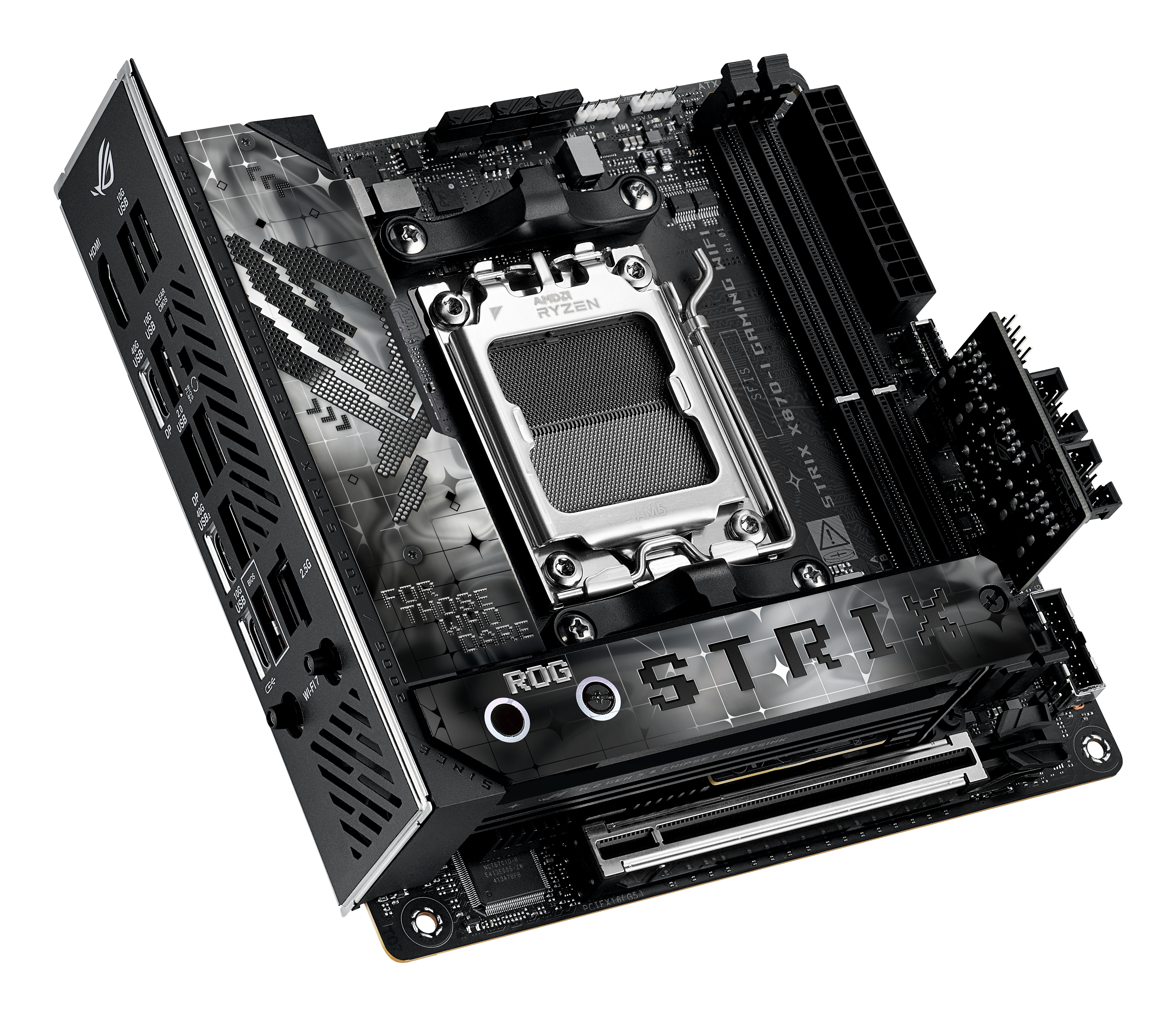

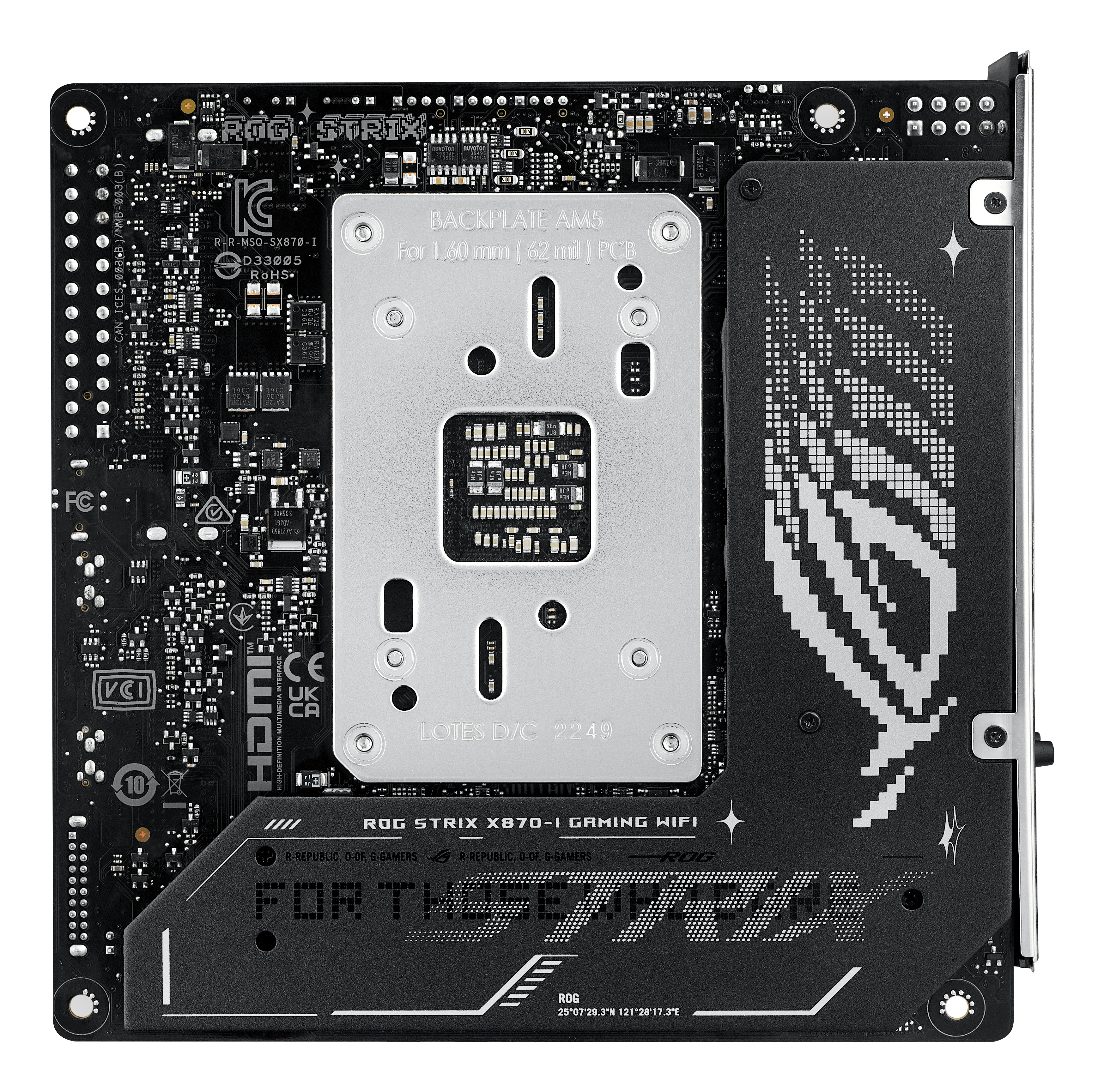

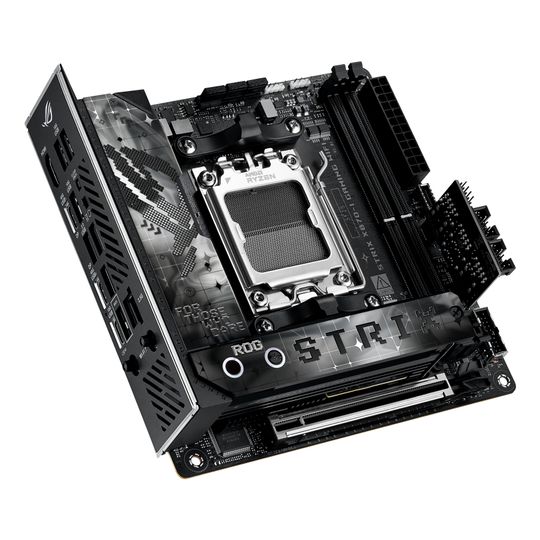

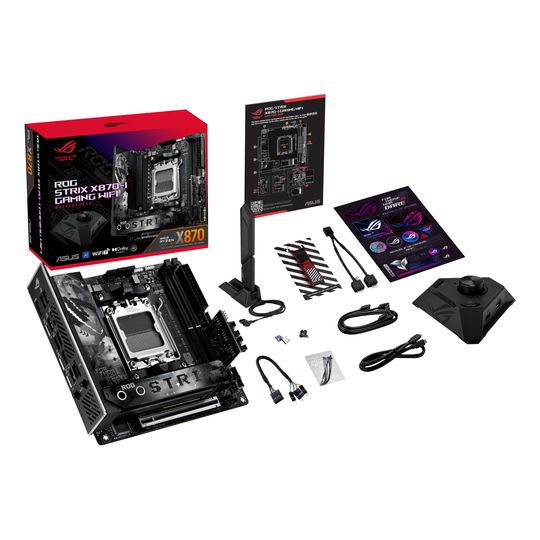

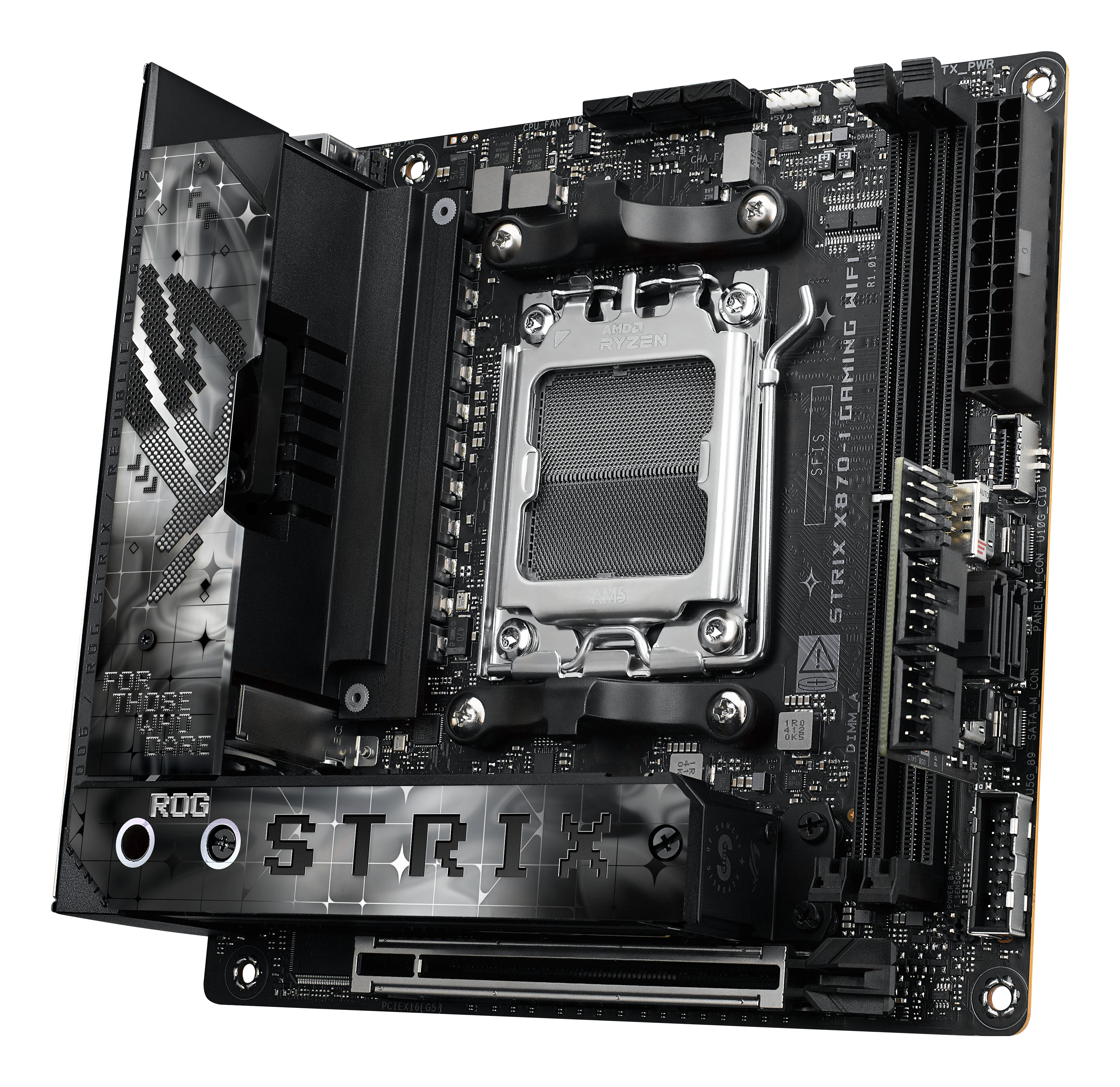

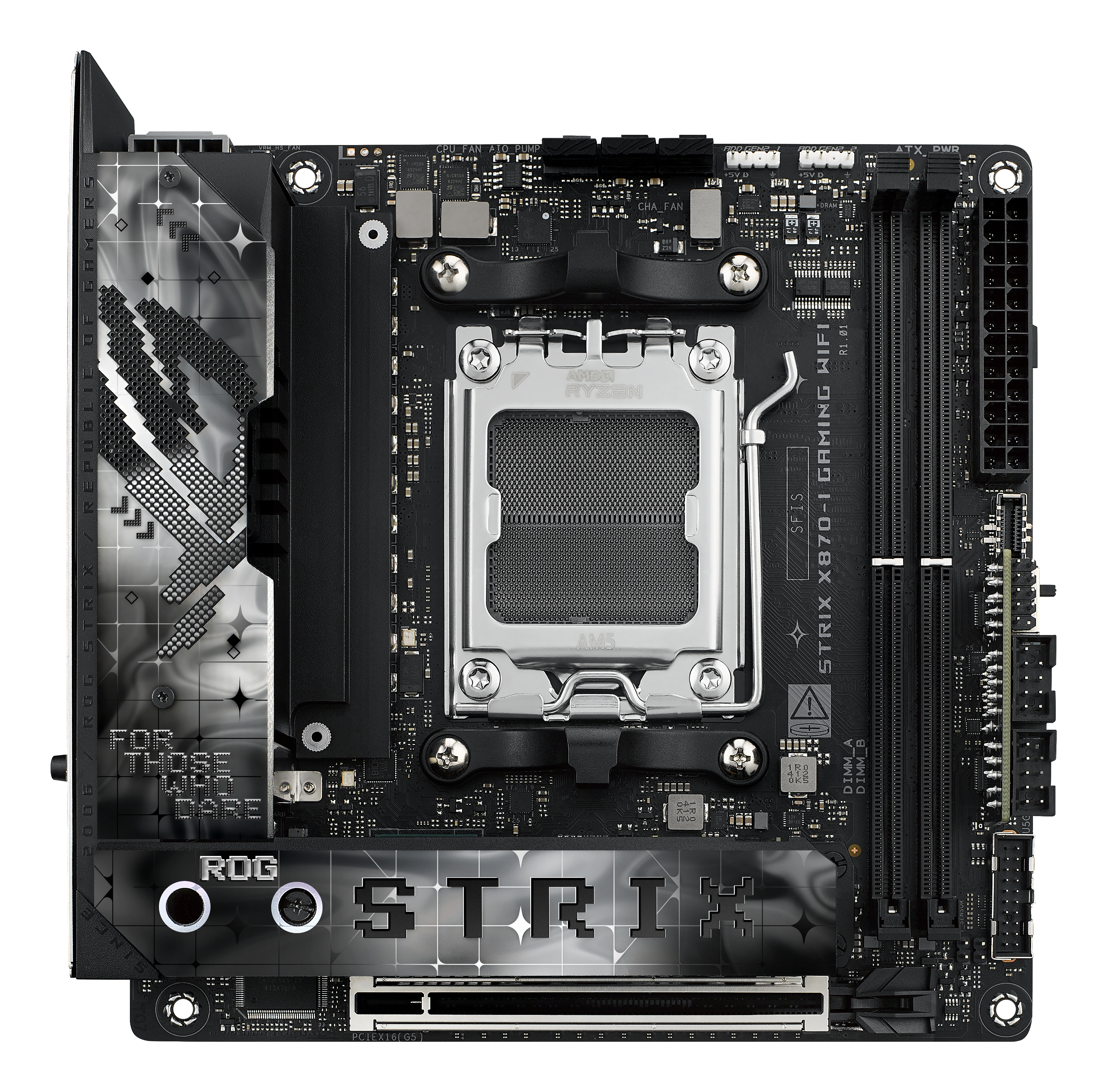

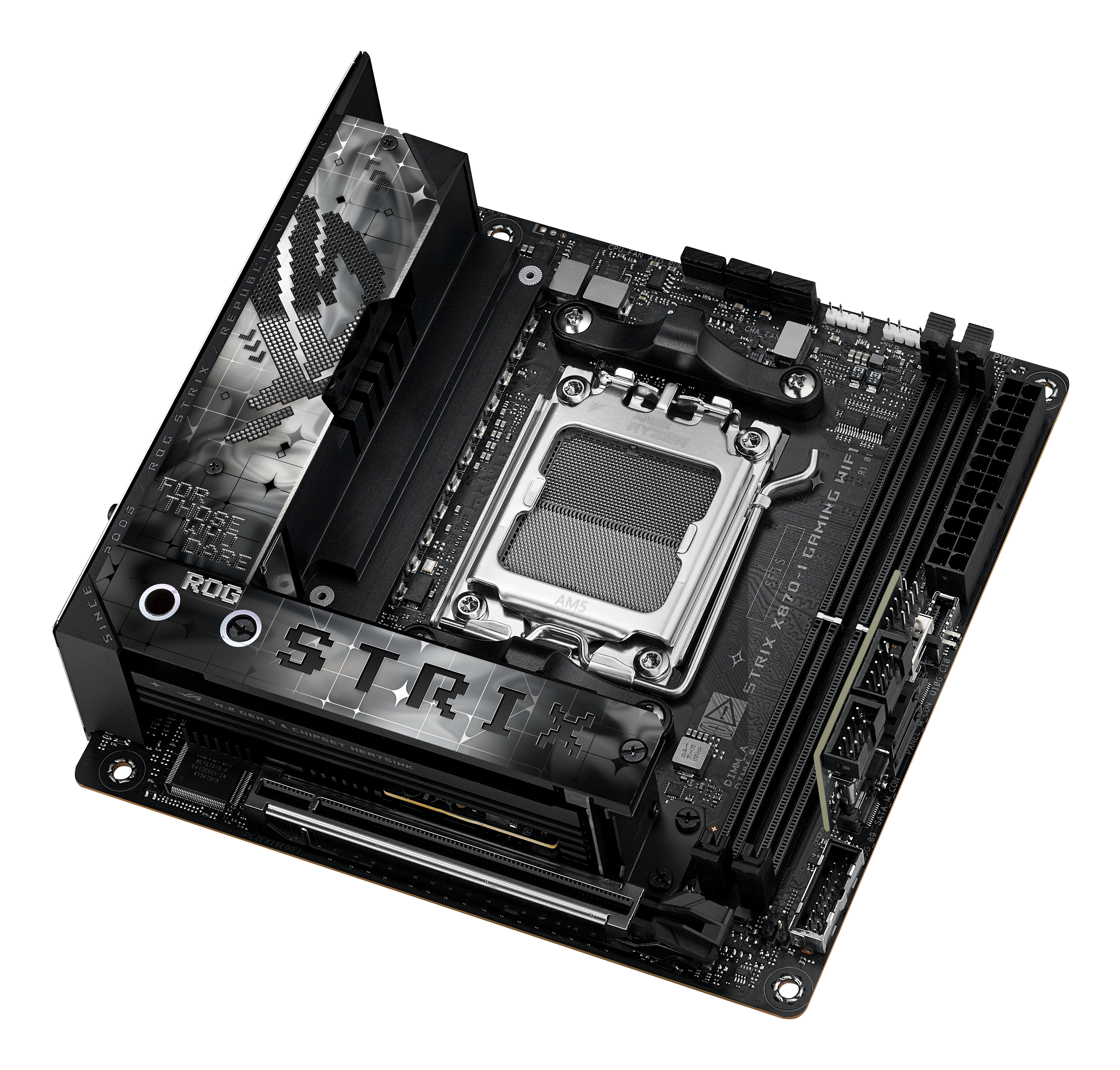

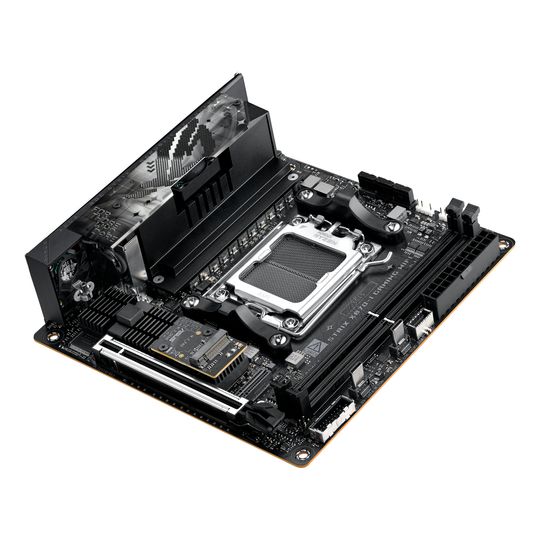

Móðurborð AM5 ASUS ROG STRIX X870-I WiFi ITX

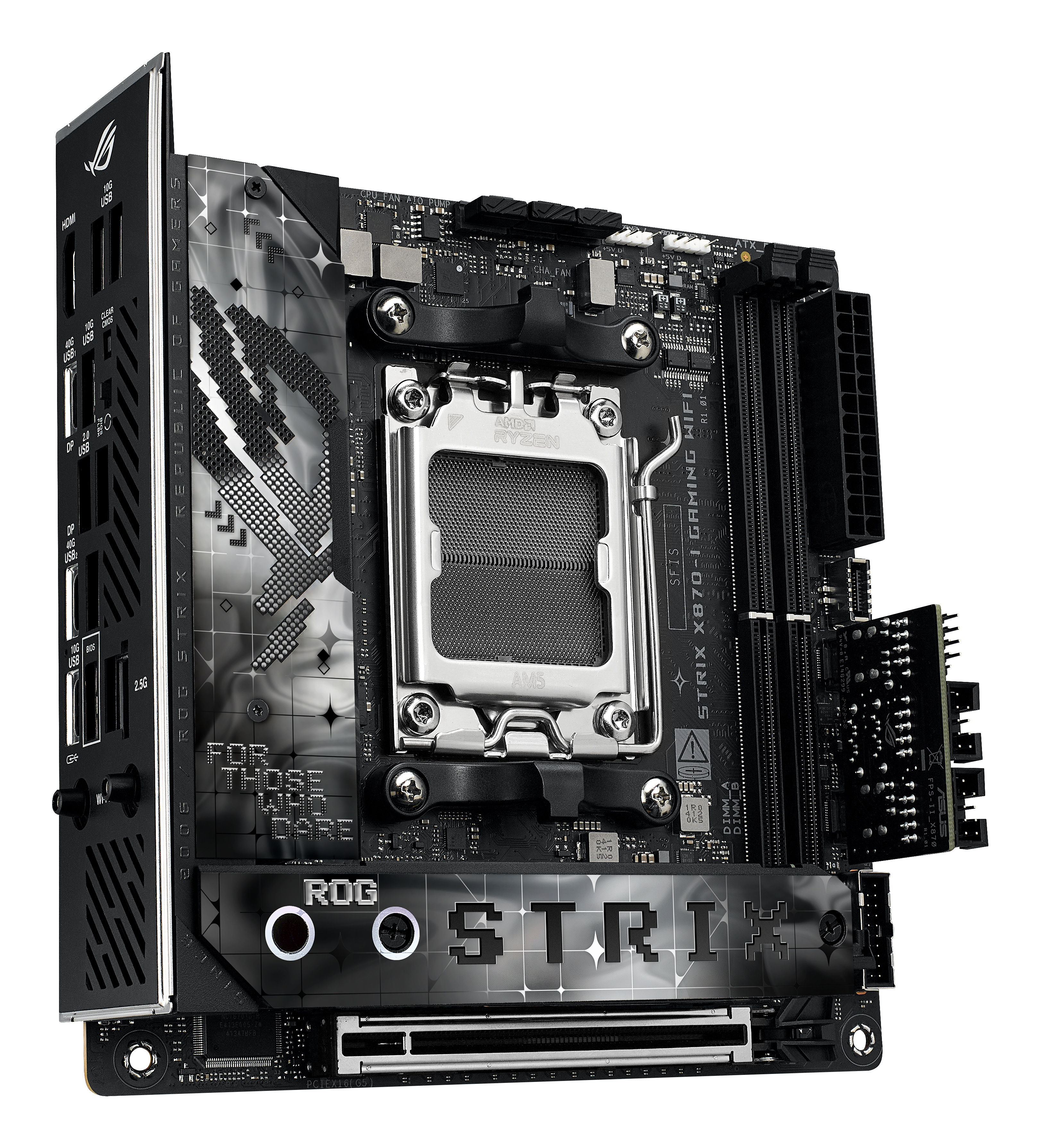

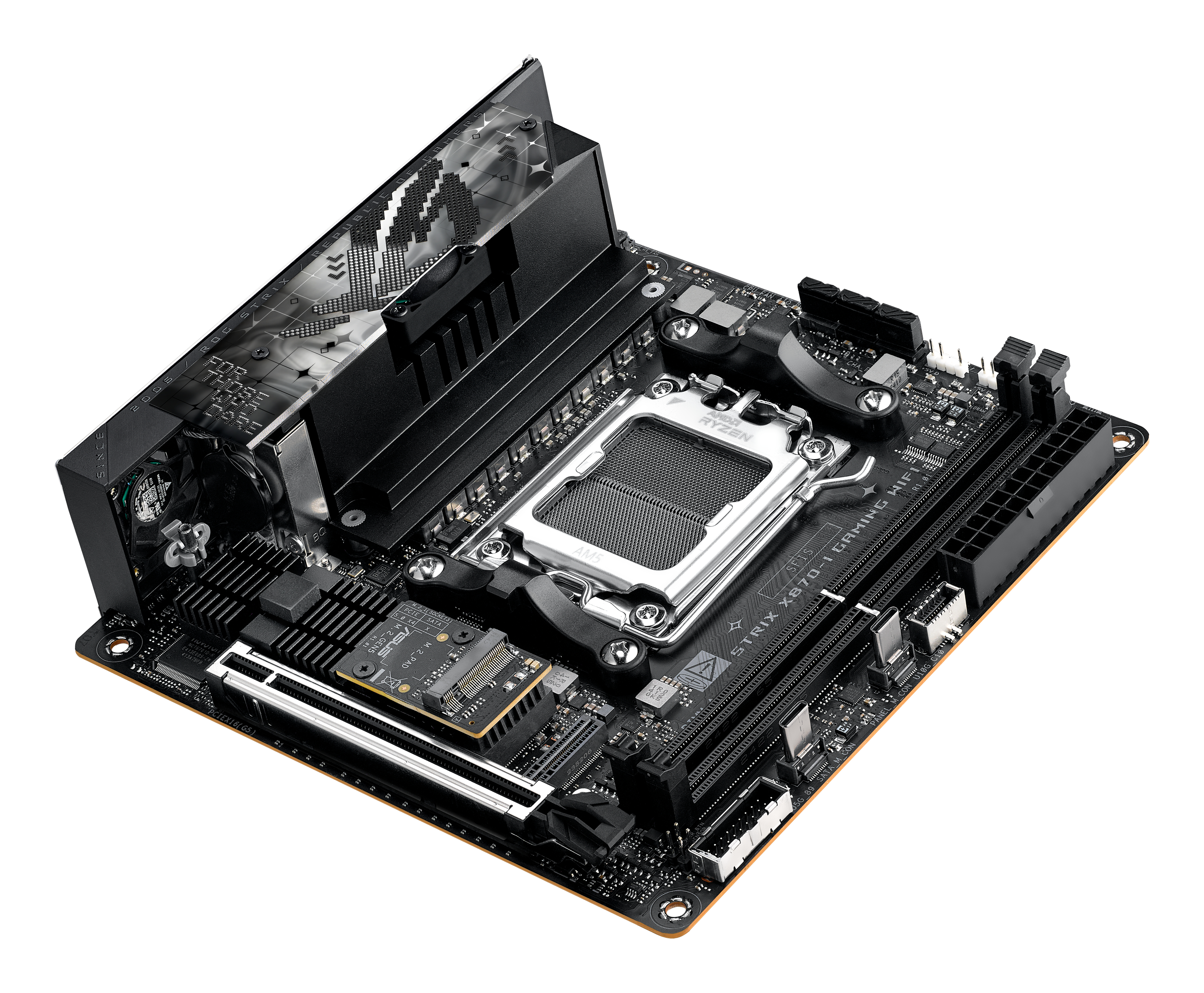

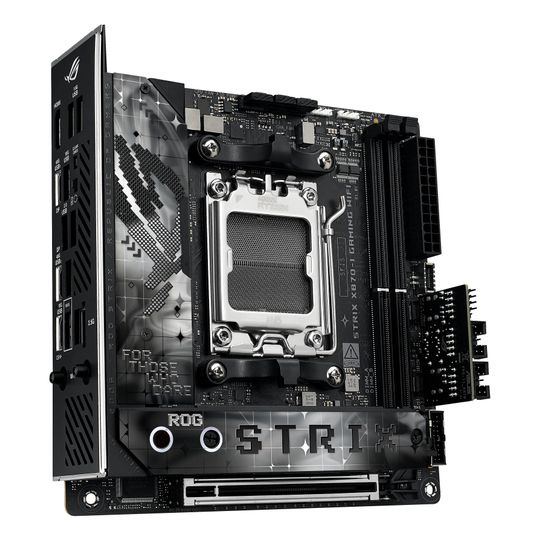

ROG STRIX X870-I gaming wifi

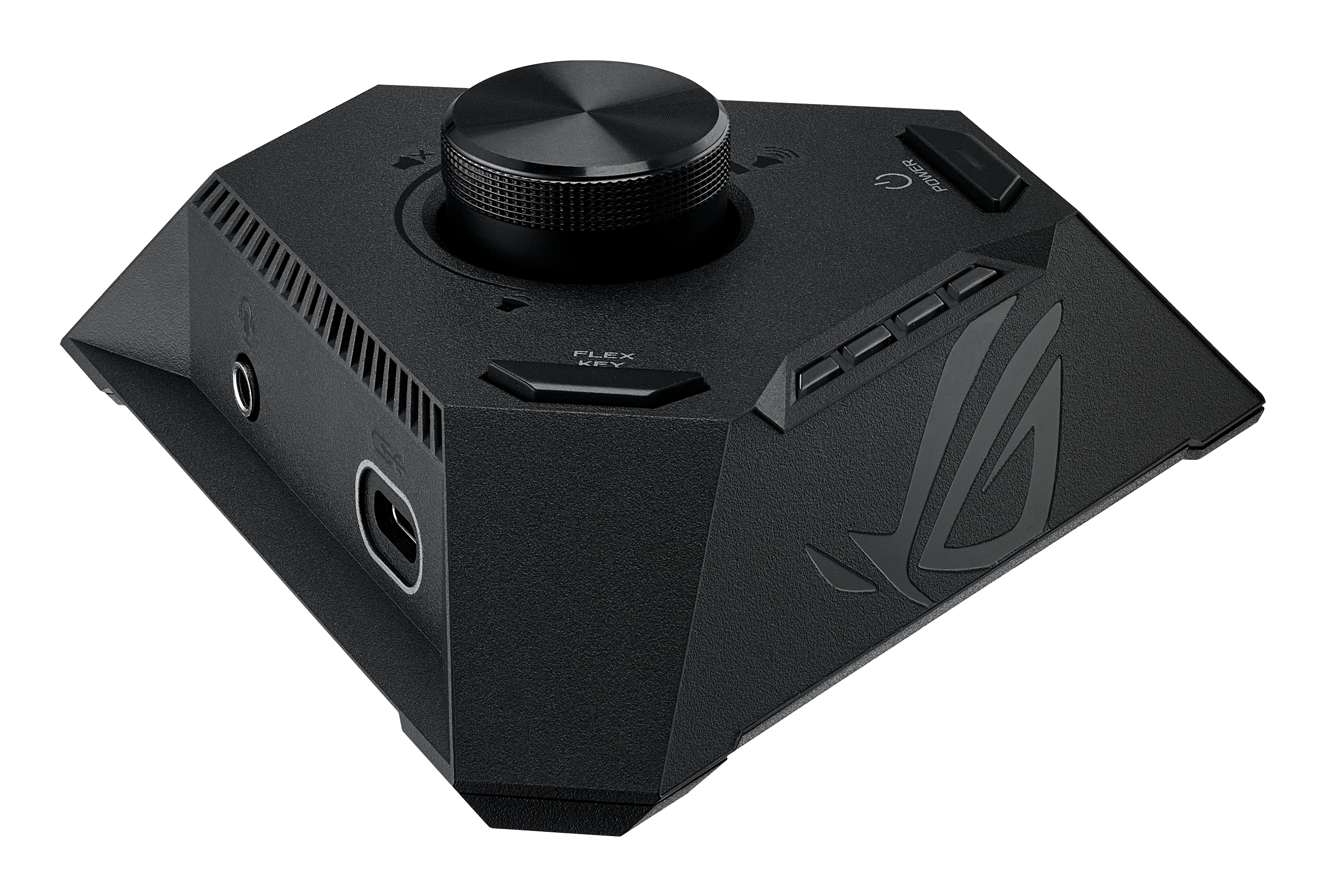

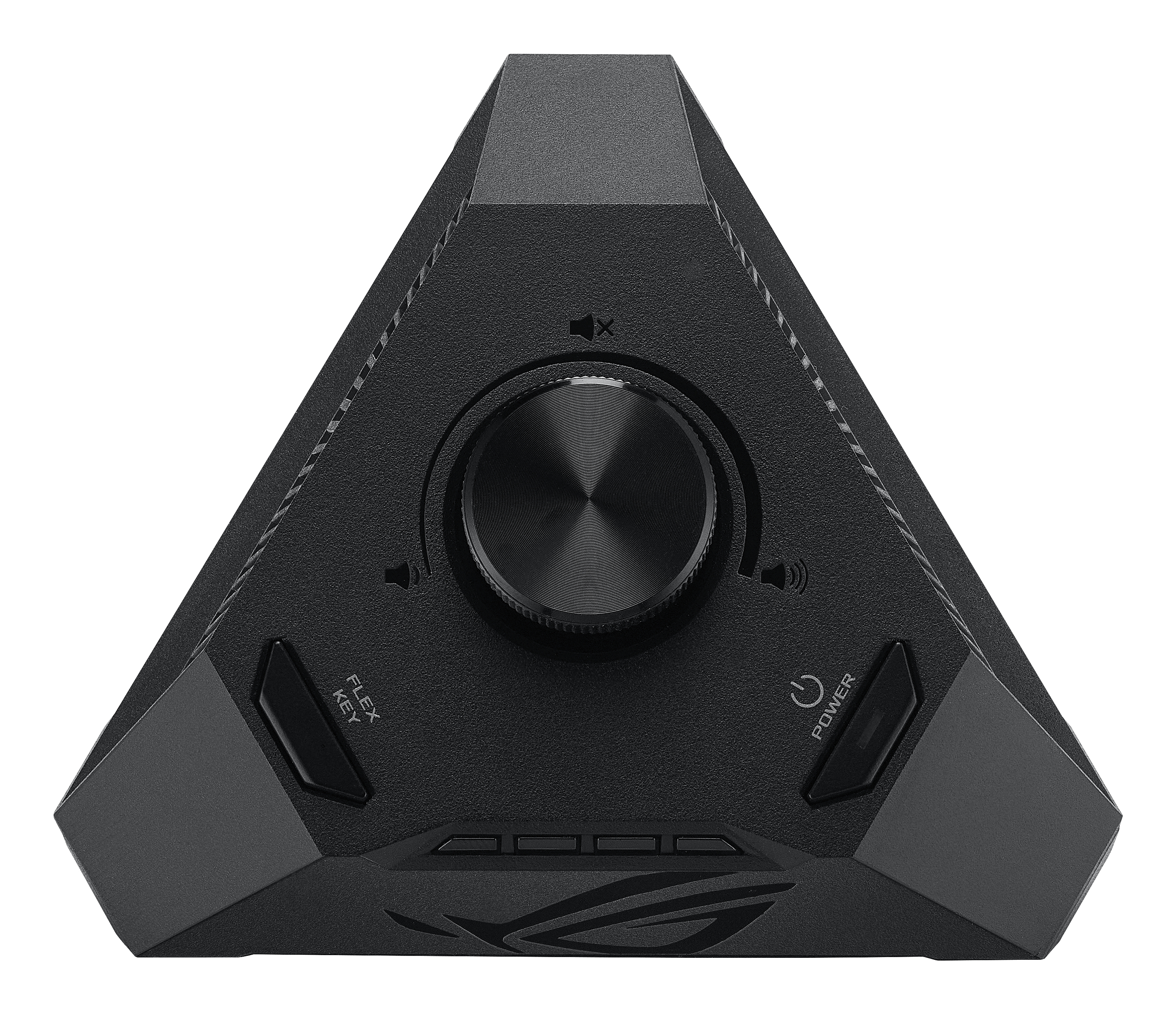

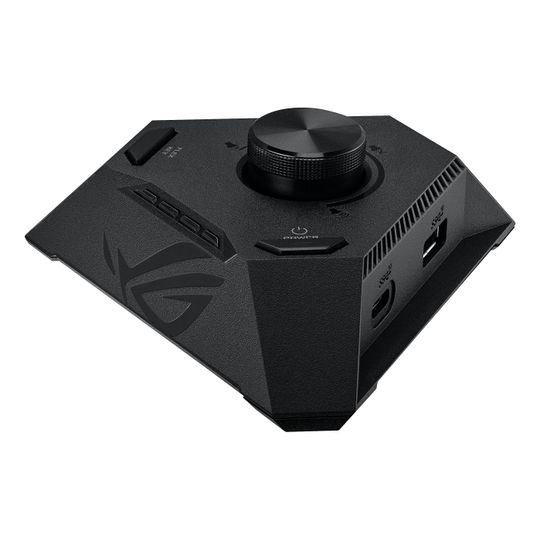

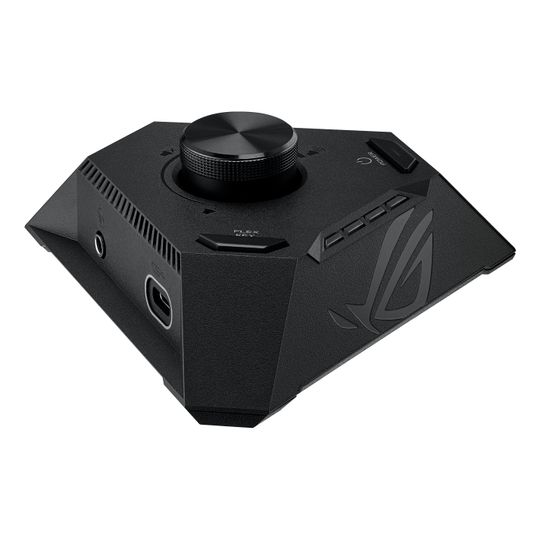

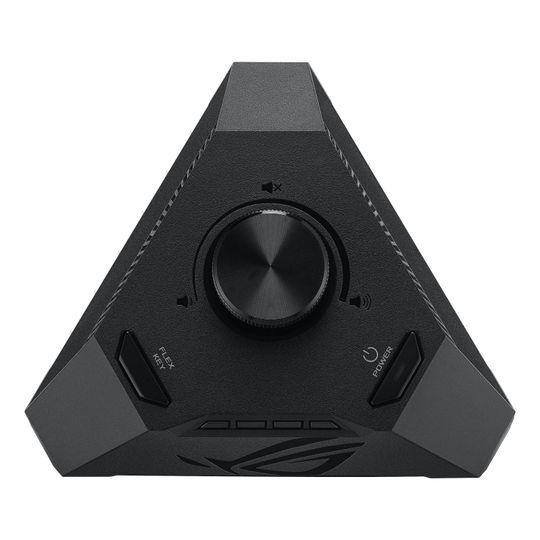

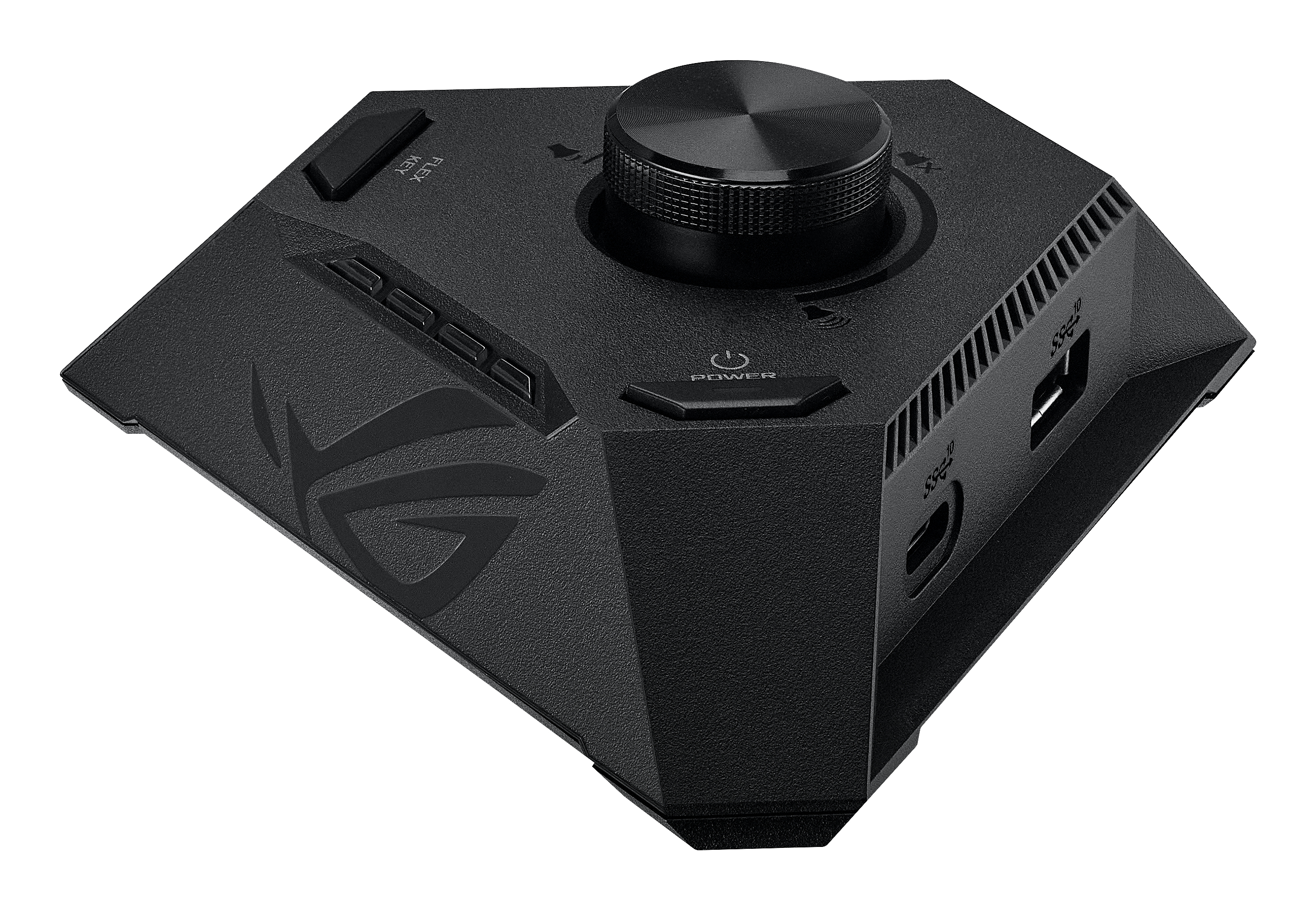

The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
| AMD X870, AM5, 2 x DIMM slots, max. 96GB, DDR5, Intel 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, Mini-ITX ASUS ROG STRIX X870-I GAMING WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5-SDRAM, 96 GB, DIMM |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 8600 MHz |
| Maximum internal memory: | 96 GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 2 |
| Number of storage drives supported: | 4 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |

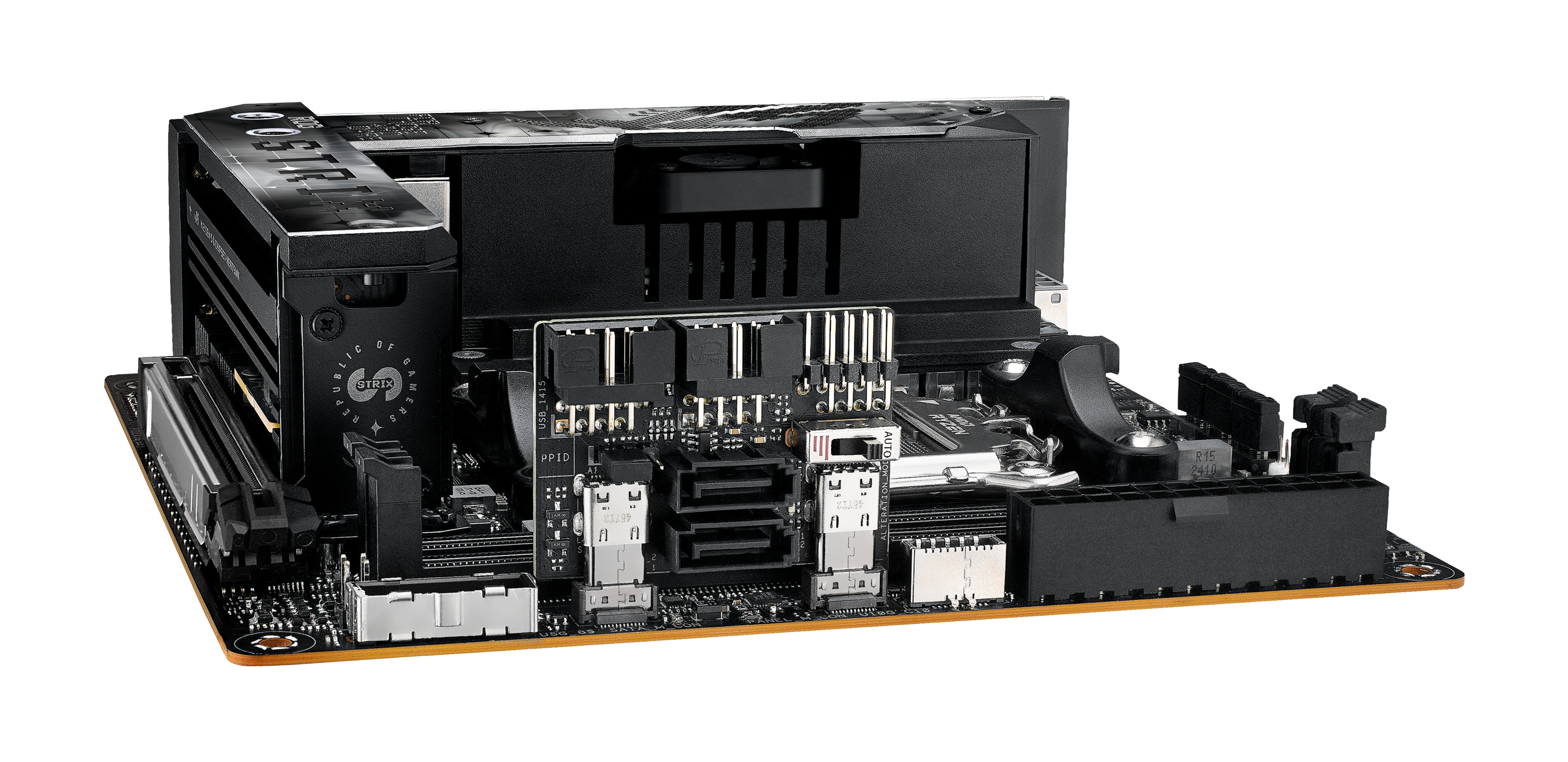

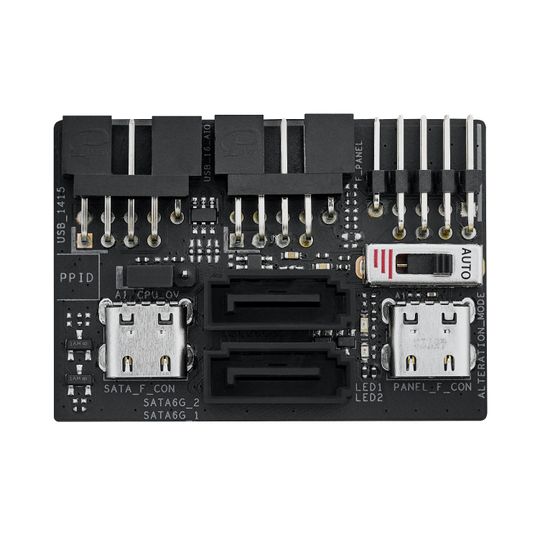

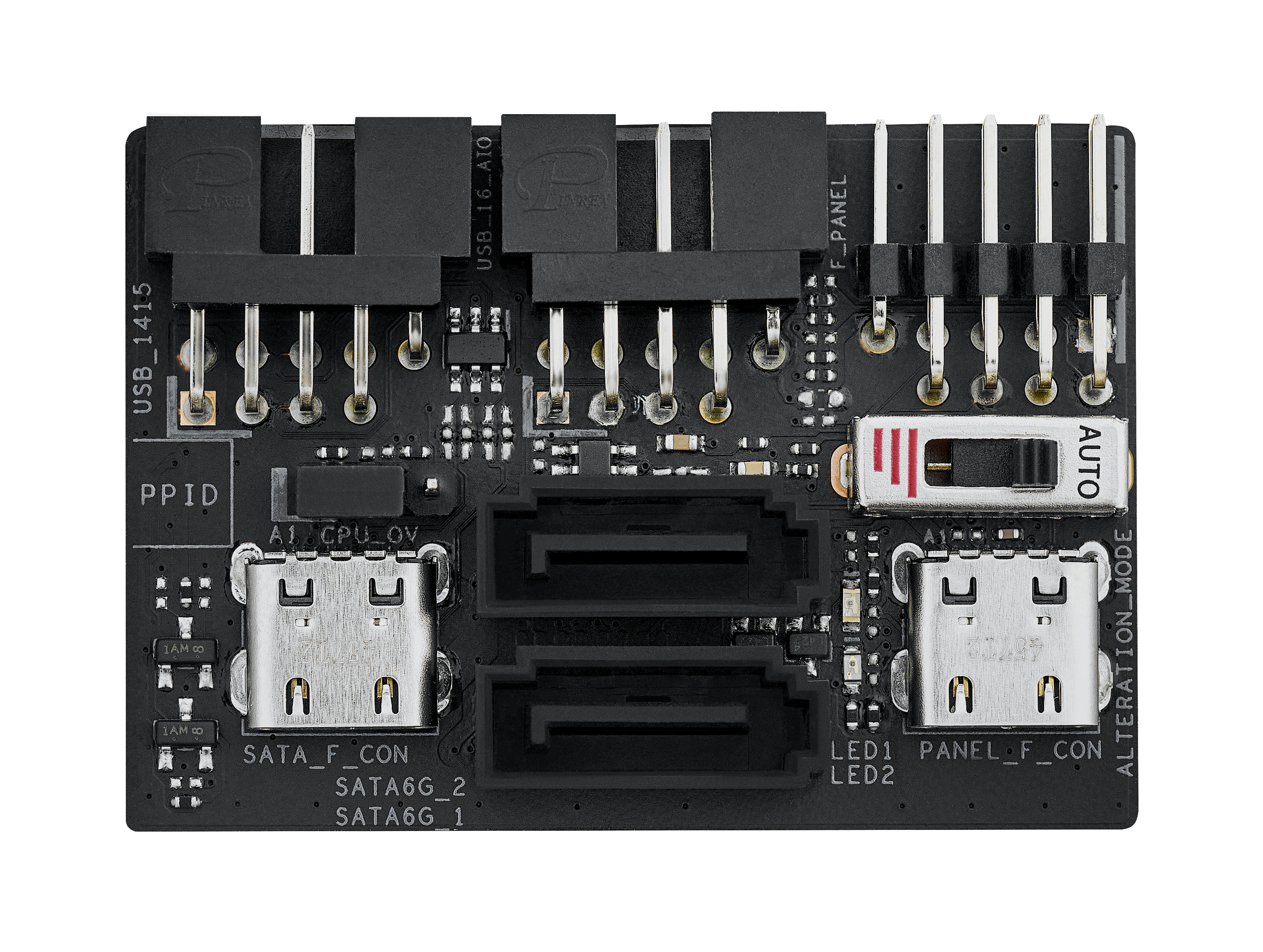

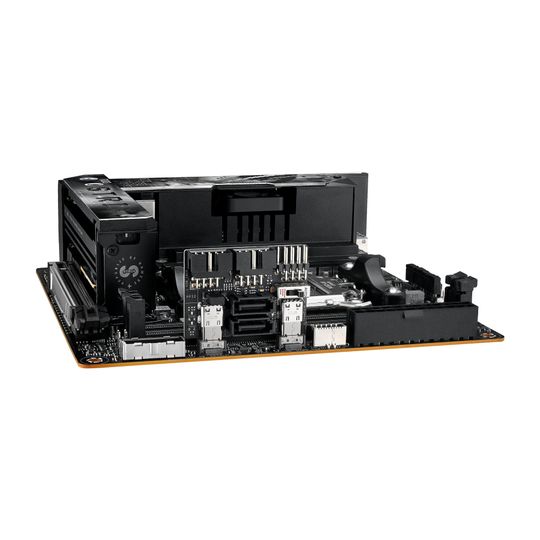

| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of SATA III connectors: | 2 |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| 12V power connector: | Yes |

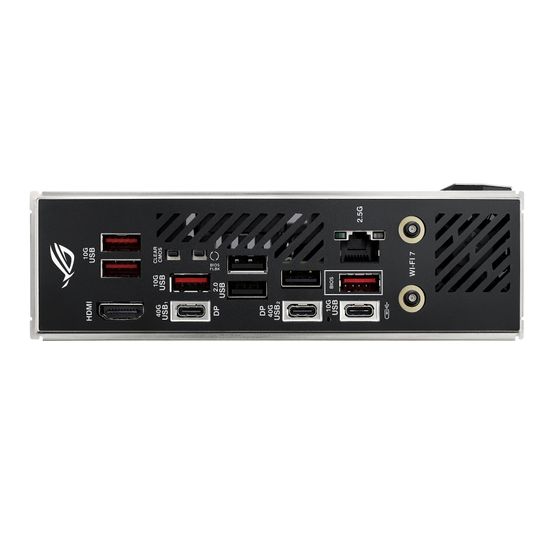

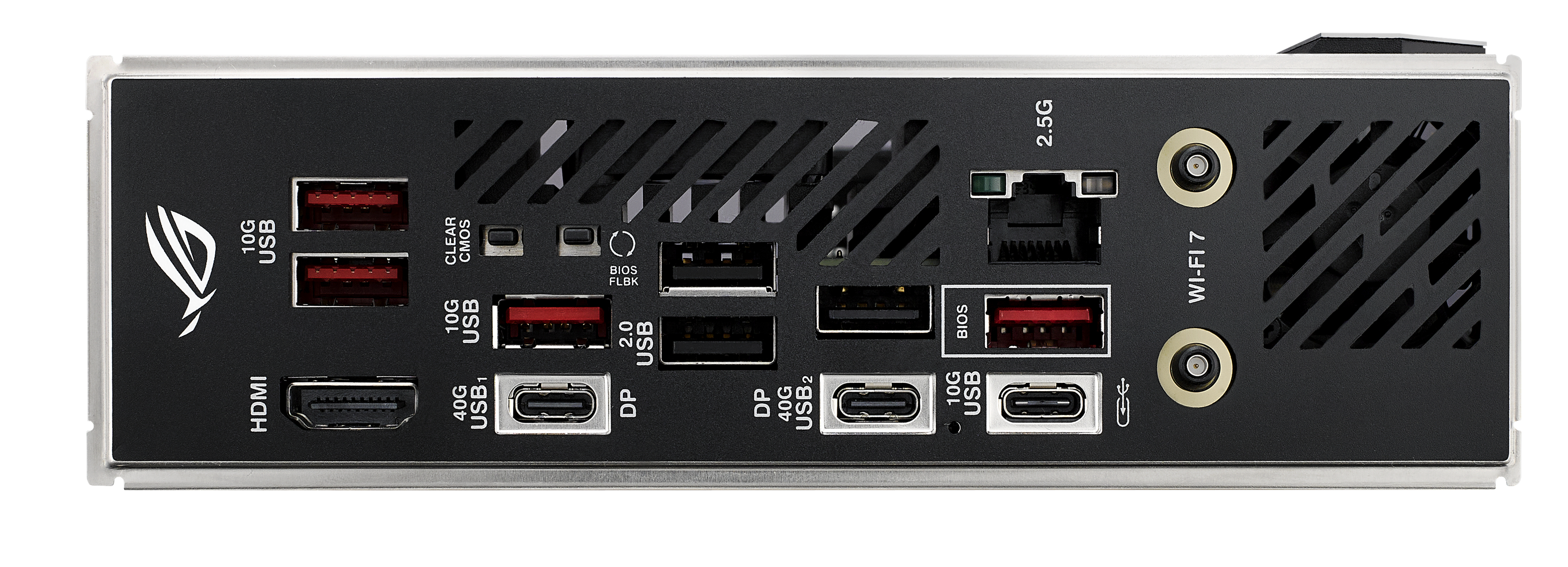

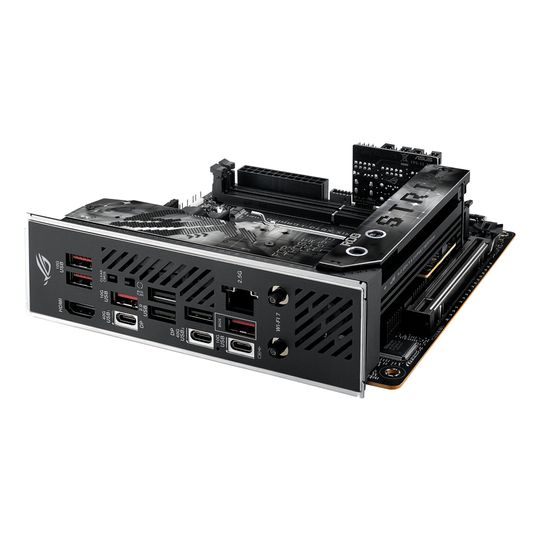

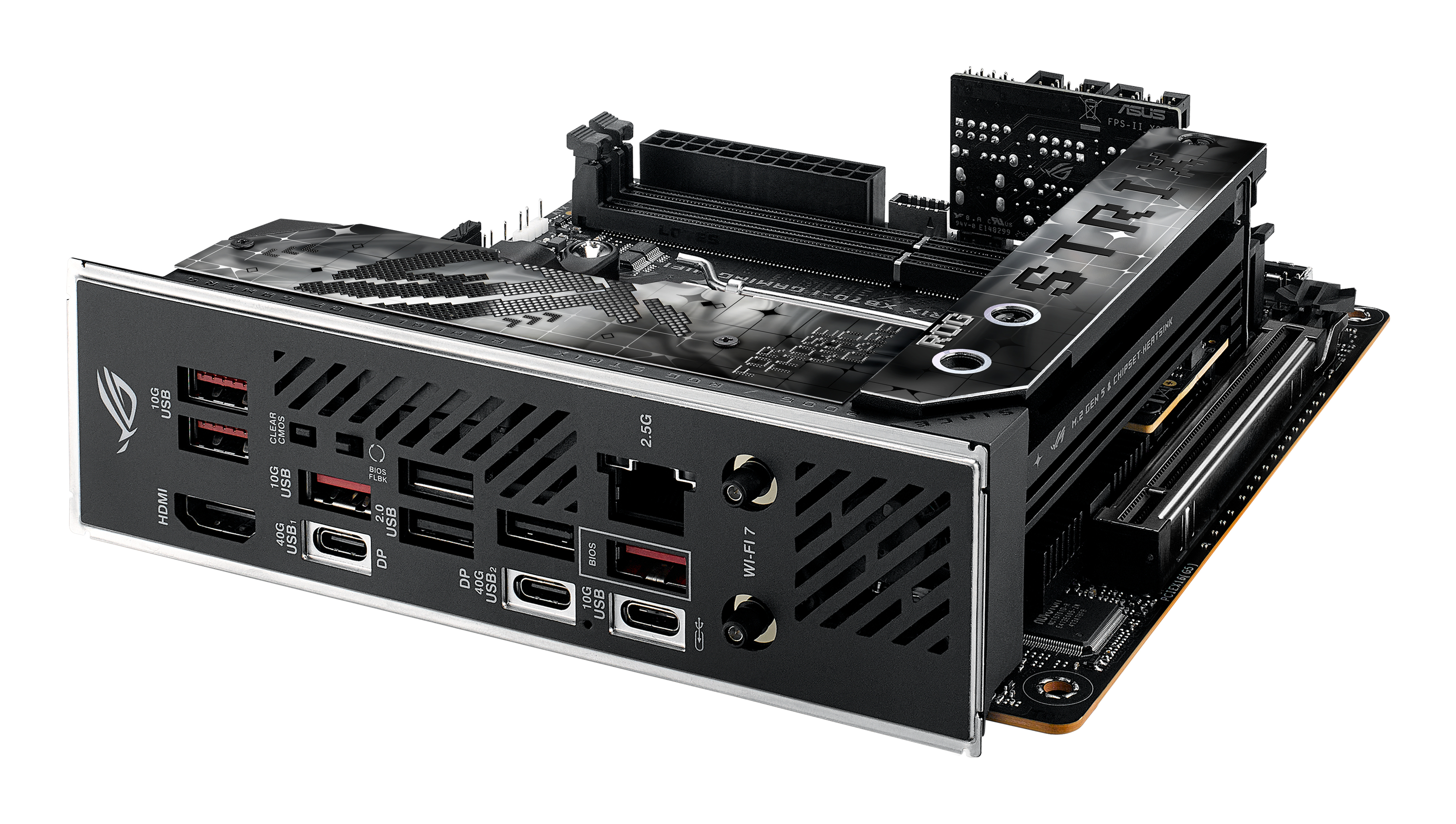

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB4 Gen 3x2 ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB connector type: | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Features | |
|---|---|
| Motherboard chipset: | AMD X870 |
| Product colour: | Black |
| Component for: | PC |
| Motherboard form factor: | mini ITX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Clear CMOS button: | Yes |
| Weight & dimensions | |
|---|---|
| Width: | 170 mm |
| Depth: | 170 mm |
