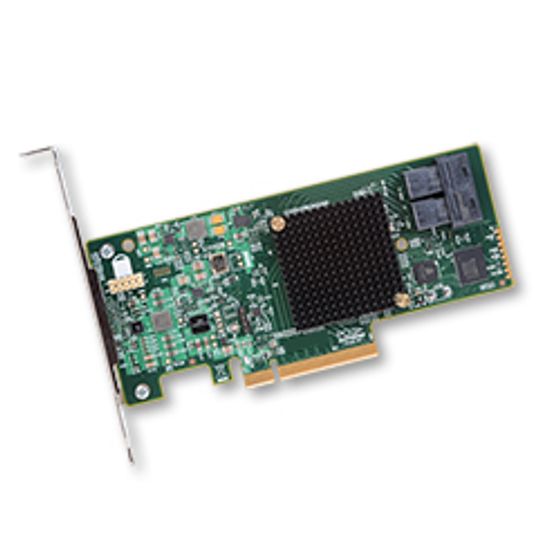

Stýrispjald LSI Broadcom LSI 9300-8i SGL 2xSFF8643
Demanding applications may require dozens of internal drives servicing thousands of users. The SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations. Support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments.
- Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports
- Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
- Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity
| 8 x 12Gb/s SAS + SATA Ports, x8 PCI Express 3.0 Broadcom SAS 9300-8i, PCIe, SAS, SATA, 2 x Mini SAS HD SFF8643, Green, Grey, 2800000 h, EMC: Class B-US (CFR 47, P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B... |
|
| Ports & interfaces | |
|---|---|
| Host interface: | PCIe |
| Output interface: | SAS, SATA |
| Connector(s): | 2 x Mini SAS HD SFF8643 |
| Design | |
|---|---|
| Internal: | Yes |
| Product colour: | Green, Grey |
| Mean time between failures (MTBF): | 2800000 h |
| Certification: | EMC: Class B-US (CFR 47, P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B 2-0001-404; EN60950; WEEE |
| Features | |
|---|---|
| Built-in processor: | Yes |
| Processor model: | LSI SAS3008 |
| Data transfer rate (max): | 12 Gbit/s |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 55 °C |
| Storage temperature (T-T): | -45 - 105 °C |
| Operating relative humidity (H-H): | 5 - 90% |
| System requirements | |
|---|---|
| Windows operating systems supported: | Yes |
| Linux operating systems supported: | Yes |
| Technical details | |
|---|---|
| Compliance certificates: | RoHS |
| Weight & dimensions | |
|---|---|
| Width: | 66 mm |
| Depth: | 152.4 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84733020 |
| Other features | |
|---|---|
| Interface: | 8 x SAS & SATA Internal |
| Voltage: | 3.3, 12 V |
