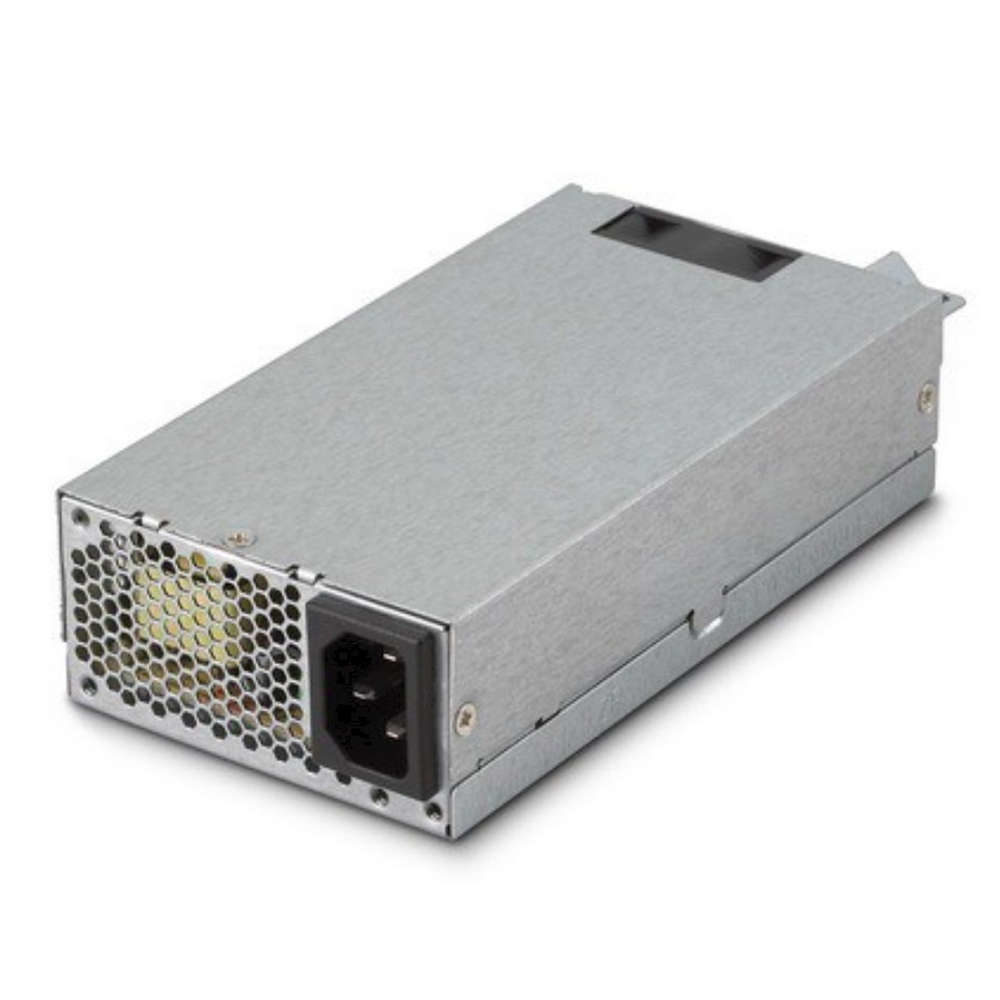

Aflgjafi Fortron FSP Server 250W FlexATX
| 250W, 115 - 230Vac, FLEX ATX, 80 PLUS, Active PFC FSP FSP250-50FEB, 250 W, 90 -264 V, 47 - 63 Hz, 2 - 4 A, Active, 80 W |
|
| Power | |
|---|---|
| Total power: | 250 W |
| AC input voltage: | 90 -264 V |
| AC input frequency: | 47 - 63 Hz |
| Input current: | 2 - 4 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 80 W |
| Combined power (+5V): | 80 W |
| Max output current (+3.3V): | 12 A |
| Max output current (+12V): | 18 A |
| Max output current (+5V): | 14 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.5 A |
| Hold time: | 16 ms |
| Efficiency: | 85% |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | Flex ATX |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
|---|---|
| Cooling type: | Active |
| Fan diameter: | 4 cm |
| Number of fans: | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 80 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Storage relative humidity (H-H): | 0 - 95% |
| Certificates | |
|---|---|
| Compliance certificates: | RoHS |
| Certification: | CB 62368, CE, EMC, FCC, TUV, CUL, CCC, BSMI, UKCA, KC |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 40.5 mm |
| Height: | 81.5 mm |
