Skjákort Gigabyte RTX4060Ti 16GB GAMING OC
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

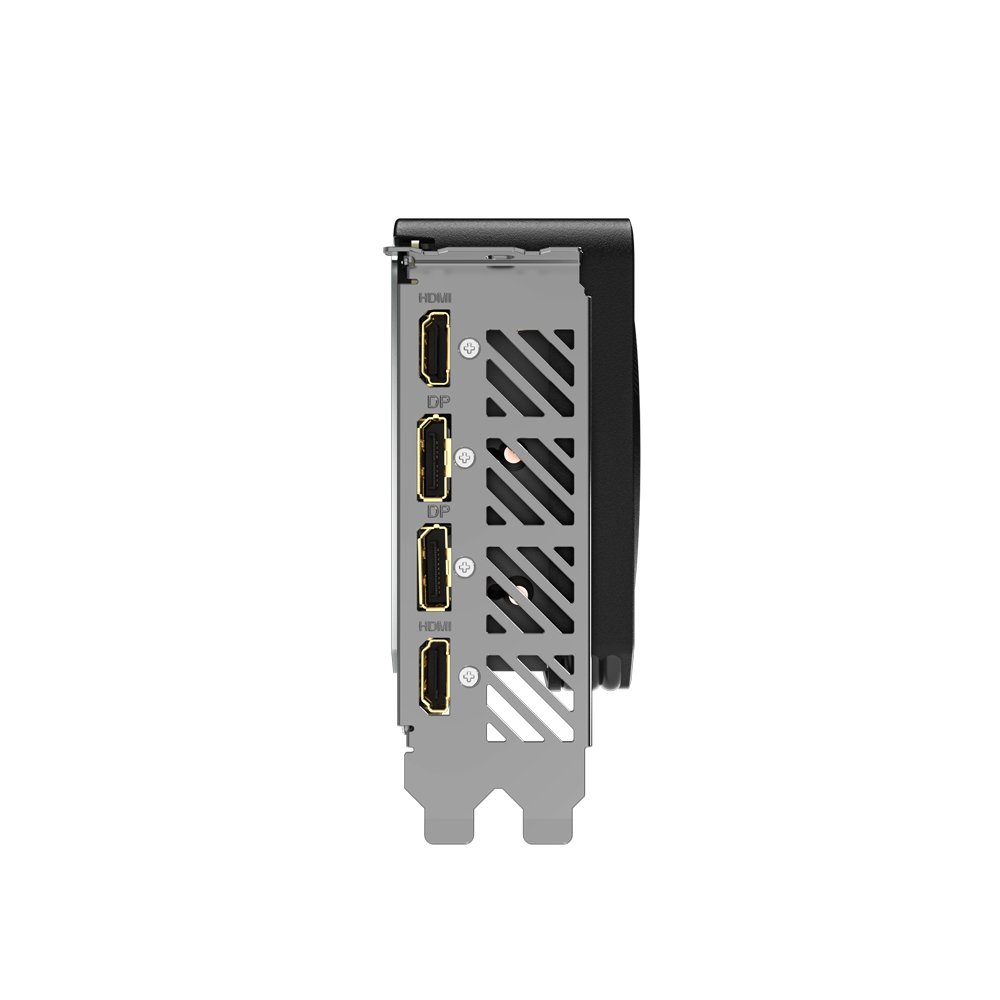

| NVIDIA GeForce RTX 4060 Ti, 16GB GDDR6, 128 bit, PCI Express 4.0, 2 x HDMI (2.1a), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6 Gigabyte GeForce RTX 4060 Ti GAMING OC 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0 |
|
| Processor | |
|---|---|
| CUDA: | |
| CUDA cores: | 4352 |
| Graphics processor family: | NVIDIA |
| Graphics processor: | GeForce RTX 4060 Ti |
| Processor boost clock speed: | 2580 MHz |
| Processor boost clock speed (Gaming mode): | 2535 MHz |
| Maximum resolution: | 7680 x 4320 pixels |
| Parallel processing technology support: | Not supported |
| Maximum displays per videocard: | 4 |
| Memory | |
|---|---|
| Discrete graphics card memory: | 16 GB |
| Graphics card memory type: | GDDR6 |
| Memory bus: | 128 bit |
| Data transfer rate: | 18 Gbit/s |
| Ports & interfaces | |
|---|---|
| Interface type: | PCI Express 4.0 |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.1a |
| DisplayPorts quantity: | 2 |
| DisplayPort version: | 1.4a |
| Performance | |
|---|---|
| TV tuner integrated: | |
| DirectX version: | 12 Ultimate |
| OpenGL version: | 4.6 |
| HDCP: | |
| Dual Link DVI: | |
| Design | |
|---|---|
| Cooling type: | Active |
| Cooling technology: | GIGABYTE WINDFORCE 3X |
| Number of fans: | 3 fan(s) |
| Form factor: | Full-Height/Full-Length (FH/FL) |
| Product colour: | Black |
| Power | |
|---|---|
| Minimum system power supply: | 500 W |
| Supplementary power connectors: | 1x 8-pin |
| Packaging content | |
|---|---|
| Quick installation guide: | |
| Weight & dimensions | |
|---|---|
| Depth: | 281 mm |
| Height: | 53 mm |
| Width: | 117 mm |
| Packaging data | |
|---|---|
| Package type: | Box |
