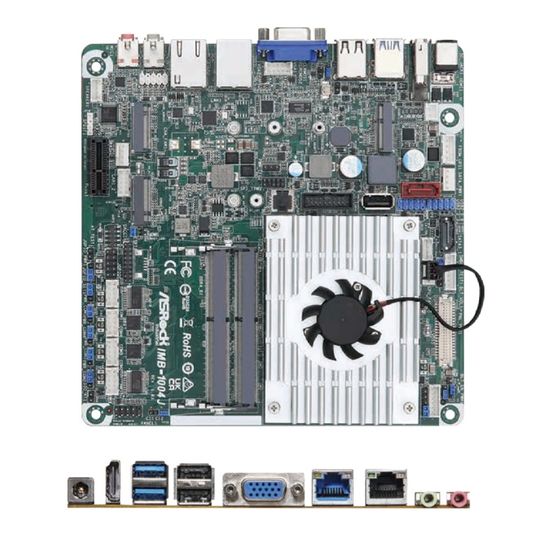

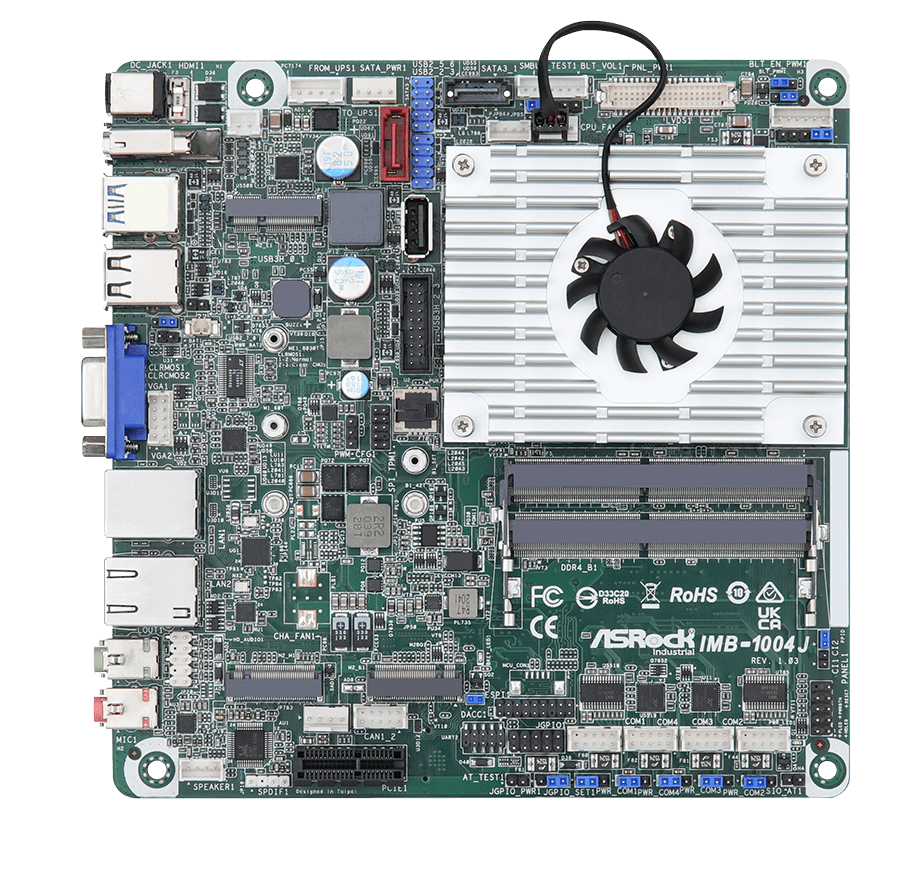

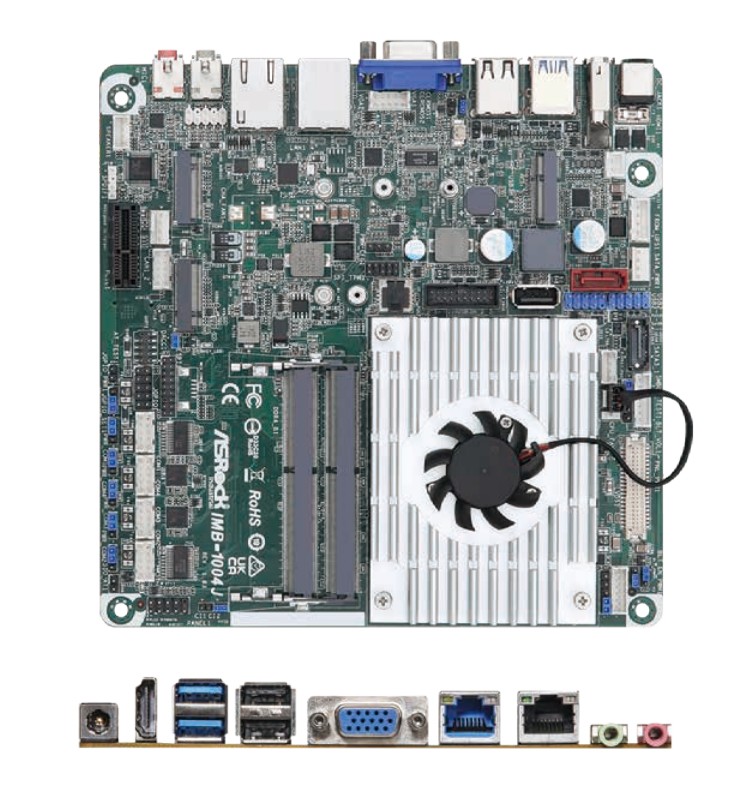

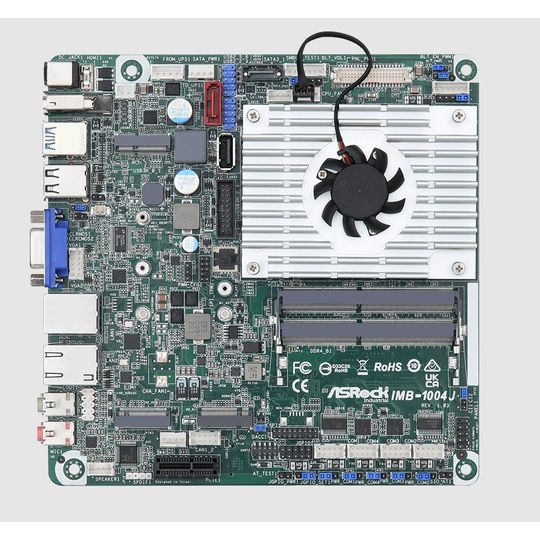

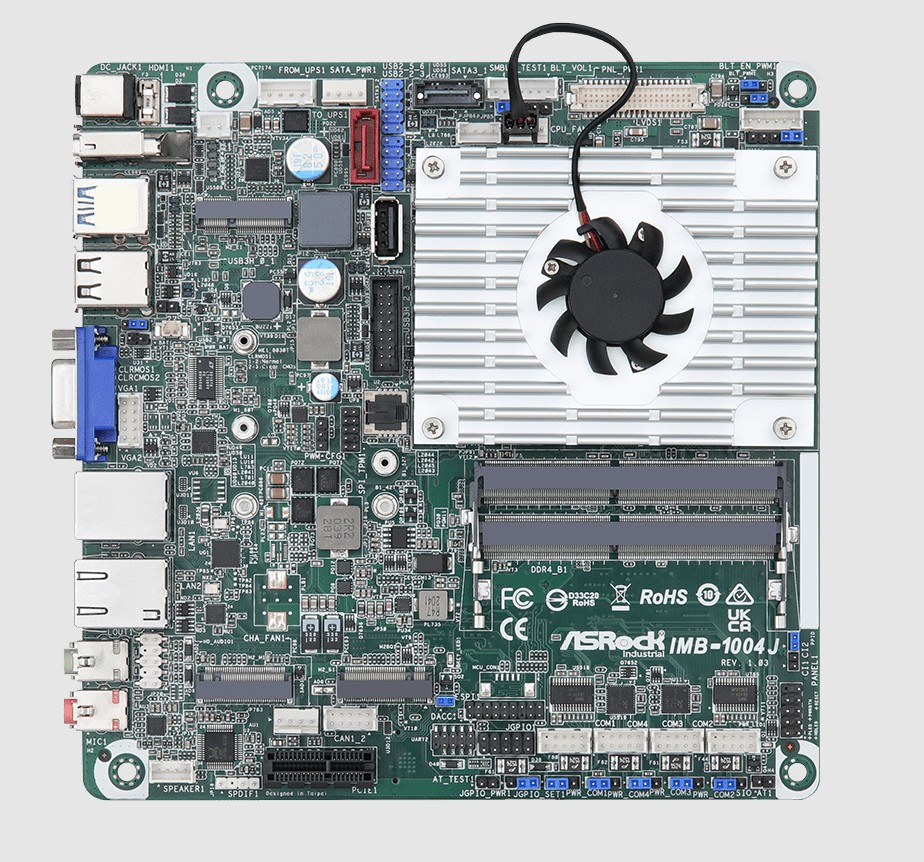

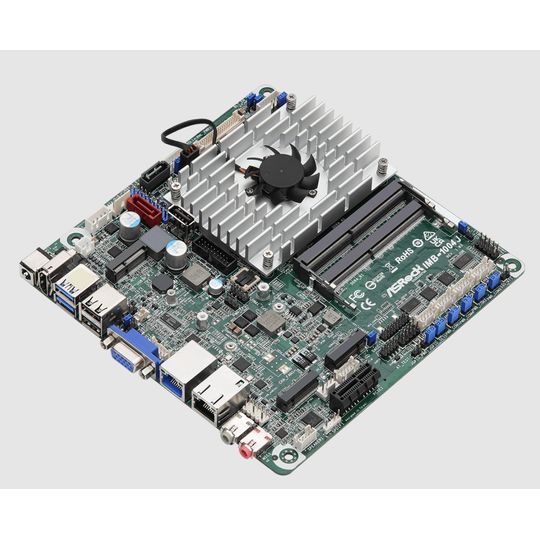

ASRock Industrial IMB-1004J - Mini-ITX Motherboard

• Intel® ElkHart Lake SoC Processors J6412
• 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
• 1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
• 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
• Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
• TPM Header
• 12~28V DC-In

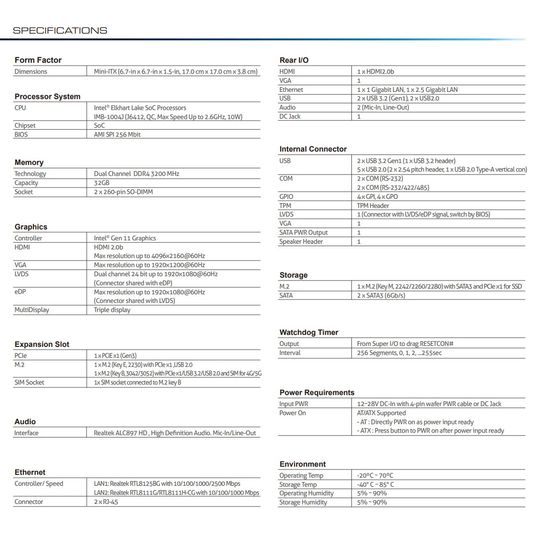

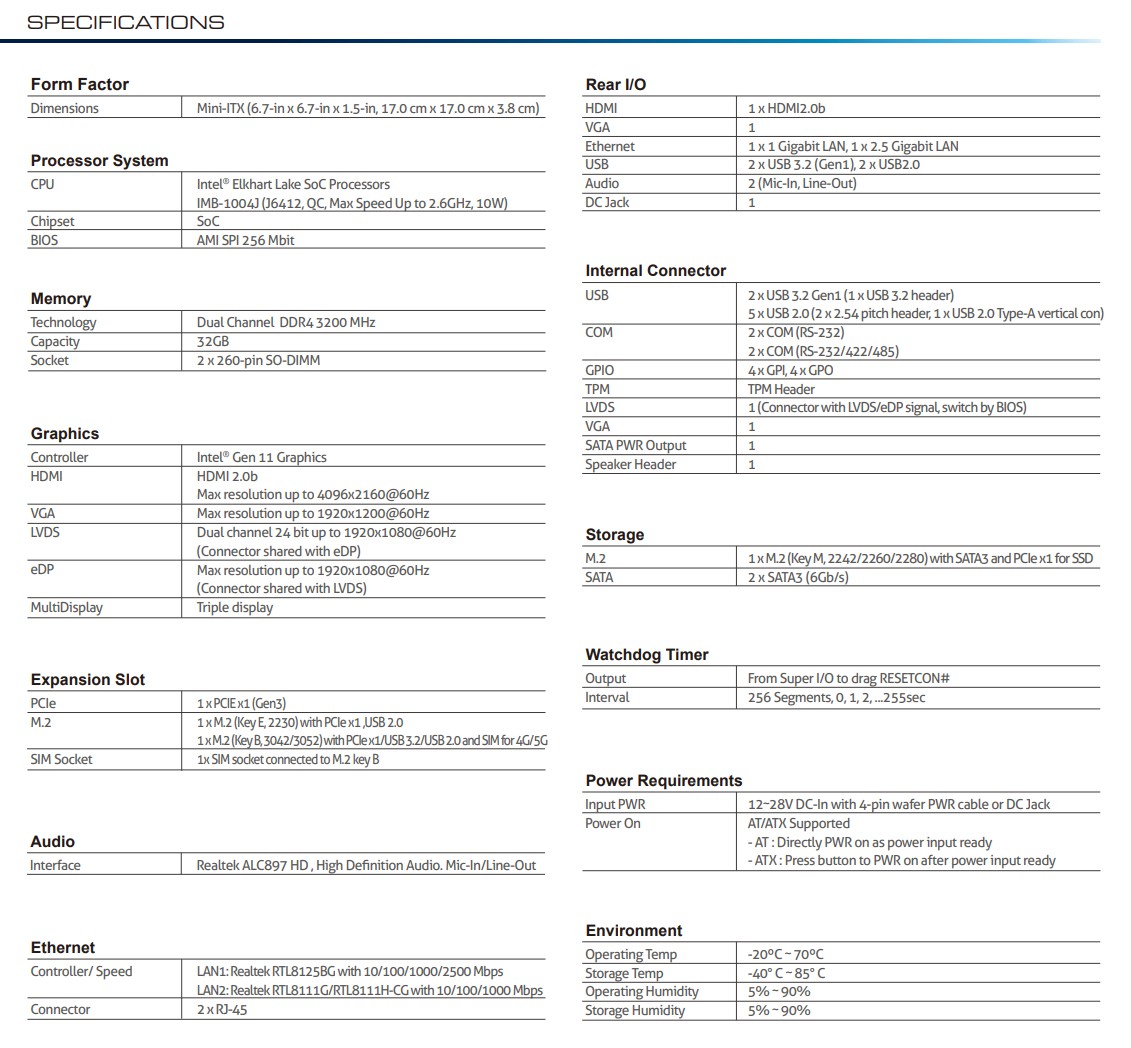

Specifications

• Processor: Intel Elkhart Lake SoC (Intel Celeron J6412, Quad Core, up to 2.6 GHz, 10W)
• Chipset: SoC
• BIOS: AMI SPI 256 Mbit
• Form Factor: Mini-ITX
• Dimensions: 170 x 170 x 38 mm
• Memory Type: DDR4 3200 MHz, Dual Channel
• Memory Capacity: Up to 32 GB
• Memory Slots: 2 x 260-pin SO-DIMM
• Graphics Controller: Intel Gen 11 Graphics
• HDMI: 1 x HDMI 2.0b, up to 4096 x 2160 @ 60 Hz
• VGA: 1 x VGA, up to 1920 x 1200 @ 60 Hz
• LVDS: Dual channel 24-bit, up to 1920 x 1080 @ 60 Hz (shared with eDP)
• eDP: Up to 1920 x 1080 @ 60 Hz (shared with LVDS)
• Multi-Display: Triple display support
• PCIe Slot: 1 x PCIe x1 (Gen3)
• M.2 Slot (Key E): 1 x M.2 2230 (PCIe x1, USB 2.0)
• M.2 Slot (Key B): 1 x M.2 3042/3052 (PCIe x1, USB 3.2, USB 2.0) with SIM support for 4G/5G
• SIM Socket: 1 x SIM socket connected to M.2 Key B
• Audio Chipset: Realtek ALC897 HD Audio
• Audio Ports: Mic-In, Line-Out
• LAN1: Realtek RTL8125BG, 10/100/1000/2500 Mbps
• LAN2: Realtek RTL8111G / RTL8111H-CG, 10/100/1000 Mbps
• LAN Ports: 2 x RJ-45
• Rear HDMI: 1 x HDMI 2.0b
• Rear VGA: 1 x VGA
• Rear LAN: 1 x 1GbE, 1 x 2.5GbE
• Rear USB: 2 x USB 3.2 Gen1, 2 x USB 2.0
• Rear Audio: Mic-In, Line-Out
• Rear Power: 1 x DC Jack
• Internal USB: 2 x USB 3.2 Gen1 (1 header)
• Internal USB: 4 x USB 2.0 (2 headers, 2.54 pitch)
• Internal USB: 1 x USB 2.0 Type-A
• Internal COM: 2 x RS-232
• Internal COM: 2 x RS-232/422/485
• GPIO: 4 x GPI, 4 x GPO
• TPM: TPM Header
• LVDS Connector: 1 (shared LVDS/eDP, selectable in BIOS)
• Internal VGA: 1
• SATA Power Output: 1
• Speaker Header: 1
• M.2 Storage: 1 x M.2 Key M (2242/2260/2280) with SATA3 and PCIe x1 for SSD
• SATA Ports: 2 x SATA3 (6 Gb/s)
• Watchdog Timer: 0–255 seconds, 256 segments
• Power Input: 12–28V DC-In (4-pin wafer power cable or DC jack)
• Power Mode: AT / ATX supported
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 5% – 90%
• Storage Humidity: 5% – 90%
• Included Accessories: I/O shield, thin I/O shield, M2 screws, COM cables, SATA data cables, SATA power cable
