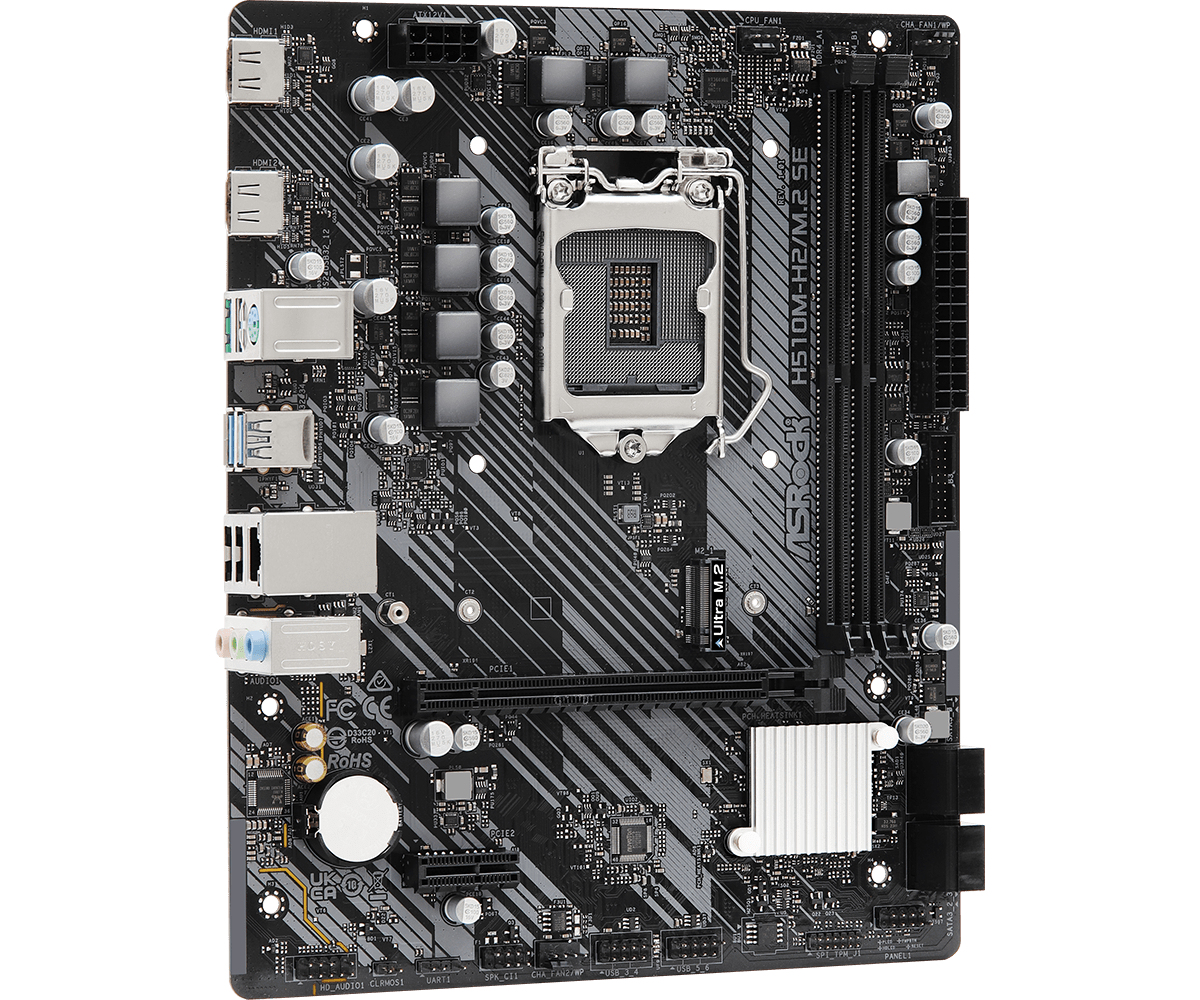

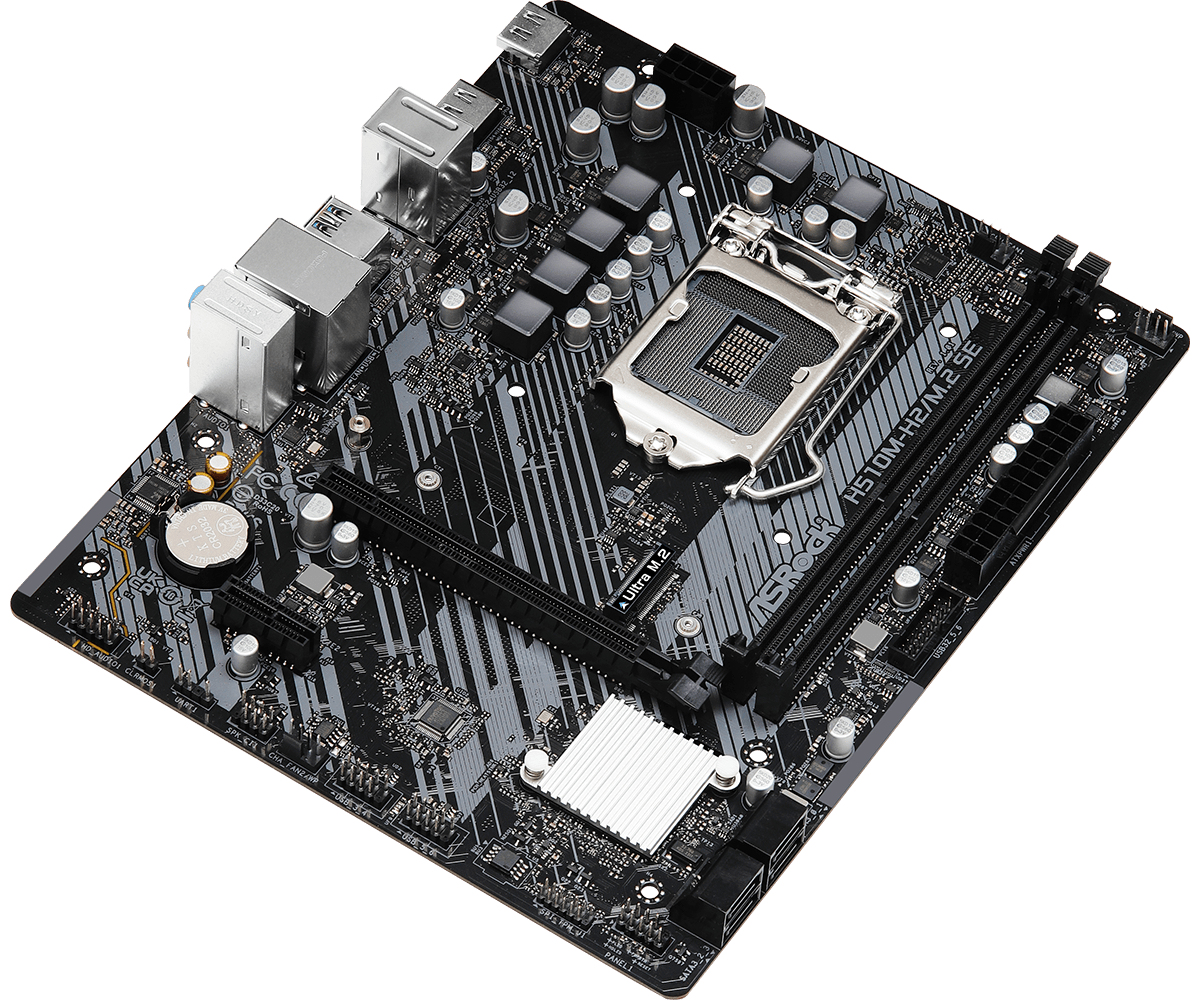

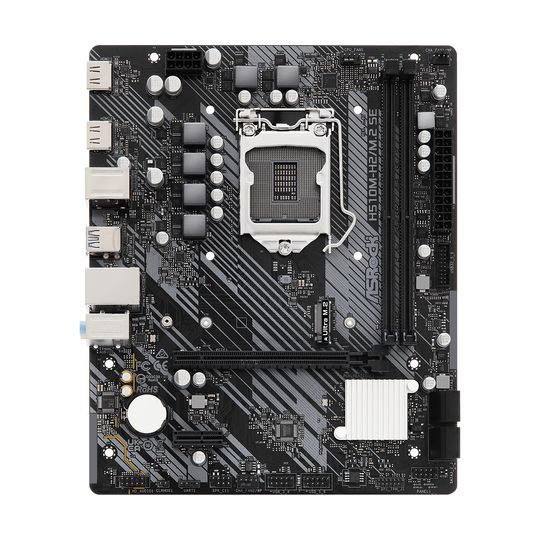

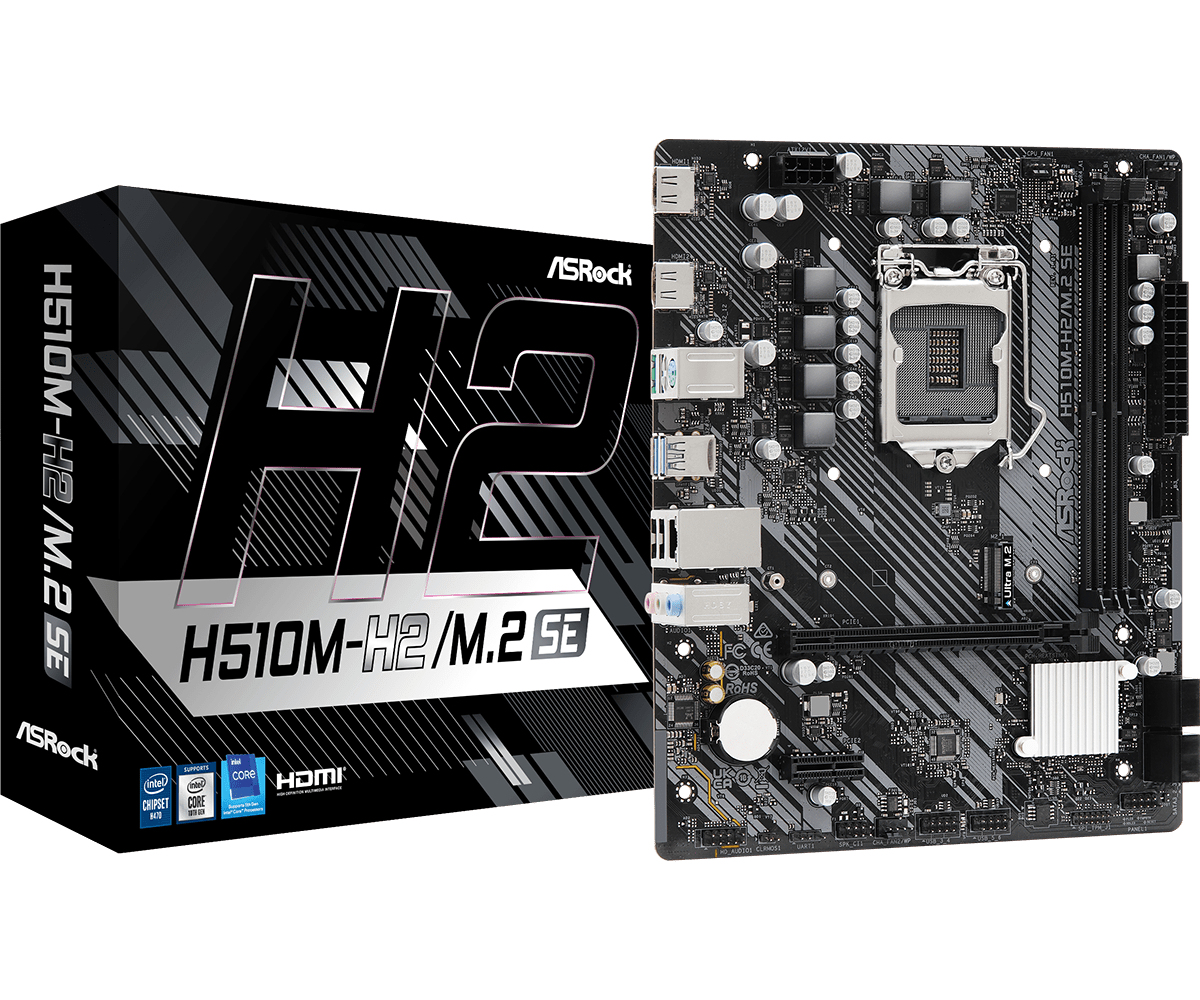

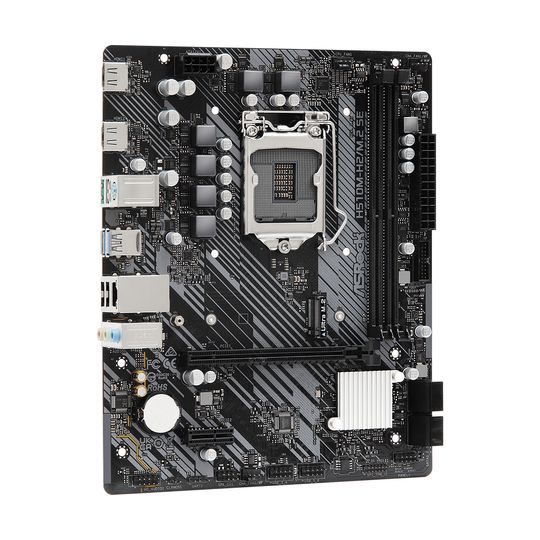

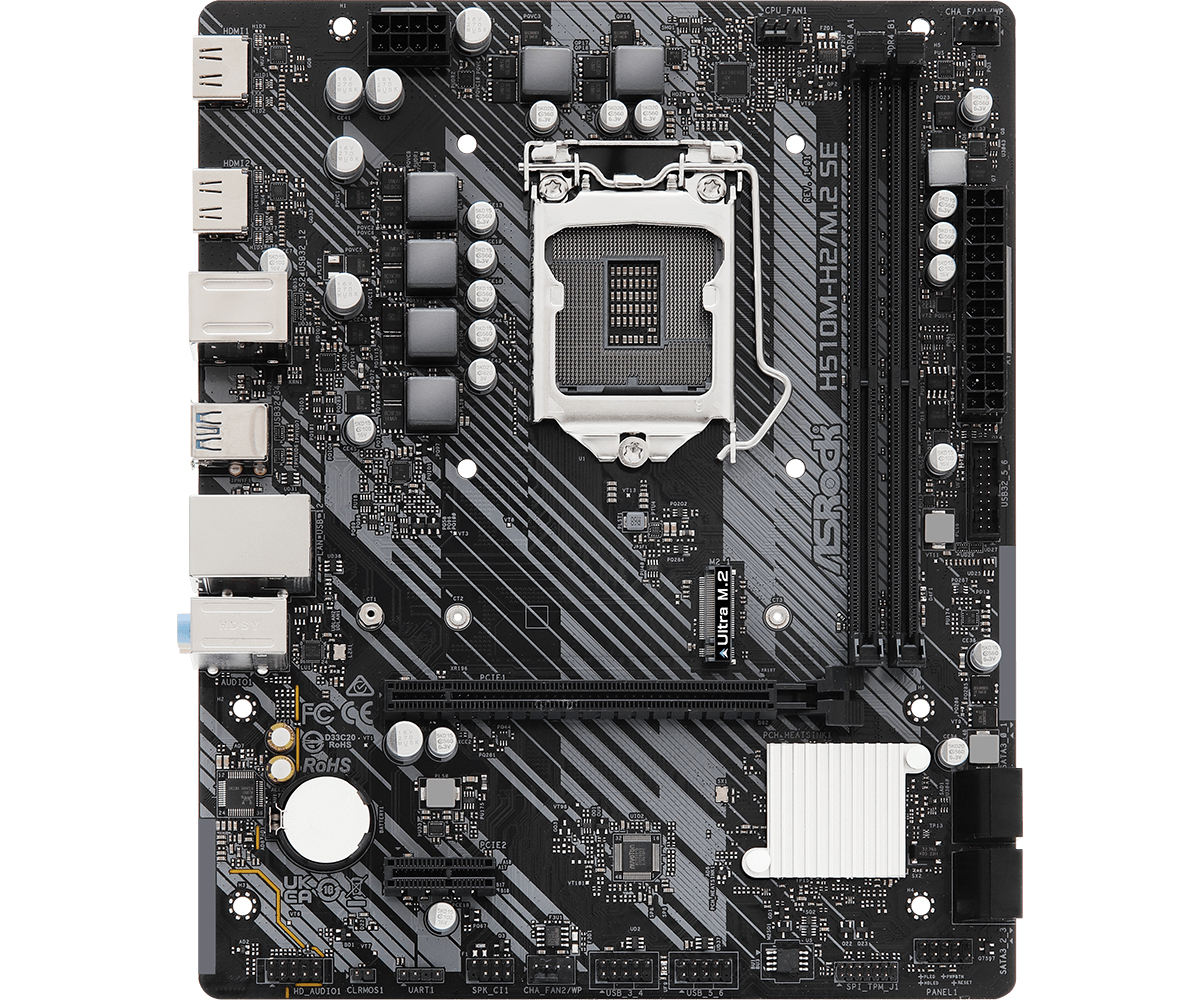

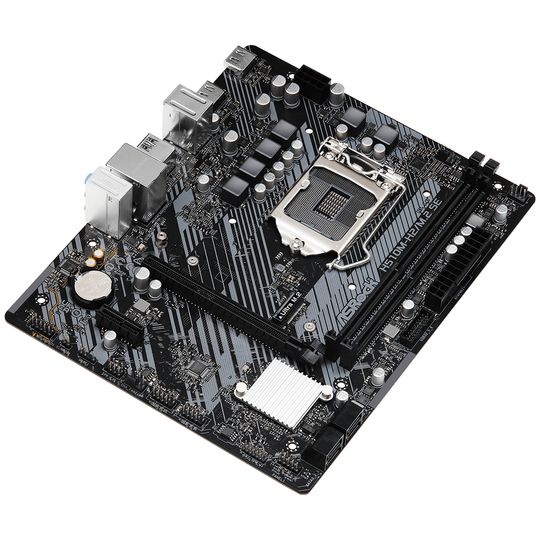

Móðurborð 1200 ASRock H510M-H2/M.2 SE mATX
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| LGA1200, Intel H470, 2 x DDR4 DIMM (max 64 GB), Intel XMP 2.0, 7.1 CH HD Audio, Realtek ALC897, Gigabit LAN, 128Mb AMI UEFI, Micro ATX Asrock H510M-H2/M.2 SE, Intel, LGA 1200 (Socket H5), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR4-SDRAM, 64 GB, DIMM |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors: | 1 |
| Memory | |
|---|---|
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC |
| Supported memory clock speeds: | 2133,2400,2666,2800,2933,3200 MHz |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| TPM connector: | Yes |

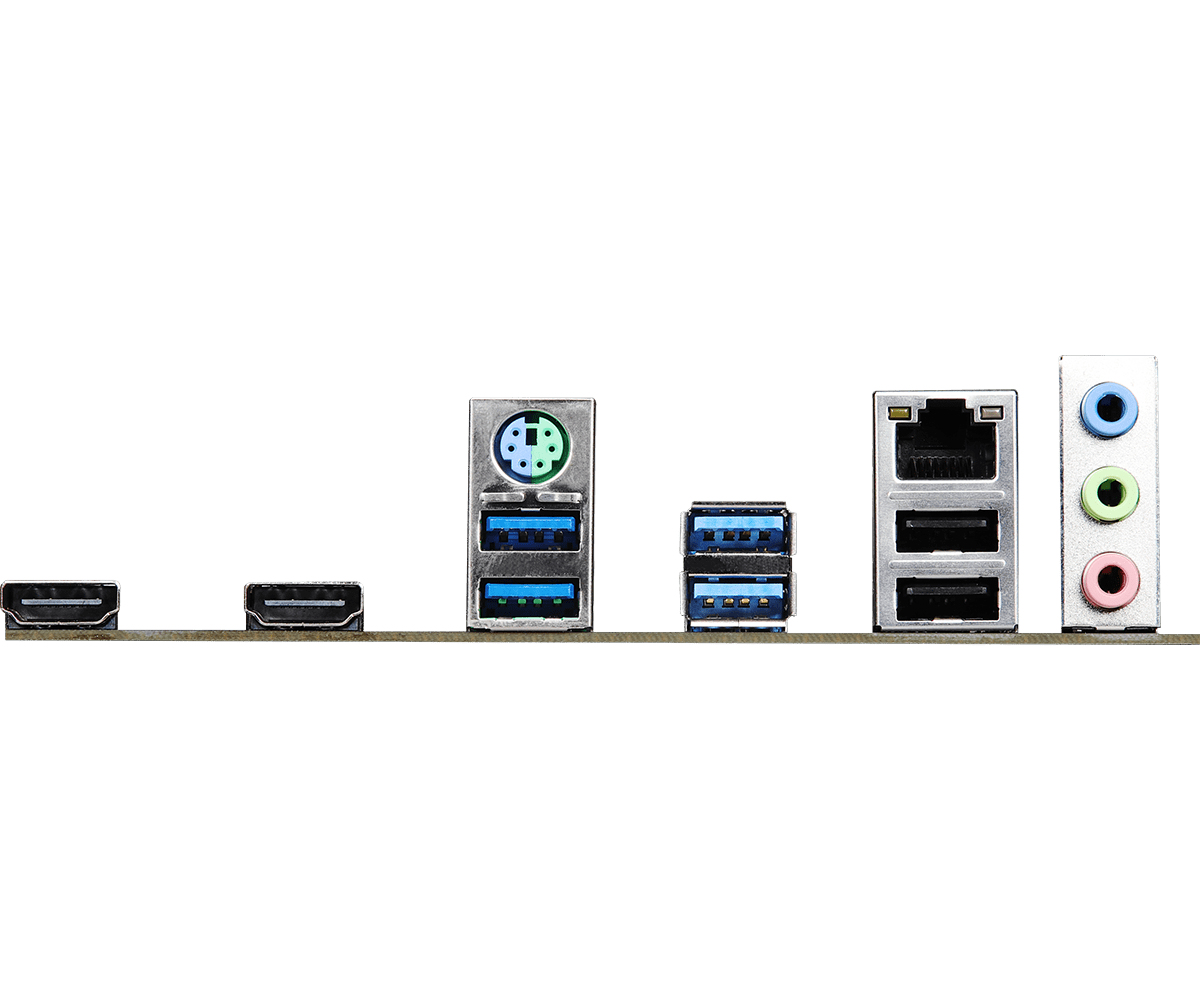

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Features | |
|---|---|
| Motherboard chipset: | Intel H470 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width: | 231 mm |
| Depth: | 187 mm |
| Packaging content | |
|---|---|
| Cables included: | SATA |
| Screws included: | Yes |
