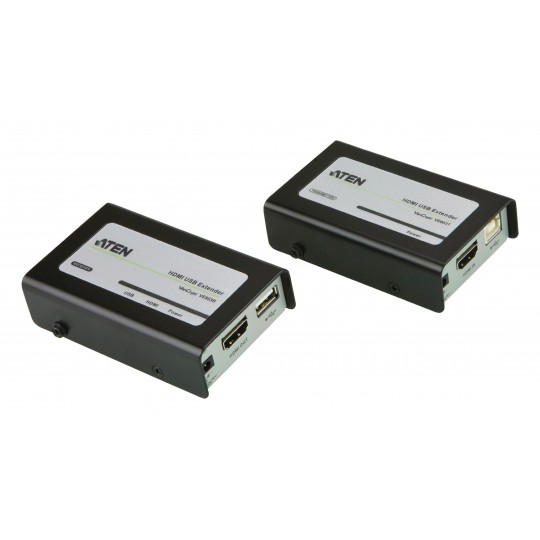

Extender Aten HDMI/USB 60m CAT VE803-AT-G
Aten - HDMI / USB Cat5 Extender 60 m

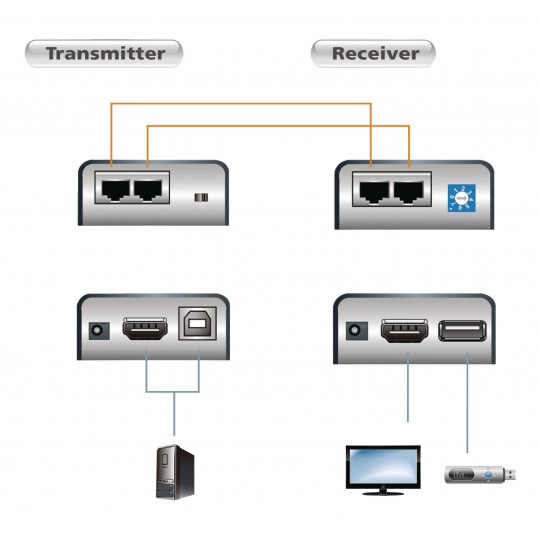

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
Product specifications
- Device type: Extender
- Colour: Black
- Electronic device type: HDMI
- Outside material: Metal
- Packaging: Gift Box
- Power plug: Euro / Type C (CEE 7/16)
- Max. resolution: 1920x1080
- Version: Cat5
- Audio-support: Yes
- Bandwidth: 225 MHz
- Compatible power supply: 0AD6-1705-10EG
- Data rate: 6.75 Gbps
- Dimensions: 90 x 57.4 x 24 mm
- Distance: 60 m
- EDID settings: Default
- Function control: Automatic
- HDCP version: HDCP 1.3 Compatible
- Power consumption: 3.9 W

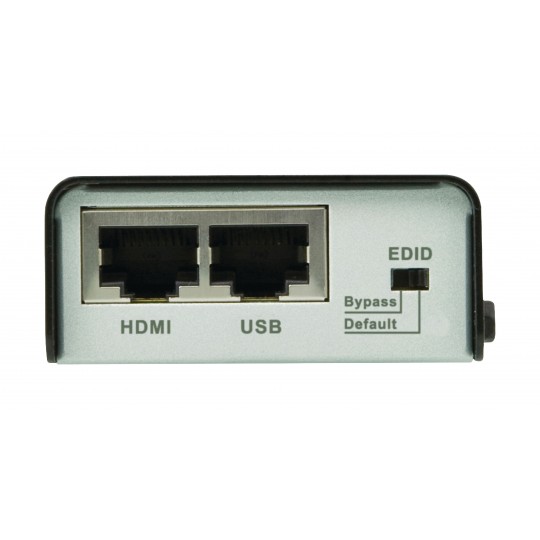

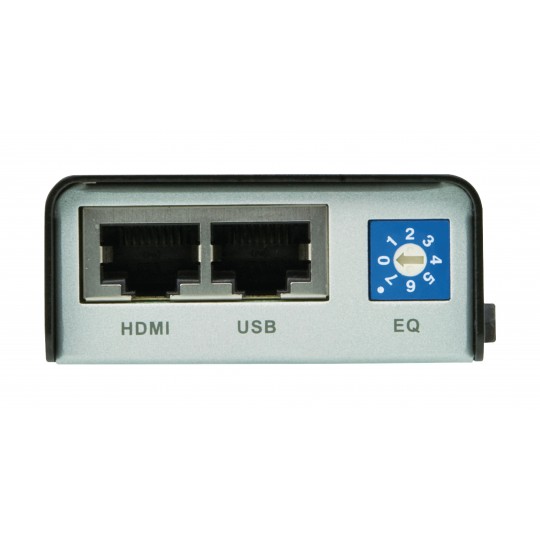

- Receiver input: 2x RJ45 Female
- Receiver output: 1x HDMI output + 1x USB A Female
- Supported technology:
- HDCP
- Deep Color 30/36 bit
- Full HD

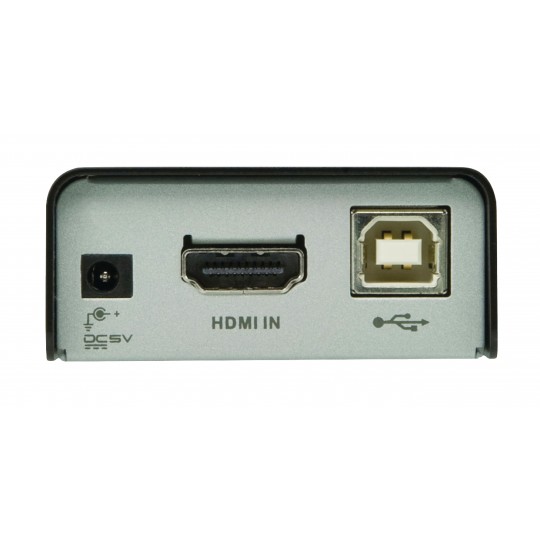

- Transmitter input: 1x HDMI input + 1x USB B Female
- Transmitter output: 2x RJ45 Female
