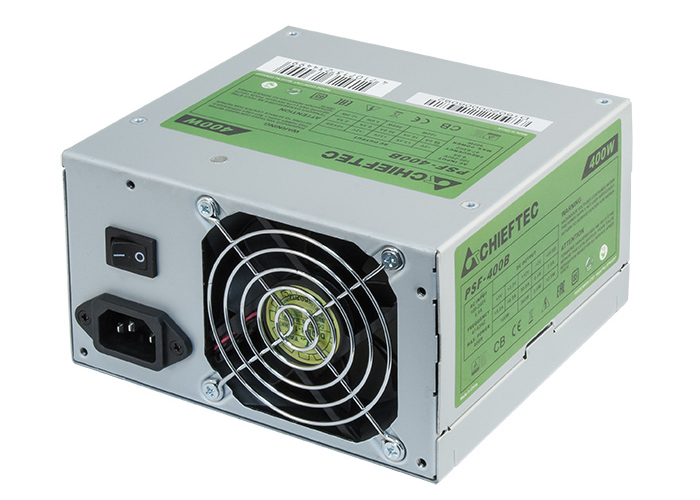

Aflgjafi Chieftec PSF-400B Bulk 400W 8cm ATX

12895
Aflgjafi Chieftec PSF-400B Bulk 400W 8cm ATX
Framl.númer: PSF-400B
Vörunúmer: 12695
Til á lager

Chieftec PSF-400B er hefðbundinn ATX aflgjafi sem ræður við allt að 400W álag og heldur íhlutum köldum með 8cm viftum sem blæs út að aftan. Þessi hönnun hentar m.a. í rackmountable netþjóna þar sem loftun þarf að fara lárétt í gegnum aflgjafann.

Manual PDF
Upplýsingar frá framleiðanda
Fyrirspurn um vöru
Frí heimsending
Verð: 21.990 kr

The PSF-400B from its layout may remind on “fore gone” ATX standards but, compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.

Dedicated majorly to the 19” IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.

Chieftec PSF-400B, 400 W, 100 - 240 V, 47 - 63 Hz

  • Input 100 - 240 V 47 - 63 Hz
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Bronze
  • Active 8 cm
  • Metallic
400 W, ATX 12V 2.3, 110V-240V / 6A, 47-63 Hz, 140 x 150 x 87 mm
Chieftec PSF-400B, 400 W, 100 - 240 V, 47 - 63 Hz, Active, 100 W, 360 W
  • 400 W 100 - 240 V 47 - 63 Hz
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Bronze
  • Active 8 cm
  • Metallic
Power
Total power:400 W
AC input voltage:100 - 240 V
AC input frequency:47 - 63 Hz
Power Factor Correction (PFC) type:Active
Combined power (+3.3V):100 W
Combined power (+12V):360 W
Combined power (+5V):100 W
Combined power (-12V):3.6 W
Combined power (+5Vsb):12.5 W
Max output current (+3.3V):16 A
Max output current (+12V1):30 A
Max output current (+5V):15 A
Max output current (-12V):0.3 A
Max output current (+5Vsb):2.5 A
Efficiency:87%
Power protection features:Overload, Short circuit
Ports & interfaces
Motherboard power connector:24-pin ATX
Motherboard power cable length:45 cm
Number of SATA power connectors:4
Peripheral (Molex) power connectors (4-pin):3
EPS power connector (8-pin):Yes
PCI Express power connectors (6-pin):1
Floppy drive power connector:1
Cabling type:Non-Modular
Performance
80 PLUS certification:80 PLUS Bronze
Purpose:PC
Power supply unit (PSU) form factor:ATX
ATX version:2.3
Design
Product colour:Metallic
Cooling type:Active
Fan diameter:8 cm
Number of fans:1 fan(s)
Fan location:Side
Certificates
Compliance certificates:RoHS
Weight & dimensions
Width:150 mm
Depth:140 mm
Height:87 mm
Technical details
Sustainability certificates:ENERGY STAR
Logistics data
Harmonized System (HS) code:84733020
