Aflgjafi BeQuiet! Pure Power 13 M 850W 80+Gold
Exceptional quiet, superior features

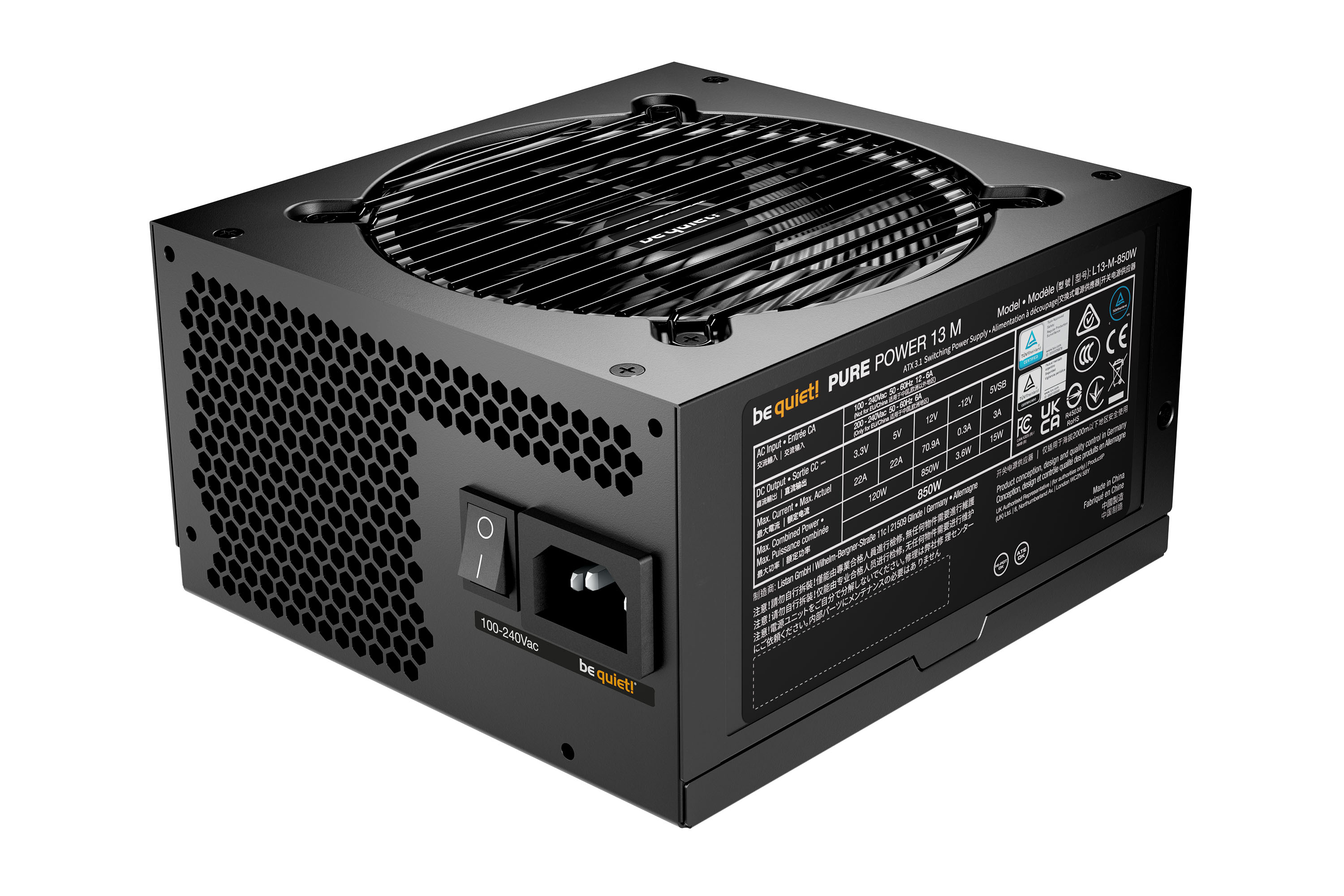

Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 850W offers the best combination of features with outstanding compatibility.
be quiet! Pure Power 13 M | 850W, 850 W, 100 - 240 V, 900 W, 50/60 Hz, 12 A, 6 A
- 850 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm 0 - 2000 RPM
- Black
| 850W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm be quiet! Pure Power 13 M | 850W, 850 W, 100 - 240 V, 900 W, 50/60 Hz, 12 A, 6 A |
|
| Power | |
|---|---|
| Total power: | 850 W |
| Peak power: | 900 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Maximum input current (@110V): | 12 A |
| Maximum input current (@220V): | 6 A |
| Power factor: | 0.98 |
| Power Factor Correction (PFC) type: | Active |
| Number of +12V rail(s): | 1 |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 850 W |
| Combined power (+5V): | 120 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 22 A |
| Max output current (+12V1): | 70.9 A |
| Max output current (+5V): | 22 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Hold time: | 25.09 ms |
| Efficiency: | 92.8% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 55 cm |
| Number of SATA power connectors: | 6 |
| SATA power cable length: | 500,650,800,950 mm |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| Peripheral (Molex) power cable length: | 800,950 mm |
| EPS power connector (8-pin): | Yes |
| PCI Express power connectors (6+2 pin): | 4 |
| PCI Express power connectors (12-pin): | 1 |
| CPU P4 connector (4-pin): | 2 |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 65 cm |
| Cabling type: | Fully-Modular |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Gold |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.1 |
| EPS version: | 2.92 |
| Noise level: | 30.2 dB |
| Bearing technology: | Rifle |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan speed: | 0 - 2000 RPM |
| On/off switch: | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Certificates | |
|---|---|
| Compliance certificates: | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 160 mm |
| Height: | 86 mm |
| Weight: | 2.62 kg |
| Packaging data | |
|---|---|
| Package width: | 210 mm |
| Package depth: | 320 mm |
| Package height: | 133 mm |
| Package weight: | 3.4 kg |
| Technical details | |
|---|---|
| Sustainability certificates: | ENERGY STAR, ErP |
| Logistics data | |
|---|---|
| Shipping (inner) case length: | 58 cm |
| Shipping (inner) case width: | 32.5 cm |
| Shipping (inner) case height: | 23.3 cm |
| Products per shipping (inner) case: | 6 pc(s) |
| Shipping (inner) case gross weight: | 22.7 kg |
| Other features | |
|---|---|
| Screws included: | Yes |
| Cable ties included: | Yes |
