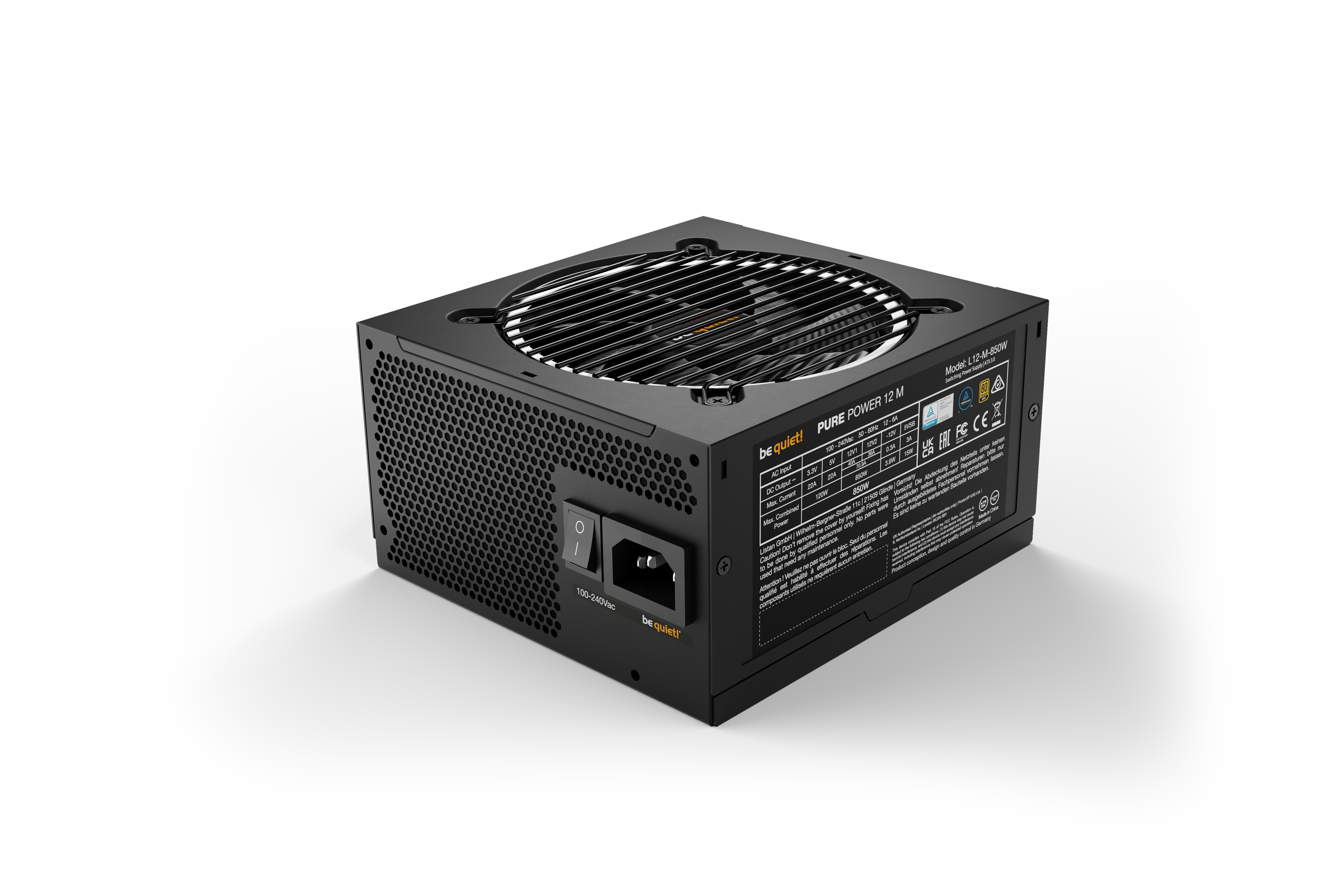

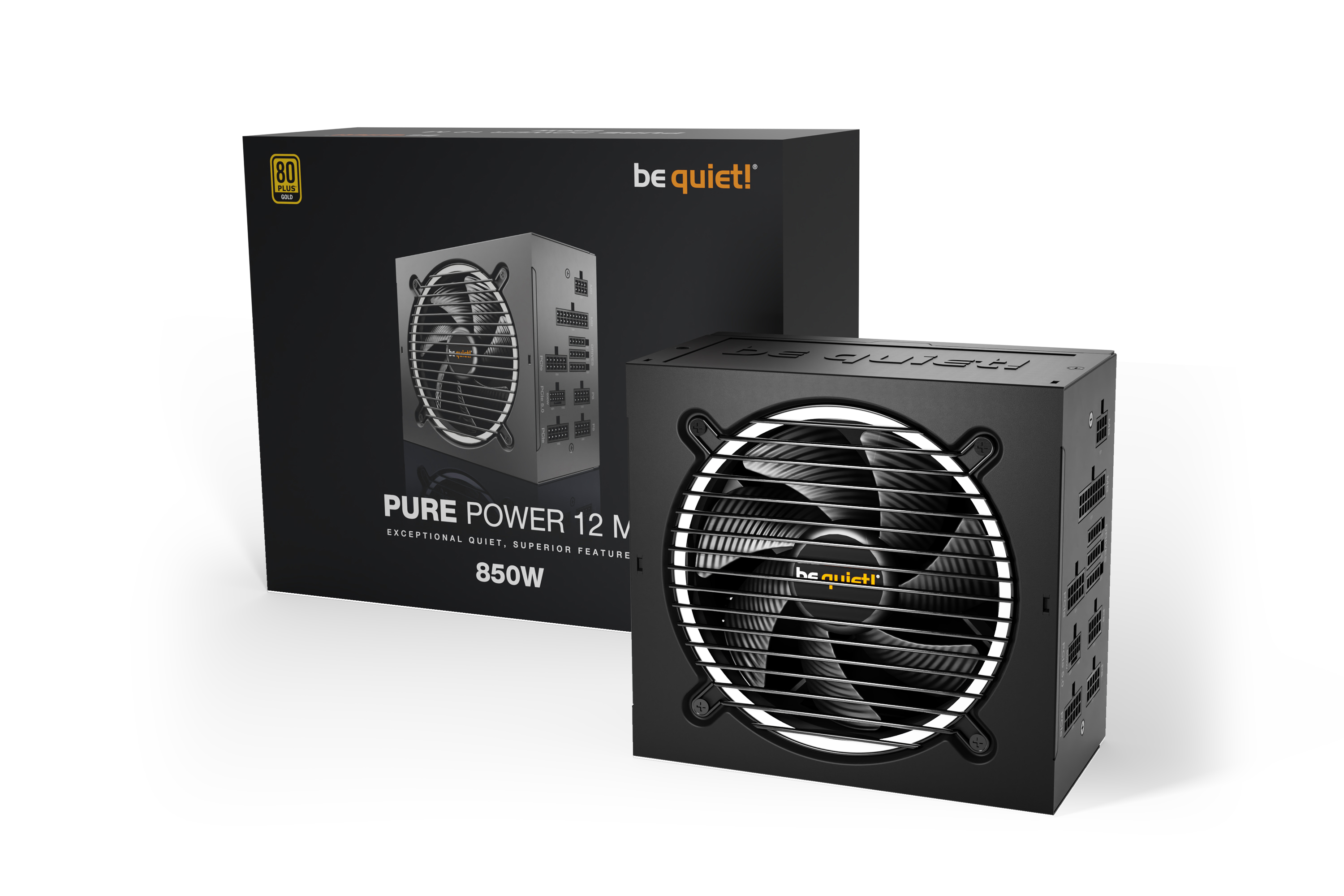

Aflgjafi BeQuiet! Pure Power 12 M 850W 80+Gold
Exceptional quiet, superior features
Pure Power 12 850W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
850W, 80 PLUS Gold, ATX 3.1, PCIe 5.1, 160 x 86 x 150mm be quiet! PURE POWER 12 850W, 850 W, 100 - 240 V, 900 W, 50/60 Hz, 12 A, 6 A |
|
Power | |
---|---|
Total power: | 850 W |
Peak power: | 900 W |
AC input voltage: | 100 - 240 V |
AC input frequency: | 50/60 Hz |
Maximum input current (@110V): | 12 A |
Maximum input current (@220V): | 6 A |
Power factor: | 0.98 |
Power Factor Correction (PFC) type: | Active |
Number of +12V rail(s): | 1 |
Combined power (+3.3V): | 120 W |
Combined power (+12V): | 850 W |
Combined power (+5V): | 120 W |
Combined power (-12V): | 3.6 W |
Combined power (+5Vsb): | 15 W |
Max output current (+3.3V): | 22 A |
Max output current (+12V1): | 70.9 A |
Max output current (+5V): | 22 A |
Max output current (-12V): | 0.3 A |
Max output current (+5Vsb): | 3 A |
Hold time: | 17.34 ms |
Efficiency: | 90.5% |
Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
Ports & interfaces | |
---|---|
Motherboard power connector: | 20+4 pin ATX |
Motherboard power cable length: | 55 cm |
Number of SATA power connectors: | 6 |
SATA power cable length: | 500,650,800,950 mm |
Peripheral (Molex) power connectors (4-pin): | 1 |
Peripheral (Molex) power cable length: | 800 mm |
PCI Express power connectors (6+2 pin): | 3 |
PCI Express power connectors (12-pin): | 1 |
PCI Express power cable length: | 60 cm |
CPU power connector (4+4 pin): | Yes |
CPU power cable length: | 60 cm |
Cabling type: | Non-Modular |
Performance | |
---|---|
80 PLUS certification: | 80 PLUS Gold |
Purpose: | PC |
Power supply unit (PSU) form factor: | ATX |
ATX version: | 3.1 |
EPS version: | 2.92 |
Noise level: | 25.1 dB |
Bearing technology: | Rifle |
Mean time between failures (MTBF): | 100000 h |
Design | |
---|---|
Product colour: | Black |
Cooling type: | Active |
Fan diameter: | 12 cm |
Number of fans: | 1 fan(s) |
On/off switch: | Yes |
Operational conditions | |
---|---|
Operating temperature (T-T): | 0 - 40 °C |
Storage temperature (T-T): | -20 - 70 °C |
Operating relative humidity (H-H): | 0 - 90% |
Storage relative humidity (H-H): | 0 - 95% |
Packaging content | |
---|---|
Cables included: | AC |
Cable tie(s) included: | Yes |
Certificates | |
---|---|
Compliance certificates: | CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
Weight & dimensions | |
---|---|
Width: | 86 mm |
Depth: | 160 mm |
Height: | 150 mm |
Weight: | 2.7 kg |
Packaging data | |
---|---|
Package width: | 133 mm |
Package depth: | 320 mm |
Package height: | 210 mm |
Package weight: | 3.1 kg |
Technical details | |
---|---|
Sustainability certificates: | ENERGY STAR, ErP, Triman |
Logistics data | |
---|---|
Shipping (inner) case length: | 56 cm |
Shipping (inner) case width: | 24 cm |
Shipping (inner) case height: | 34 cm |
Shipping (inner) case net weight: | 13.4 kg |
Products per shipping (inner) case: | 4 pc(s) |
Warranty period: | 10 year(s) |
Other features | |
---|---|
Screws included: | Yes |
