Universal AC/DC adapter ACPA116 110-220V input 6-16V 60W 5A out
Universal AC Power Adapter. 60 W, 6 / 7 / 8 / 9 / 10 / 11 / 16 VDC, 5,0-5,2A output. 100 - 240 V AC input voltage.
This compact universal 60 Watt adapter has a selectable voltage output between 6 and 16 V DC. The adapter has a short circuit protection and an overload protection and is supplied with 8 power tips. Due to this the adapter is suitable for a wide range of applications including for example notebooks.
Features
• Reversible polarity
• Manually selectable output voltage
• 8 power tips
• Efficiency level VI
• Manually selectable output voltage
• 8 power tips
• Efficiency level VI
Package contents
Power supply

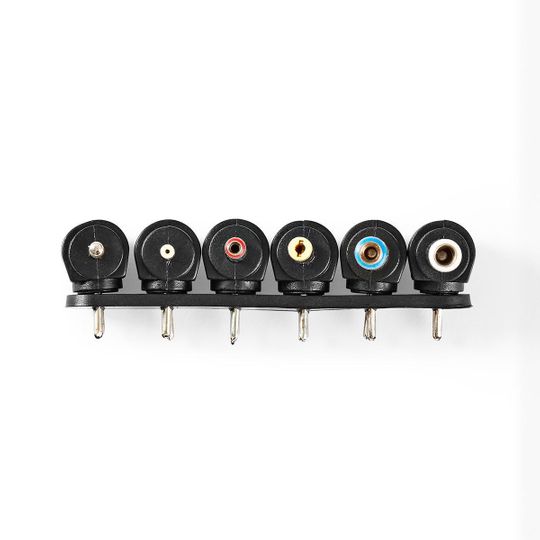

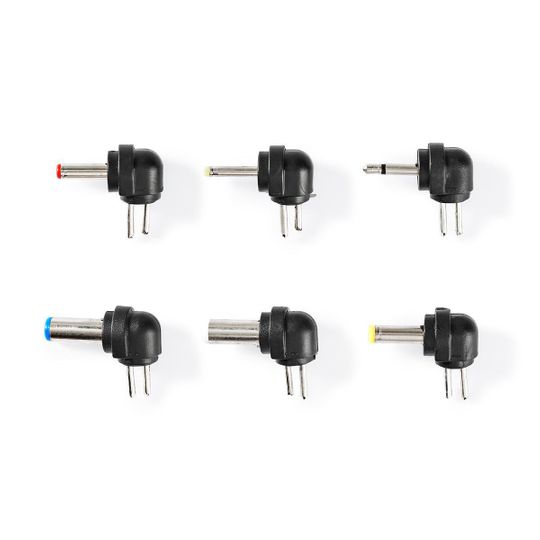

8x power tip
Manual
8x power tip
Manual
Product specifications
| Colour | Black |
|---|---|
| Output power | 60 W |
| Power source type | Mains Powered |
| Power plug | Type C (CEE 7/16) |
| Number of outputs | 1 |
| Depth | 35 mm |
| Width | 138 mm |
| Power cable side A | Euro / Type C (CEE 7/16) |
| Maximum power consumption | 60 W |
| Output voltage selection | Manually |
| Material | ABS+ |
| Appliance | Universal |
| Input voltage | 100 - 240 V AC |
| Output plug type | 5.0 x 2.1 mm 5.5 x 2.5 mm 3.5 x 1.35 mm 3.5 x 1.1 mm 4.0 x 1.7 mm 4.8 x 1.7 mm 5.5 x 2.1 mm 6.3 x 3.0 mm |
| Output voltage |
6 VDC
7,5 VDC 9 VDC 12 VDC 13,5 VDC 15 VDC 16 VDC |
| Height | 51 mm |
| Output current | 5.0 A - 5.2 A |
| Power adapter cable length | 1,10 meters |
| Weight | 279 grams |
