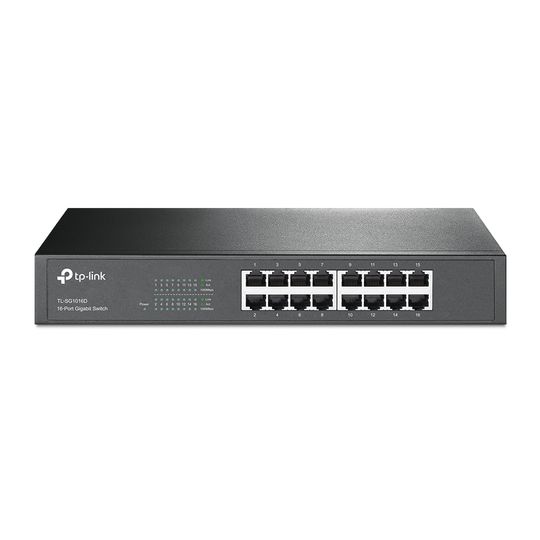

Switch TP-Link TL-SG1016D 16 port Gigabit Switch

Manufacturer: TP-Link
Manufact. no: TL-SG1016D
Product no: 3377

In Stock

16 porta 10/100/1000 Mbps Gigabit sviss.
Tengja má margar tölvur og jaðartæki saman í netkerfi með honum.  Svissinn er fyrir hraðvirk netkerfi og má senda stórar skrár án vandkvæða.
Staðlar: IEEE 802.3, 802.3u og 802.3ab
MAC address auto-learning, auto-aging og 8K MAC
LED gaumljós til að fylgjast með tengingu og álagi

Mál: 294.0 x 180.0 x 44.0 mm
Innbyggður aflgjafi


Free shipping
Price: 15,990 kr
TP-Link TL-SG1016D 16-Port Gigabit Ethernet Switch

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.

Specifications

  • Mfr. Part Number: TL-SG1016D
  • Features:
    • Innovative energy-efficient technology saves power up to 40%
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
    • 32Gbps Switching Capacity
    • 10K Jumbo frame improves performance of large data transfers
    • Auto-MDI/MDIX eliminates the need for crossover cables
    • Supports MAC address auto-learning and auto-aging
    • Store and forward Switching scheme
    • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
    • Desktop and Rack-mountable design
    • Plug and Play design simplifies installation
  • Standards and Protocols: IEEE802.3, 802.3u, 802.3ab, 802.3x, CSMA/CD, TCP/IP
  • Ports: 16x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
  • Basic Function:
    • Wire-speed Performance
    • MAC Address Auto-Learning and Auto-aging
    • IEEE802.3x flow control for Full-Duplex Mode and back pressure for Half-Duplex Mode
  • Backbound Bandwidth: 32Gbps
  • MAC Address Table: 8k
  • Forwarding Rate:
    • 10BASE-T: 14880pps/port
    • 100BASE-TX: 148800pps/port
    • 1000BASE-T: 1488000pps/port
  • Transmission Method: Store-and-Forward
  • Network Media:
    • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100 STP (maximum 100m)
    • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100 STP (maximum 100m)
    • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
  • LED Indicator: Power, Link/Act, 1000Mbps
  • Safety & Emission: FCC, CE
  • Power: 100~240VAC, 50/60Hz
  • Dimensions (WxDxH): 294.0 x 180.0 x 44.0 mm
