Starlink SLK2534212 network antenna Electronic phased array

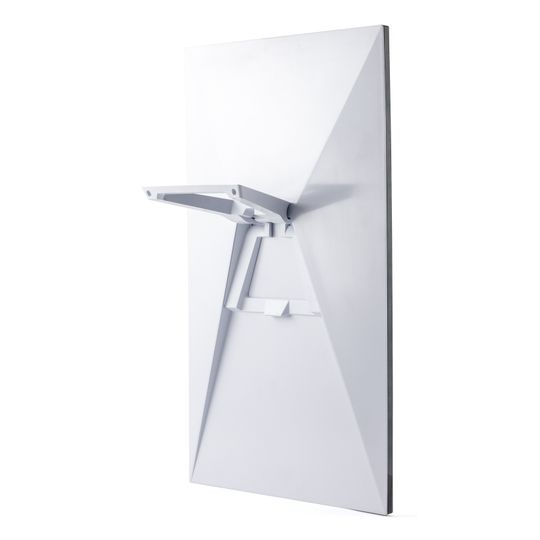

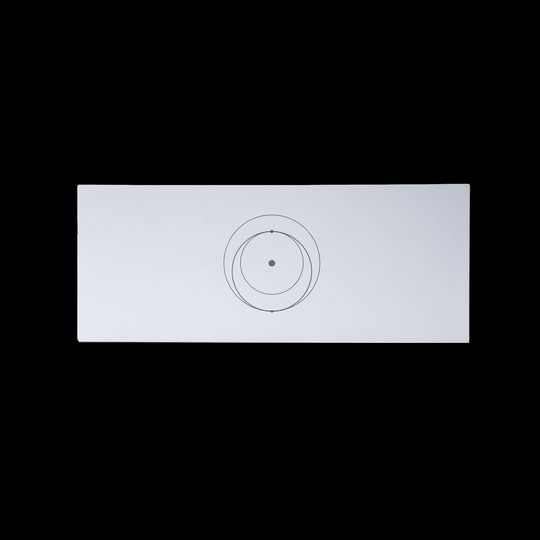

- Antenna Unit (Dish)
- Type: Electronically steered phased-array antenna
- Field of View: 110°
- Orientation: Manual setup with software-based field-of-view assistance
- Dimensions: 594 × 383 × 39.7 mm

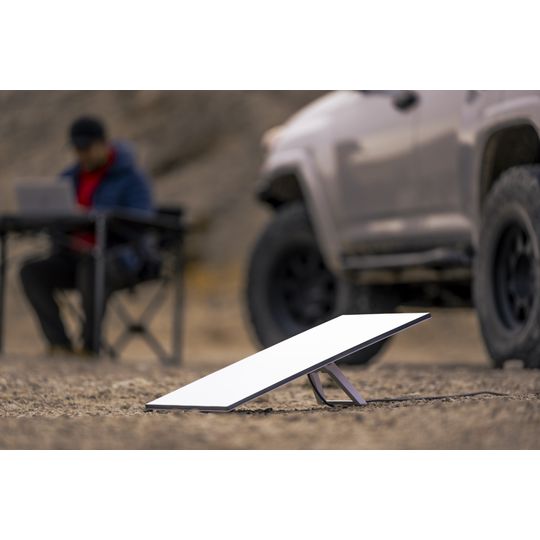

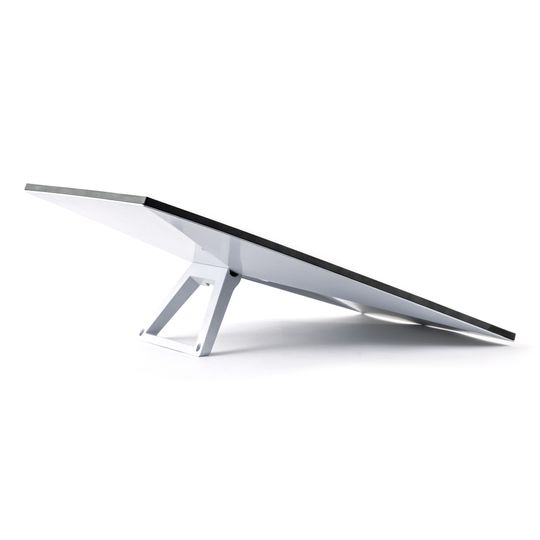

- Weight: 2.9 kg (antenna only), 3.2 kg with kickstand
- Environmental Protection: IP67 rated (dustproof and waterproof)
- Operating Temperature: –30°C to +50°C (–22°F to 122°F)
- Wind Resistance: Tested up to 96 km/h (60 mph) or higher
- Snow Melt Capability: Up to 40 mm/hour
- Average Power Consumption: 75–100 watts
- Input Power (Direct to Dish): 56V DC required
- Connectivity to Router: Via Starlink proprietary cable

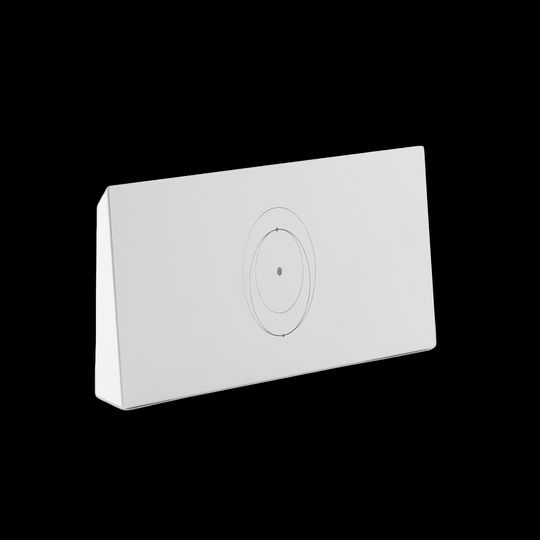

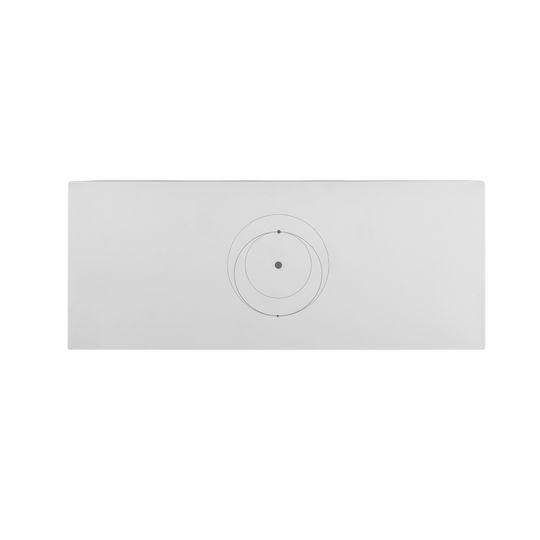

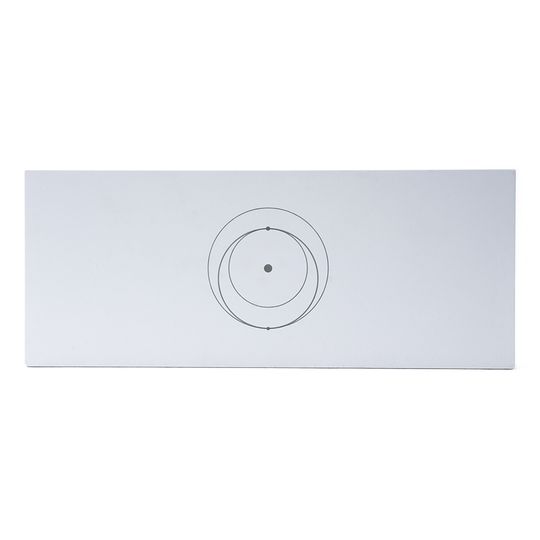

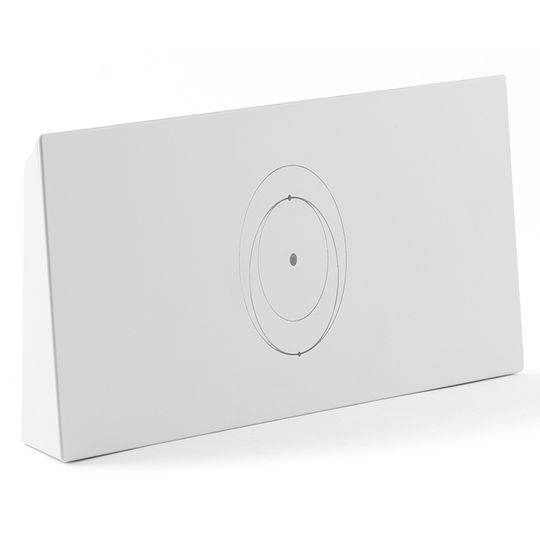

- Wi-Fi Router (Gen 3)
- Wi-Fi Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Frequencies: Tri-band (2.4 GHz and dual 5 GHz)
- MIMO Support: 4×4 MU-MIMO
- Maximum Device Connections: Up to 235 concurrent clients
- Coverage Area: Up to 297 m² (approx. 3,200 sq. ft)
- Security: WPA2

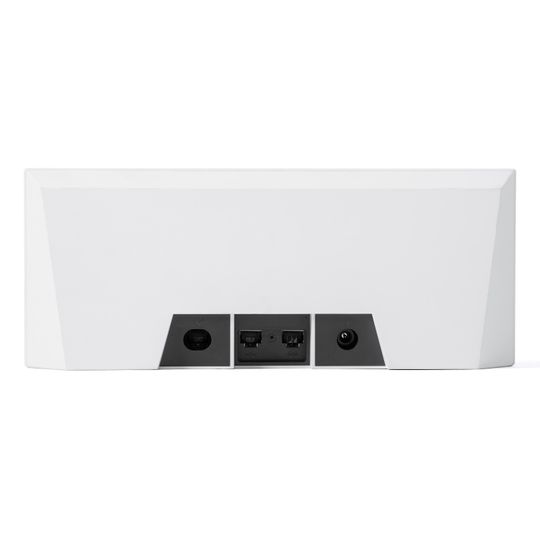

- Ports: 2× Gigabit Ethernet LAN ports (protected behind dust flaps)
- Compatibility: Supports Starlink Mesh Nodes (Gen 2 & Gen 3)
- Dimensions: Compact wall- or shelf-mounted design
- Weight: 0.57 kg
- Ingress Protection: IP56 (indoor use)
- Power Supply Unit (AC Adapter)
- Input Voltage: 100–240V AC ~ 2.5A, 50–60 Hz
- Output Voltage: 56V DC (for dish)
- Environmental Protection: IP66 (weather-resistant)
- Operating Temperature: –30°C to +60°C
- Size: 173 × 93 × 35.75 mm
- Weight: 0.65 kg

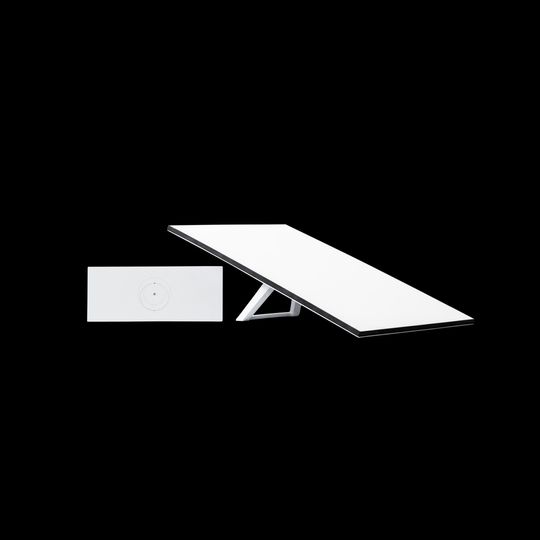

- Included in the Box
- 1× Starlink Standard (V4) Dish with integrated stand
- 1× Starlink Router
- 1× 15m (49ft) Starlink Cable
- 1× 1.5m (5ft) AC Power Cable
- 1× 1.5m (5ft) Power Adapter
- Documentation and Quick Setup Guide
- Packaging
- Shipping Dimensions: 652.4 × 451.7 × 97.9 mm
- Total Shipping Weight: 6.73 kg
