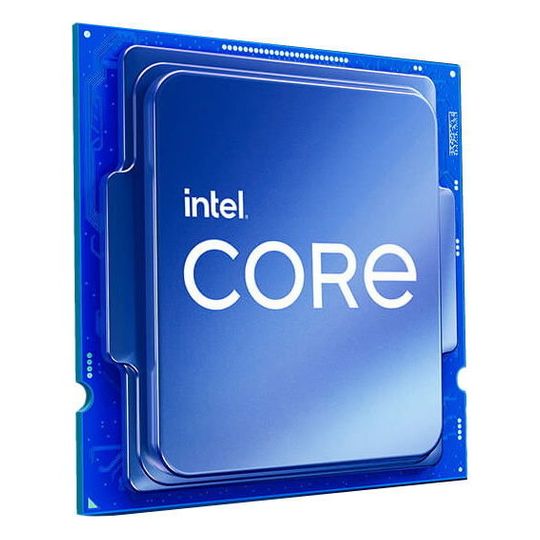

Processor Intel 1700 i5-13400 10C/16T UHD730
Intel Core i5 13400 LGA1700 20MB Cache 2,5GHz Gen13
Specification
Specification
Processor
Processor family: Intel® Core™ i5
Number of CPU cores: 10
Processor socket: LGA 1700
Processor manufacturer: intel
Processor: i5-13400
Processor Operating Modes: 64-bit
Processor generation: 13th Gen Intel® Core™ i5 processors
Processor threads: 16
Performance cores: 6
Efficient Cores: 4
Processor Boost Frequency: 4.6GHz
Power core boost frequency: 4.6GHz
Power Fundamental frequency of the core: 2.5GHz
Efficient core boost frequency: 3.3GHz
Efficient base frequency of the core: 1.8GHz
Processor cache: 20MB
Processor cache type: Smart cache
Base performance of the processor: 65W
Maximum turbo performance: 154W
Maximum number of DMI tracks: 8th
Processor code name: Raptor Lake
Processor specifics
Intel® Hyper-Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Other functions
Buffer memory L2: 9728KB
Graphic output: eDP 1.4b, DP 1.4a, HDMI 2.1
Operating conditions
Conjunction: 100ºC
Graphic
Built-in graphics adapters: Yes
Separate graphics adapter: No
On-board graphics adapter model: Intel UHD Graphics 730
Dedicated graphics adapter model: Not available
On-board graphics adapter supported outputs: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics adapter base frequency: 300MHz
Maximum dynamic frequency of the on-board graphics adapters: 1550MHz
Number of supported displays (on-board graphics): 4
On-board graphics adapter DirectX version: 12.0
On-board graphics adapter OpenGL version: 4.5
Maximum resolution of the on-board graphics adapter (DisplayPort): 7680x4320 pixels
Maximum resolution of the on-board graphics adapter (eDP - integrated flat screen): 5120x3200 pixels
Integrated graphics adapter maximum resolution (HDMI): 4096x2160 pixels
Refresh rate of the on-board graphics adapter at maximum resolution (DisplayPort): 60Hz
Refresh rate of the on-board graphics adapter at maximum resolution (eDP - integrated flat screen): 120Hz
Refresh rate of the on-board graphics adapter at maximum resolution (HDMI): 60Hz
On-board graphics adapter Device ID: 0x4682/0xA782
Number of calculators: 24
Multi format codec engines: 1
Features
Execute disable bit: Yes
Idle states: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Terms of use: PC/client/tablet
Maximum number of PCI Express lanes: 20
PCI Express slots version: 4.0, 5.0
PCI Express configurations: 1x16+1x4, 2x8+1x4
Supported Instruction Sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
CPU configuration (max): 1
Embedded options available: Yes
Direct Media Interface (DMI) revision: 4.0
Goods tariff number (HS): 8542310001
Export Control Classification Number (ECCN): 5A992C
Commodity Classification System for Automated Tracking (CCATS): 740.17B1
Storage
Memory channels: Dual channel
Maximum internal memory supported by the processor: 128GB
Memory types supported by the processor: DDR4 SDRAM, DDR5 SDRAM
Memory bandwidth (max): 76.8GB/s
Technical details
OpenCL version: 3.0
Start date: Q123
