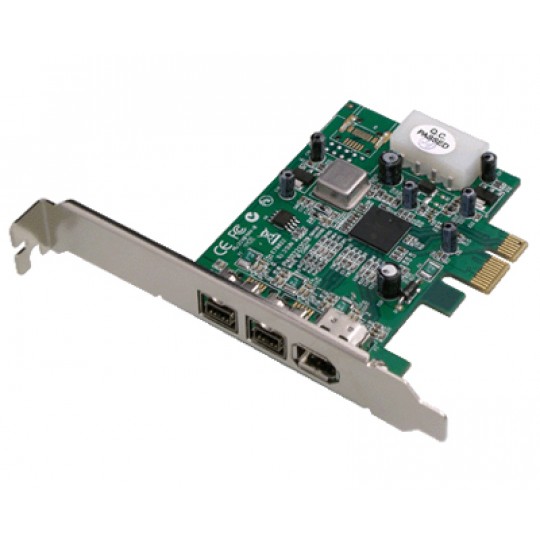

PCI-Express Firewire800 Controller with 3x FW800 Port

Manufacturer: Dawicontrol
Manufact. no: DC-FW800 PCIE
Product no: 7612

In Stock

Firewire 800 PCI-express stýrispjald, 3ja porta

  • Tengibraut: PCI-E
  • Flokkur: IEEE 1394 (FireWire), IEEE 1394b (FireWire 800)
  • Tengibúnaður: 2 x IEEE 1394b (FireWire 800) - 9p FireWire 800 + 1 x IEEE 1394 (FireWire) - 6p FireWire - ytri tengi
  • Virkar einnig fyrir eldri staðla, IEEE1394 (FireWire 400)
  • Gagnaflutningshraði (Mbps): 100 200 400 800

Free shipping
Price: 11,990 kr

Dawicontrol PCI-e DC-FW800 Firewire

Specifications

  • Mfr. Part Number: DC-FW800PCIE
  • Features:
    • 1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel
    • Compliant with PCI-Express Revision 1.0a
    • Support provisions of IEEE Standard P1394b-2002
    • Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
    • Support 800 / 400 / 200 / 100Mbps transfer rate
    • Fully Plug & Play and Hot Plug supported
    • Fully backward compatible to 1394a specification
    • Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
    • Fully interoperable with Firewire, iLink and SB1394 implementation of IEEE 1394 standard
    • Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
  • Ports: 2x 1394B firewire ports; 1x 1394A firewire port; 1x 1394A firewire internal header (Shared Port)
  • System Requirement: Software driver supports for Windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS
  • Hardware Requirement: Computer with PCI-Express
  • Dimensions(WxLxH): 5.5 x 6.9 x 1.5 inch

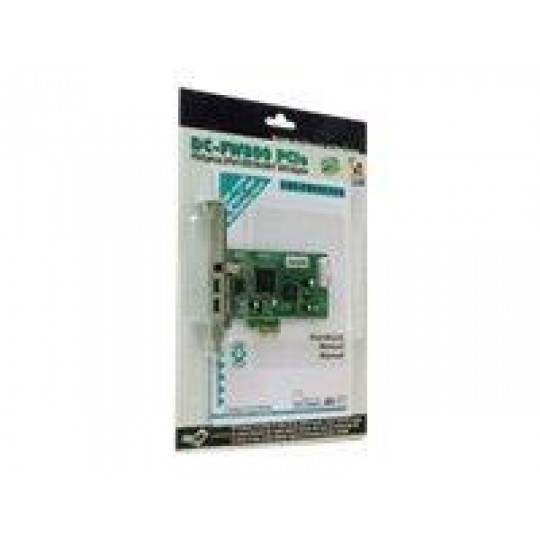

  • Package Contents: PCI-Express IEEE 1394B firewire controller card; Driver CD; User manual; Standard PCI-Express bracket
