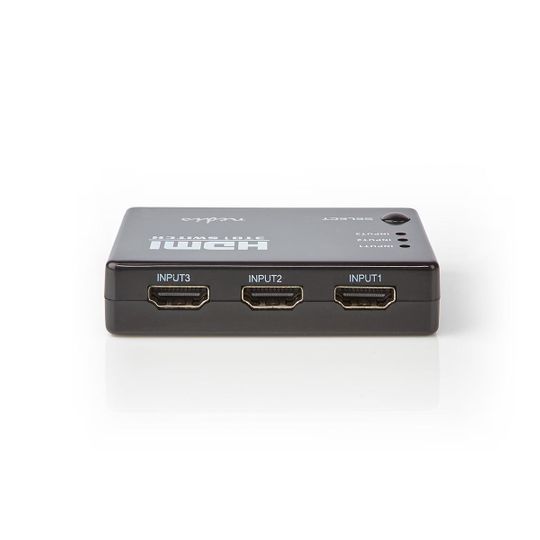

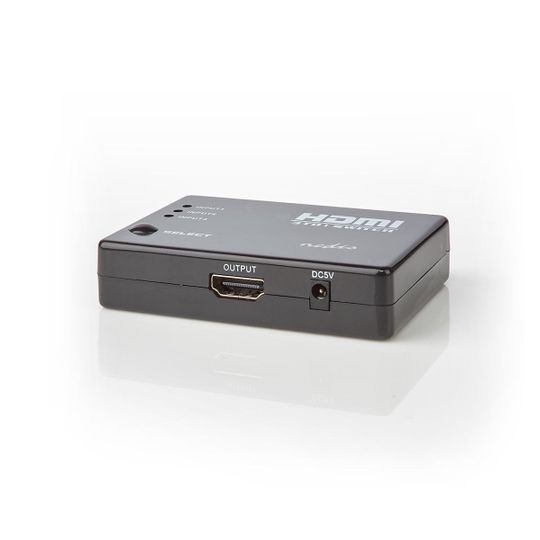

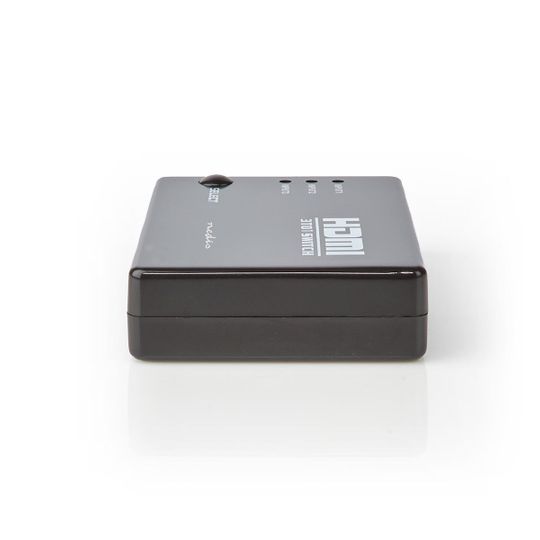

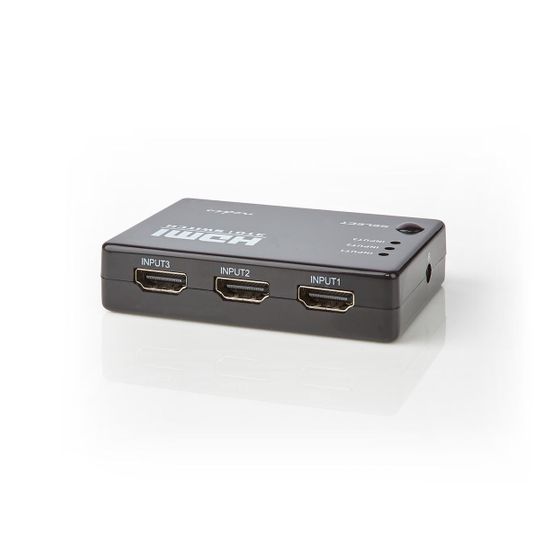

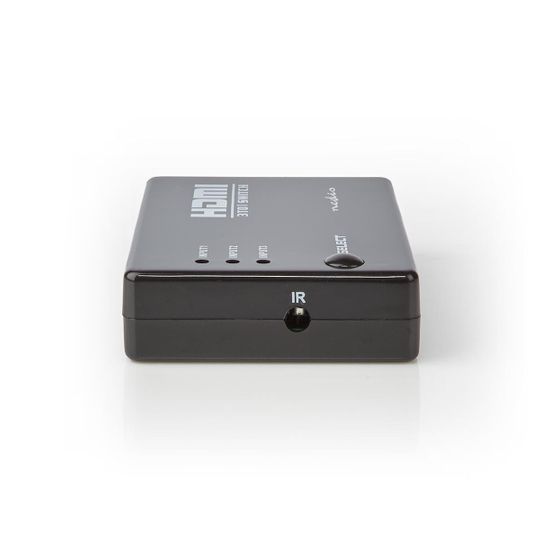

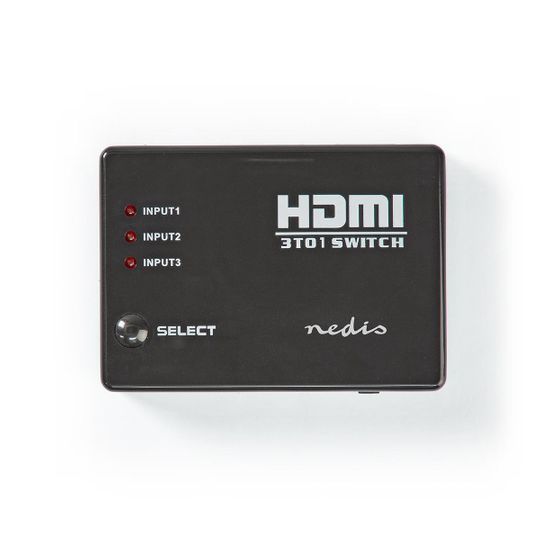

HDMI™ Switch. 3x HDMI™ Input - 1x HDMI™ Output, VSWI3453BK FHD
HDMI™ Switch. 3x HDMI™ Input - 1x HDMI™ Output. 1080p 3.4 Gbps ABS Black
Connect three full HD HDMI™ sources to a single screen with this three-port 1080p HDMI™ switch. It enables you to switch between three connected devices without having to constantly connect and disconnect them.
Features
• Supports Ultra HD 1080p @ 60 Hz and 3D
• Connects up to three full HD HDMI™ source devices to a single screen
• Switch operation manually
• Amplifies the digital video signal
• Connects up to three full HD HDMI™ source devices to a single screen
• Switch operation manually
• Amplifies the digital video signal
Package contents
Switch
Quick start guide
Quick start guide
Product specifications
|
Colour
|
Black
|
|---|---|
|
Material
|
ABS
|
|
Maximum resolution
|
1080p
|
|
Aspect ratio
|
16:9
|
|
Resolution standard
|
Full HD
|
|
Supported resolutions
|
720p
1080P 480i 480P 576i 576p 1080i |
|
Input current
|
1.0 A
|
|
Power source type
|
Mains Powered
|
|
Input voltage
|
5 V DC
|
|
Width
|
80.0 mm
|
|
Power consumption in operating mode
|
5 W
|
|
Controlling method
|
Automatic
|
|
Clock frequency
|
340 MHz
|
|
Maximum bandwith
|
3.4 Gbps
|
|
Colour formats
|
RGB
8 Bit Deep Colour |
|
Device type
|
HDMI™ Switch
|
|
Connection output
|
1x HDMI™ Output
|
|
Remote controlled
|
No
|
|
Ports
|
3-Port
|
|
Height
|
15.0 mm
|
|
Power adapter cable length
|
0.5 meters
|
|
Depth
|
55.0 mm
|
|
Connection input
|
3x HDMI™ Input
|
|
Supported technology
|
LPCM 44kHz,48kHz,96kHz
1080p |
